NRE150R-DHFDKN (2009)

Toyota Auris (Ukp)

Production Dec 2009 - Oct 2012
Engine 1NRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

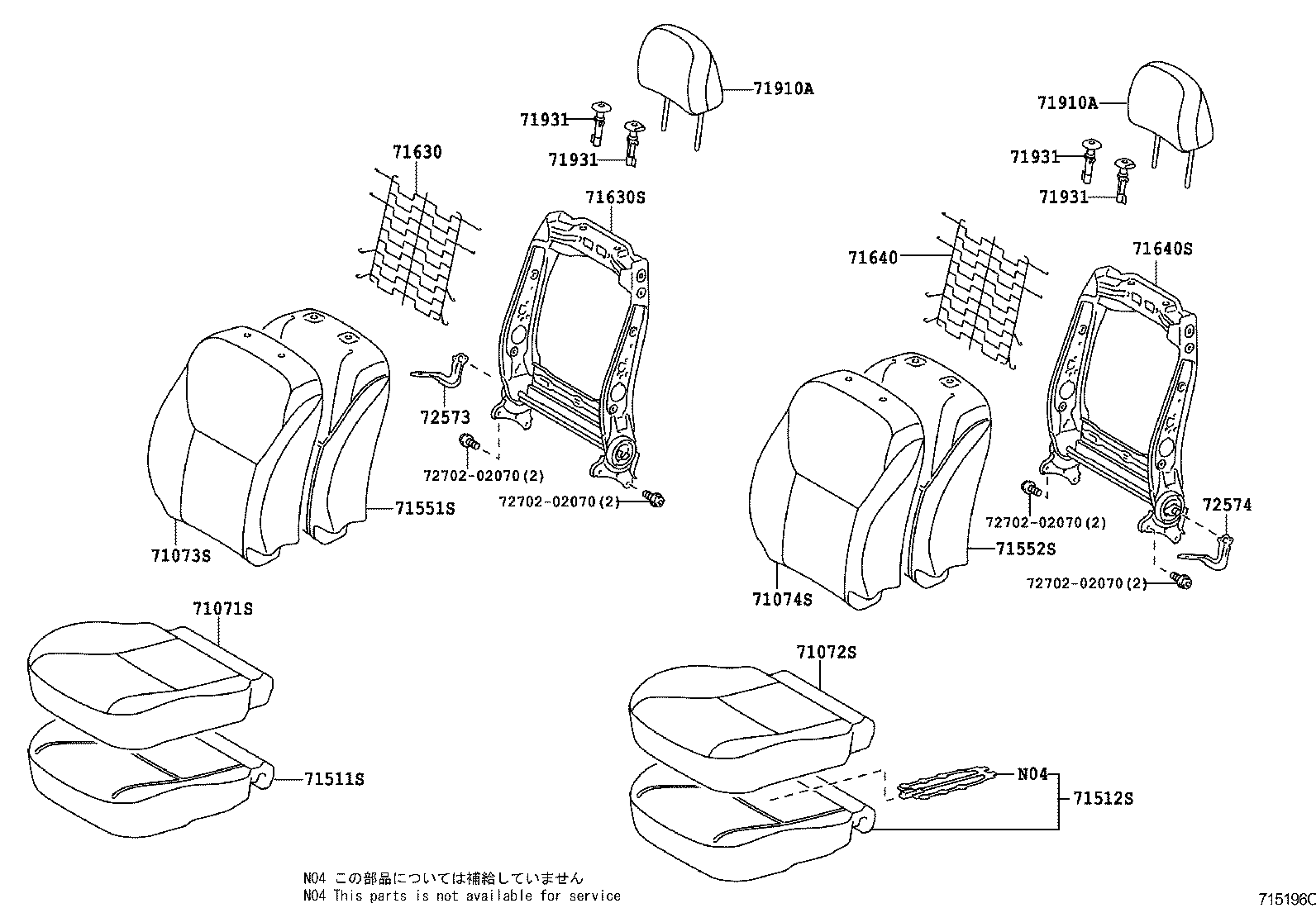

ILLUST NO. 1 OF 2(0706-1001)ZRE151..RT ; (0706-1001)NRE150,ZZE150..RT,TERRA

Click highlighted areas on diagram

W/O(SRS SIDE AIR BAG)

diagram 71071S 71072S 71073S 71074S 71511S 71512S 71551S 71552S 71630 71630S 71640 71640S 71910A 71910A 71931 71931 71931 71931 72573 72574 7270202070 7270202070 7270202070 7270202070
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-02M90B1

NRE150,ZRE151..TERRA

DARK GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-02Q90B1

NRE150,ZRE151..TERRA

DARK GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-02X30B3

NRE150,ZRE151..TERRA

DARK GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-02Y40B3

NRE150,ZRE151..TERRA

DARK GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-02330

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-02050

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-02860B1

NRE150,ZRE151..TERRA

DARK GRAY,TRIM1#,*154

 1
71910-02A10B1

NRE150,ZRE151..TERRA

DARK GRAY,TRIM1#,*153

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-02860B1

NRE150,ZRE151..TERRA

DARK GRAY,TRIM1#,*154

 1
71910-02A10B1

NRE150,ZRE151..TERRA

DARK GRAY,TRIM1#,*153

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02140B0

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

W(LOCK),DK.GRAY,TRIM1#

 1
71931-02110B0

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

W/O(LOCK),DK.GRAY,TRIM1#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02140B0

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

W(LOCK),DK.GRAY,TRIM1#

 1
71931-02110B0

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

W/O(LOCK),DK.GRAY,TRIM1#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02140B0

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

W(LOCK),DK.GRAY,TRIM1#

 1
71931-02110B0

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

W/O(LOCK),DK.GRAY,TRIM1#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02140B0

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

W(LOCK),DK.GRAY,TRIM1#

 1
71931-02110B0

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

W/O(LOCK),DK.GRAY,TRIM1#

 1
72573 - LEVER, RECLINING CONTROL, RH
72573-02030

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 1
72574 - LEVER, RECLINING CONTROL, LH
72574-02030

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 1
Common parts
72702-02070
