NRE150R-DHFDKN (2008)

Toyota Auris (Ukp)

Production Nov 2008 - Dec 2009
Engine 1NRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )NRE150,ZRE15#..6F,6FS

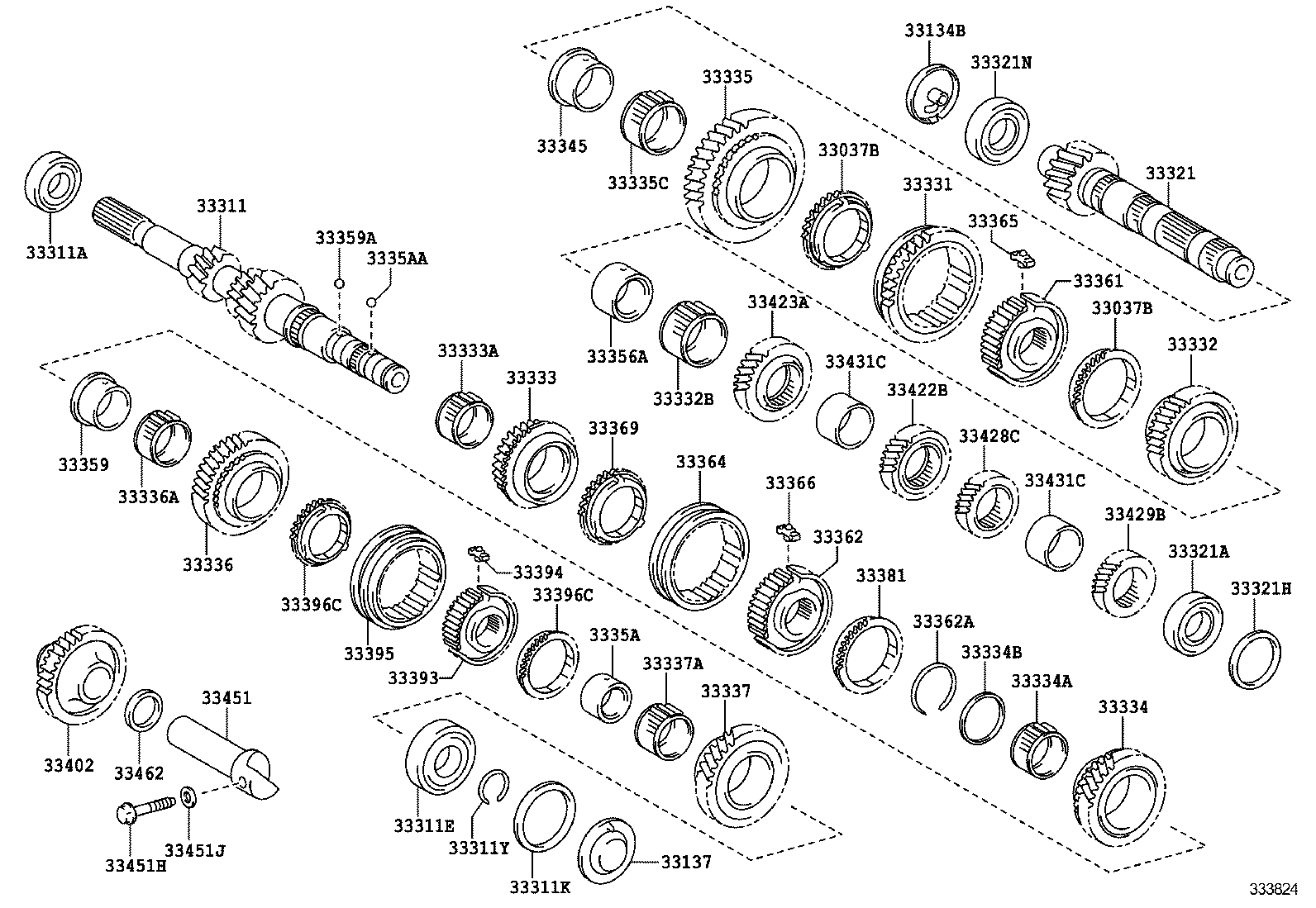

Click highlighted areas on diagram

EC60,EC60A

diagram 33037B 33037B 33134B 33137 33311 33311A 33311E 33311K 33311Y 33321 33321A 33321H 33321N 33331 33332 33332B 33333 33333A 33334 33334A 33334B 33335 33335C 33336 33336A 33337 33337A 33345 33356A 33359 33359A 3335A 3335AA 33361 33362 33362A 33364 33365 33366 33369 33381 33393 33394 33395 33396C 33396C 33402 33422B 33423A 33428C 33429B 33431C 33431C 33451 33451H 33451J 33462
Part # Description Qty Price
33311K - SHIM (FOR INPUT SHAFT REAR BEARING)
90564-54069

NRE150

T=1.90,MARK S,*201,*202,*206

 1
90564-54072

NRE150

T=2.05,MARK V,*201,*202,*206

 1
90564-54071

NRE150

T=2.00,MARK U,*201,*202,*206

 1
90564-54070

NRE150

T=1.95,MARK T,*201,*202,*206

 1
33321A - BEARING (FOR OUTPUT SHAFT REAR)
90366-W0016

NRE150,ZRE152;ZRE151..6F..(RS,RT)

*202

 1
33321N - BEARING (FOR OUTPUT SHAFT FRONT)
90366-W0019

NRE150,ZRE152;ZRE151..6F..(RS,RT)

*202

 1
33345 - BUSH, 1ST GEAR
33345-05010

NRE150

*202

 1
33356A - RACE, 2ND GEAR BEARING INNER
33356-05010

NRE150

*202

 1
33359 - RACE, 5TH GEAR BEARING INNER
33359-05010

NRE150

*202

 1
3335A - RACE, 6TH GEAR BEARING, INNER(MTM)
3335A-05010

NRE150

*202

 1
