ADE150R-DHFNYN (2009)

Toyota Auris (Ukp)

Production Dec 2009 - Oct 2012
Engine 1ADFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 5 OF 6(0912- )ZRE151..SOL,TERRA ; (0912- )ADE150,NRE150..RX,TERRA

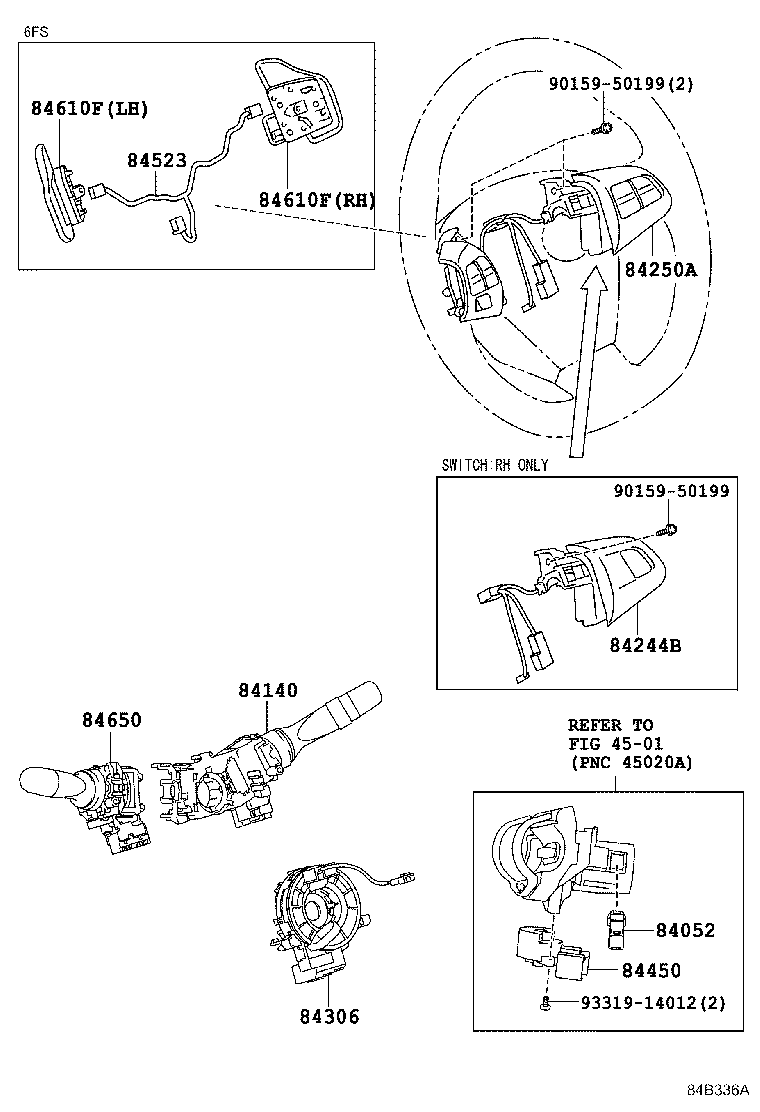

Click highlighted areas on diagram

STEERING

diagram 4501 84052 84140 84244B 84250A 84306 84450 84523 84610F 84610F 84650 9015950199 9015950199 9331914012
Part # Description Qty Price
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-71010

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

 1
84052-71010

ADE150,ZRE151..RX,SOL

STARTING SYSTEM-PUSH BUTTON

 1
84052-71010

ADE150,ZRE152..RX;ZRE151..(5F,5FS)..RS

STARTING SYSTEM-PUSH BUTTON

 1
84052-71010

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-02380

ADE150..RX;ZRE151,ZZE150..(5F,5FS)..RS

 1
84140-02370

ADE150..RX;ZRE151,ZZE150..5F..RS

FRONT FOG LAMP-WITHOUT

 1
84140-02350

ADE150..RX;ZRE151,ZZE150..(5F,5FS)..RS

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
84140-02360

ADE150..RX;ZRE151,ZZE150..5F..RS

INTERMITTENT WIPER-AUTO(RAIN SENSOR)&FRONT FOG LAMP-WITHOUT

 1
84140-02360

ADE150,ZRE151..RX,SOL

INTERMITTENT WIPER-AUTO(RAIN SENSOR)&FRONT FOG LAMP-WITHOUT

 1
84140-02760

ADE150,ZRE151..RX,SOL

 1
84140-02370

ADE150,ZRE151..RX,SOL

FRONT FOG LAMP-WITHOUT

 1
84140-02380

ADE150,ZRE151..RX,SOL

 1
84140-02770

ADE150,ZRE151..RX,SOL

FRONT FOG LAMP-WITHOUT

 1
84140-02350

ADE150,ZRE151..RX,SOL

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
84244B - SWITCH, STEERING PAD, RH
84244-02010

ADE150,ZRE151..RX,SOL

CRUISE CONTROL-WITH&RADIOLESS 6SPEAKER

 1
84244-02010

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

RADIOLESS 6SPEAKER

 1
84250A - SWITCH ASSY, STEERING PAD
84250-02050

ADE150,ZRE151..RX,SOL

CD 6SPEAKER(MULTI)

 1
84250-02050

ADE150,ZRE151..RX,SOL

CRUISE CONTROL-WITH&CD 6SPEAKER(MULTI)

 1
84250-02150

ADE150,ZRE151..RX,SOL

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-0D070

ADE150..RX

 1
84306-0D090

ADE150..RX

STEERING WHEEL-3-SPOKE,URETHANE

 1
84306-0D070

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-12200

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

 1
84450-12200

ADE150,ZRE151..RX,SOL

STARTING SYSTEM-PUSH BUTTON

 1
84450-12200

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 1
84450-12200

ADE150,ZRE152..RX;ZRE151..(5F,5FS)..RS

STARTING SYSTEM-PUSH BUTTON

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-02440

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

 1
84652-02430

ADE150,ZRE151..RX,SOL

STARTING SYSTEM-PUSH BUTTON

 1
84652-02440

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 1
84652-02430

ADE150,ZRE152..RX;ZRE151,ZZE150..(5F,5FS)..RS

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
Common parts
90159-50199
93319-14012
Linked diagrams
4501
