ADE150R-DHFNYN (2009)

Toyota Auris (Ukp)

Production Dec 2009 - Oct 2012
Engine 1ADFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )ZRE151..SOL,TERRA ; (0912- )ADE150,NRE150..RX,TERRA

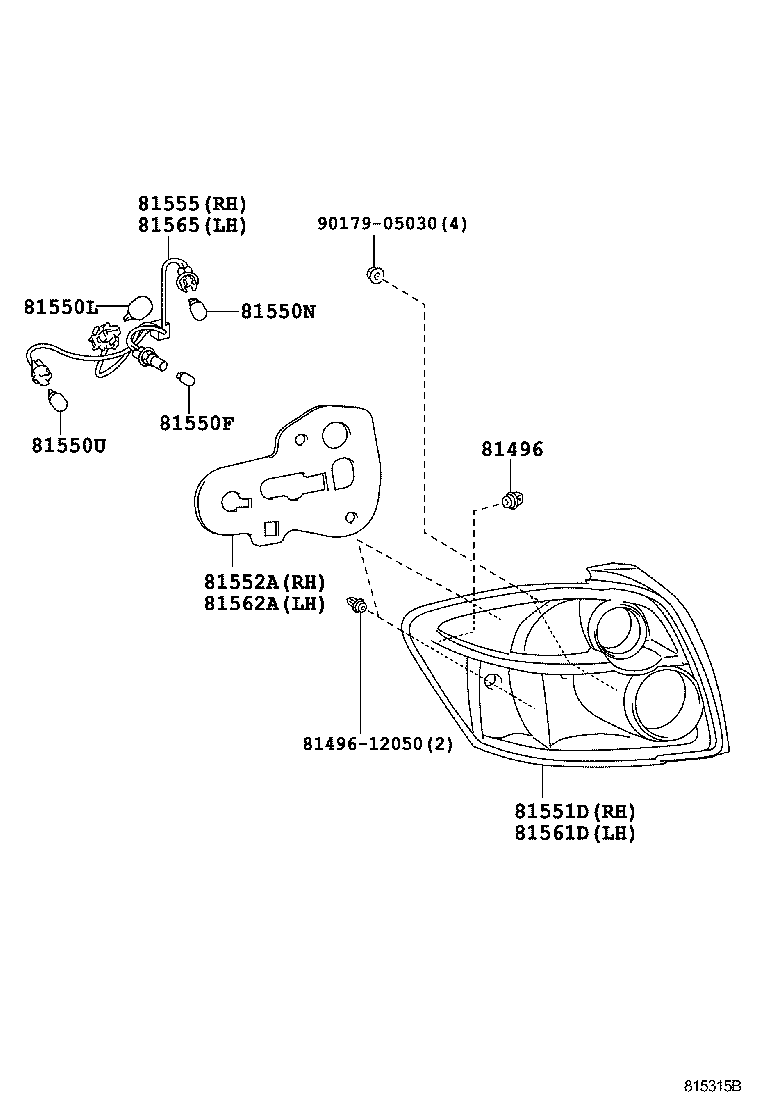

Click highlighted areas on diagram

diagram 81496 8149612050 81550F 81550L 81550N 81550U 81551D 81552A 81555 81561D 81562A 81565 9017905030
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-28010

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

 2
81496-28010

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 2
81550F - BULB, TAIL LAMP
99132-11050

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

 2
90981-WB006

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 2
90981-WF005

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

 2
81550N - BULB, BACK UP LAMP
90981-WB007

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 2
90981-WC006

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

 1
81550U - BULB, STOP LAMP
90981-WB007

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

 2
90981-WB007

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-02380

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

*154

 1
81551-02550

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 1
81551-02400

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

*153

 1
81552A - GASKET, REAR COMBINATION LAMP, RH
81552-02370

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

*154

 1
81552-02530

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 1
81552-02390

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

*153

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-02400

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

*153

 1
81555-02550

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 1
81555-02380

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

*154

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-02370

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

*154

 1
81561-02390

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

*153

 1
81561-02530

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 1
81562A - GASKET, REAR COMBINATION LAMP, LH
81562-02390

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

*153

 1
81562-02530

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 1
81562-02370

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

*154

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-02390

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

*153

 1
81565-02370

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

*154

 1
81565-02530

ZRE151..SOL,TERRA;ADE150,NRE150..RX,TERRA

 1
Common parts
81496-12050
90179-05030
