ADE150R-DHFNYN (2007)

Toyota Auris (Ukp)

Production Jun 2007 - Mar 2009
Engine 1ADFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706- )

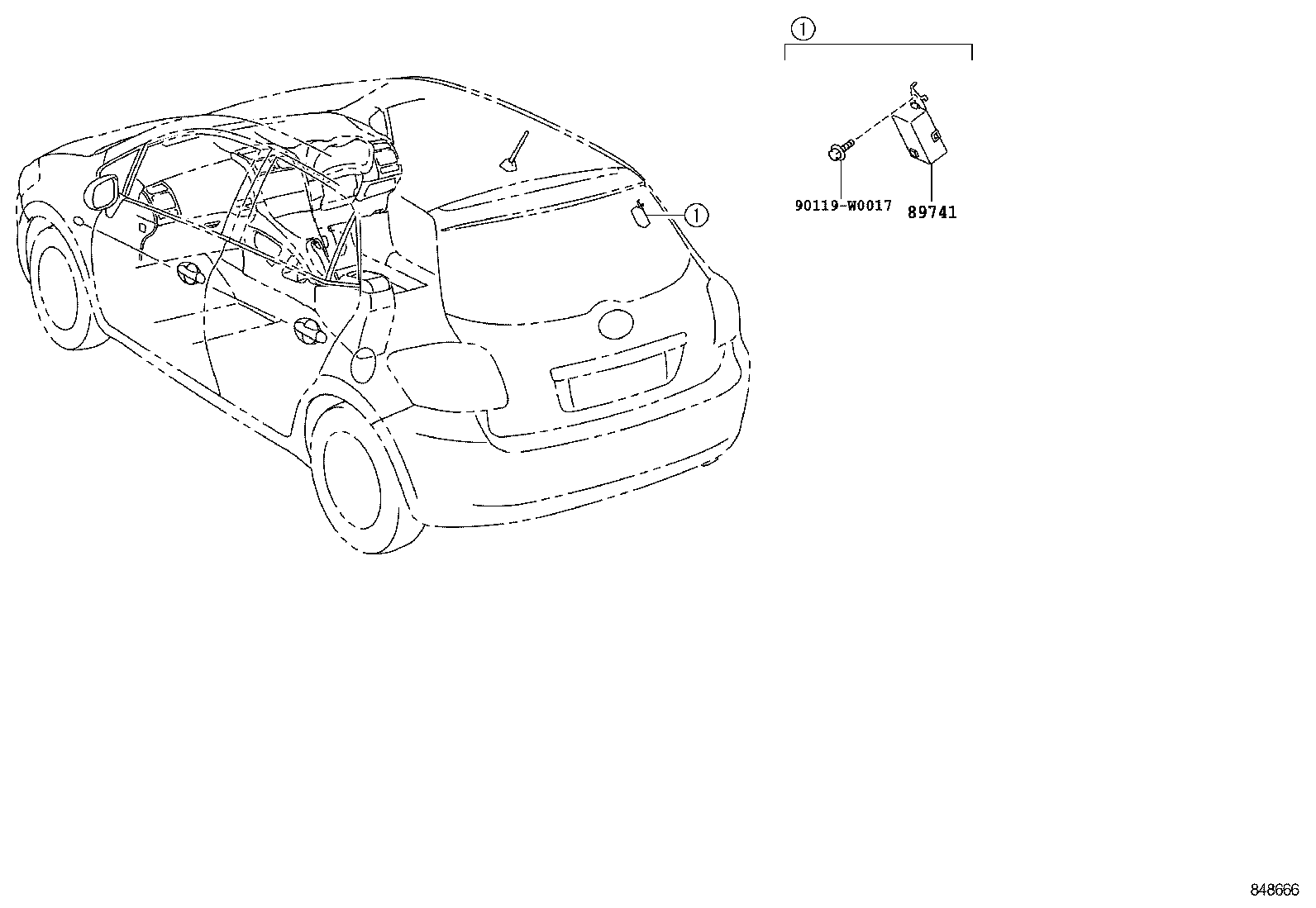

Click highlighted areas on diagram

diagram 89741 90119W0017
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89741-02130

ADE150

 1
89740-02011

ADE150..RX

STARTING SYSTEM-PUSH BUTTON

 1
89740-02010

ZRE151..RS;ADE150,ZRE152..RX

STARTING SYSTEM-PUSH BUTTON

 1
89741-02130

ADE150..RX

STARTING SYSTEM-PUSH BUTTON

 1
Common parts
90119-W0017

(0706-0902)ZRE151..RS ; (0706-0902)ZRE152..RX ;(0706-0903)ADE150..RX

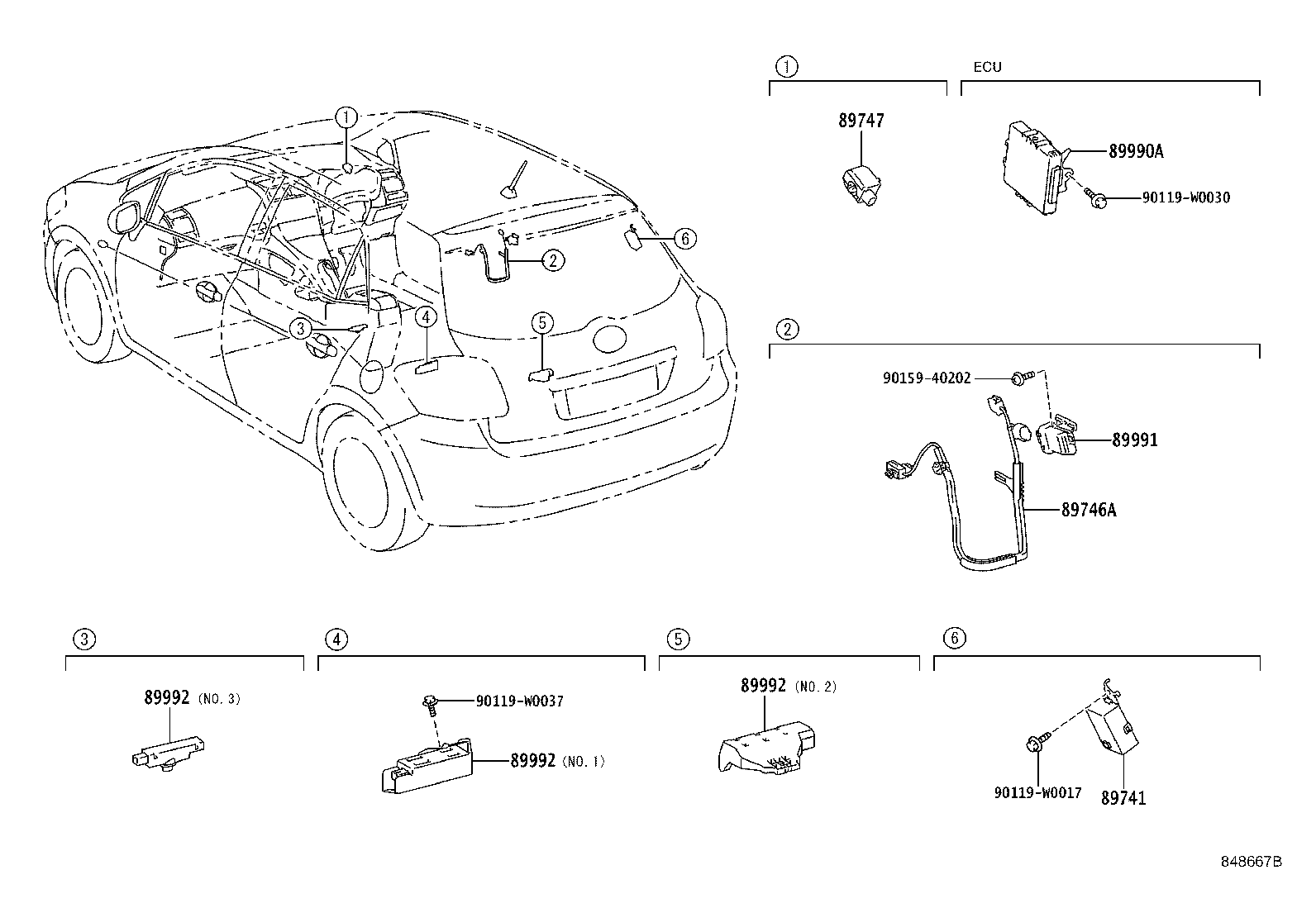

Click highlighted areas on diagram

STARTING SYSTEM-PUSH BUTTON

diagram 89741 89746A 89747 89990A 89991 89992 89992 89992 90119W0017 90119W0030 90119W0037 9015940202
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89741-02130

ADE150

 1
89740-02011

ADE150..RX

STARTING SYSTEM-PUSH BUTTON

 1
89740-02010

ZRE151..RS;ADE150,ZRE152..RX

STARTING SYSTEM-PUSH BUTTON

 1
89741-02130

ADE150..RX

STARTING SYSTEM-PUSH BUTTON

 1
89746A - HARNESS, ELECTRICAL KEY WIRE
89746-02010

ADE150..RX

STARTING SYSTEM-PUSH BUTTON

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-52010

ADE150..RX

STARTING SYSTEM-PUSH BUTTON

 1
89990A - COMPUTER ASSY, SMART KEY
89990-02010

ZRE151..RS;ADE150,ZRE152..RX

STARTING SYSTEM-PUSH BUTTON

 1
89990-02011

ADE150..RX

STARTING SYSTEM-PUSH BUTTON

 1
89991 - OSCILLATOR, DOOR ELECTRICAL KEY
89991-30040

ADE150,ZRE152..RX;ZRE151..(5F,5FS)..RS

STARTING SYSTEM-PUSH BUTTON

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-02020

ADE150..RX

STARTING SYSTEM-PUSH BUTTON,NO.1

 1
89992-0D020

ADE150..RX

STARTING SYSTEM-PUSH BUTTON,NO.3

 1
89992-02030

ADE150..RX

STARTING SYSTEM-PUSH BUTTON,NO.2

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-02020

ADE150..RX

STARTING SYSTEM-PUSH BUTTON,NO.1

 1
89992-0D020

ADE150..RX

STARTING SYSTEM-PUSH BUTTON,NO.3

 1
89992-02030

ADE150..RX

STARTING SYSTEM-PUSH BUTTON,NO.2

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-02020

ADE150..RX

STARTING SYSTEM-PUSH BUTTON,NO.1

 1
89992-0D020

ADE150..RX

STARTING SYSTEM-PUSH BUTTON,NO.3

 1
89992-02030

ADE150..RX

STARTING SYSTEM-PUSH BUTTON,NO.2

 1
Common parts
90119-W0017
90119-W0030
90119-W0037
90159-40202

(0902- )ZRE152..RX ; (0902- )ZRE151..RS,SOL ; (0903- )ADE150..RX

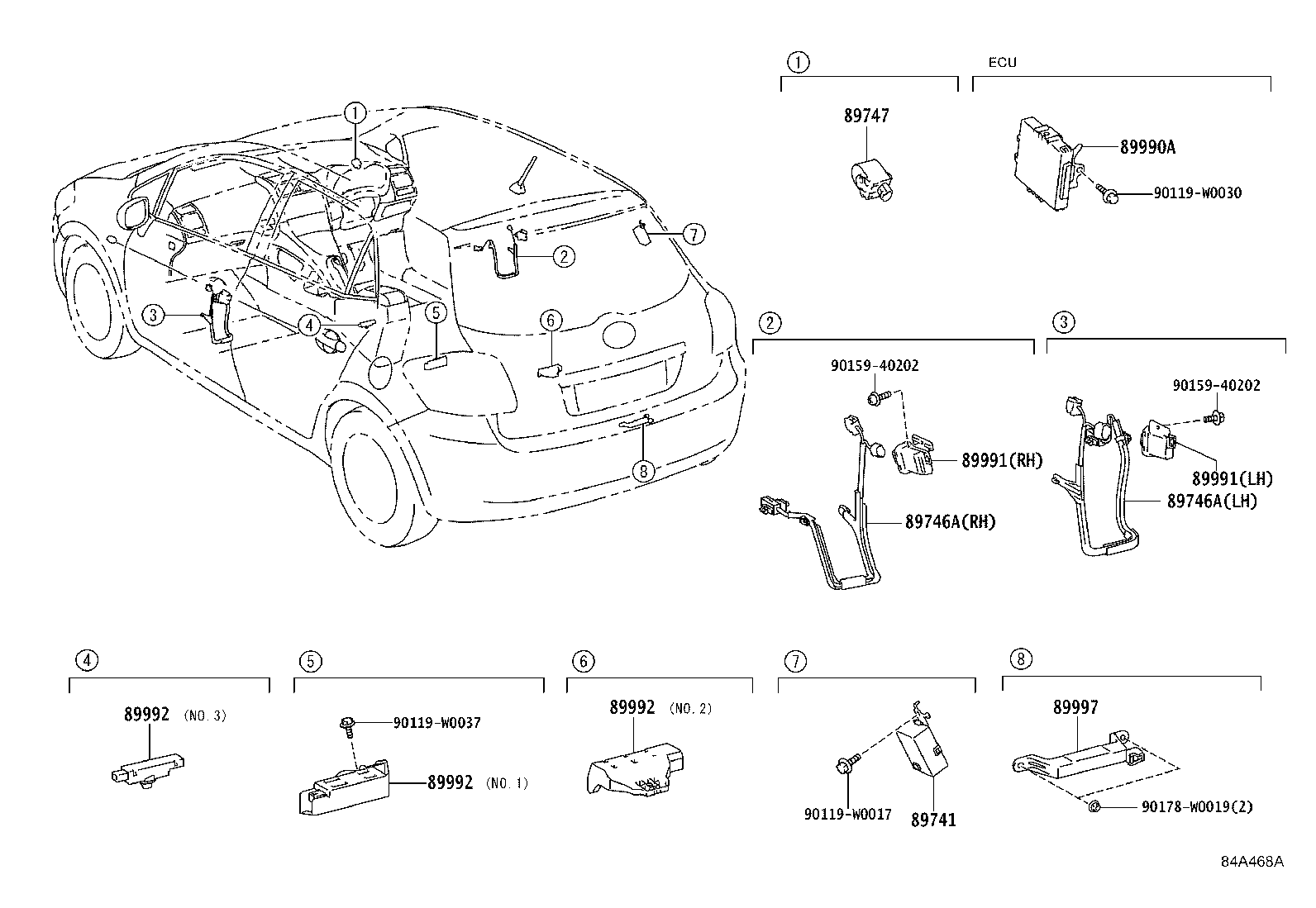

Click highlighted areas on diagram

STARTING SYSTEM-PUSH BUTTON

diagram 89741 89746A 89746A 89747 89990A 89991 89991 89992 89992 89992 89997 90119W0017 90119W0030 90119W0037 9015940202 9015940202 90178W0019
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89741-02130

ADE150

 1
89740-02011

ADE150..RX

STARTING SYSTEM-PUSH BUTTON

 1
89740-02010

ZRE151..RS;ADE150,ZRE152..RX

STARTING SYSTEM-PUSH BUTTON

 1
89741-02130

ADE150..RX

STARTING SYSTEM-PUSH BUTTON

 1
89746A - HARNESS, ELECTRICAL KEY WIRE
89746-02010

ADE150..RX

STARTING SYSTEM-PUSH BUTTON

 1
89746A - HARNESS, ELECTRICAL KEY WIRE
89746-02010

ADE150..RX

STARTING SYSTEM-PUSH BUTTON

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-52010

ADE150..RX

STARTING SYSTEM-PUSH BUTTON

 1
89990A - COMPUTER ASSY, SMART KEY
89990-02010

ZRE151..RS;ADE150,ZRE152..RX

STARTING SYSTEM-PUSH BUTTON

 1
89990-02011

ADE150..RX

STARTING SYSTEM-PUSH BUTTON

 1
89991 - OSCILLATOR, DOOR ELECTRICAL KEY
89991-30040

ADE150,ZRE152..RX;ZRE151..(5F,5FS)..RS

STARTING SYSTEM-PUSH BUTTON

 1
89991 - OSCILLATOR, DOOR ELECTRICAL KEY
89991-30040

ADE150,ZRE152..RX;ZRE151..(5F,5FS)..RS

STARTING SYSTEM-PUSH BUTTON

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-02020

ADE150..RX

STARTING SYSTEM-PUSH BUTTON,NO.1

 1
89992-0D020

ADE150..RX

STARTING SYSTEM-PUSH BUTTON,NO.3

 1
89992-02030

ADE150..RX

STARTING SYSTEM-PUSH BUTTON,NO.2

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-02020

ADE150..RX

STARTING SYSTEM-PUSH BUTTON,NO.1

 1
89992-0D020

ADE150..RX

STARTING SYSTEM-PUSH BUTTON,NO.3

 1
89992-02030

ADE150..RX

STARTING SYSTEM-PUSH BUTTON,NO.2

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-02020

ADE150..RX

STARTING SYSTEM-PUSH BUTTON,NO.1

 1
89992-0D020

ADE150..RX

STARTING SYSTEM-PUSH BUTTON,NO.3

 1
89992-02030

ADE150..RX

STARTING SYSTEM-PUSH BUTTON,NO.2

 1
Common parts
90119-W0017
90119-W0030
90119-W0037
90159-40202
90178-W0019
