ADE150R-DHFDYN (2007)

Toyota Auris (Ukp)

Production Jun 2007 - Mar 2009
Engine 1ADFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706- )

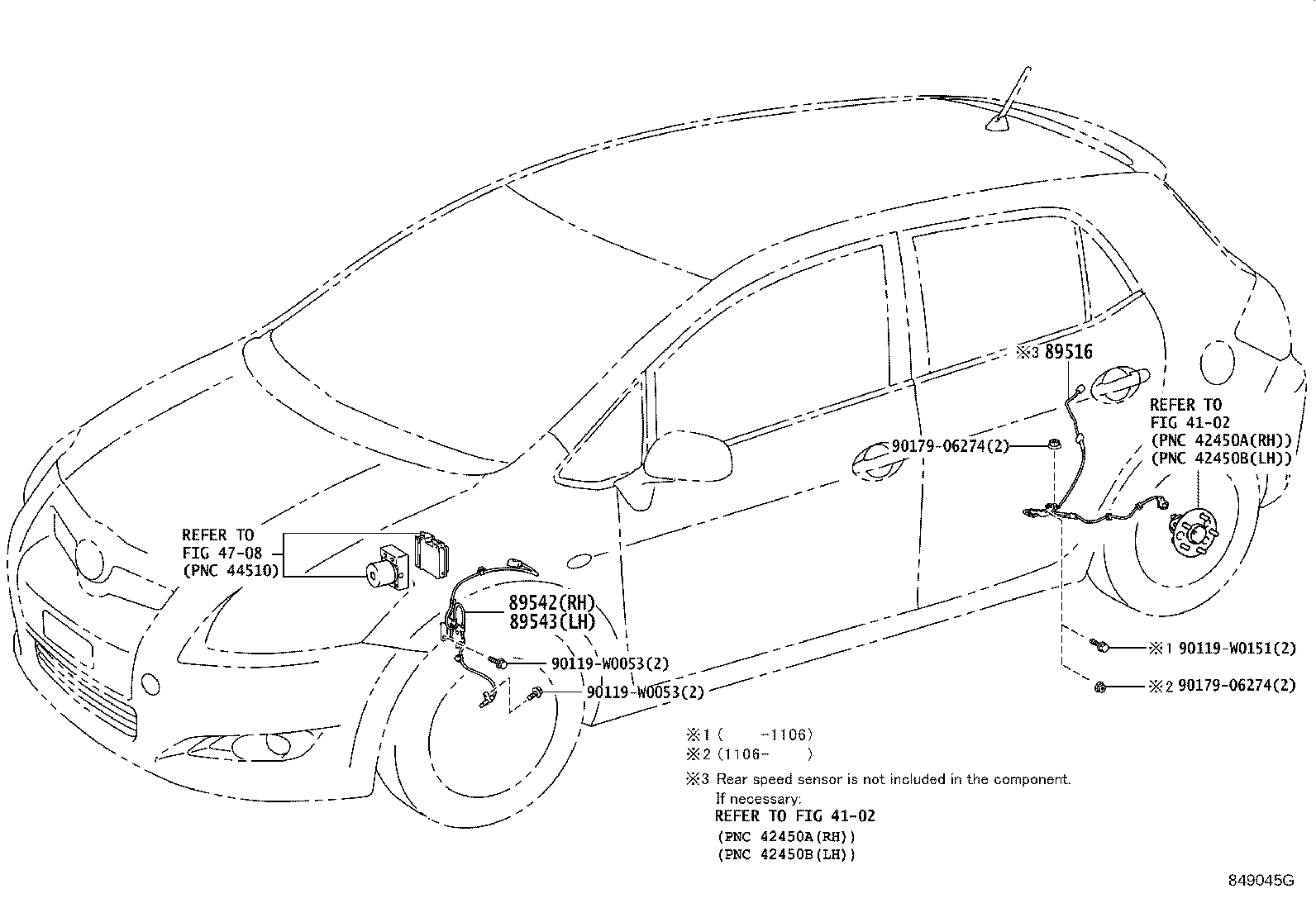

Click highlighted areas on diagram

diagram 4102 4102 4708 89516 89542 89543 90119W0053 90119W0053 90119W0151 9017906274 9017906274
Part # Description Qty Price
89516 - WIRE, SKID CONTROL SENSOR
89516-02071

ADE150

RH

 1
89516-02081

ADE150

LH

 1
89542 - SENSOR, SPEED, FRONT RH
89542-02060

ADE150,ZRE15#,ZZE150

 1
89542-02061

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

 1
89543 - SENSOR, SPEED, FRONT LH
89543-02061

ZRE151..5F,5FS;ADE150,ZRE152,ZZE150

 1
89543-02060

ADE150,ZRE15#,ZZE150

 1
Common parts
90119-W0053
90119-W0151
90179-06274
Linked diagrams
4102
4708
