ADE150R-DHFDYN (2007)
Toyota Auris (Ukp)
Production
Jun 2007
-
Mar 2009
Engine
1ADFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0706- )

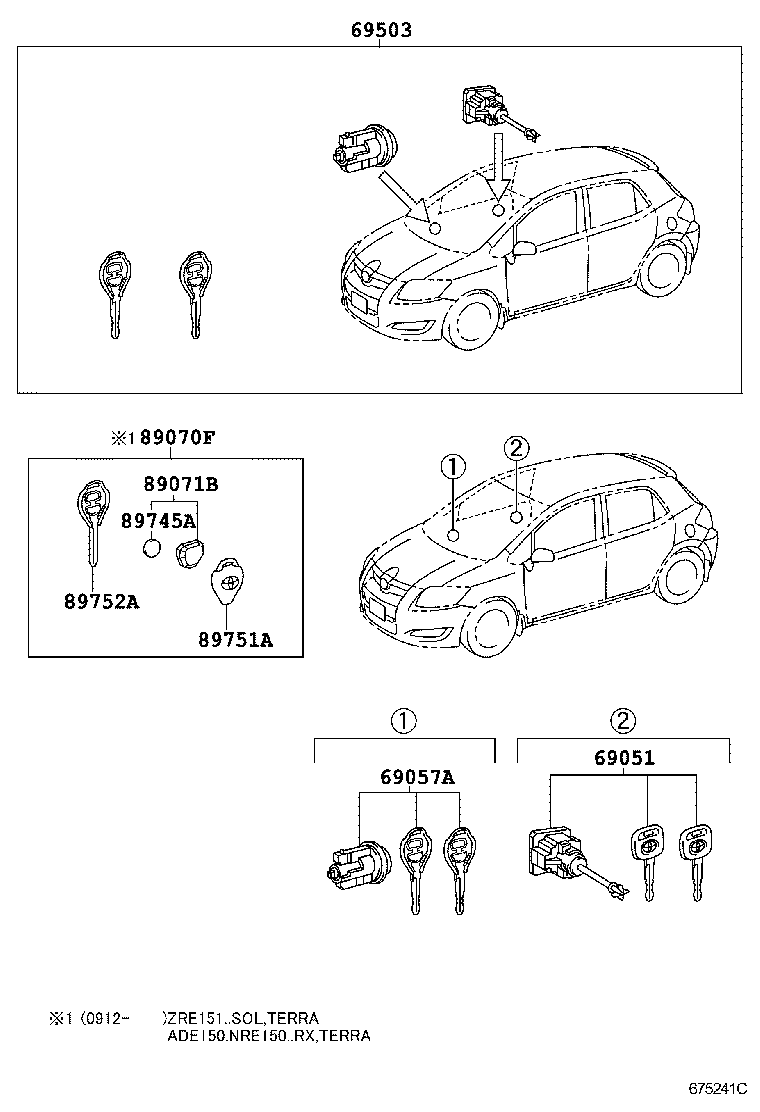

Click highlighted areas on diagram
W/O(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-0D050 |
ADE150,ZRE15#,ZZE150 |
1 | ||
| 69051-02200 |
ADE150 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-02280 |
ADE150 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-02370 |
ADE150 |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-02030 |
ADE150 |
2 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-0H010 |
ADE150 |
2 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-02010 |
ADE150 |
2 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-02160 |
ADE150 |
1 | ||
(0706- )ADE150,ZRE15#..RS,RX,SOL

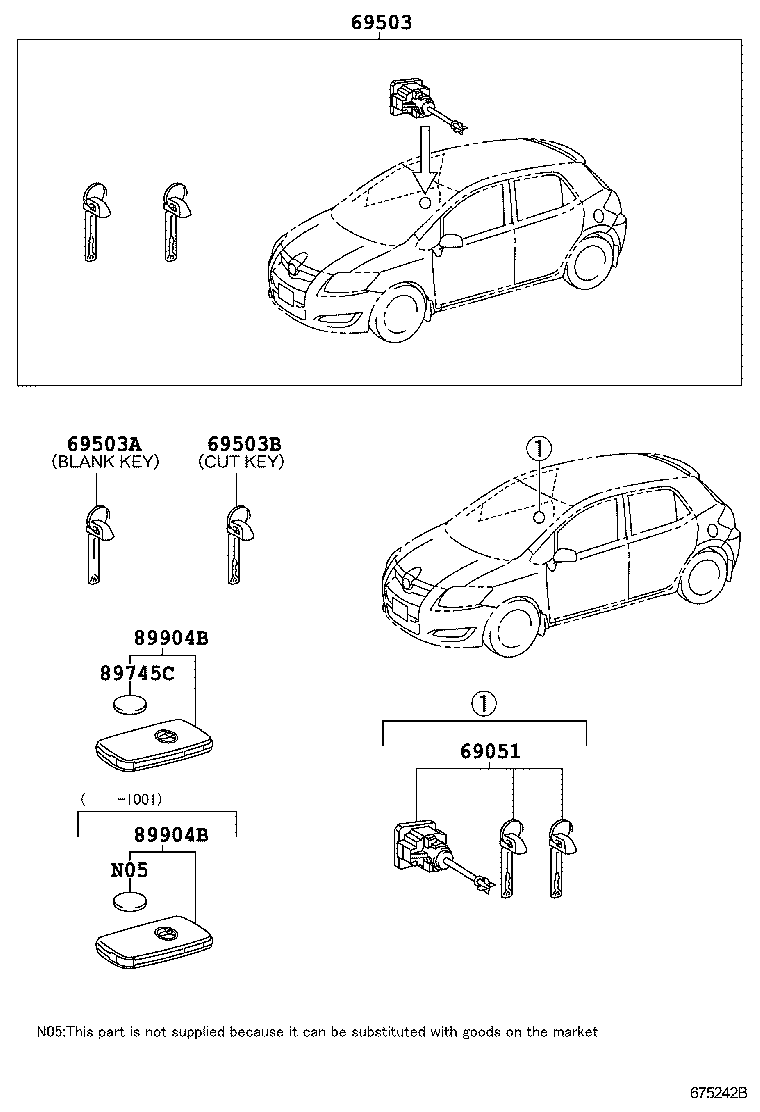

Click highlighted areas on diagram
W(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-0D050 |
ADE150,ZRE15#,ZZE150 |
1 | ||
| 69051-02200 |
ADE150 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-02370 |
ADE150 |
1 | ||
