ADE150R-DHFDYN (2007)
Toyota Auris (Ukp)
Production
Jun 2007
-
Mar 2009
Engine
1ADFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0706-0903)ADE150 ; (0706- )NRE150,ZRE15#,ZZE150

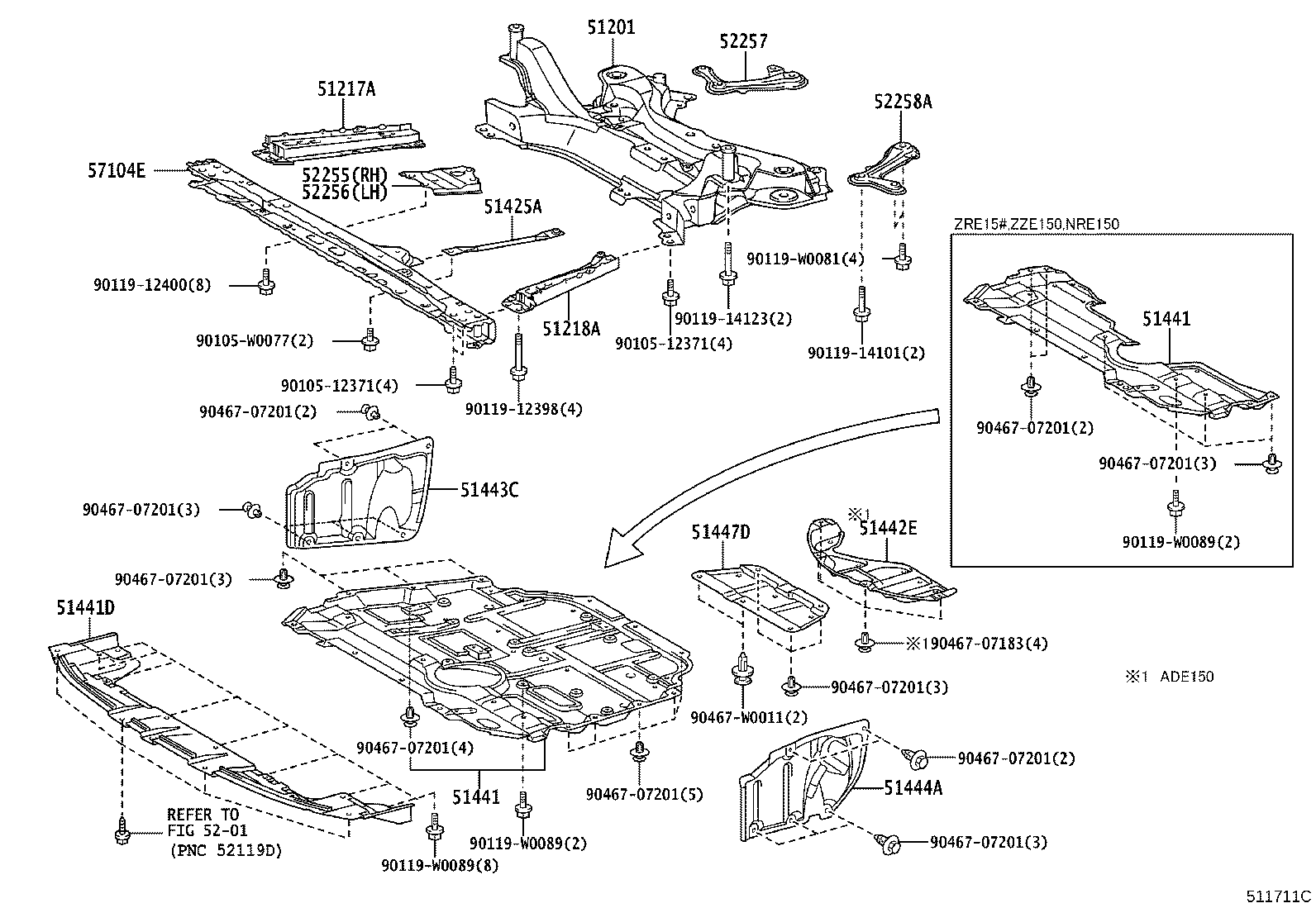

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-02101 |
ADE150 |
1 | ||
| 51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH | ||||
| 51107-02010 |
ADE150 |
1 | ||
| 51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH | ||||
| 51108-02010 |
ADE150 |
1 | ||
| 51425A - REINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER | ||||
| 51425-02010 |
ADE150 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51410-02120 |
ADE150 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51410-02120 |
ADE150 |
1 | ||
| 51441D - COVER, ENGINE UNDER | ||||
| 52618-02010 |
ZRE151..5F,5FS;ADE150,ZRE152,ZZE150 |
1 | ||
| 51442E - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-02230 |
ADE150 |
1 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-02050 |
ADE150 |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-02041 |
ADE150 |
1 | ||
| 51444-02040 |
ADE150,ZRE15#,ZZE150 |
1 | ||
| 51447D - COVER, ENGINE UNDER, NO.4 CENTER | ||||
| 51447-02010 |
ADE150 |
1 | ||
| 52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH | ||||
| 52255-02010 |
ZRE151..5F,5FS;ADE150,ZRE152,ZZE150 |
1 | ||
| 52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH | ||||
| 52256-02010 |
ZRE151..5F,5FS;ADE150,ZRE152,ZZE150 |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-02030 |
ADE150,ZRE15#,ZZE150 |
1 | ||
| 52257-02031 |
ADE150 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 52258-02030 |
ADE150,ZRE15#,ZZE150 |
1 | ||
| 52258-02031 |
ADE150 |
1 | ||
| 57104E - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-02160 |
ADE150 |
1 | ||
| Common parts | ||||
| 90105-12371 | ||||
| 90105-W0077 | ||||
| 90119-12398 | ||||
| 90119-12400 | ||||
| 90119-14101 | ||||
| 90119-14123 | ||||
| 90119-W0081 | ||||
| 90119-W0089 | ||||
| 90467-07183 | ||||
| 90467-07201 | ||||
| 90467-W0011 | ||||
| Linked diagrams | ||||
| 5201 | ||||
