ZWE211R-AHXNBQ (2018)
Toyota Auris/Corolla Hb(Jpp
(1806- )

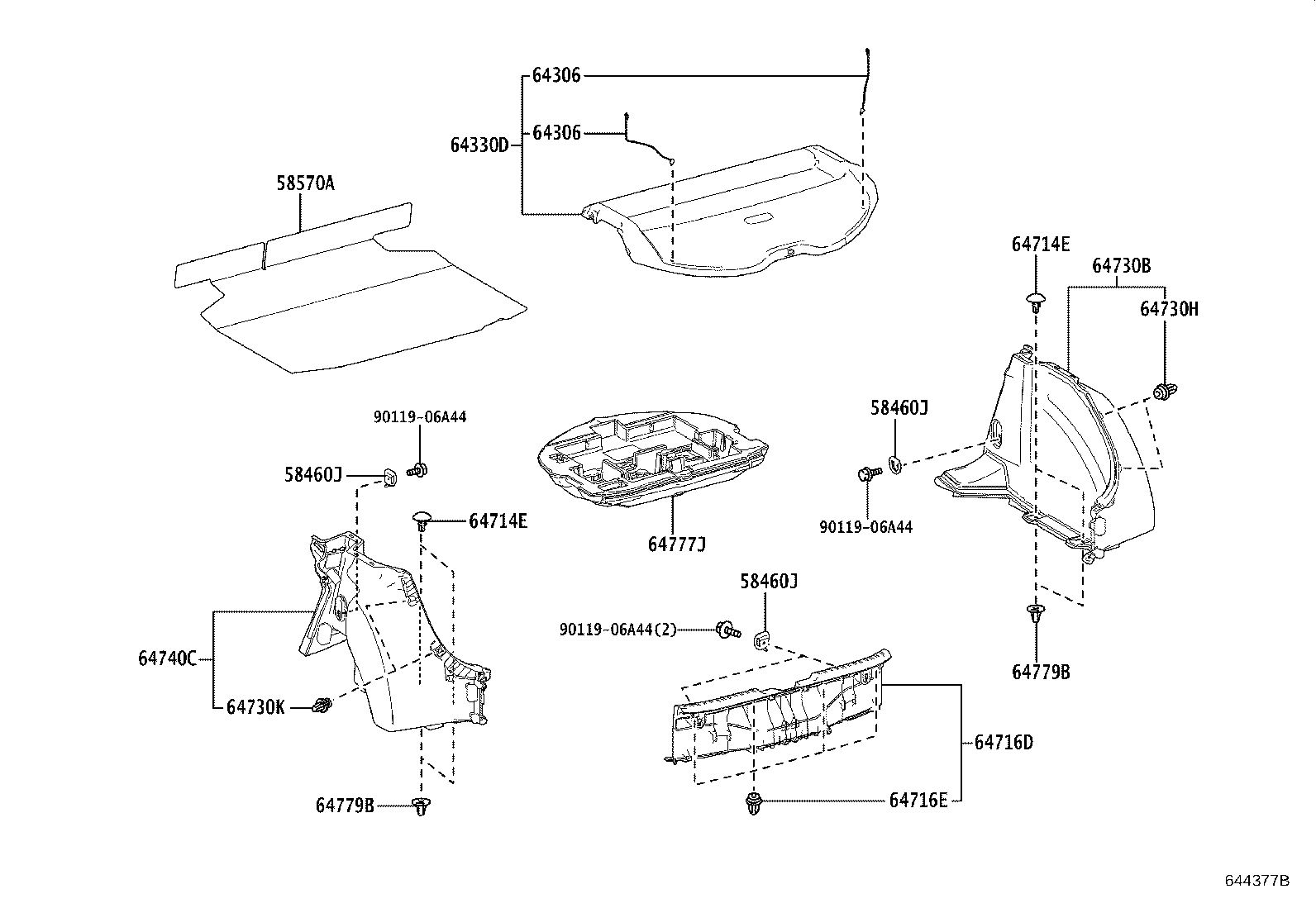

DECK BOARD(LOW FLOOR TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58460J - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
MZEA12,NRE210,ZWE211..N |
4 | ||
| 58460J - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
MZEA12,NRE210,ZWE211..N |
4 | ||
| 58460J - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
MZEA12,NRE210,ZWE211..N |
4 | ||
| 58570A - MAT ASSY, REAR FLOOR | ||||
| 58570-12520C0 |
ZWE211 SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM2#,3# |
1 | ||
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-12131 |
MZEA12,NRE210,ZWE211 |
2 | ||
| 64306-12130 |
MZEA12,NRE210,ZWE211 |
2 | ||
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-12131 |
MZEA12,NRE210,ZWE211 |
2 | ||
| 64306-12130 |
MZEA12,NRE210,ZWE211 |
2 | ||
| 64330D - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-12C30C1 |
MZEA12,NRE210,ZWE211..N BLACK,TRIM2#,3# |
1 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 64726-26010C2 |
MZEA12,NRE210,ZWE211..N BLACK,TRIM2#,3# |
4 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 64726-26010C2 |
MZEA12,NRE210,ZWE211..N BLACK,TRIM2#,3# |
4 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-12380C0 |
MZEA12,NRE210,ZWE211..RHD..N BLACK,TRIM2#,3# |
1 | ||
| 64716-12370C0 |
ZWE211 SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM2#,3# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-10167 |
MZEA12,NRE210,ZWE211 |
4 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-12480C0 |
ZWE211 SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM2#,3# |
1 | ||
| 64730-12490C0 |
MZEA12,NRE210,ZWE211..RHD..N BLACK,TRIM2#,3# |
1 | ||
| 64730H - CLIP(FOR DECK TRIM SIDE PANEL) | ||||
| 90467-10161 |
MZEA12,NRE210,ZWE211 |
2 | ||
| 64730K - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
MZEA12,NRE210,ZWE211 |
2 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-12470C0 |
MZEA12,NRE210,ZWE211..RHD..N BLACK,TRIM2#,3# |
1 | ||
| 64740-12460C0 |
ZWE211 SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM2#,3# |
1 | ||
| 64777J - CUSHION, SPARE WHEEL | ||||
| 64777-12200 |
ZWE211 SPARE TIRE-WITHOUT(REPAIR KIT ONLY) |
1 | ||
| 64779B - STOPPER, SPARE WHEEL COVER | ||||
| 64779-26010 |
MZEA12,NRE210,ZWE211 |
4 | ||
| 64779B - STOPPER, SPARE WHEEL COVER | ||||
| 64779-26010 |
MZEA12,NRE210,ZWE211 |
4 | ||
| Common parts | ||||
| 90119-06A44 | ||||
(1806- )

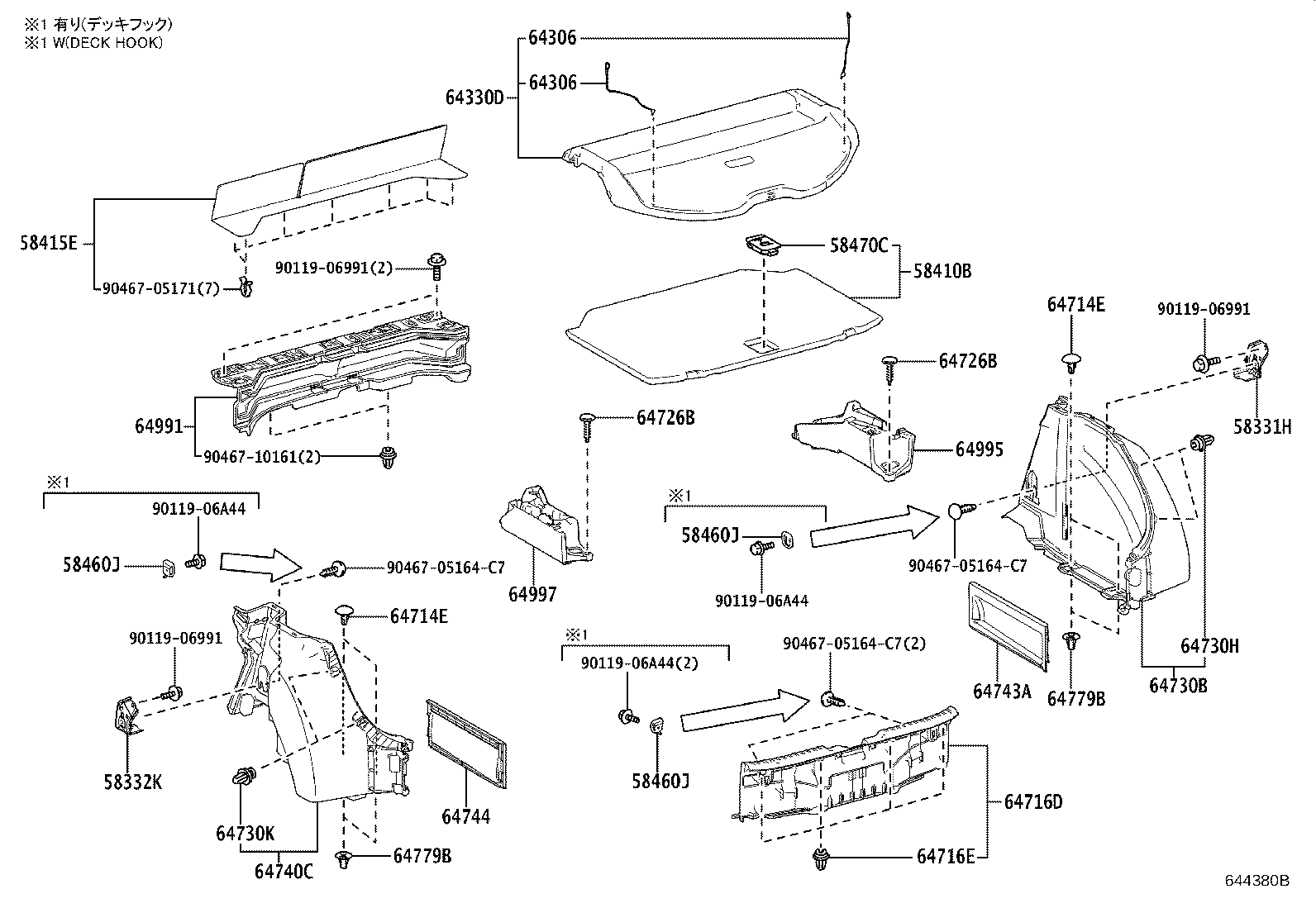

DECK BOARD(HIGH FLOOR TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58331H - BRACKET, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 58331-12110 |
MZEA12,NRE210,ZWE211..RHD |
1 | ||
| 58332K - BRACKET, LUGGAGE COMPARTMENT TRIM, NO.2 | ||||
| 58332-12080 |
MZEA12,NRE210,ZWE211..RHD |
1 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-12050C0 |
MZEA12,NRE210,ZWE211..RHD..N BLACK,TRIM2#,3# |
1 | ||
| 58415E - BOARD, REAR FLOOR, NO.1 | ||||
| 58415-12040C0 |
MZEA12,NRE210,ZWE211..RHD..N BLACK,TRIM2#,3# |
1 | ||
| 58460J - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
MZEA12,NRE210,ZWE211..N |
4 | ||
| 58460J - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
MZEA12,NRE210,ZWE211..N |
4 | ||
| 58460J - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
MZEA12,NRE210,ZWE211..N |
4 | ||
| 58470C - HANDLE ASSY, DECK BOARD | ||||
| 58470-12010 |
MZEA12,NRE210,ZWE211..RHD |
1 | ||
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-12131 |
MZEA12,NRE210,ZWE211 |
2 | ||
| 64306-12130 |
MZEA12,NRE210,ZWE211 |
2 | ||
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-12131 |
MZEA12,NRE210,ZWE211 |
2 | ||
| 64306-12130 |
MZEA12,NRE210,ZWE211 |
2 | ||
| 64330D - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-12C30C1 |
MZEA12,NRE210,ZWE211..N BLACK,TRIM2#,3# |
1 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 64726-26010C2 |
MZEA12,NRE210,ZWE211..N BLACK,TRIM2#,3# |
4 | ||
| 64714E - CLIP(FOR DECK TRIM SIDE COVER) | ||||
| 64726-26010C2 |
MZEA12,NRE210,ZWE211..N BLACK,TRIM2#,3# |
4 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-12380C0 |
MZEA12,NRE210,ZWE211..RHD..N BLACK,TRIM2#,3# |
1 | ||
| 64716-12370C0 |
ZWE211 SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM2#,3# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-10167 |
MZEA12,NRE210,ZWE211 |
4 | ||
| 64726B - CLIP, DECK REAR TRIM | ||||
| 64726-10020C2 |
MZEA12,NRE210,ZWE211..RHD..N BLACK,TRIM2#,3# |
2 | ||
| 64726B - CLIP, DECK REAR TRIM | ||||
| 64726-10020C2 |
MZEA12,NRE210,ZWE211..RHD..N BLACK,TRIM2#,3# |
2 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-12480C0 |
ZWE211 SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM2#,3# |
1 | ||
| 64730-12490C0 |
MZEA12,NRE210,ZWE211..RHD..N BLACK,TRIM2#,3# |
1 | ||
| 64730H - CLIP(FOR DECK TRIM SIDE PANEL) | ||||
| 90467-10161 |
MZEA12,NRE210,ZWE211 |
2 | ||
| 64730K - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
MZEA12,NRE210,ZWE211 |
2 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-12470C0 |
MZEA12,NRE210,ZWE211..RHD..N BLACK,TRIM2#,3# |
1 | ||
| 64740-12460C0 |
ZWE211 SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM2#,3# |
1 | ||
| 64743A - BOARD, DECK TRIM SIDE, LOWER RH | ||||
| 64743-12030C0 |
MZEA12,NRE210,ZWE211..RHD..N BLACK,TRIM2#,3# |
1 | ||
| 64744 - BOARD, DECK TRIM SIDE, LWR LH | ||||
| 64744-12030C0 |
MZEA12,NRE210,ZWE211..RHD..N BLACK,TRIM2#,3# |
1 | ||
| 64779B - STOPPER, SPARE WHEEL COVER | ||||
| 64779-26010 |
MZEA12,NRE210,ZWE211 |
4 | ||
| 64779B - STOPPER, SPARE WHEEL COVER | ||||
| 64779-26010 |
MZEA12,NRE210,ZWE211 |
4 | ||
| 64991 - BOX, DECK FLOOR, FRONT | ||||
| 64070-12010C1 |
MZEA12,NRE210,ZWE211..RHD..N BLACK,TRIM2#,3# |
1 | ||
| 64995 - BOX, DECK FLOOR, RH | ||||
| 64995-12130 |
MZEA12,NRE210,ZWE211..RHD |
1 | ||
| 64997 - BOX, DECK FLOOR, LH | ||||
| 64997-12120 |
MZEA12,NRE210,ZWE211..RHD |
1 | ||
| Common parts | ||||
| 90119-06991 | ||||
| 90119-06A44 | ||||
| 90467-05164C7 | ||||
| 90467-05171 | ||||
| 90467-10161 | ||||
