ZWE211R-AHXNBQ (2018)

Toyota Auris/Corolla Hb(Jpp

Production Jun 2018 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )

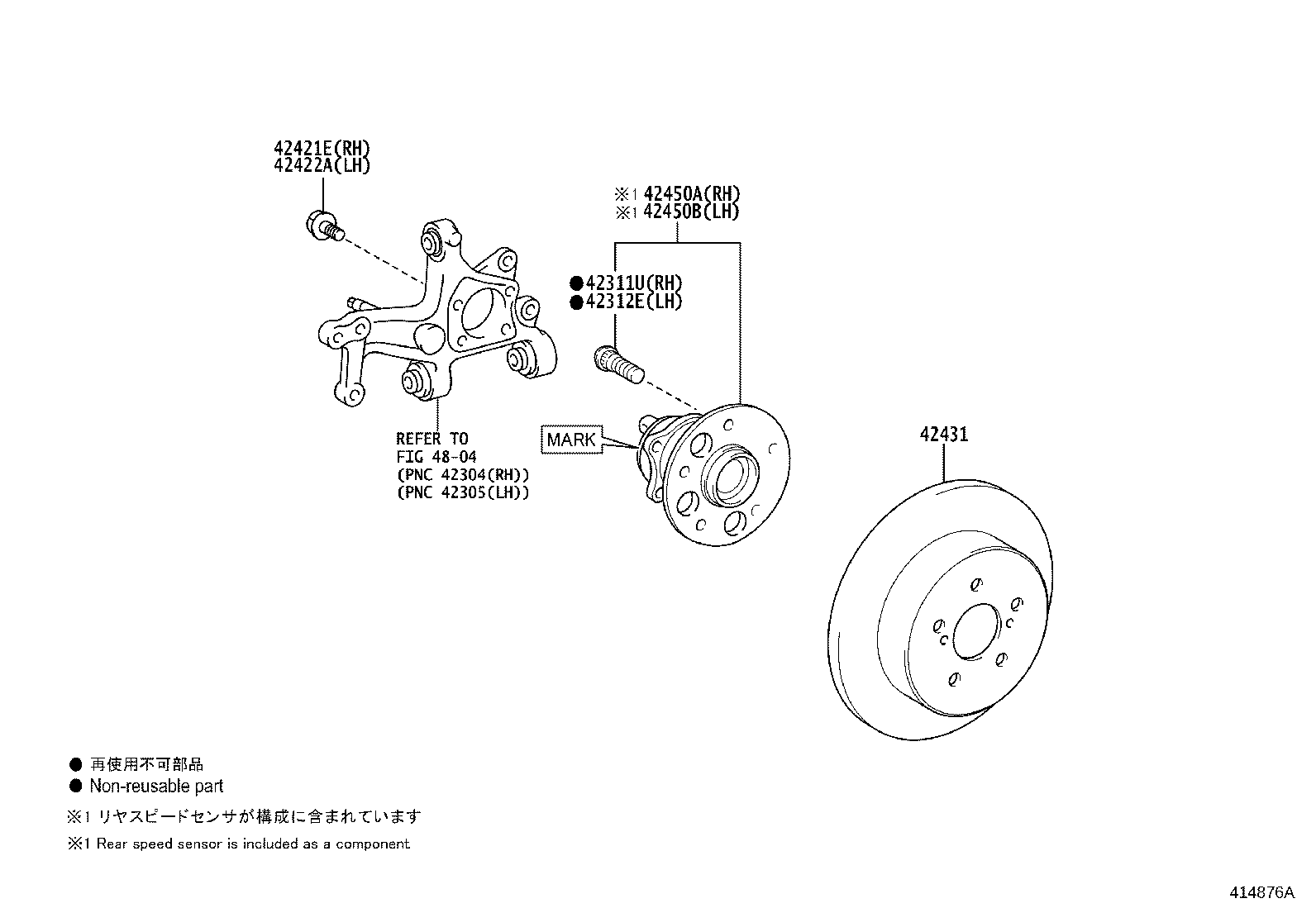

Click highlighted areas on diagram

diagram 42311U 42312E 42421E 42422A 42431 42450A 42450B 4804
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02049

MZEA12,NRE210,ZWE211

 5
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02049

MZEA12,NRE210,ZWE211

 5
42421E - BOLT (FOR REAR AXLE BEARING CASE RH)
90105-12406

MZEA12,NRE210,ZWE211

 4
42422A - BOLT (FOR REAR AXLE BEARING CASE LH)
90105-12406

MZEA12,NRE210,ZWE211

 4
42431 - DISC, REAR
42431-12270

MZEA12,NRE210,ZWE211

 2
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42450-76020

MZEA12,NRE210,ZWE211

MARK=AISIN

 1
42450-12210

MZEA12,NRE210,ZWE211

W/O(MARK),MARK=DENSO

 1
42450-12220

MZEA12,NRE210,ZWE211

MARK=DENSO

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42450-12210

MZEA12,NRE210,ZWE211

W/O(MARK),MARK=DENSO

 1
42450-12220

MZEA12,NRE210,ZWE211

MARK=DENSO

 1
42450-76020

MZEA12,NRE210,ZWE211

MARK=AISIN

 1
Linked diagrams
4804
