NRE210R-AHFNZN (2018)

Toyota Auris/Corolla Hb(Jpp

Production Jun 2018 - Sep 9999
Engine 8NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )

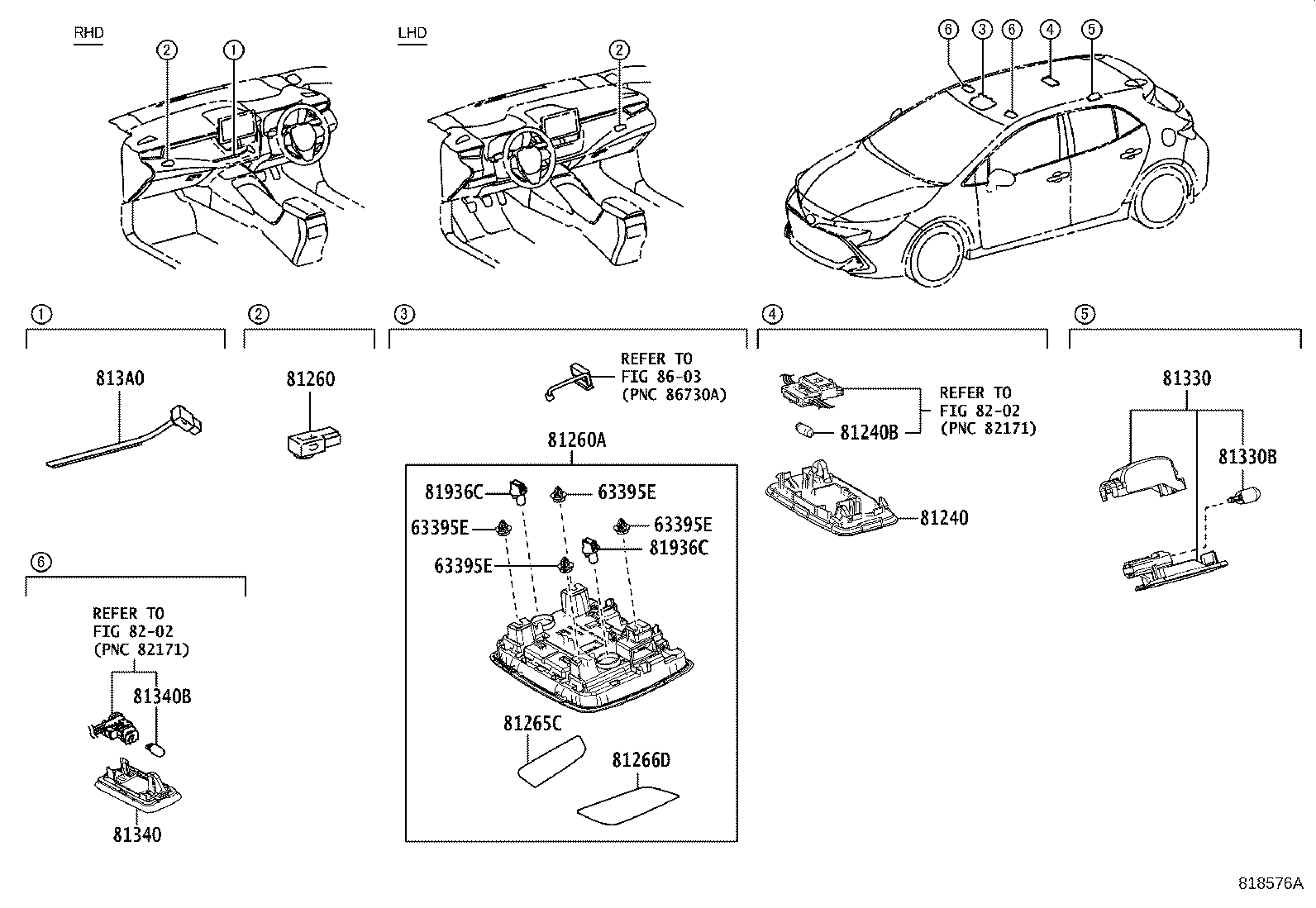

Click highlighted areas on diagram

diagram 63395E 63395E 63395E 63395E 81240 81240B 81260 81260A 81265C 81266D 81330 81330B 81340 81340B 813A0 81936C 81936C 8202 8202 8603
Part # Description Qty Price
63395E - CLIP(FOR MAP LAMP)
90467-09240

MZEA12,NRE210,ZWE211

 4
63395E - CLIP(FOR MAP LAMP)
90467-09240

MZEA12,NRE210,ZWE211

 4
63395E - CLIP(FOR MAP LAMP)
90467-09240

MZEA12,NRE210,ZWE211

 4
63395E - CLIP(FOR MAP LAMP)
90467-09240

MZEA12,NRE210,ZWE211

 4
81240 - LAMP ASSY, ROOM, NO.1
81240-60060C1

MZEA12,NRE210,ZWE211..N

BLACK,TRIM2#,3#

 1
81240-12100C0

MZEA12,NRE210,ZWE211..N

BLACK,TRIM2#,3#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

MZEA12,NRE210,ZWE211

12V 8W

 1
81260 - LAMP ASSY, GLOVE BOX
81080-33290

MZEA12,NRE210,ZWE211

 1
81260A - LAMP ASSY, MAP
81208-12190C0

MZEA12,NRE210,ZWE211..RHD..N

BLACK,TRIM2#,3#

 1
81265C - LENS, MAP LAMP, NO.1
81265-12370

MZEA12,NRE210,ZWE211

 1
81266D - LENS, MAP LAMP, NO.2
81266-12370

MZEA12,NRE210,ZWE211

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81250-30210

MZEA12,NRE210,ZWE211

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050

MZEA12,NRE210,ZWE211

12V 5W

 1
81340 - LAMP ASSY, VANITY
81340-30110

MZEA12,NRE210,ZWE211

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

MZEA12,NRE210,ZWE211

12V 8W

 2
813A0 - LAMP ASSY, INSTRUMENT PANEL
813A0-12020

MZEA12,NRE210,ZWE211..RHD..N

ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)

 1
81936C - BULB ASSY
81936-12160

MZEA12,NRE210,ZWE211

 2
81936C - BULB ASSY
81936-12160

MZEA12,NRE210,ZWE211

 2
Linked diagrams
8202
8603
