NRE210R-AHFNZN (2018)

Toyota Auris/Corolla Hb(Jpp

Production Jun 2018 - Sep 9999
Engine 8NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )

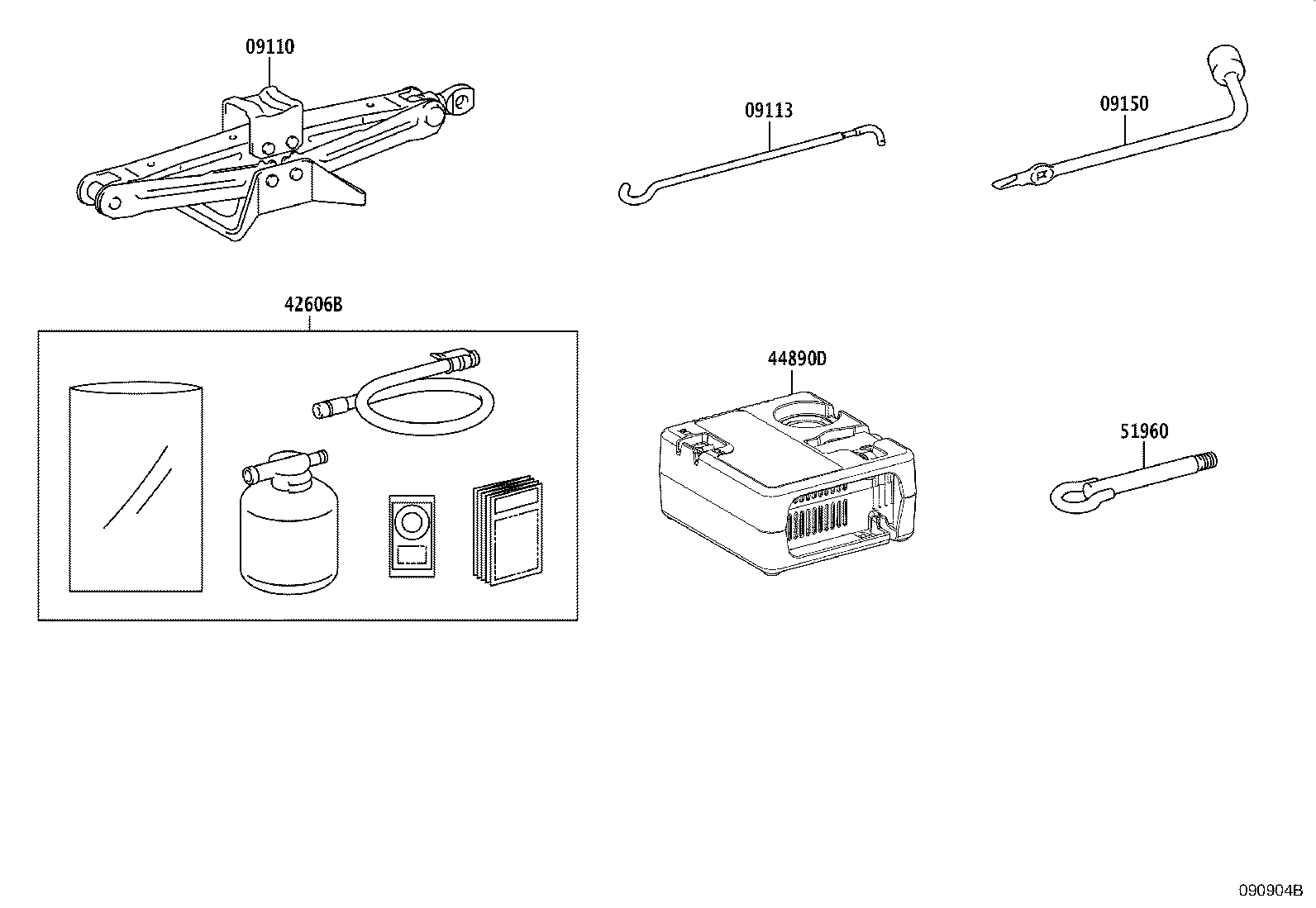

Click highlighted areas on diagram

diagram 09110 09113 09150 42606B 44890D 51960
Part # Description Qty Price
09110 - JACK ASSY
09111-47050

MZEA12,NRE210..SA,TAIW

 1
09113 - HANDLE, JACK
09113-42030

MZEA12,NRE210,ZWE211

 1
09150 - WRENCH, HUB NUT BOX
09150-42010

MZEA12,NRE210,ZWE211

 1
42606B - REPAIR KIT, TUBELESS TIRE
42606-30011

NRE210

TIRE&DISC WHEEL-225/40R18 SUMMER TIRE ALUMINUM WHEEL&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

 1
44890D - COMPRESSOR ASSY, AIR
44890-30030

NRE210

TIRE&DISC WHEEL-225/40R18 SUMMER TIRE ALUMINUM WHEEL&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

 1
51960 - HOOK ASSY, FRONT
51960-12110

MZEA12,NRE210,ZWE211

 1
