MZEA12R-AHXNBQ (2018)

Toyota Auris/Corolla Hb(Jpp

Production Jun 2018 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1806- )

Click highlighted areas on diagram

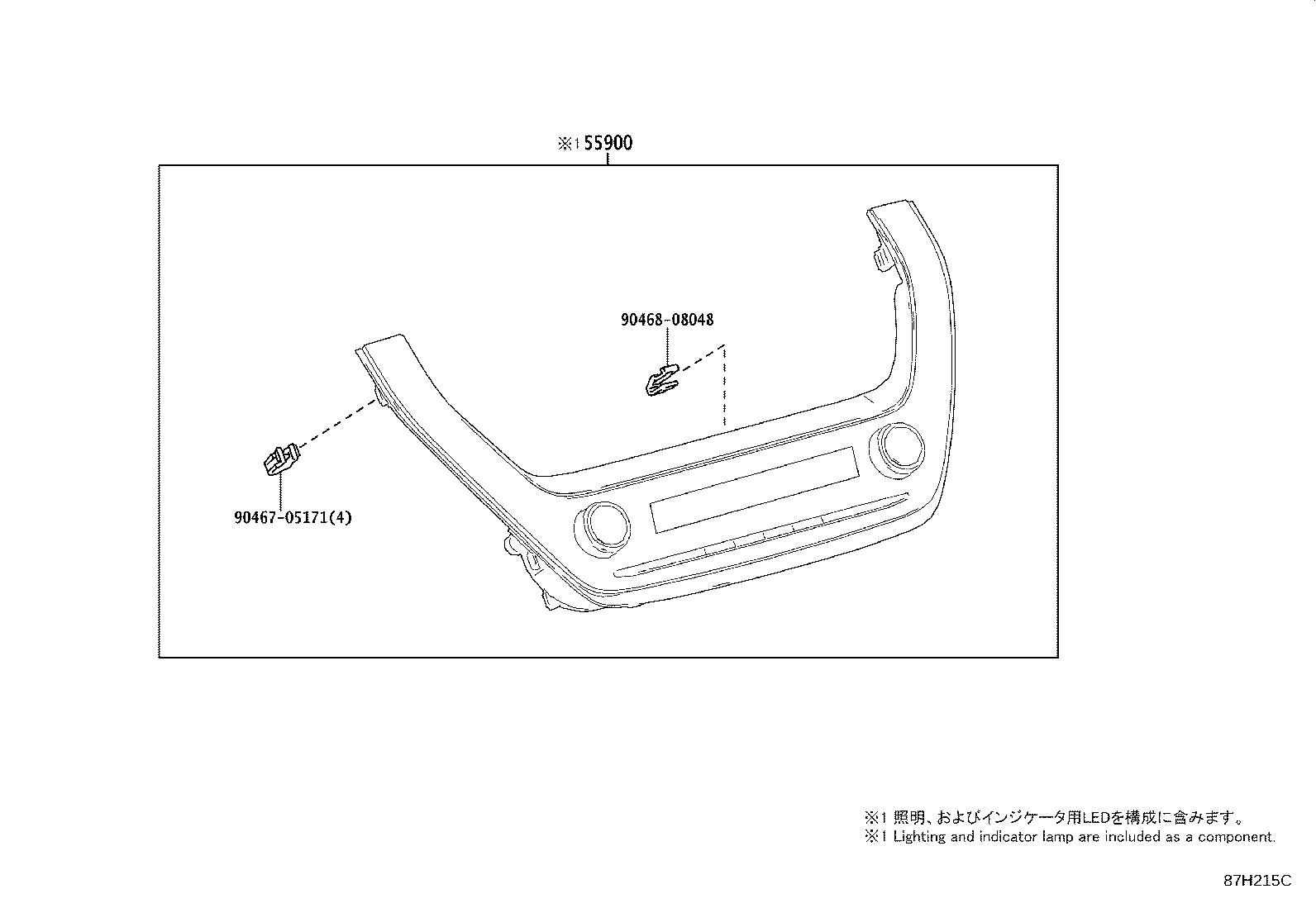

HEATER CONTROL PANEL

diagram 55900 9046705171 9046808048
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-12F80B0

MZEA12..D

SILVER,TRIM2#

 1
55900-12G20B0

MZEA12,NRE210..RHD..N

SILVER,TRIM2#,3#

 1
55900-12G30B0

MZEA12..N..ARL

Z PACKAGE,SILVER,TRIM2#,3#

 1
Common parts
90467-05171
90468-08048

ILLUST NO. 3 OF 3(1806- )RHD

Click highlighted areas on diagram

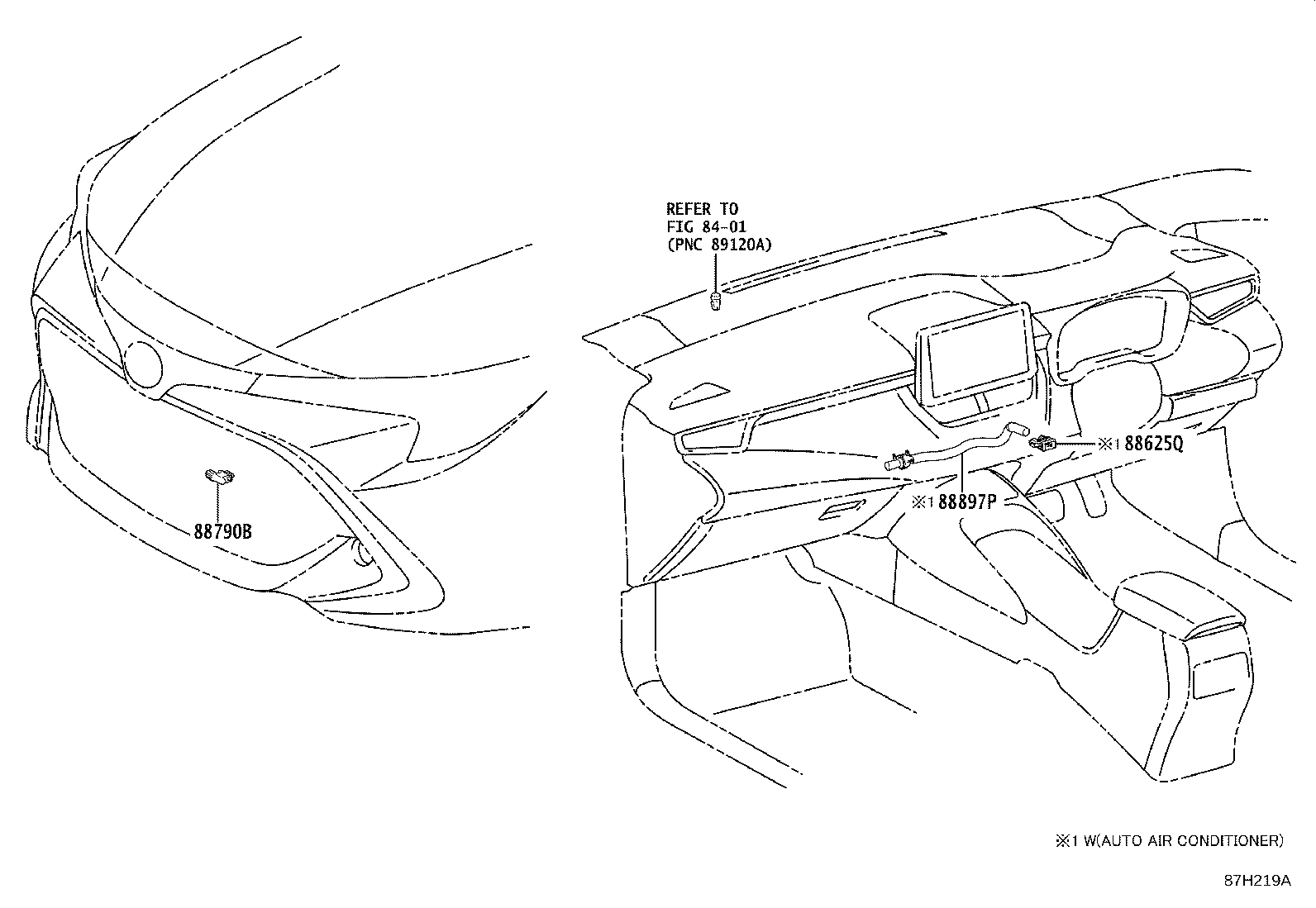

SENSOR

diagram 8401 88625Q 88790B 88897P
Part # Description Qty Price
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

MZEA12,NRE210,ZWE211..N

 1
88790B - THERMISTOR ASSY
88790-28100

MZEA12,NRE210,ZWE211

 1
88897P - ASPIRATOR
88505-47060

MZEA12,NRE210,ZWE211..RHD..N

 1
Linked diagrams
8401

ILLUST NO. 2 OF 3(1806- )RHD

Click highlighted areas on diagram

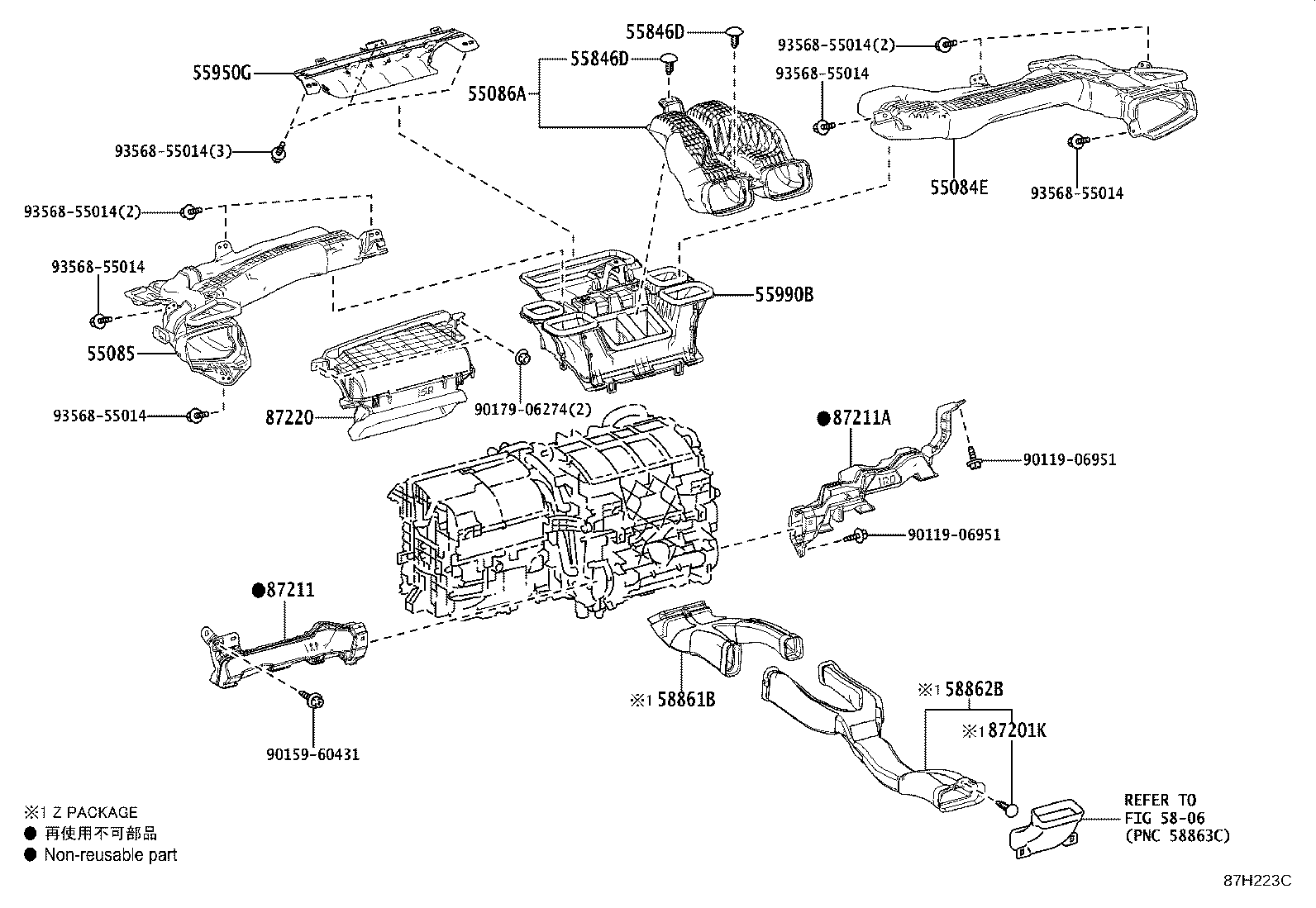

AIR DUCT

diagram 55084E 55085 55086A 55846D 55846D 55950G 55990B 5806 58861B 58862B 87201K 87211 87211A 87220 9011906951 9011906951 9015960431 9017906274 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-12260

MZEA12,NRE210,ZWE211..RHD

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-12210

MZEA12,NRE210,ZWE211..RHD

 1
55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55086-12300

MZEA12,NRE210,ZWE211..RHD

 1
55846D - CLIP, HEATER TO REGISTER DUCT
90467-05161C0

MZEA12,NRE210,ZWE211

BLACK

 2
55846D - CLIP, HEATER TO REGISTER DUCT
90467-05161C0

MZEA12,NRE210,ZWE211

BLACK

 2
55950G - NOZZLE ASSY, DEFROSTER
55950-12340

MZEA12,NRE210,ZWE211..RHD

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-12110

MZEA12,NRE210,ZWE211..RHD

 1
58861B - DUCT, CONSOLE BOX, NO.1
58861-12050

MZEA12,ZWE211..N..ARL

Z PACKAGE

 1
58862B - DUCT, CONSOLE BOX, NO.2
58862-12030

MZEA12,ZWE211..N..ARL

Z PACKAGE

 1
87201K - CLIP (FOR AIR DUCT)
90467-05161C0

MZEA12,ZWE211..N..ARL

Z PACKAGE,BLACK

 1
87211 - DUCT, AIR, NO.1
87211-12530

MZEA12,NRE210,ZWE211..RHD

 1
87211A - DUCT, AIR, NO.2
87211-12470

MZEA12,NRE210,ZWE211..RHD

 1
87220 - DUCT ASSY, AIR
87220-12121

MZEA12,NRE210,ZWE211..RHD

 1
87220-12120

MZEA12,NRE210,ZWE211..RHD

 1
Common parts
90119-06951
90159-60431
90179-06274
93568-55014
Linked diagrams
5806
