MZEA12R-AHXNBQ (2018)

Toyota Auris/Corolla Hb(Jpp

Production Jun 2018 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )

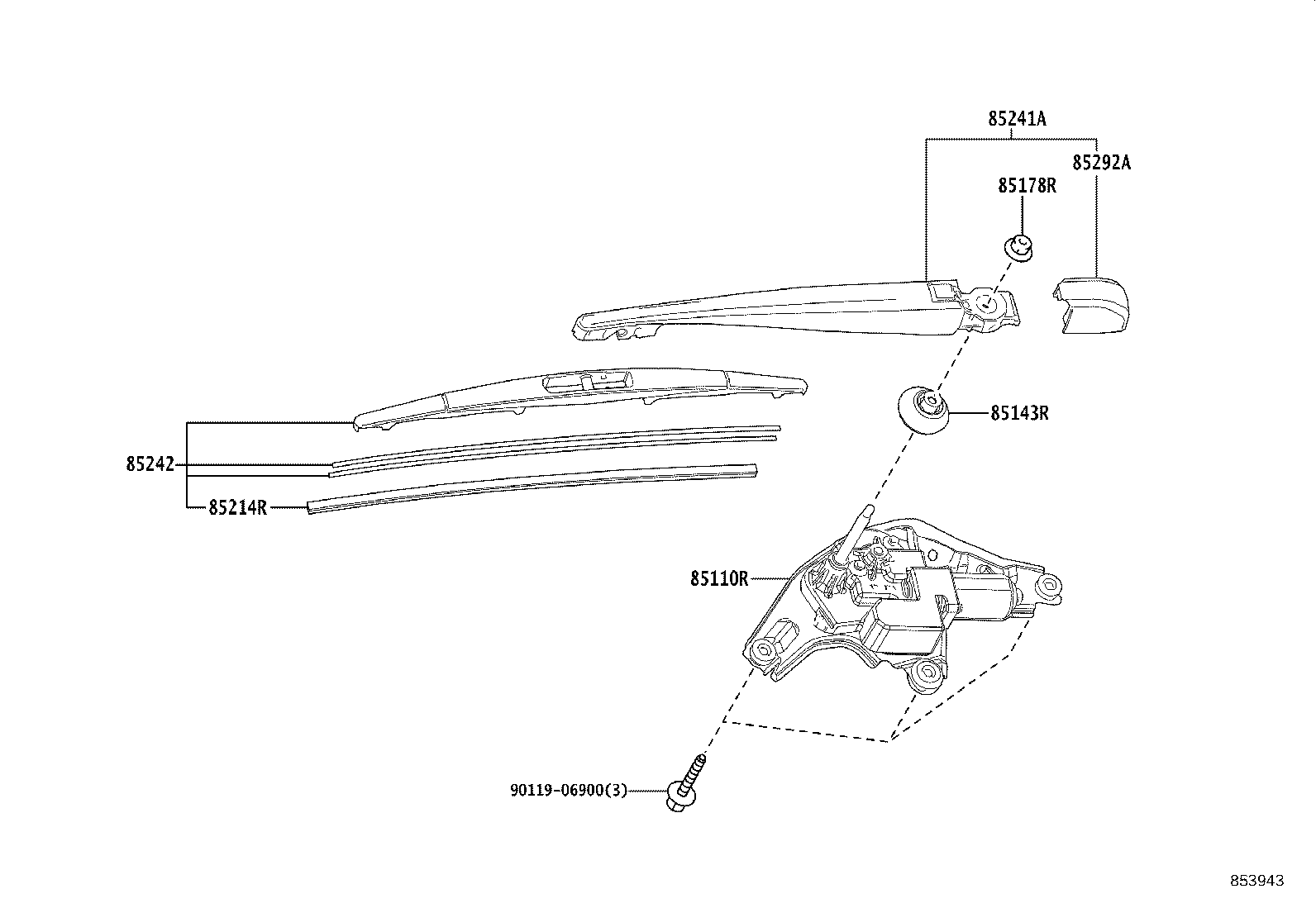

Click highlighted areas on diagram

diagram 85110R 85143R 85178R 85214R 85241A 85242 85292A 9011906900
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-12A40

MZEA12,NRE210,ZWE211

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-12830

MZEA12,NRE210,ZWE211

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

MZEA12,NRE210,ZWE211

 1
85214R - RUBBER, REAR WIPER
85214-12320

MZEA12,NRE210,ZWE211

 1
85241A - ARM, REAR WIPER
85241-12170

MZEA12,NRE210,ZWE211

 1
85242 - BLADE, RR WIPER
85242-12150

MZEA12,NRE210,ZWE211

 1
85292A - CAP, REAR WIPER ARM HEAD
85244-12050

MZEA12,NRE210,ZWE211

 1
Common parts
90119-06900
