MZEA12R-AHXNBQ (2018)

Toyota Auris/Corolla Hb(Jpp

Production Jun 2018 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )

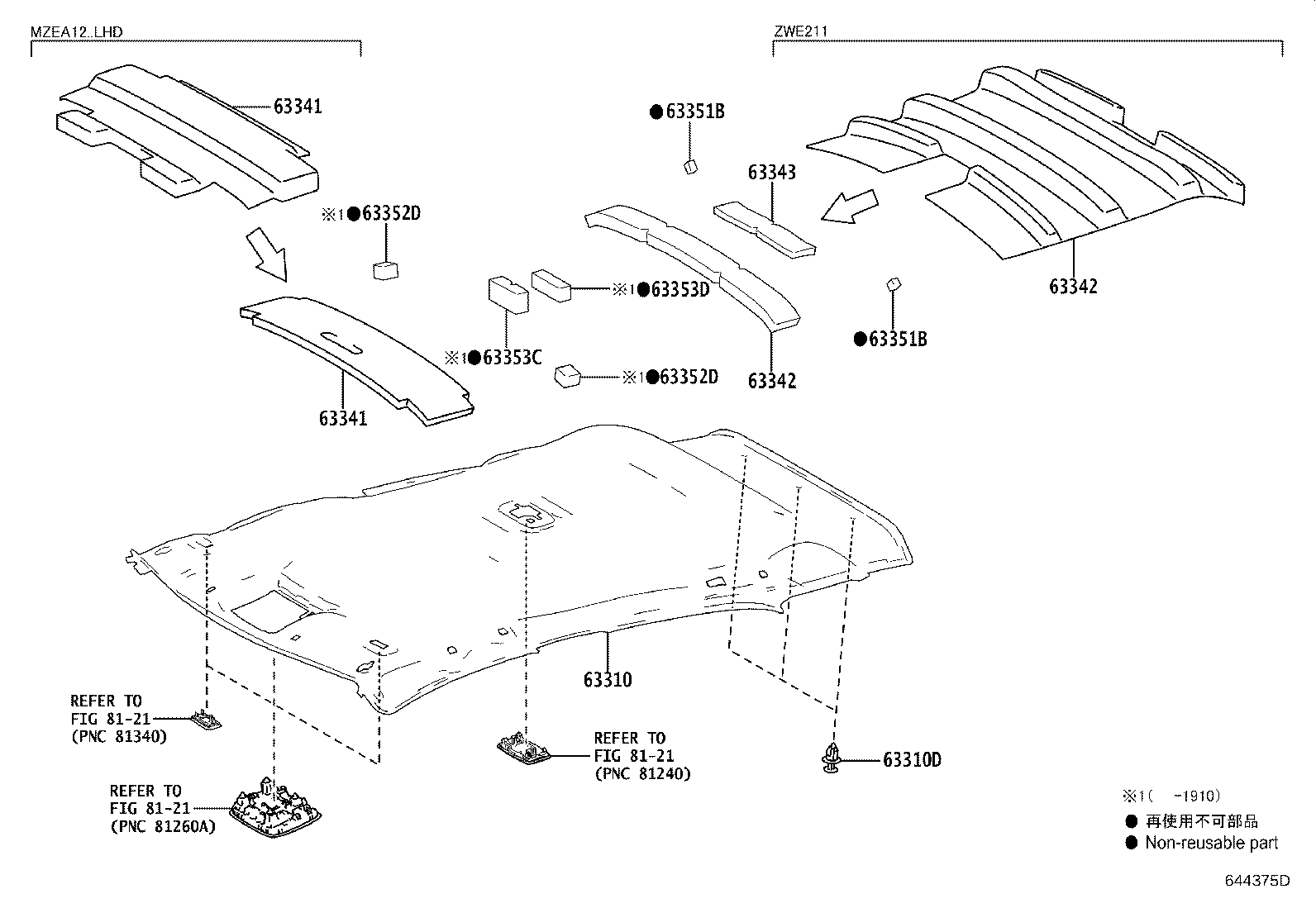

Click highlighted areas on diagram

diagram 63310 63310D 63341 63341 63342 63342 63343 63351B 63351B 63352D 63352D 63353C 63353D 8121 8121 8121
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-12N11C1

MZEA12..D

BLACK,TRIM2#

 1
63310-12N10C1

MZEA12,NRE210,ZWE211..N

BLACK,TRIM2#,3#

 1
63310-12N10C1

MZEA12..D

BLACK,TRIM2#

 1
63310-12N11C1

MZEA12,NRE210,ZWE211..N

BLACK,TRIM2#,3#

 1
63310D - CLIP, ROOF HEADLINING
90467-05168C0

MZEA12..D

BLACK,TRIM2#

 3
90467-05168C0

MZEA12,NRE210,ZWE211..N

BLACK,TRIM2#,3#

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-12380

MZEA12,NRE210..RHD

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-12380

MZEA12,NRE210..RHD

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-12410

MZEA12,NRE210

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-12410

MZEA12,NRE210

 1
63343 - PAD, ROOF SILENCER, NO.3
63342-12420

MZEA12,NRE210

 1
63351B - PAD, ROOF HEADLINING
63351-12110

MZEA12,NRE210,ZWE211

 2
63351B - PAD, ROOF HEADLINING
63351-12110

MZEA12,NRE210,ZWE211

 2
63352D - PAD, ROOF HEADLINING, NO.2
63352-12120

MZEA12,NRE210,ZWE211

 2
63352D - PAD, ROOF HEADLINING, NO.2
63352-12120

MZEA12,NRE210,ZWE211

 2
63353C - PAD, ROOF HEADLINING, CENTER
63353-12030

MZEA12,NRE210,ZWE211

 1
63353D - PAD, ROOF HEADLINING, CENTER
63353-12050

MZEA12,NRE210,ZWE211

 1
Linked diagrams
8121
