MZEA12R-AHXNBQ (2018)
Toyota Auris/Corolla Hb(Jpp
Production
Jun 2018
-
Sep 9999
Engine
M20AFKS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1806- )MZEA12..ARL

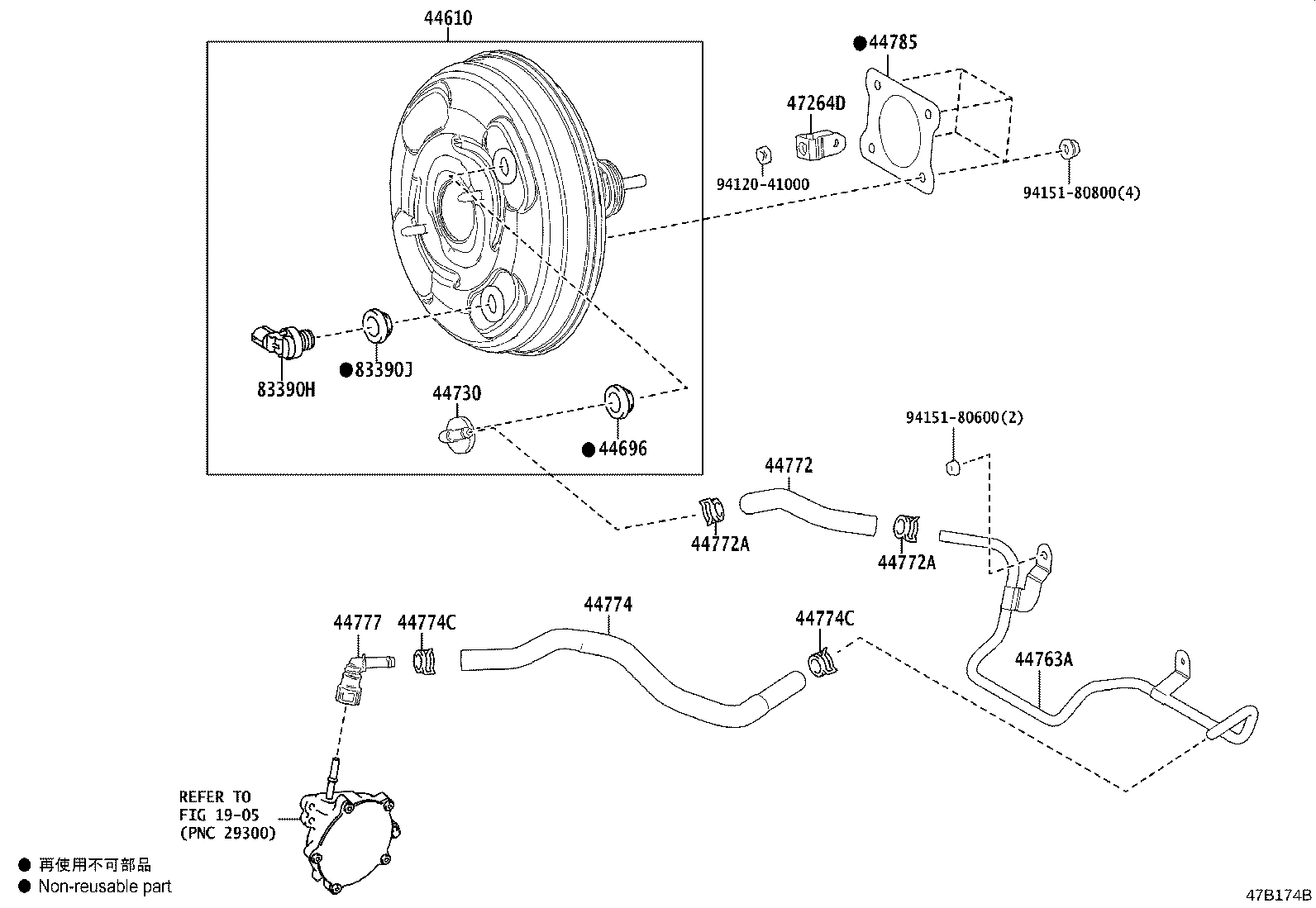

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-12M90 |
MZEA12,NRE210..RHD |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
MZEA12,NRE210 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-52010 |
MZEA12,NRE210 |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-12590 |
MZEA12..ARL |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-12810 |
MZEA12,NRE210..RHD |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
MZEA12,NRE210 |
2 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
MZEA12,NRE210 |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-12860 |
MZEA12..ARL |
1 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
MZEA12,NRE210..RHD |
2 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
MZEA12,NRE210..RHD |
2 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-12010 |
MZEA12 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-12040 |
MZEA12..ARL |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-63010 |
MZEA12,NRE210..RHD |
1 | ||
| 83390H - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-28120 |
MZEA12,NRE210 |
1 | ||
| 83390J - GROMMET, VACUUM WARNING SWITCH | ||||
| 90480-24439 |
MZEA12,NRE210 |
1 | ||
| Common parts | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1905 | ||||
