Toyota Auris/corolla hb(jpp MZEA12 FRONT SEAT & SEAT TRACK

MZEA12R-AHXDBQ (2018)

Toyota Auris/Corolla Hb(Jpp

Production Jun 2018 - Sep 9999

Engine M20AFKS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1806- )

Click highlighted areas on diagram

CLIP

Part #	Description	Period	Qty	Price
Common parts
90468-16019
90468-18008

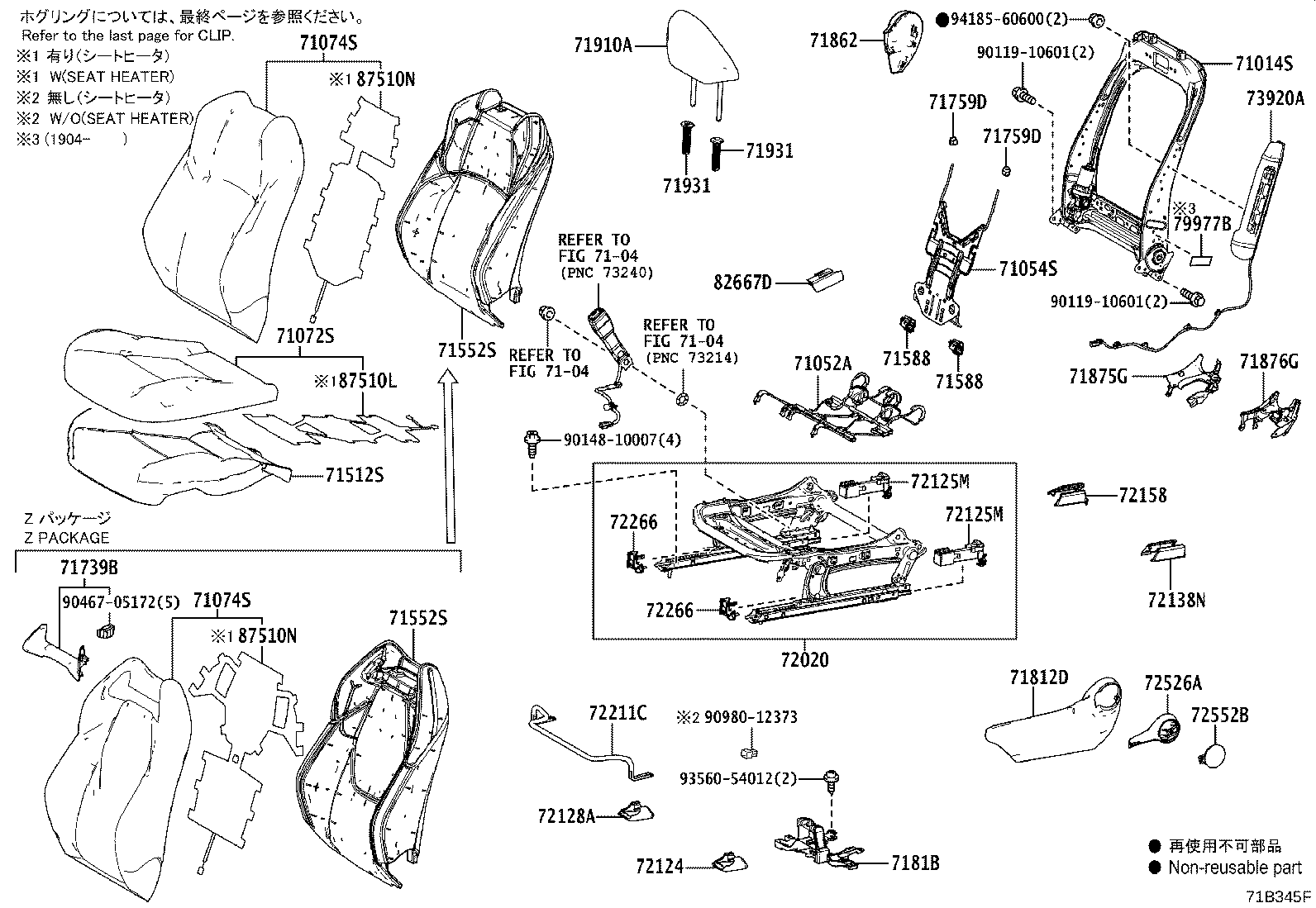

ILLUST NO. 2 OF 3(1806- )RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-33390	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-47090	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH
71053-47050	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-1AD10C2	MZEA12,NRE210,ZWE211..RHD BLACK/GRAY DOT,TRIM2#	06/2018 - 12/2999	1
71072-1AJ00B0	MZEA12..D SEAT COVER MATERIAL-FABRIC & LEATHER,GRAY,TRIM2#	09/2019 - 12/2999	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-1AD30C2	MZEA12,NRE210,ZWE211 BLACK/GRAY DOT,TRIM2#	06/2018 - 12/2999	1
71074-1AG40B2	MZEA12..D SEAT COVER MATERIAL-FABRIC & LEATHER,GRAY,TRIM2#	09/2019 - 12/2999	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-1AD30C2	MZEA12,NRE210,ZWE211 BLACK/GRAY DOT,TRIM2#	06/2018 - 12/2999	1
71074-1AG40B2	MZEA12..D SEAT COVER MATERIAL-FABRIC & LEATHER,GRAY,TRIM2#	09/2019 - 12/2999	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-12190	MZEA12,NRE210,ZWE211..RHD	06/2018 - 12/2999	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-12710	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-12710	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2
71587-47010	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	2
71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2
71587-47010	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	2
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-52050	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	2
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-52050	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	2
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-33430C0	MZEA12..D BLACK,TRIM2#	06/2018 - 12/2999	1
7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
7181B-47010	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-47100C1	MZEA12..D BLACK,TRIM2#	06/2018 - 12/2999	1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71876-47090C1	MZEA12..D BLACK,TRIM2#	06/2018 - 12/2999	1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-47070C1	MZEA12..D BLACK,TRIM2#	06/2018 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-12P10C0	MZEA12..D SEAT COVER MATERIAL-FABRIC & LEATHER,BLACK,TRIM2#	09/2019 - 12/2999	2
71910-12L50C1	MZEA12,NRE210,ZWE211 BLACK/GRAY DOT,TRIM2#	06/2018 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-47050C5	MZEA12..D W(LOCK),BLACK,TRIM2#	06/2018 - 12/2999	2
71931-47030C4	MZEA12..D W/O(LOCK),BLACK,TRIM2#	06/2018 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-47050C5	MZEA12..D W(LOCK),BLACK,TRIM2#	06/2018 - 12/2999	2
71931-47030C4	MZEA12..D W/O(LOCK),BLACK,TRIM2#	06/2018 - 12/2999	2
72020 - ADJUSTER ASSY, FRONT SEAT, LH
72020-47380	MZEA12,NRE210,ZWE211..RHD	06/2018 - 12/2999	1
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72123-47060	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
72125M - COVER, SEAT TRACK, UPPER NO.3
72125-47010	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	2
72125M - COVER, SEAT TRACK, UPPER NO.3
72125-47010	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	2
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72123-47060	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
72138N - COVER, SEAT TRACK BRACKET, OUTER REAR LH
72137-47060	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-47080	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
72211C - HANDLE, SEAT TRACK ADJUSTING
72211-47050	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-47010	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	2
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-47010	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	2
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-33050C0	MZEA12..D BLACK,TRIM2#	06/2018 - 12/2999	1
72552B - COVER, RECLINING HINGE, LH
72551-33010C0	MZEA12..D BLACK,TRIM2#	06/2018 - 12/2999	1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-12090	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
79977B - FELT, SEAT BACK FRAME
79977-12090	MZEA12,NRE210,ZWE211	04/2019 - 12/2999	2
82667D - HOLDER, CONNECTOR
82666-47630	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
Common parts
90119-10601
90148-10007
90467-05172
90980-12373
93560-54012
94185-60600
Linked diagrams
7104

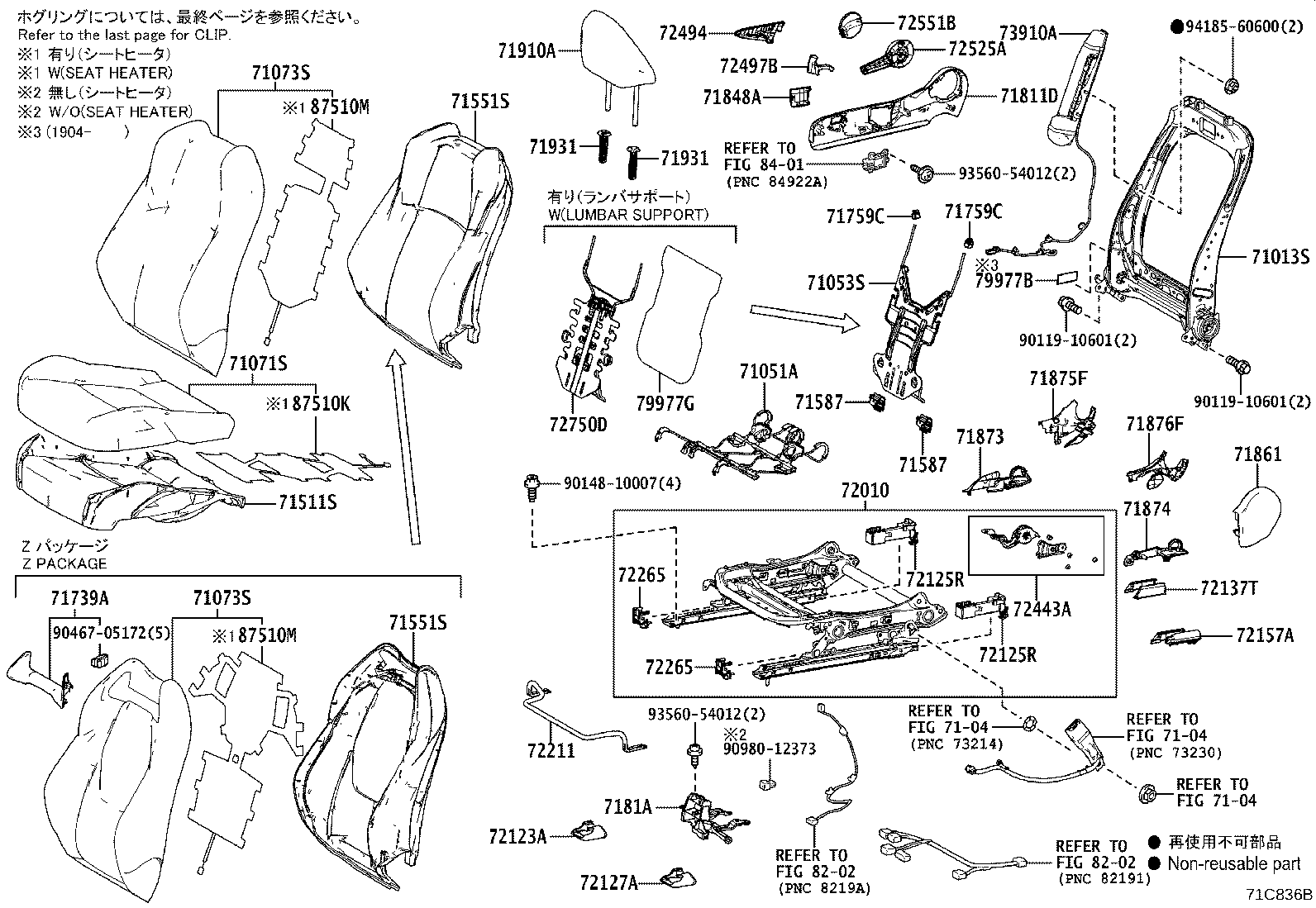

ILLUST NO. 1 OF 3(1806- )RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-33550	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-47090	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH
71053-47050	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-1AF30C2	MZEA12,NRE210,ZWE211..RHD BLACK/GRAY DOT,TRIM2#	06/2018 - 12/2999	1
71071-1AK70B0	MZEA12..D SEAT COVER MATERIAL-FABRIC & LEATHER,GRAY,TRIM2#	09/2019 - 12/2999	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-1AM60B0	MZEA12..D SEAT COVER MATERIAL-FABRIC & LEATHER,GRAY,TRIM2#	09/2019 - 06/2020	1
71073-1AK30B2	MZEA12..D SEAT COVER MATERIAL-FABRIC & LEATHER,GRAY,TRIM2#	06/2020 - 12/2999	1
71073-1AK90C1	MZEA12,NRE210,ZWE211..RHD BLACK/GRAY DOT,TRIM2#	06/2018 - 12/2999	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-1AM60B0	MZEA12..D SEAT COVER MATERIAL-FABRIC & LEATHER,GRAY,TRIM2#	09/2019 - 06/2020	1
71073-1AK30B2	MZEA12..D SEAT COVER MATERIAL-FABRIC & LEATHER,GRAY,TRIM2#	06/2020 - 12/2999	1
71073-1AK90C1	MZEA12,NRE210,ZWE211..RHD BLACK/GRAY DOT,TRIM2#	06/2018 - 12/2999	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-12C70	MZEA12,NRE210,ZWE211..RHD	06/2018 - 12/2999	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-12E20	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-12E20	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-47010	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	2
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-47010	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	2
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-52050	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	2
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-52050	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	2
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-47140C1	MZEA12,NRE210,ZWE211..RHD BLACK,TRIM2#	06/2018 - 12/2999	1
7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
7181A-47010	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-47040C1	MZEA12,NRE210,ZWE211..RHD BLACK,TRIM2#	06/2018 - 12/2999	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-47070C1	MZEA12,NRE210,ZWE211..RHD BLACK,TRIM2#	06/2018 - 12/2999	1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-47070	MZEA12,NRE210,ZWE211..RHD	06/2018 - 12/2999	1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71873-47080	MZEA12,NRE210,ZWE211..RHD	06/2018 - 12/2999	1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-47040C1	MZEA12,NRE210,ZWE211..RHD BLACK,TRIM2#	06/2018 - 12/2999	1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71875-47070C1	MZEA12,NRE210,ZWE211..RHD BLACK,TRIM2#	06/2018 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-12P10C0	MZEA12..D SEAT COVER MATERIAL-FABRIC & LEATHER,BLACK,TRIM2#	09/2019 - 12/2999	2
71910-12L50C1	MZEA12,NRE210,ZWE211 BLACK/GRAY DOT,TRIM2#	06/2018 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-47050C5	MZEA12..D W(LOCK),BLACK,TRIM2#	06/2018 - 12/2999	2
71931-47030C4	MZEA12..D W/O(LOCK),BLACK,TRIM2#	06/2018 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-47050C5	MZEA12..D W(LOCK),BLACK,TRIM2#	06/2018 - 12/2999	2
71931-47030C4	MZEA12..D W/O(LOCK),BLACK,TRIM2#	06/2018 - 12/2999	2
72010 - ADJUSTER ASSY, FRONT SEAT, RH
72010-47361	MZEA12,NRE210,ZWE211..RHD	06/2019 - 12/2999	1
72010-47360	MZEA12,NRE210,ZWE211..RHD	06/2018 - 05/2019	1
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123-47060	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
72125R - COVER, SEAT TRACK, UPPER REAR NO.1
72125-47010	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	2
72125R - COVER, SEAT TRACK, UPPER REAR NO.1
72125-47010	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	2
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72123-47060	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
72137T - COVER, SEAT TRACK BRACKET, OUTER REAR RH
72137-47060	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-47080	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-47050	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-47010	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	2
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-47010	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	2
72443A - GEAR, VERTICAL ADJUSTER, RH
72443-47010	MZEA12,NRE210,ZWE211..RHD	06/2018 - 03/2019	1
72443-47011	MZEA12,NRE210,ZWE211..RHD	04/2019 - 12/2999	1
72494 - HANDLE, VERTICAL ADJUSTING, RH
72494-47030C1	MZEA12,NRE210,ZWE211..RHD BLACK,TRIM2#	06/2018 - 12/2999	1
72497B - COVER, VERTICAL ADJUSTER BRACKET, RH
72498-47010	MZEA12,NRE210,ZWE211..RHD	06/2018 - 12/2999	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-33050C0	MZEA12,NRE210,ZWE211..RHD BLACK,TRIM2#	06/2018 - 12/2999	1
72551B - COVER, RECLINING HINGE, RH
72551-33010C0	MZEA12..D BLACK,TRIM2#	06/2018 - 12/2999	1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-12100	MZEA12,NRE210,ZWE211	06/2018 - 12/2999	1
79977B - FELT, SEAT BACK FRAME
79977-12090	MZEA12,NRE210,ZWE211	04/2019 - 12/2999	2
Common parts
90119-10601
90148-10007
90467-05172
90980-12373
93560-54012
94185-60600
Linked diagrams
7104
8202
8401
