MZEA12R-AHFDBQ (2018)
Toyota Auris/Corolla Hb(Jpp
ILLUST NO. 1 OF 9(1806- )MZEA12
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-12V90 |
MZEA12 |
1 | ||
| 82715W - BRACKET, WIRING HARNESS CLAMP | ||||
| 82729-20040 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 82715X - BRACKET, WIRING HARNESS CLAMP, NO.2 | ||||
| 82715-12X50 |
MZEA12 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
MZEA12,NRE210..6F |
1 | ||
| 84545 - SWITCH, NEUTRAL POSITION | ||||
| 84545-52010 |
MZEA12,NRE210..6F |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33040 |
MZEA12 |
1 | ||
| 89439J - BRACKET, SENSOR, NO.2 | ||||
| 82715-47A60 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 89439K - BRACKET, SENSOR, NO.3 | ||||
| 82715-47690 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12280 |
MZEA12 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-12290 |
MZEA12 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-33051 |
MZEA12 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
MZEA12,NRE210,ZWE211 |
1 | ||
| Common parts | ||||
| 90119-06A12 | ||||
| 90119-06A23 | ||||
| 90153-50015 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 90468-14044 | ||||
| 90468-15007 | ||||
| 91551-80835 | ||||
| 91611-60618 | ||||
| 91651-40620 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
ILLUST NO. 2 OF 9(1806- )MZEA12,NRE210
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12310 |
MZEA12,NRE210 |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-12040 |
MZEA12,NRE210 |
1 | ||
| Common parts | ||||
| 90119-06A18 | ||||
| 90178-06026 | ||||
| 94151-80600 | ||||

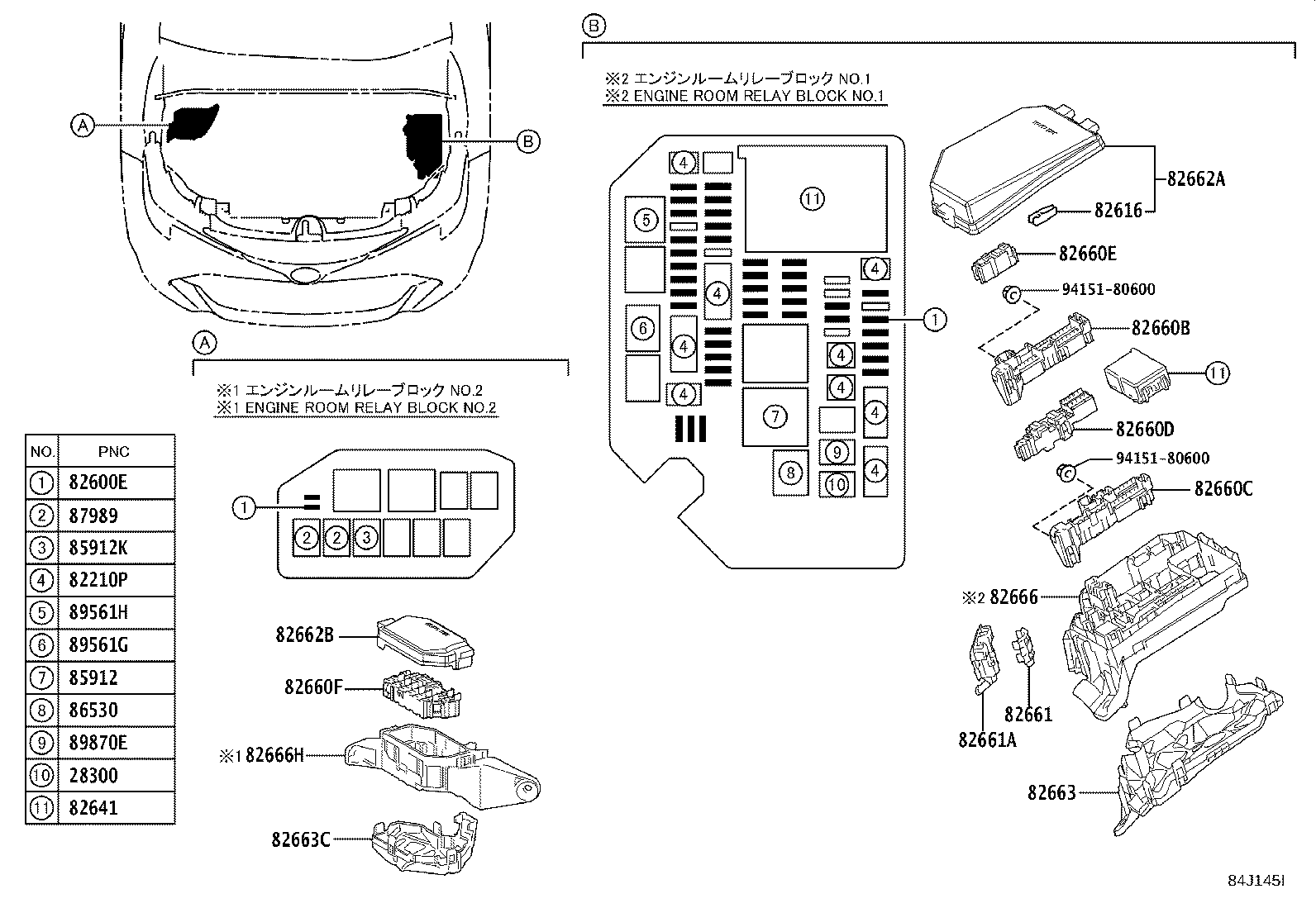

ILLUST NO. 3 OF 9(1806- )MZEA12
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
M20AFKS,8NRFTS..MZEA12,NRE210 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08299 |
MZEA12,NRE210 40A-40A-40A,FEMALE |
1 | ||
| 90982-08296 |
MZEA12,NRE210 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08300 |
MZEA12,NRE210,ZWE211 50A-30A-30A,FEMALE |
1 | ||
| 90982-08294 |
MZEA12,NRE210 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08305 |
MZEA12,NRE210 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08295 |
MZEA12,NRE210,ZWE211 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
MZEA12,NRE210,ZWE211 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
MZEA12,NRE210,ZWE211 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
MZEA12,NRE210 25A,MINI FUSE |
1 | ||
| 90982-09019 |
MZEA12,NRE210,ZWE211 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
MZEA12,NRE210,ZWE211 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
MZEA12,NRE210,ZWE211 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
MZEA12,NRE210,ZWE211 15A,MINI FUSE,BLUE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47050 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-12360 |
MZEA12,NRE210 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-12390 |
MZEA12,NRE210 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-12400 |
MZEA12,NRE210 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-12470 |
MZEA12,NRE210 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-12410 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12350 |
MZEA12,NRE210 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-12340 |
MZEA12,NRE210 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-12E70 |
MZEA12 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-12E40 |
MZEA12,NRE210 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-12160 |
MZEA12,NRE210 |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-47090 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-12650 |
MZEA12,NRE210 |
1 | ||
| 82666H - HOLDER, CONNECTOR, NO.2 | ||||
| 82666-47620 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 85912K - RELAY, VVT | ||||
| 90987-02027 |
MZEA12 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 89561G - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 | ||||
| 90987-02027 |
MZEA12,NRE210 |
1 | ||
| 89561H - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 | ||||
| 90987-02027 |
MZEA12 |
1 | ||
| 89870E - RELAY, ELECTRONIC DRIVER UNIT | ||||
| 90987-02027 |
MZEA12 |
1 | ||
| Common parts | ||||
| 94151-80600 | ||||

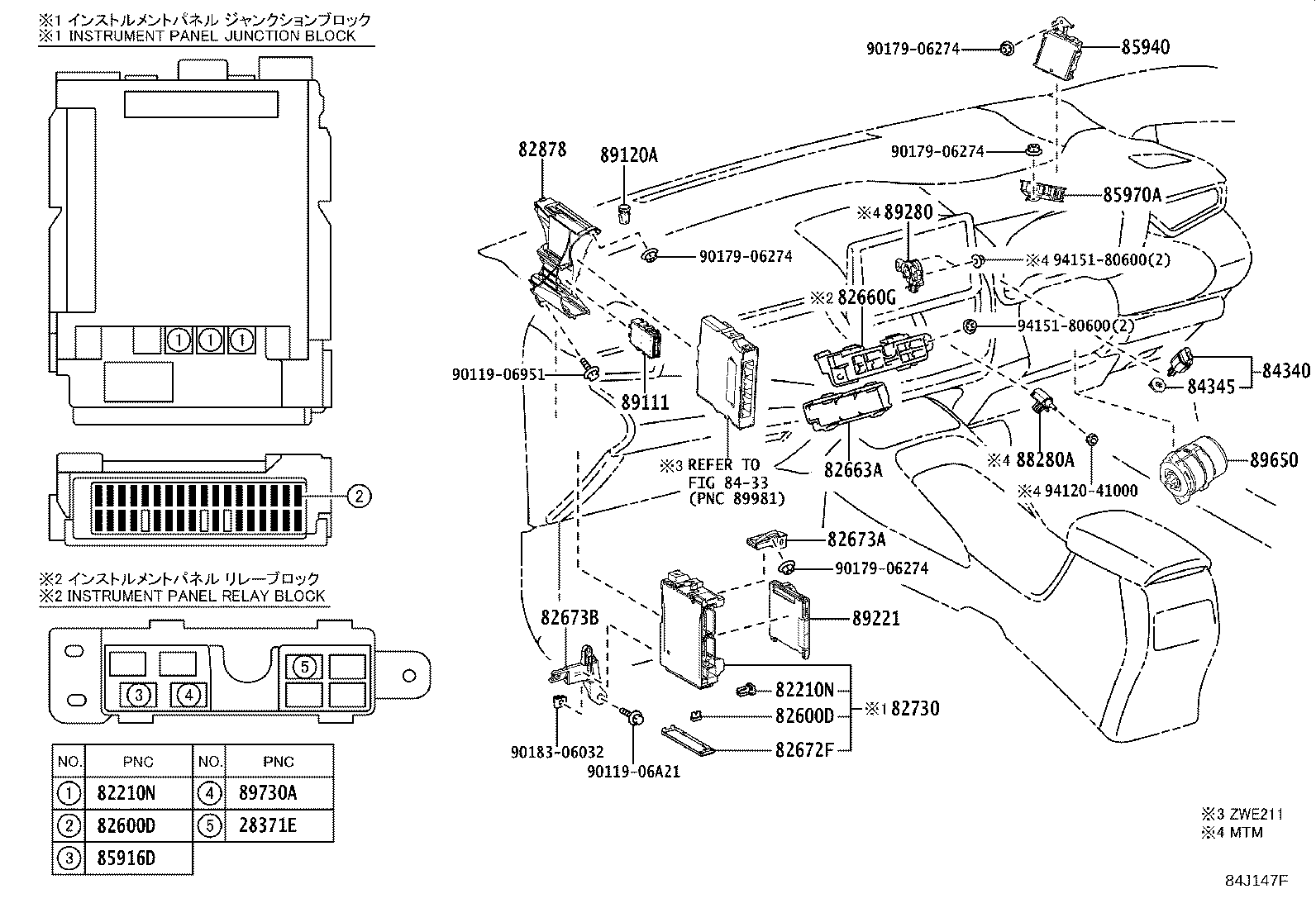

ILLUST NO. 4 OF 9(1806- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
MZEA12,NRE210,ZWE211 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
MZEA12,NRE210,ZWE211 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
MZEA12,NRE210,ZWE211 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
MZEA12,NRE210,ZWE211 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
MZEA12,NRE210,ZWE211 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
MZEA12,NRE210,ZWE211 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
MZEA12,NRE210,ZWE211 10A,MINI FUSE,RED |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
MZEA12,NRE210,ZWE211 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
MZEA12,NRE210,ZWE211 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
MZEA12,NRE210,ZWE211 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
MZEA12,NRE210,ZWE211 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
MZEA12,NRE210,ZWE211 10A,MINI FUSE,RED |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-12460 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12150 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 82672F - COVER, JUNCTION BLOCK | ||||
| 82672-12610 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-47190 |
MZEA12,NRE210,ZWE211..RHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-47210 |
MZEA12,NRE210,ZWE211..RHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-12N90 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 82878 - BOX, COMPUTER INTEGRATION, LH | ||||
| 82878-47020 |
MZEA12,NRE210,ZWE211..RHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19085 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 84340-19095 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-12230 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-70010 |
MZEA12,NRE210..6F |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-12030 |
MZEA12,NRE210 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-12A40 |
MZEA12..6F |
1 | ||
| 89280 - SENSOR ASSY, CLUTCH PEDAL STROKE | ||||
| 89280-10010 |
MZEA12,NRE210..6F |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12M00 |
MZEA12,NRE210,ZWE211 JTEKT |
1 | ||
| 89650-12J30 |
MZEA12,NRE210,ZWE211 JTEKT/DENSO |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-06A21 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8433 | ||||

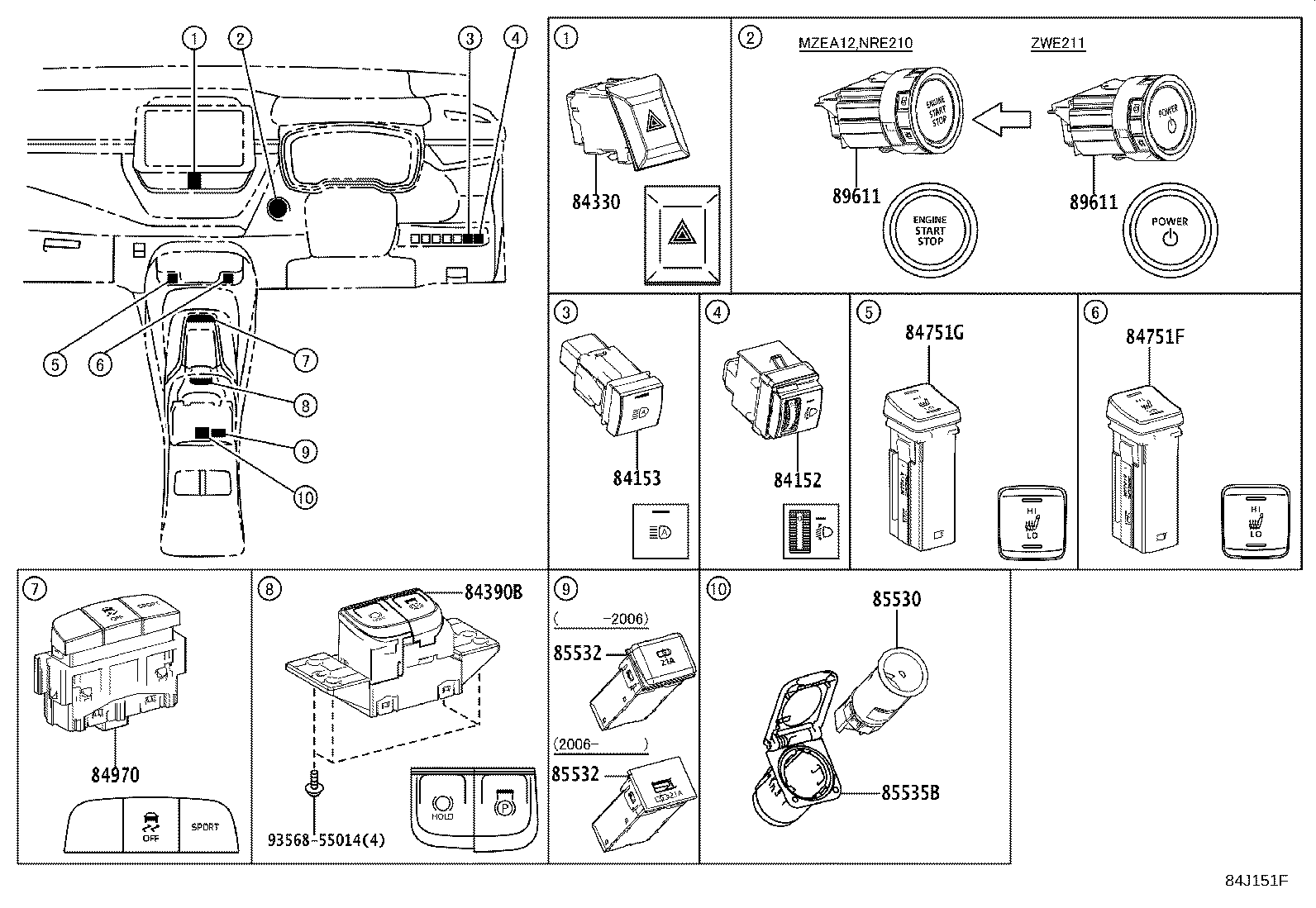

ILLUST NO. 5 OF 9(1806-2107)RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-12100 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-33040 |
MZEA12,ZWE211 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12600 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-12030 |
MZEA12..D |
1 | ||
| 84390-12020 |
MZEA12..D SEAT COVER MATERIAL-FABRIC & LEATHER |
1 | ||
| 84390-12060 |
MZEA12..D SEAT COVER MATERIAL-FABRIC & LEATHER |
1 | ||
| 84390-12070 |
MZEA12..D |
1 | ||
| 84390-12060 |
MZEA12..D DOOR ARM REST-PVC LEATHER |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-12190 |
MZEA12,NRE210..6F |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-12080 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 85535-12090C0 |
MZEA12,NRE210,ZWE211 BLACK |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||

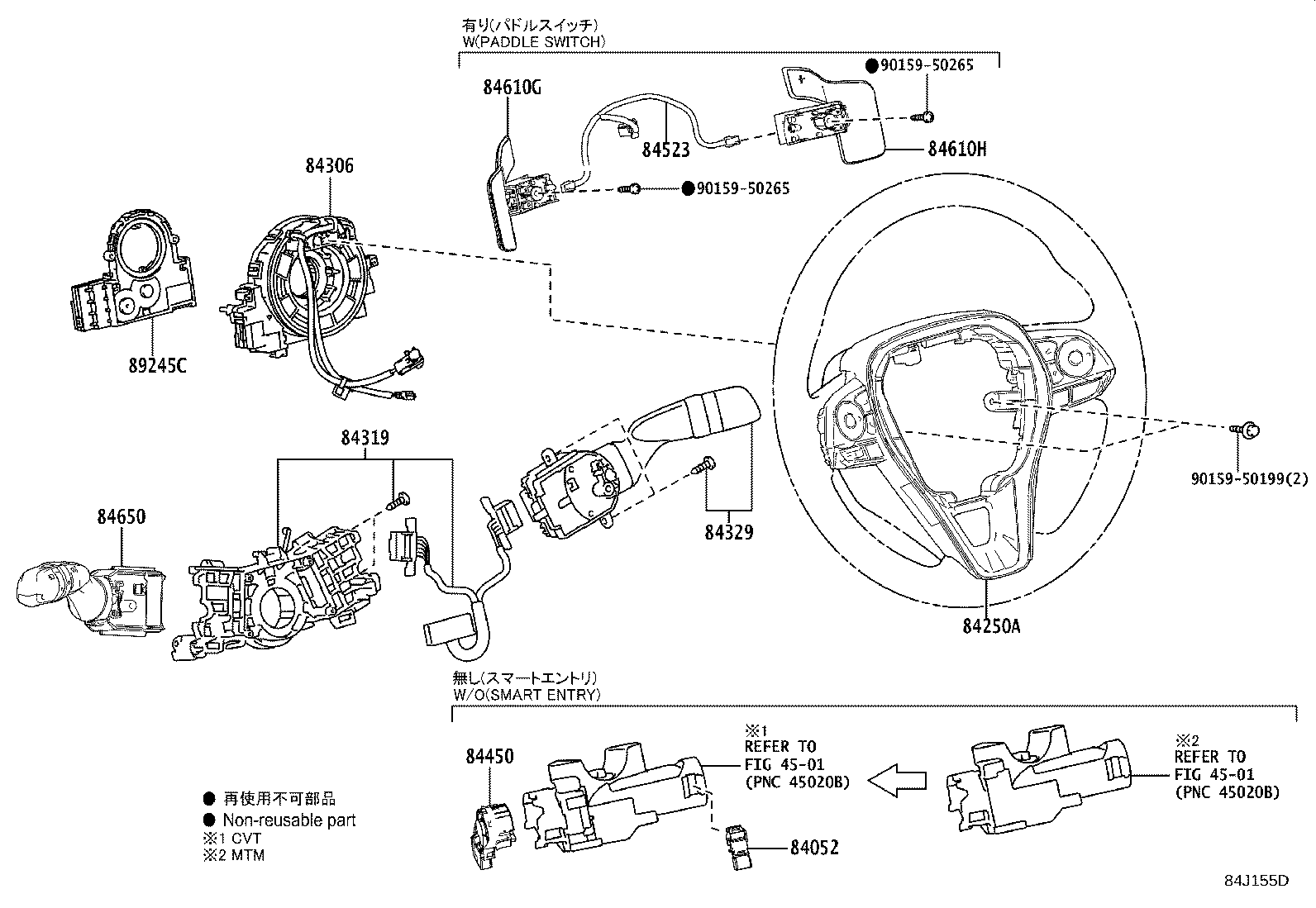

ILLUST NO. 6 OF 9(1806- )RHD
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
MZEA12..D |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-12580 |
MZEA12..D |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-12020 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-33030 |
MZEA12,NRE210,ZWE211..RHD |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12160 |
MZEA12..D |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-33040 |
MZEA12..D |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12B40 |
MZEA12,NRE210,ZWE211..RHD |
1 | ||
| 89245C - SENSOR, STEERING | ||||
| 8924B-50010 |
MZEA12,NRE210,ZWE211 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
| Linked diagrams | ||||
| 4501 | ||||

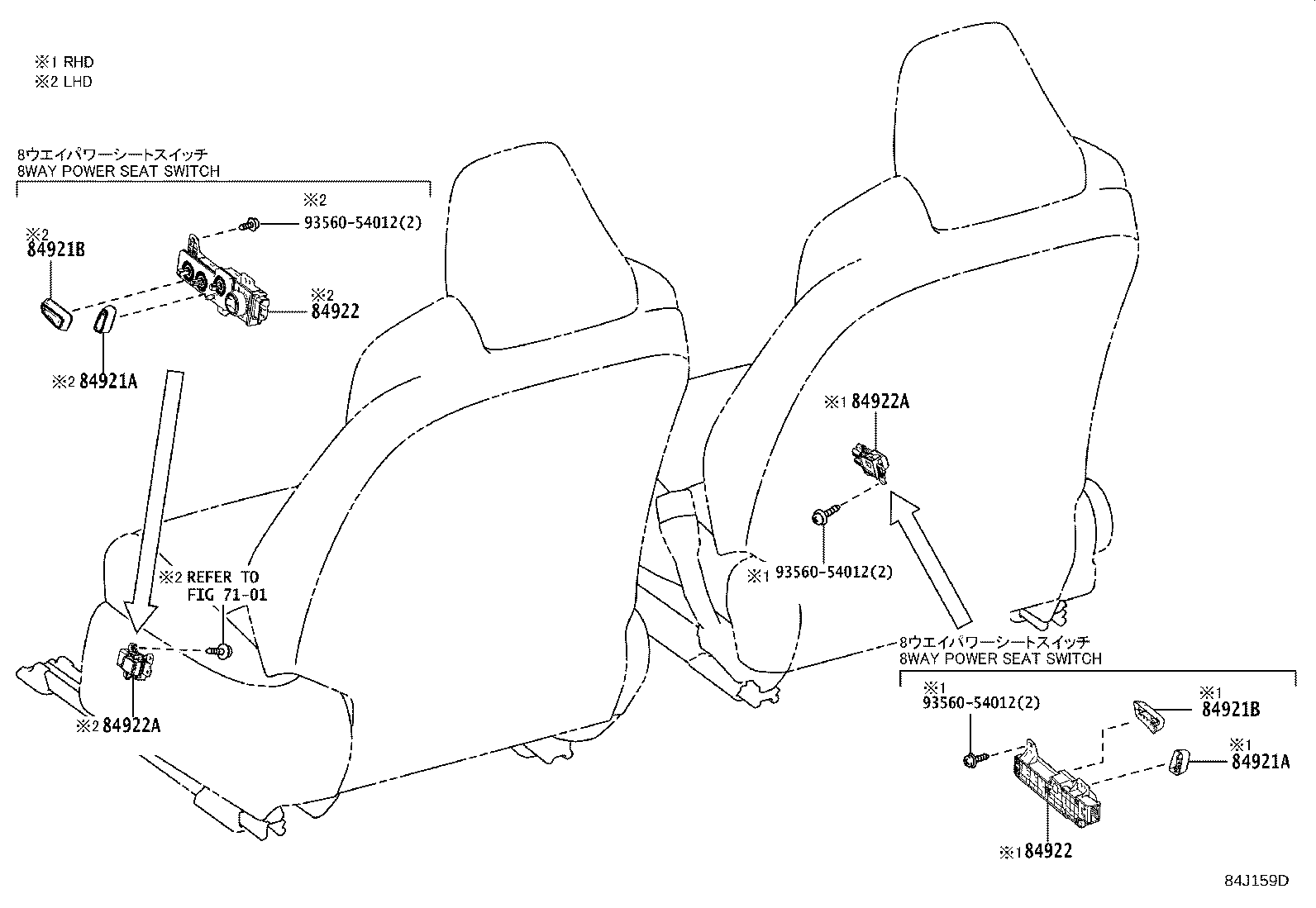

ILLUST NO. 7 OF 9(1806- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7101 | ||||

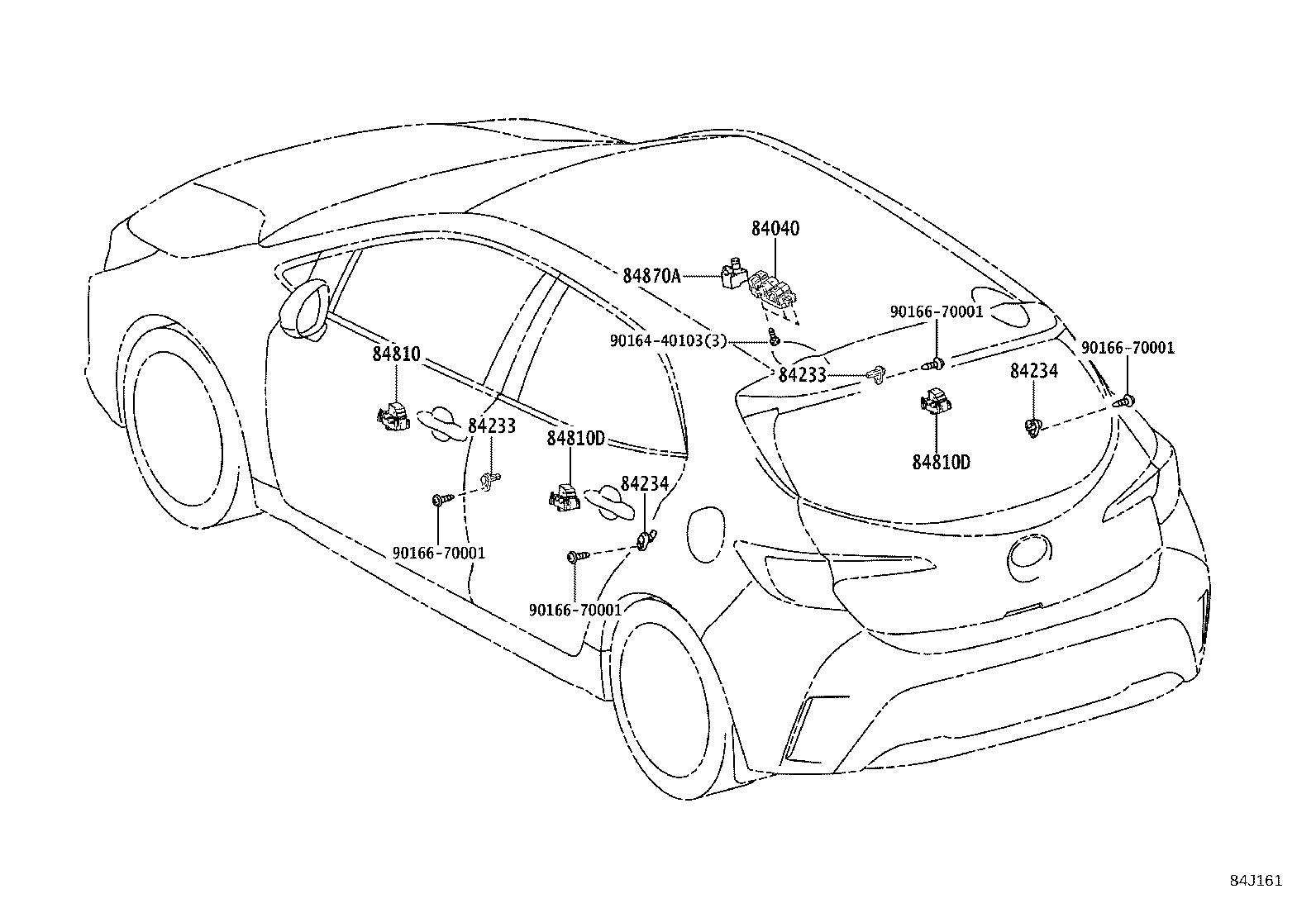

ILLUST NO. 8 OF 9(1806- )RHD
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-12200 |
MZEA12..D DOOR ARM REST-PVC LEATHER&SEAT COVER MATERIAL-FABRIC & LEATHER |
1 | ||
| 84040-12200 |
MZEA12..D DOOR ARM REST-PVC LEATHER |
1 | ||
| 84040-12190 |
MZEA12..D |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
MZEA12,NRE210,ZWE211 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
MZEA12,NRE210,ZWE211 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
MZEA12,NRE210,ZWE211 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
MZEA12,NRE210,ZWE211 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12120 |
MZEA12..D DOOR ARM REST-PVC LEATHER |
1 | ||
| 84810-12120 |
MZEA12..D DOOR ARM REST-PVC LEATHER&SEAT COVER MATERIAL-FABRIC & LEATHER |
1 | ||
| 84810-12100 |
MZEA12..D |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12120 |
MZEA12..D DOOR ARM REST-PVC LEATHER&SEAT COVER MATERIAL-FABRIC & LEATHER |
2 | ||
| 84810-12100 |
MZEA12..D |
2 | ||
| 84810-12120 |
MZEA12..D DOOR ARM REST-PVC LEATHER |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12120 |
MZEA12..D DOOR ARM REST-PVC LEATHER&SEAT COVER MATERIAL-FABRIC & LEATHER |
2 | ||
| 84810-12100 |
MZEA12..D |
2 | ||
| 84810-12120 |
MZEA12..D DOOR ARM REST-PVC LEATHER |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-12220 |
MZEA12..D DOOR ARM REST-PVC LEATHER&SEAT COVER MATERIAL-FABRIC & LEATHER |
1 | ||
| 84872-47020 |
MZEA12..D |
1 | ||
| 84872-12220 |
MZEA12..D DOOR ARM REST-PVC LEATHER |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||

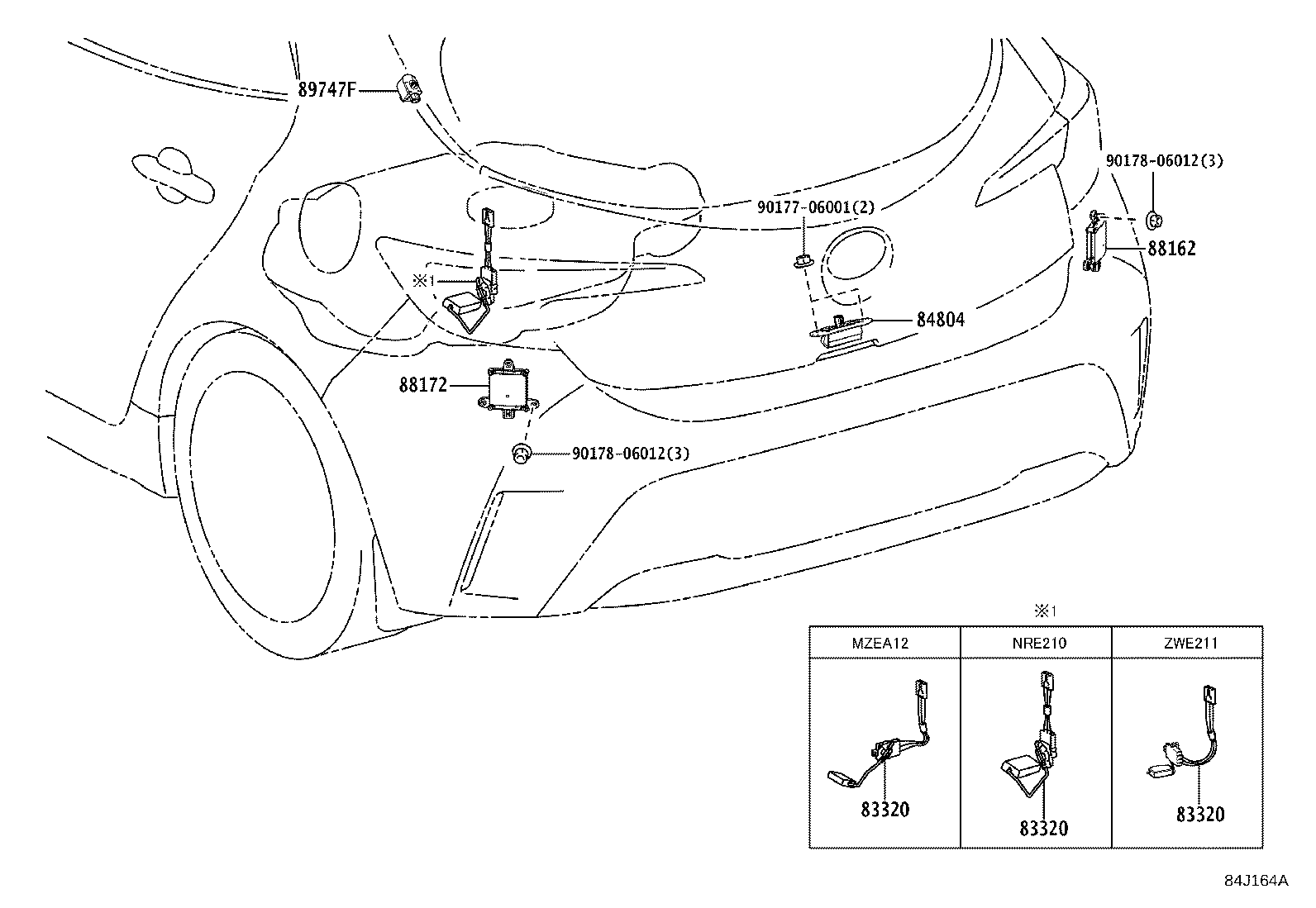

ILLUST NO. 9 OF 9(1806- )
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-10260 |
MZEA12 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-10260 |
MZEA12 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-10260 |
MZEA12 |
1 | ||
| 84804 - SWITCH SUB-ASSY, BACK DOOR OPENER | ||||
| 84804-12060 |
MZEA12..D |
1 | ||
| Common parts | ||||
| 90177-06001 | ||||
| 90178-06012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
