MZEA12R-AHFDBQ (2018)

Toyota Auris/Corolla Hb(Jpp

Production Jun 2018 - Sep 9999
Engine M20AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )M20AFKS

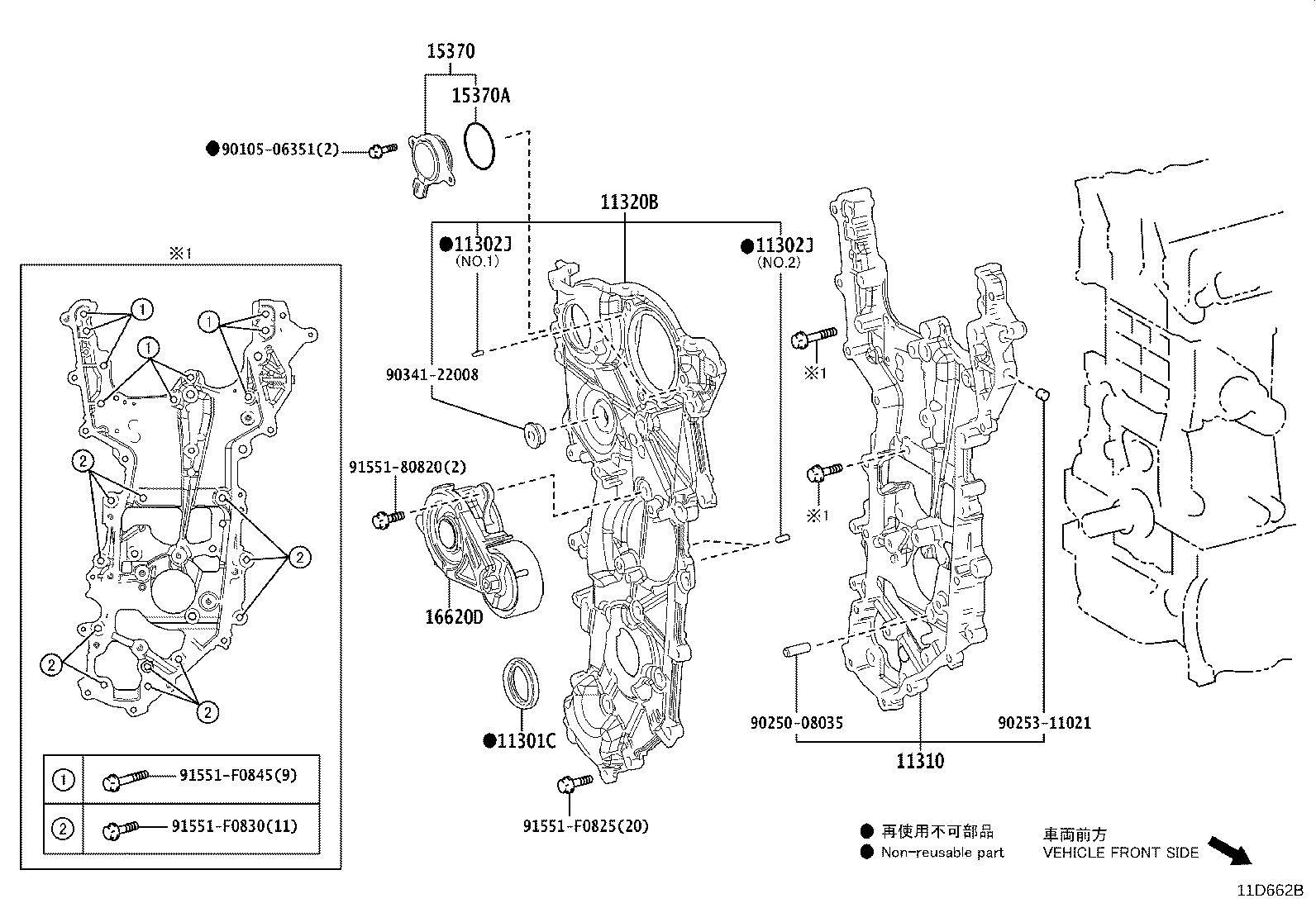

Click highlighted areas on diagram

diagram 11301C 11302J 11302J 11310 11320B 15370 15370A 16620D 9010506351 9025008035 9025311021 9034122008 9155180820 91551F0825 91551F0830 91551F0845
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-40044

M20AFKS..MZEA12

 1
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-04097

M20AFKS..MZEA12

NO.1:REFER ILLUST.

 2
90250-06003

M20AFKS..MZEA12

NO.2:REFER ILLUST.

 2
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-04097

M20AFKS..MZEA12

NO.1:REFER ILLUST.

 2
90250-06003

M20AFKS..MZEA12

NO.2:REFER ILLUST.

 2
11310 - COVER ASSY, TIMING CHAIN
11310-24010

M20AFKS..MZEA12

 1
11320B - COVER ASSY, TIMING CHAIN, NO.2
11320-24010

M20AFKS..MZEA12

 1
15370 - SOLENOID ASSY, CAM TIMING OIL CONTROL
15370-25020

M20AFKS..MZEA12

 1
15370A - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
90301-44006

M20AFKS..MZEA12

 1
16620D - TENSIONER ASSY, V-RIBBED BELT
16620-24010

M20AFKS..MZEA12..ARL

 1
Common parts
90105-06351
90250-08035
90253-11021
90341-22008
91551-80820
91551-F0825
91551-F0830
91551-F0845
