MZEA12L-AHXNBR (2018)

Toyota Auris/Corolla Hb(Jpp

Production Jun 2018 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )

Click highlighted areas on diagram

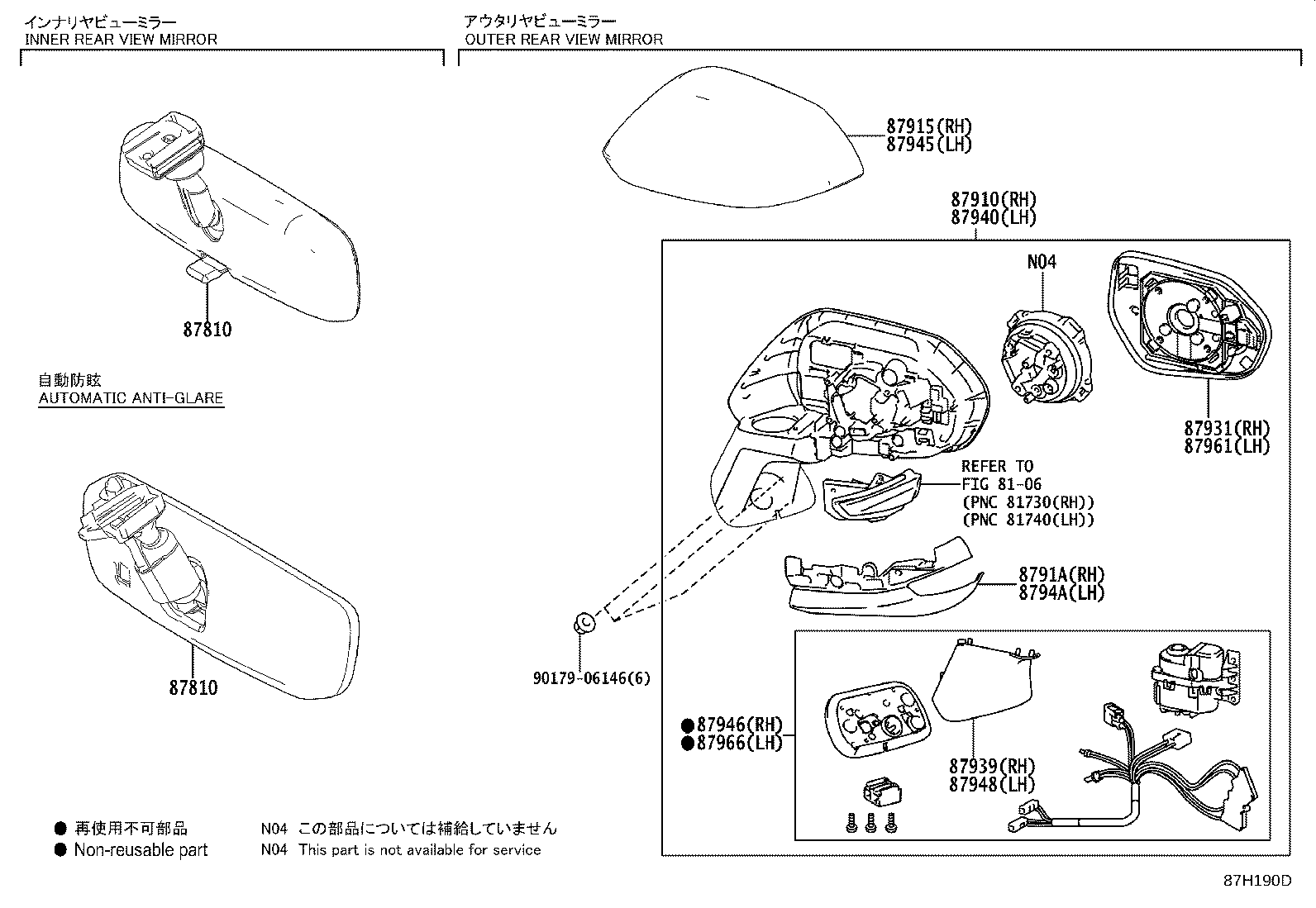

diagram 8106 87810 87810 87910 87915 8791A 87931 87939 87940 87945 87946 87948 8794A 87961 87966 9017906146
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-28140

MZEA12,NRE210,ZWE211

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-28140

MZEA12,NRE210,ZWE211

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-12G20

ZWE211;MZEA12..D

 1
87910-12F70

MZEA12..TAIW

Z PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST)

 1
87910-12G30

MZEA12..TAIW

NO PAINT REQ.

 1
87910-12F70

MZEA12..TAIW

Z PACKAGE

 1
87915 - COVER, OUTER MIRROR, RH
87915-52251A0

MZEA12,NRE210,ZWE211

WHITE PEARL CS.,070 ,2QJ

 1
87915-52251A1

MZEA12,NRE210,ZWE211

SUPER WHITE 2,040

 1
87915-52251D6

MZEA12,NRE210,ZWE211

EMOTIONAL RED 2,2SC ,3U5

 1
87915-52251D3

MZEA12,NRE210,ZWE211

SCARLET ME.,2UG ,3U4

 1
87915-52251A3

MZEA12,NRE210,ZWE211

PLATINUM WHITE PEARL MC.,089

 1
87915-52251C1

MZEA12,NRE210,ZWE211

BLACKISH AGEHA GF.,221

 1
87915-52251G1

MZEA12,NRE210,ZWE211

OXIDE BRONZE ME.,2UD ,6X1

 1
87915-52251B5

MZEA12,NRE210,ZWE211

GRAY ME.,1G3

 1
87915-52251B0

MZEA12,NRE210,ZWE211

SILVER ME.,1F7 ,2UF

 1
87915-52251C2

MZEA12..D;MZEA12,NRE210..SA,TAIW

ATTITUDE BLACK MC.,218 ,2PS ,2QJ ,2QZ ,2SC ,2UD ,2UF ,2UG ,2UH ,2XM

 1
87915-52251J1

MZEA12,NRE210,ZWE211

CYAN METALLIC,2UH ,8W9

 1
8791A - COVER, OUTER MIRROR, RH NO.2
8791B-12G30

MZEA12,NRE210,ZWE211

 1
87931 - OUTER MIRROR, RH
87902-12010

MZEA12..TAIW

Z PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST)

 1
87902-33120

MZEA12..TAIW

 1
87902-12010

MZEA12..TAIW

Z PACKAGE

 1
87902-12030

MZEA12..D;NRE210,ZWE211

 1
87939 - COVER, OUTER MIRROR HOLE, RH
87939-12G30

MZEA12..TAIW

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-12F90

MZEA12..TAIW

Z PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST)

 1
87940-12G50

MZEA12..TAIW

NO PAINT REQ.

 1
87940-12G40

ZWE211;MZEA12..D

 1
87940-12F90

MZEA12..TAIW

Z PACKAGE

 1
87945 - COVER, OUTER MIRROR, LH
87945-52251A0

MZEA12,NRE210,ZWE211

WHITE PEARL CS.,070 ,2QJ

 1
87945-52251D3

MZEA12,NRE210,ZWE211

SCARLET ME.,2UG ,3U4

 1
87945-52251G1

MZEA12,NRE210,ZWE211

OXIDE BRONZE ME.,2UD ,6X1

 1
87945-52251A1

MZEA12,NRE210,ZWE211

SUPER WHITE 2,040

 1
87945-52251C1

MZEA12,NRE210,ZWE211

BLACKISH AGEHA GF.,221

 1
87945-52251B0

MZEA12,NRE210,ZWE211

SILVER ME.,1F7 ,2UF

 1
87945-52251C2

MZEA12..D;MZEA12,NRE210..SA,TAIW

ATTITUDE BLACK MC.,218 ,2PS ,2QJ ,2QZ ,2SC ,2UD ,2UF ,2UG ,2UH ,2XM

 1
87945-52251J1

MZEA12,NRE210,ZWE211

CYAN METALLIC,2UH ,8W9

 1
87945-52251A3

MZEA12,NRE210,ZWE211

PLATINUM WHITE PEARL MC.,089

 1
87945-52251B5

MZEA12,NRE210,ZWE211

GRAY ME.,1G3

 1
87945-52251D6

MZEA12,NRE210,ZWE211

EMOTIONAL RED 2,2SC ,3U5

 1
87946 - RETRACTOR, OUTER MIRROR, RH
87946-12G20

ZWE211;MZEA12..D

 1
87946-12G30

MZEA12..TAIW

 1
87946-12F70

MZEA12..TAIW

Z PACKAGE

 1
87946-12F70

MZEA12..TAIW

Z PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST)

 1
87948 - COVER, OUTER MIRROR HOLE, LH
87948-12G50

MZEA12..TAIW

 1
8794A - COVER, OUTER MIRROR, LH NO.2
8794B-12G50

MZEA12,NRE210,ZWE211

 1
87961 - MIRROR OUTER, LH
87907-12080

MZEA12..TAIW

Z PACKAGE

 1
87907-12060

MZEA12..TAIW

 1
87907-33170

MZEA12..D;NRE210,ZWE211

 1
87907-12080

MZEA12..TAIW

Z PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST)

 1
87966 - RETRACTOR, OUTER MIRROR, LH
87966-12G40

ZWE211;MZEA12..D

 1
87966-12F90

MZEA12..TAIW

Z PACKAGE&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST)

 1
87966-12F90

MZEA12..TAIW

Z PACKAGE

 1
87966-12G50

MZEA12..TAIW

 1
Common parts
90179-06146
Linked diagrams
8106
