MZEA12L-AHXNBR (2018)

Toyota Auris/Corolla Hb(Jpp

Production Jun 2018 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )TAIW

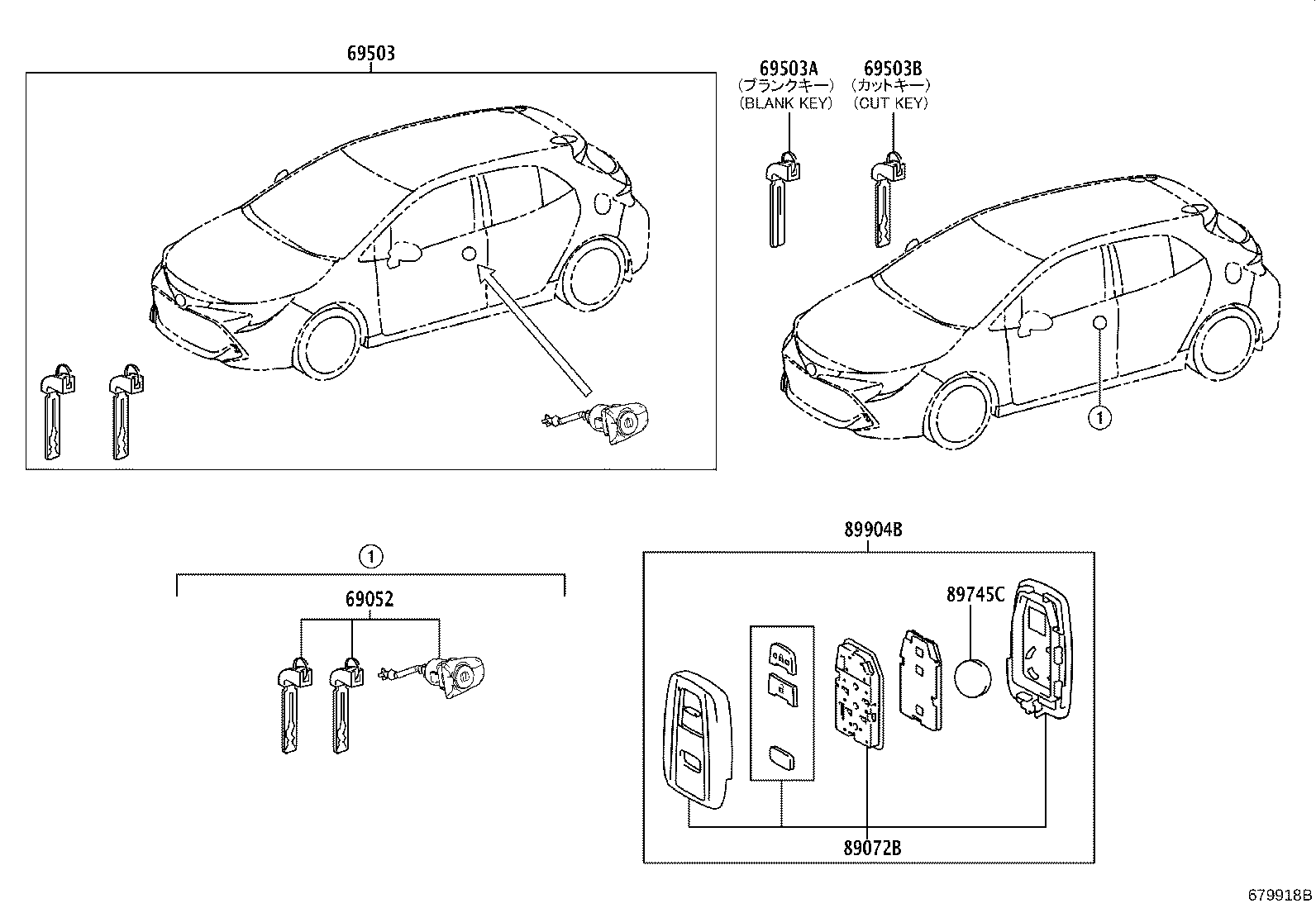

Click highlighted areas on diagram

W(SMART ENTRY) LHD

diagram 69052 69503 69503A 69503B 89072B 89745C 89904B
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-12720

MZEA12..TAIW

 1
69503 - CYLINDER SET, LOCK
89704-12G00

MZEA12..D

 1
69005-12K50

MZEA12..TAIW

 1
69503A - KEY, BLANK
69515-47030

MZEA12,NRE210,ZWE211..CVT..N

MASTER KEY,W(*68)

 1
69515-16110

MZEA12,NRE210,ZWE211..CVT..N

MASTER KEY,W(*68)

 1
69503B - KEY, CUT
69515-16100

MZEA12,NRE210,ZWE211..CVT..N

MASTER KEY,W(*68)

 1
69515-47020

MZEA12,NRE210,ZWE211..CVT..N

MASTER KEY,W(*68)

 1
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-12640

MZEA12..TAIW

 2
89072-12750

MZEA12..TAIW

 2
89745C - BATTERY, TRANSMITTER
89745-50020

MZEA12..TAIW

CR2032

 1
89745-45010

MZEA12..TAIW

CR2032

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
8990H-12190

MZEA12..TAIW

 1
8990H-12280

MZEA12..TAIW

 1

(1806- )D ; (1806- )NRE210..6F

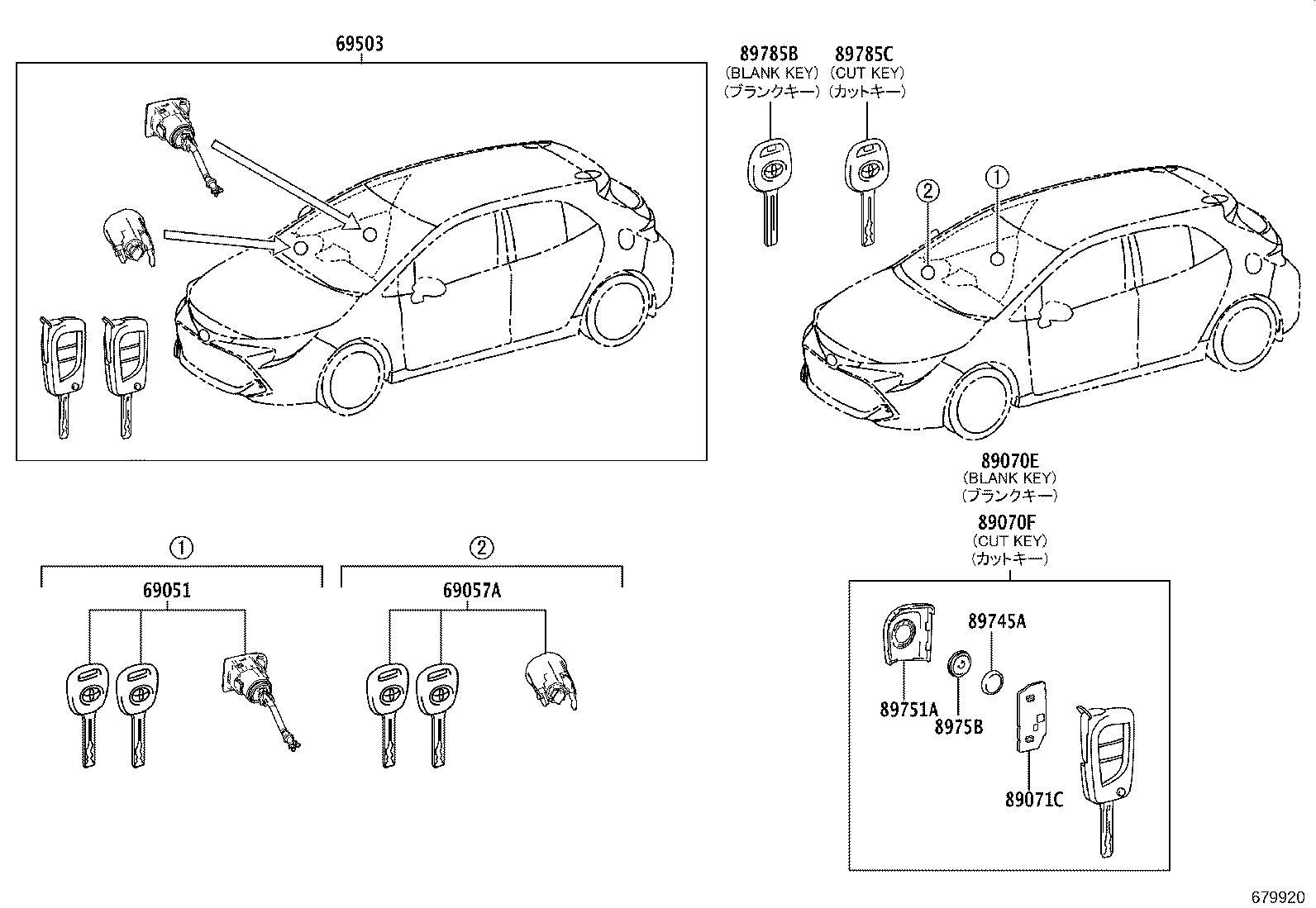

Click highlighted areas on diagram

W/O(SMART ENTRY) RHD

diagram 69051 69057A 69503 89070E 89070F 89071C 89745A 89751A 8975B 89785B 89785C
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-12840

MZEA12..D

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-33410

MZEA12..D

 1
69503 - CYLINDER SET, LOCK
89704-12G00

MZEA12..D

 1
69005-12K50

MZEA12..TAIW

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-12C80

MZEA12..D

 1
89070F - TRANSMITTER ASSY, DOOR CONTROL (CUT KEY)
89070-12D10

MZEA12..D

 1
89071C - TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-12370

MZEA12..D

 2
89745A - BATTERY, TRANSMITTER
89745-50020

MZEA12..D

CR2032

 1
89751A - COVER, TRANSMITTER HOUSING
89751-33200

MZEA12..D

 2
8975B - COVER, TRANSMITTER BATTERY HOUSING
8975B-33050

MZEA12..D

 2
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-12140

MZEA12..D

BLANK KEY

 1
89785C - TRANSMITTER, TRANSPONDER KEY MASTER
89785-12150

MZEA12..D

CUT KEY

 1
