MZEA12L-AHXNBR (2018)
Toyota Auris/Corolla Hb(Jpp

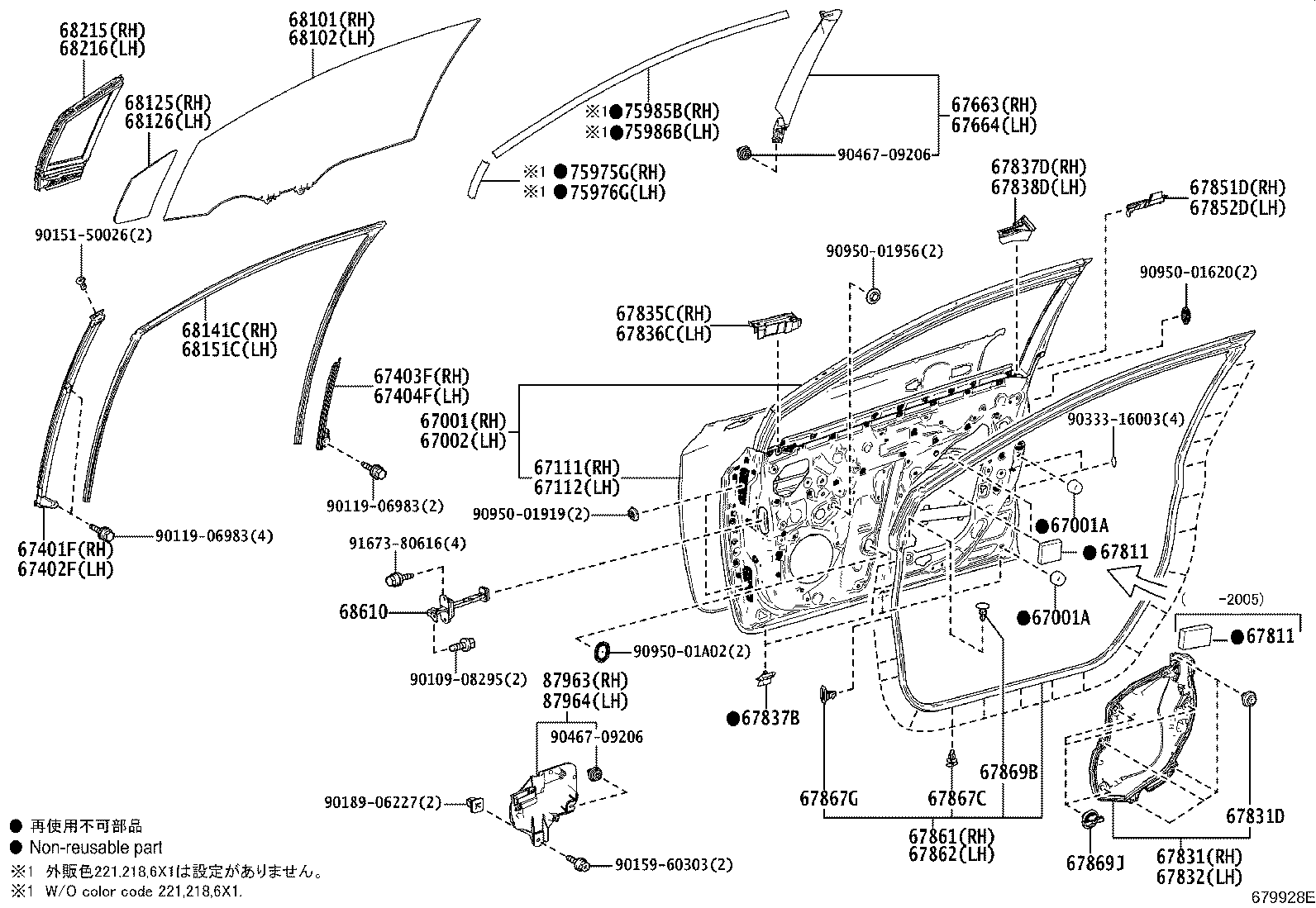

ILLUST NO. 1 OF 2(1806- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-12C50 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67001-12C00 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
MZEA12,NRE210,ZWE211 |
4 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
MZEA12,NRE210,ZWE211 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-12C00 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67002-12C50 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-12750 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-12740 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-12380 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-12400 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-12330 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-12310 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67663 - GARNISH, DOOR FRAME, UPPER RH | ||||
| 67663-12031 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67663-12030 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67664 - GARNISH, DOOR FRAME, UPPER LH | ||||
| 67664-12030 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67664-12031 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-33040 |
MZEA12,NRE210,ZWE211 |
4 | ||
| 67811-12180 |
MZEA12,NRE210,ZWE211 |
4 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-12750 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67831D - CLIP(FOR FRONT DOOR SERVICE HOLE COVER) | ||||
| 90467-09206 |
MZEA12,NRE210,ZWE211 |
8 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-12530 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67835C - COVER, FRONT DOOR SERVICE HOLE, NO.3 RH | ||||
| 67835-12030 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67836C - COVER, FRONT DOOR SERVICE HOLE, NO.3 LH | ||||
| 67836-12050 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-47060 |
MZEA12,NRE210,ZWE211 |
6 | ||
| 67837D - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-12090 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67838D - SEAL, FRONT DOOR VENT, LH | ||||
| 67838-12040 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67851D - SEAL, FRONT DOOR REAR OUTSIDE, RH | ||||
| 67851-12010 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67852D - SEAL, FRONT DOOR REAR OUTSIDE, LH | ||||
| 67852-12010 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-12B20 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-12B20 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
MZEA12,NRE210,ZWE211 |
40 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52030 |
MZEA12,NRE210,ZWE211 |
2 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67868-30030 |
MZEA12,NRE210,ZWE211 |
2 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-47010 |
MZEA12,NRE210,ZWE211 |
6 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-12E00 |
MZEA12,NRE210..SA,TAIW |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-12D80 |
MZEA12,NRE210..SA,TAIW |
1 | ||
| 68125 - GLASS, FRONT DOOR FIX WINDOW, RH | ||||
| 68125-12020 |
MZEA12,NRE210..SA,TAIW |
1 | ||
| 68126 - GLASS, FRONT DOOR FIX WINDOW, LH | ||||
| 68126-12020 |
MZEA12,NRE210..SA,TAIW |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-12622 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 68141-12621 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 68141-12620 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-12320 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 68151-12322 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 68151-12321 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH | ||||
| 68215-12010 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH | ||||
| 68216-12010 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-12300 |
MZEA12,NRE210,ZWE211 |
2 | ||
| 75975G - STRIPE, FRONT DOOR, NO.2 RH | ||||
| 75975-12080 |
MZEA12,NRE210,ZWE211 BODY COLOR-TWO-TONES |
1 | ||
| 75975-12080 |
MZEA12,NRE210,ZWE211 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75976G - STRIPE, FRONT DOOR, NO.2 LH | ||||
| 75976-12060 |
MZEA12,NRE210,ZWE211 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75976-12060 |
MZEA12,NRE210,ZWE211 BODY COLOR-TWO-TONES |
1 | ||
| 75985B - STRIPE, FRONT DOOR, NO.3 RH | ||||
| 75985-12800 |
MZEA12,NRE210,ZWE211 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75985-12800 |
MZEA12,NRE210,ZWE211 BODY COLOR-TWO-TONES |
1 | ||
| 75986B - STRIPE, FRONT DOOR, NO.3 LH | ||||
| 75986-12480 |
MZEA12,NRE210,ZWE211 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75986-12480 |
MZEA12,NRE210,ZWE211 BODY COLOR-TWO-TONES |
1 | ||
| 87963 - COVER, OUTER MIRROR INSTALL HOLE, RH | ||||
| 87963-12020 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 87964 - COVER, OUTER MIRROR INSTALL HOLE, LH | ||||
| 87964-12020 |
MZEA12,NRE210,ZWE211 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90151-50026 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| 90333-16003 | ||||
| 90467-09206 | ||||
| 90950-01620 | ||||
| 90950-01919 | ||||
| 90950-01956 | ||||
| 90950-01A02 | ||||
| 91673-80616 | ||||

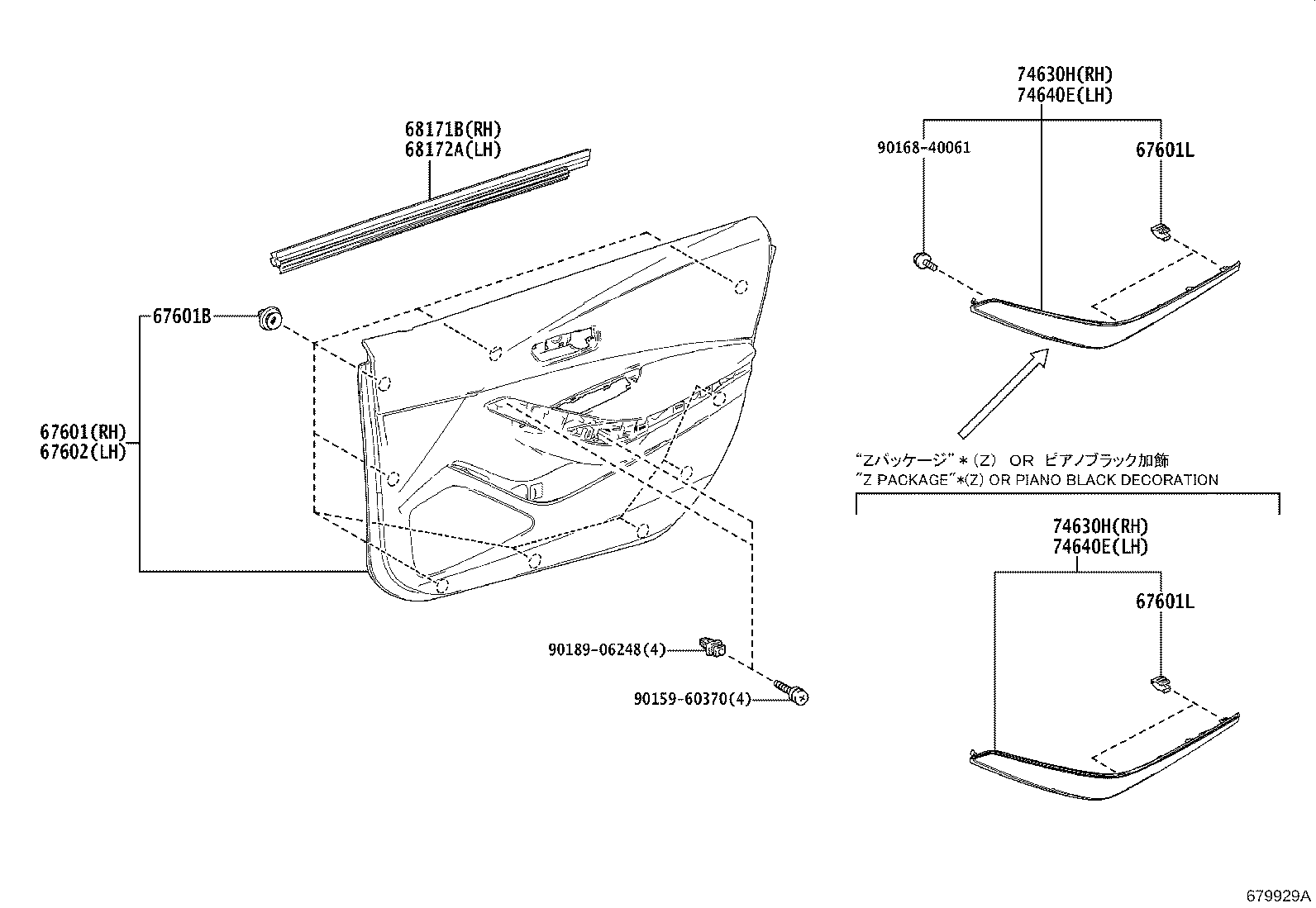

ILLUST NO. 2 OF 2(1806- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-12P3021 |
MZEA12..TAIW STEERING WHEEL-3-SPOKE, LEATHER&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SEAT HEATER-WITH,BLACK/BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 67610-12P30C9 |
MZEA12..TAIW STEERING WHEEL-3-SPOKE, LEATHER&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SEAT HEATER-WITH,BLACK/BLACK/S.RED/DK.ROSE,TRIM3# |
1 | ||
| 67610-12P30C9 |
MZEA12..TAIW BLACK/BLACK/S.RED/DK.ROSE,TRIM3# |
1 | ||
| 67610-12P3021 |
MZEA12..TAIW BLACK/BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 67610-12S60C9 |
MZEA12..D DOOR ARM REST-PVC LEATHER&SEAT COVER MATERIAL-FABRIC & LEATHER,BLACK/BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 67610-12T30C6 |
MZEA12..TAIW BLACK/BLACK/SENSUAL RED,TRIM3# |
1 | ||
| 67610-12T30C5 |
MZEA12..TAIW BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 67610-12T90C3 |
MZEA12..D DOOR ARM REST-PVC LEATHER&SEAT COVER MATERIAL-FABRIC & LEATHER,BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
MZEA12,NRE210,ZWE211 |
18 | ||
| 67601L - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-05172 |
MZEA12,NRE210,ZWE211 |
4 | ||
| 67601L - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-05172 |
MZEA12,NRE210,ZWE211 |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-12Q7021 |
MZEA12..TAIW BLACK/BLACK/S.RED/DK.ROSE,TRIM3# |
1 | ||
| 67620-12Q7024 |
MZEA12..TAIW BLACK/BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 67620-12P4020 |
MZEA12..D DOOR ARM REST-PVC LEATHER&SEAT COVER MATERIAL-FABRIC & LEATHER,BLACK/BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 67620-12Q7021 |
MZEA12..TAIW STEERING WHEEL-3-SPOKE, LEATHER&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SEAT HEATER-WITH,BLACK/BLACK/S.RED/DK.ROSE,TRIM3# |
1 | ||
| 67620-12Q7024 |
MZEA12..TAIW STEERING WHEEL-3-SPOKE, LEATHER&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SEAT HEATER-WITH,BLACK/BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 67620-12T20C3 |
MZEA12..D DOOR ARM REST-PVC LEATHER&SEAT COVER MATERIAL-FABRIC & LEATHER,BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 67620-12S60C6 |
MZEA12..TAIW BLACK/BLACK/SENSUAL RED,TRIM3# |
1 | ||
| 67620-12S60C5 |
MZEA12..TAIW BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-12400 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-12320 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 74630H - GRIP ASSY, FRONT DOOR ASSIST, RH | ||||
| 74645-12140 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 74630-12180C0 |
MZEA12..TAIW Z PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SEAT HEATER-WITH,BLACK/SILVER,TRIM2#,3# |
1 | ||
| 74630H - GRIP ASSY, FRONT DOOR ASSIST, RH | ||||
| 74645-12140 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 74630-12180C0 |
MZEA12..TAIW Z PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SEAT HEATER-WITH,BLACK/SILVER,TRIM2#,3# |
1 | ||
| 74640E - GRIP ASSY, FRONT DOOR ASSIST, LH | ||||
| 74646-12140 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 74640-12170C0 |
MZEA12..TAIW Z PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SEAT HEATER-WITH,BLACK/SILVER,TRIM2#,3# |
1 | ||
| 74640E - GRIP ASSY, FRONT DOOR ASSIST, LH | ||||
| 74646-12140 |
MZEA12,NRE210,ZWE211 |
1 | ||
| 74640-12170C0 |
MZEA12..TAIW Z PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SEAT HEATER-WITH,BLACK/SILVER,TRIM2#,3# |
1 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90168-40061 | ||||
| 90189-06248 | ||||
