MZEA12L-AHXNBR (2018)

Toyota Auris/Corolla Hb(Jpp

Production Jun 2018 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )TAIW

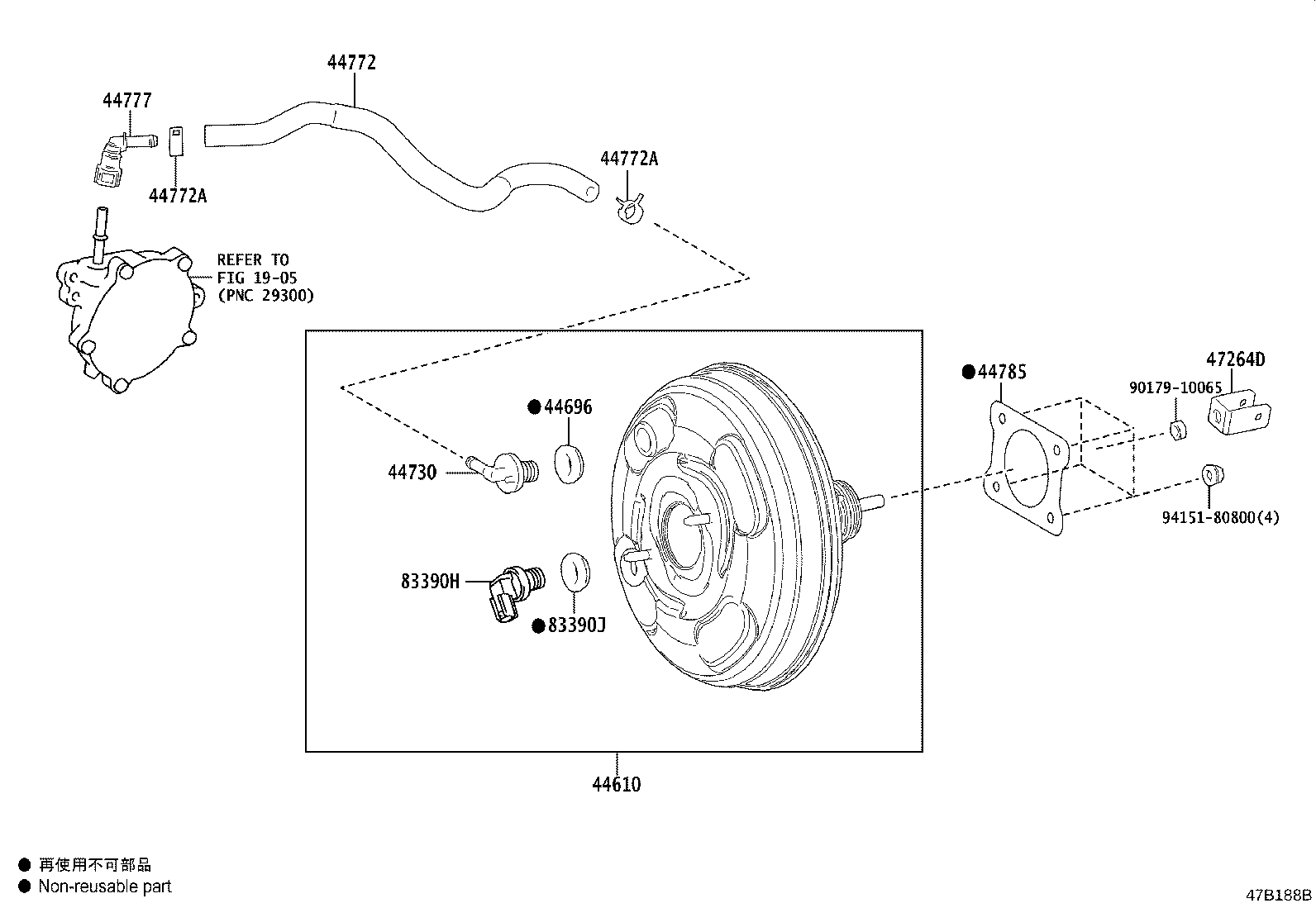

Click highlighted areas on diagram

diagram 1905 44610 44696 44730 44772 44772A 44772A 44777 44785 47264D 83390H 83390J 9017910065 9415180800
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-12M70

MZEA12..TAIW

 1
44696 - GROMMET, CHECK VALVE
90480-24439

MZEA12,NRE210

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-52010

MZEA12,NRE210

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-12780

MZEA12..TAIW

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

MZEA12,NRE210

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

MZEA12,NRE210

 2
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-12010

MZEA12

 1
44785 - GASKET, BRAKE BOOSTER
44785-12040

MZEA12,NRE210..SA,TAIW

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-52060

MZEA12..TAIW

 1
83390H - SWITCH ASSY, VACUUM WARNING
83390-28120

MZEA12,NRE210

 1
83390J - GROMMET, VACUUM WARNING SWITCH
90480-24439

MZEA12,NRE210

 1
Common parts
90179-10065
94151-80800
Linked diagrams
1905
