MZEA12L-AHXNBR (2018)

Toyota Auris/Corolla Hb(Jpp

Production Jun 2018 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )TAIW

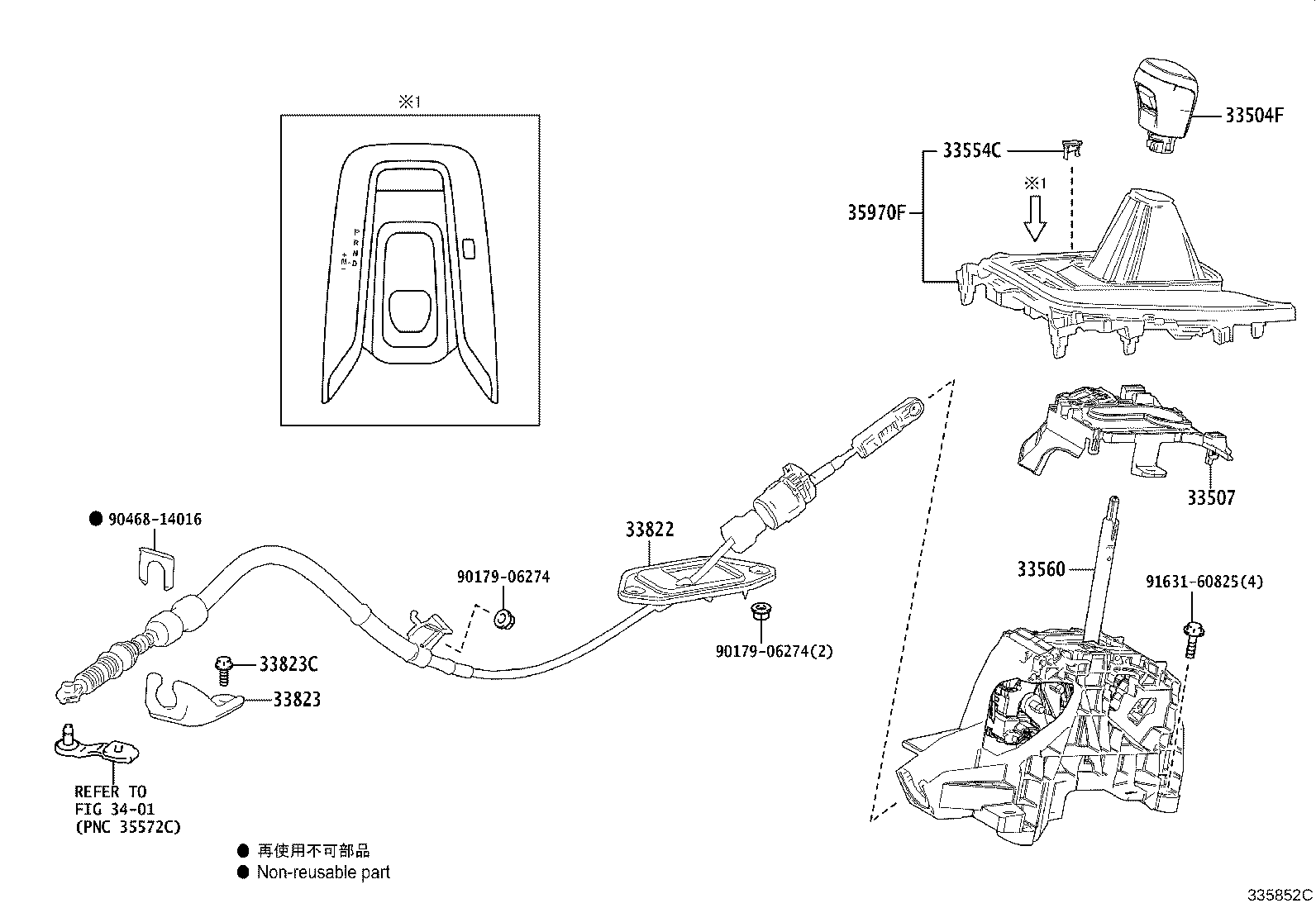

Click highlighted areas on diagram

diagram 33504F 33507 33554C 33560 33822 33823 33823C 3401 35970F 9017906274 9017906274 9046814016 9163160825
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12800C0

MZEA12..TAIW

STEERING WHEEL-3-SPOKE, LEATHER,BLACK,TRIM2#,3#

 1
33504-12800C0

MZEA12..CVT..D

STEERING WHEEL-3-SPOKE, LEATHER,BLACK,TRIM2#

 1
33504-33170C0

MZEA12..TAIW

BLACK,TRIM2#,3#

 1
33504-33170C0

MZEA12..CVT..D

BLACK,TRIM2#

 1
33507 - BRACKET SUB-ASSY, SHIFT LEVER HOUSING
33507-12030

MZEA12..TAIW

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-12210

MZEA12..TAIW

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-10010

MZEA12..CVT..D

 1
33560-12650

MZEA12..TAIW

 1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33820-12J30

MZEA12..CVT

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-12310

MZEA12..CVT

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91671-80820

MZEA12..CVT

 2
35970F - HOUSING ASSY, POSITION INDICATOR
35970-12410C2

MZEA12..TAIW

BLACK & SILVER,TRIM2#,3#

 1
35970-12470C3

MZEA12..CVT..D

BLACK & SILVER,TRIM2#

 1
Common parts
90179-06274
90468-14016
91631-60825
Linked diagrams
3401
