MNH10R-PFPSK (2003)

Toyota Alphard

Production Dec 2003 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )

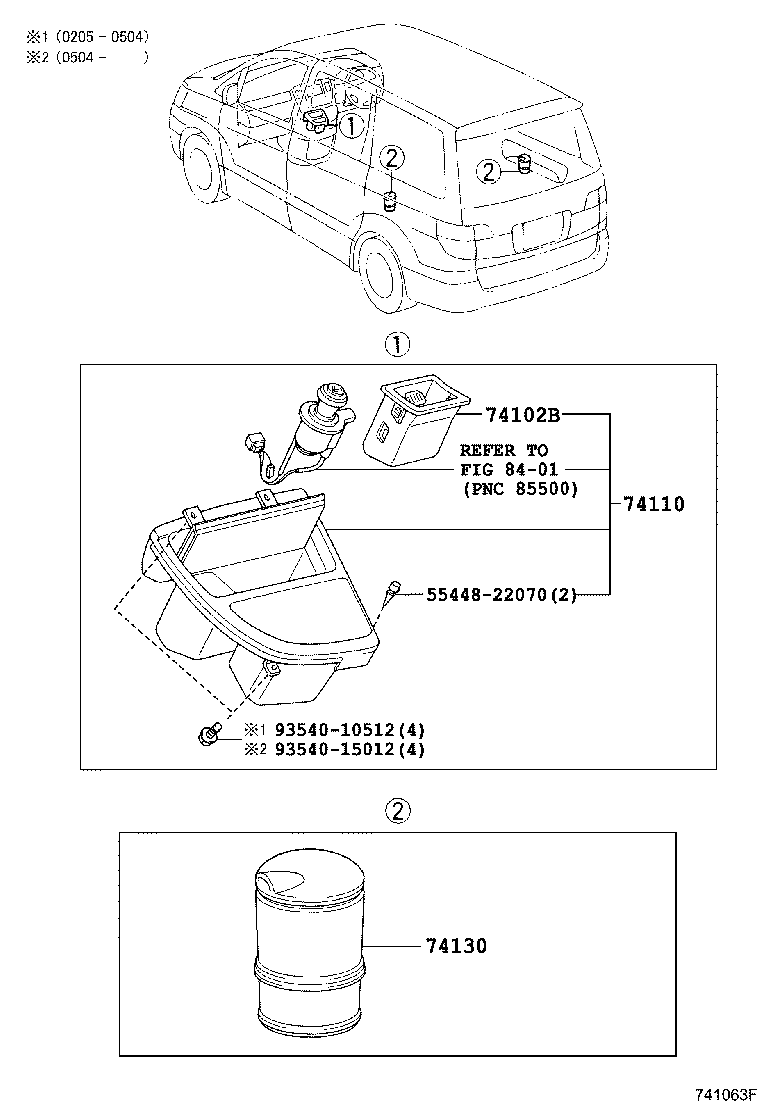

Click highlighted areas on diagram

diagram 5544822070 74102B 74110 74130 8401 9354010512 9354015012
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-26060

MNH10

 1
74110 - RECEPTACLE ASSY, INSTRUMENT PANEL ASH
74110-58020

MNH10..MS

 1
74110-58010

MNH10..MZ

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-28040C0

MNH10..MS

BLACK,TRIM1#

 2
74130-28040C0

MNH10..MZ

BLACK,TRIM0#

 2
Common parts
55448-22070
93540-10512
93540-15012
Linked diagrams
8401
