MNH10R-PFPSK (2003)
Toyota Alphard

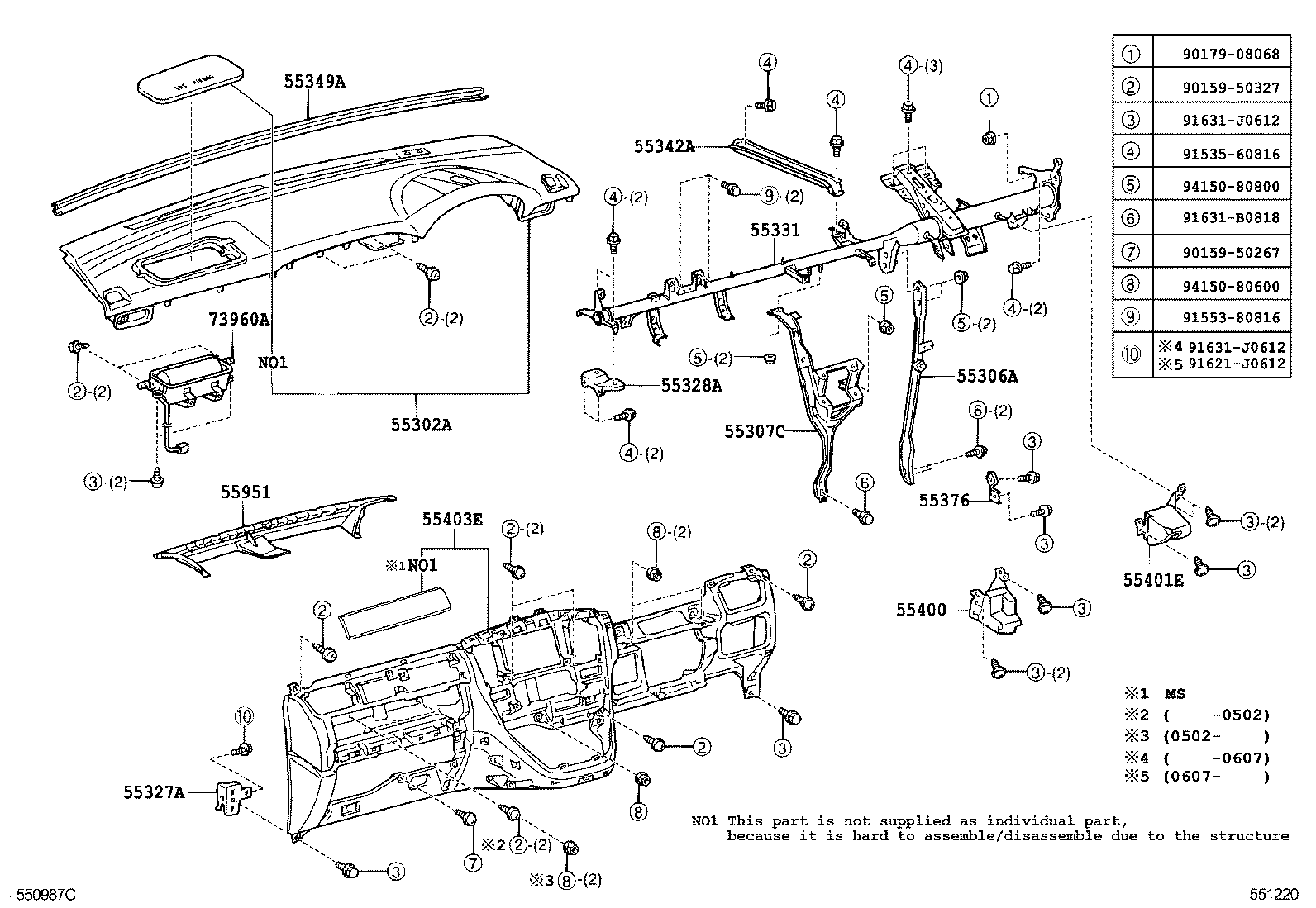

ILLUST NO. 1 OF 2(0312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-58010B0 |
MNH10..MS DK.GRAY,TRIM1# |
1 | ||
| 55302-58010E0 |
MNH10..MZ ORCHID BROWN,TRIM0# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-58010 |
MNH10 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-58010 |
MNH10 |
1 | ||
| 55327A - STAY, INSTRUMENT PANEL, NO.2 | ||||
| 55327-58010 |
MNH10 |
1 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-58010 |
MNH10 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-58010 |
MNH10 |
1 | ||
| 55342A - BRACE, INSTRUMENT PANEL TO COWL, NO.2 | ||||
| 55342-58010 |
MNH10 |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-58010 |
MNH10 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-58010 |
MNH10 |
1 | ||
| 55400 - PAD ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-58010 |
MNH10 |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-58010 |
MNH10 |
1 | ||
| 55403E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55403-58030B0 |
MNH10..MS DK.GRAY,TRIM1# |
1 | ||
| 55403-58040E0 |
MNH10..MZ ORCHID BROWN,TRIM0# |
1 | ||
| 55951 - NOZZLE, DEFROSTER, FRONT | ||||
| 55951-58010 |
MNH10 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-58010 |
MNH10 |
1 | ||
| Common parts | ||||
| 90159-50267 | ||||
| 90159-50327 | ||||
| 90179-08068 | ||||
| 91535-60816 | ||||
| 91553-80816 | ||||
| 91621-J0612 | ||||
| 91631-B0818 | ||||
| 91631-J0612 | ||||
| 94150-80600 | ||||
| 94150-80800 | ||||

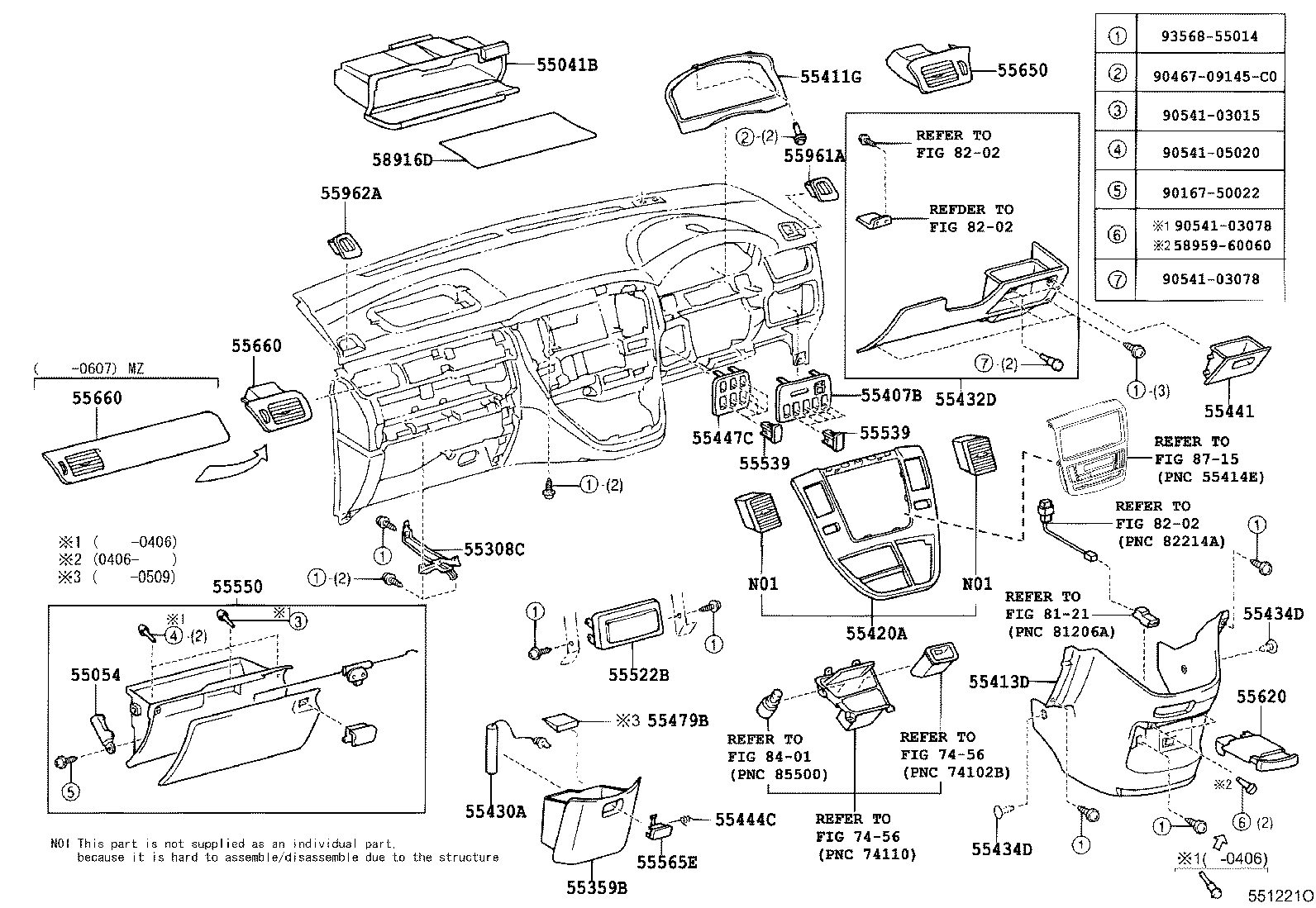

ILLUST NO. 2 OF 2(0312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-58010E0 |
MNH10..MZ ORCHID BROWN,TRIM0# |
1 | ||
| 55041-58010B0 |
MNH10..MS DK.GRAY,TRIM1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12010 |
MNH10 |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-58010 |
MNH10 |
1 | ||
| 55359B - BOX, INSTRUMENT PANEL, CENTER | ||||
| 55359-58020A0 |
MNH10..MZ IVORY,TRIM0# |
1 | ||
| 55359-58010B0 |
MNH10..MS STONE,TRIM1# |
1 | ||
| 55407B - BASE SUB-ASSY, SWITCH HOLE | ||||
| 55407-58040B0 |
MNH10..MS DK.GRAY,TRIM1# |
1 | ||
| 55407-58040E0 |
MNH10..MZ ORCHID BROWN,TRIM0# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-58010 |
MNH10 |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-58010A0 |
MNH10..MZ IVORY,TRIM0# |
1 | ||
| 55413-58010B0 |
MNH10..MS STONE,TRIM1# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-58030 |
MNH10..MS |
1 | ||
| 55420-58020 |
MNH10..MZ |
1 | ||
| 55430A - DAMPER ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55430-58010 |
MNH10 |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55480-58010A0 |
MNH10..MZ IVORY,TRIM0# |
1 | ||
| 55480-58010B0 |
MNH10..MS STONE,TRIM1# |
1 | ||
| 55434D - CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 90467-07090B6 |
MNH10..MS STONE,TRIM1# |
2 | ||
| 90467-07090A0 |
MNH10..MZ IVORY,TRIM0# |
2 | ||
| 55434D - CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 90467-07090B6 |
MNH10..MS STONE,TRIM1# |
2 | ||
| 90467-07090A0 |
MNH10..MZ IVORY,TRIM0# |
2 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-58010B0 |
MNH10..MS STONE,TRIM1# |
1 | ||
| 55441-58020A0 |
MNH10..MZ IVORY,TRIM0# |
1 | ||
| 55444C - SPRING, INSTRUMENT PANEL BOX | ||||
| 55518-58010 |
MNH10 |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-58010B0 |
MNH10..MS DK.GRAY,TRIM1# |
1 | ||
| 55447-58010E0 |
MNH10..MZ ORCHID BROWN,TRIM0# |
1 | ||
| 55479B - COVER, INSTRUMENT, LOWER CENTER | ||||
| 55479-58010 |
MNH10 |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
MNH10 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-58040 |
MNH10 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-58040 |
MNH10 |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-58020A0 |
MNH10..MZ IVORY,TRIM0# |
1 | ||
| 55550-58010B0 |
MNH10..MS STONE,TRIM1# |
1 | ||
| 55565E - KNOB, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-44010A0 |
MNH10..MZ IVORY,TRIM0# |
1 | ||
| 55565-44010B1 |
MNH10..MS STONE,TRIM1# |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-58010A0 |
MNH10..MZ IVORY,TRIM0# |
1 | ||
| 55620-58010B0 |
MNH10..MS STONE,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-58010B0 |
MNH10..MS DK.GRAY,TRIM1# |
1 | ||
| 55650-58020 |
MNH10..MZ |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-58020 |
MNH10..MZ |
1 | ||
| 55660-58010B0 |
MNH10..MS DK.GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-58020 |
MNH10..MZ |
1 | ||
| 55660-58010B0 |
MNH10..MS DK.GRAY,TRIM1# |
1 | ||
| 55961A - NOZZLE, SIDE DEFROSTER, RH | ||||
| 55961-58010E0 |
MNH10..MZ ORCHID BROWN,TRIM0# |
1 | ||
| 55961-58010B0 |
MNH10..MS DK.GRAY,TRIM1# |
1 | ||
| 55962A - NOZZLE, SIDE DEFROSTER, LH | ||||
| 55962-58010E0 |
MNH10..MZ ORCHID BROWN,TRIM0# |
1 | ||
| 55962-58010B0 |
MNH10..MS DK.GRAY,TRIM1# |
1 | ||
| 58916D - MAT, BOX BOTTOM | ||||
| 58916-58010 |
MNH10 |
1 | ||
| Common parts | ||||
| 58959-60060 | ||||
| 90167-50022 | ||||
| 90467-09145C0 | ||||
| 90541-03015 | ||||
| 90541-03078 | ||||
| 90541-05020 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7456 | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
| 8715 | ||||
