MNH10R-PFASK (2005)
Toyota Alphard
Production
Apr 2005
-
Apr 2008
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0504- )

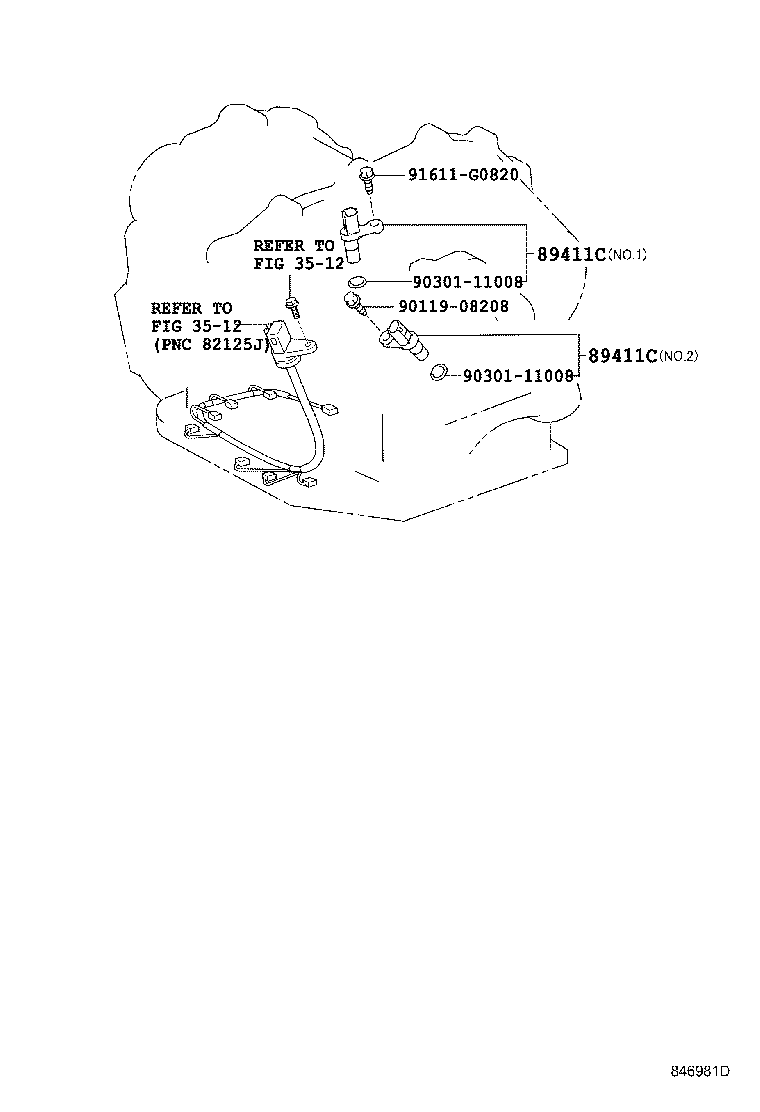

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89411C - SENSOR, SPEED | ||||
| 89413-24010 |
MNH10 NO.2 |
1 | ||
| 89413-48010 |
MNH10 NO.1 |
1 | ||
| 89413-24010 |
MNH10 AISIN |
2 | ||
| 89411C - SENSOR, SPEED | ||||
| 89413-24010 |
MNH10 NO.2 |
1 | ||
| 89413-48010 |
MNH10 NO.1 |
1 | ||
| 89413-24010 |
MNH10 AISIN |
2 | ||
| Common parts | ||||
| 90119-08208 | ||||
| 90301-11008 | ||||
| 91611-G0820 | ||||
| Linked diagrams | ||||
| 3512 | ||||
