MNH10R-PFASK (2005)

Toyota Alphard

Production Apr 2005 - Apr 2008
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 5 OF 9(0504- )

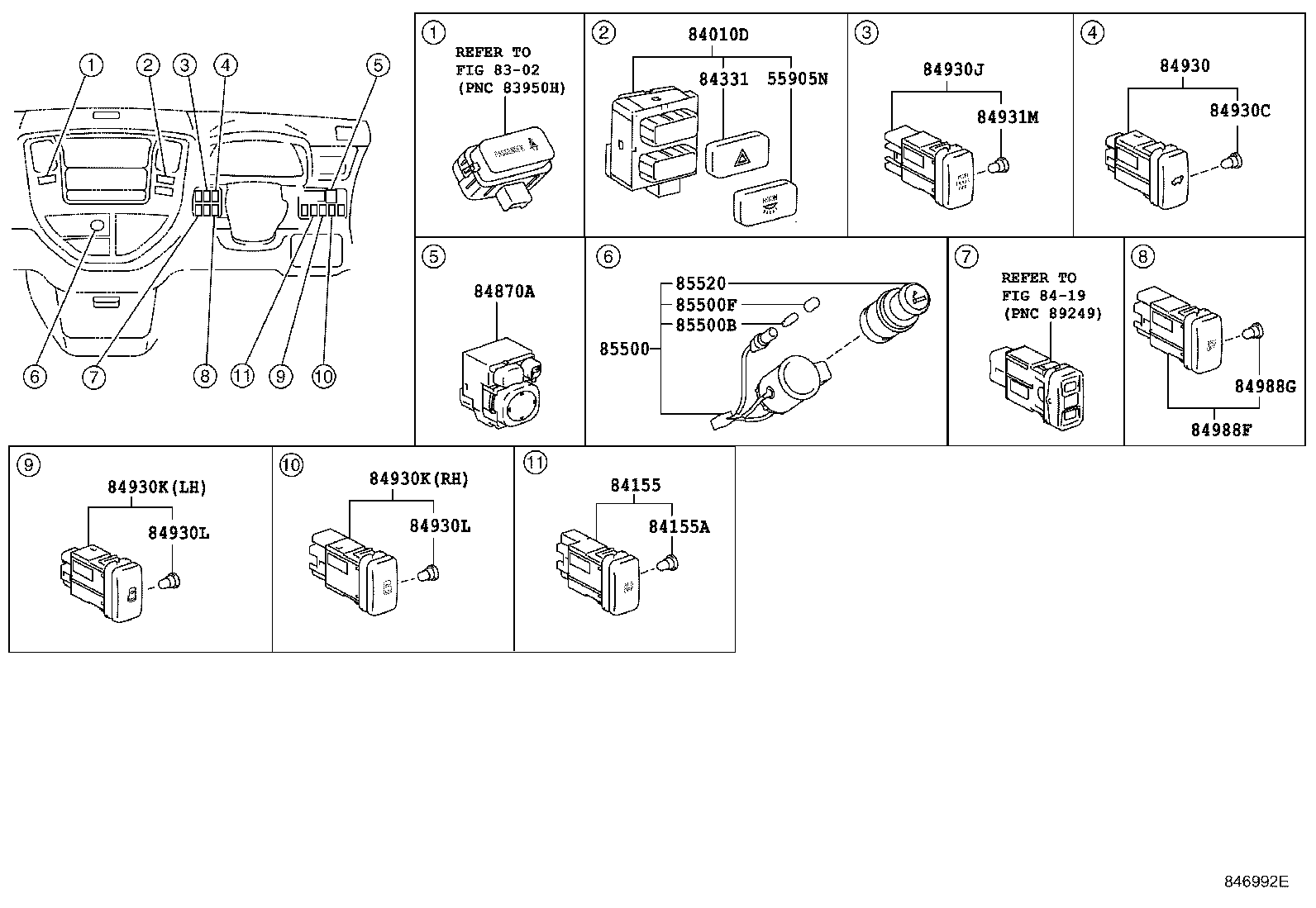

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 55905N 8302 84010D 84155 84155A 8419 84331 84870A 84930 84930C 84930J 84930K 84930K 84930L 84930L 84931M 84988F 84988G 85500 85500B 85500F 85520
Part # Description Qty Price
55905N - KNOB SUB-ASSY, CONTROL, NO.1
55937-58020

MNH10

 1
84010D - CONTROL & PANEL ASSY, INTEGRATION
84010-58040

MNH10

 1
84155 - SWITCH, HEADLAMP SWIVEL MAIN
84155-22010

MNH10

 1
84155A - BULB, HDEADLAMP SWIVEL MAIN SWITCH
90010-01062

MNH10

 1
84331 - KNOB, HAZARD WARNING SIGNAL SWITCH
84331-58010

MNH10

 1
84870A - SWITCH ASSY, OUTER MIRROR
84872-52040

MNH10

 1
84872-52040

MNH10

 1
84930 - SWITCH ASSY, DOOR CONTROL
84930-58040

MNH10..MZ

 1
84930-58040

MNH10..MZ

 1
84930C - BULB(FOR DOOR CONTROL SWITCH)
90010-01062

MNH10..MZ

14V0.63W,W/GREEN CAP

 1
90010-01062

MNH10..MZ

14V0.63W,W/GREEN CAP

 1
84930J - SWITCH ASSY, AUTO SLIDE DOOR MAIN
84930-58030

MNH10..MS

WITH/*PW SLIDE DOOR(RH,LH)

 1
84930-58030

MNH10

 1
84930-58030

MNH10..MZ

 1
84930K - SWITCH ASSY, AUTO SLIDE DOOR CONTROL
84930-28080

MNH10..MS

WITH/*PW SLIDE DOOR(RH,LH),RH

 1
84930-58021

MNH10

LH

 1
84930-58021

MNH10..MZ

LH

 1
84930-28080

MNH10..MZ

RH

 1
84930-28080

MNH10

RH

 1
84930-58021

MNH10..MS

WITH/*PW SLIDE DOOR(RH,LH),LH

 1
84930K - SWITCH ASSY, AUTO SLIDE DOOR CONTROL
84930-28080

MNH10..MS

WITH/*PW SLIDE DOOR(RH,LH),RH

 1
84930-58021

MNH10

LH

 1
84930-58021

MNH10..MZ

LH

 1
84930-28080

MNH10..MZ

RH

 1
84930-28080

MNH10

RH

 1
84930-58021

MNH10..MS

WITH/*PW SLIDE DOOR(RH,LH),LH

 1
84930L - BULB, AUTO SLIDE DOOR CONTROL SWITCH
90010-01061

MNH10..MS

14V0.84W,W/GREEN CAP,WITH/*PW SLIDE DOOR(RH,LH)

 2
90010-01061

MNH10

14V0.84W,W/GREEN CAP

 2
90010-01061

MNH10..MZ

14V0.84W,W/GREEN CAP

 2
84930L - BULB, AUTO SLIDE DOOR CONTROL SWITCH
90010-01061

MNH10..MS

14V0.84W,W/GREEN CAP,WITH/*PW SLIDE DOOR(RH,LH)

 2
90010-01061

MNH10

14V0.84W,W/GREEN CAP

 2
90010-01061

MNH10..MZ

14V0.84W,W/GREEN CAP

 2
84931M - BULB, DOOR CONTROL SWITCH
90010-01061

MNH10..MZ

14V0.84W,W/GREEN CAP

 1
90010-01061

MNH10..MS

14V0.84W,W/GREEN CAP,WITH/*PW SLIDE DOOR(RH,LH)

 1
90010-01061

MNH10

14V0.84W,W/GREEN CAP

 1
84988F - SWITCH, TRACTION CONTROL
84988-58010

MNH10..MZ

 1
84988-58010

MNH10..MZ

 1
84988G - BULB, TRACTION CONTROL SWITCH
90010-01039

MNH10..MZ

14V0.91W,W(GREEN CAP

 1
90010-01039

MNH10..MZ

14V0.91W,W(GREEN CAP

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-24050

MNH10

 1
85500-24050

MNH10

 1
85500B - BULB, CIGARETTE LIGHTER
90981-11018

MNH10

12V 1.2W W/O SOCKET

 1
90981-11018

MNH10

12V 1.2W W/O SOCKET

 1
85500F - CAP, CIGARETTE LIGHTER BULB
84998-10510

MNH10

 1
84998-10510

MNH10

 1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-89101

MNH10

 1
85520-89101

MNH10

 1
Linked diagrams
8302
8419
