MNH10R-PFASK (2005)
Toyota Alphard
Production
Apr 2005
-
Apr 2008
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

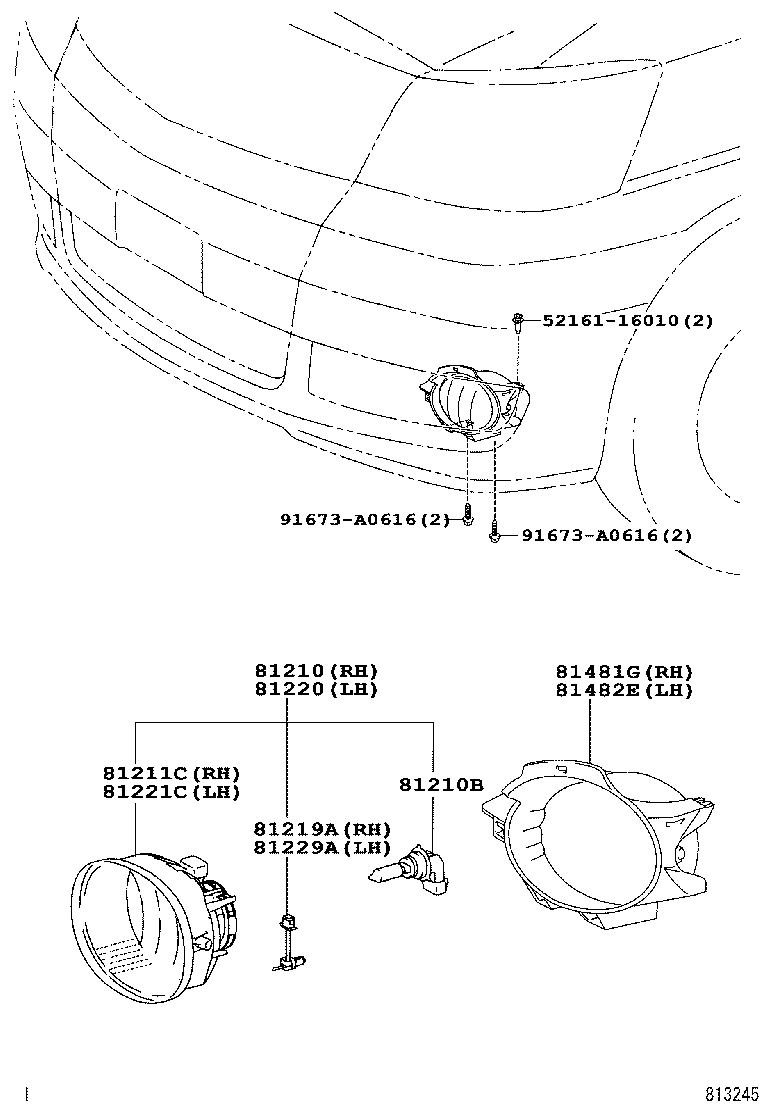

(0504- )MS
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210 - LAMP ASSY, FOG | ||||
| 81210-13040 |
MNH10..MS |
1 | ||
| 81210-42050 |
MNH10..MS |
1 | ||
| 81210-58031 |
MNH10..MZ |
1 | ||
| 81210-28210 |
MNH10..MZ |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13057 |
MNH10..MS 12V 35W |
2 | ||
| 90981-13047 |
MNH10 12V 51W,HALOGEN |
2 | ||
| 90981-13071 |
MNH10..MZ 12V 55W,HALOGEN |
2 | ||
| 81211C - LAMP UNIT, FOG LAMP, RH | ||||
| 81211-58031 |
MNH10..MZ |
1 | ||
| 81211-13040 |
MNH10..MS |
1 | ||
| 81211-28210 |
MNH10..MZ |
1 | ||
| 81211-42050 |
MNH10..MS |
1 | ||
| 81219A - BRACKET, FOG LAMP, RH | ||||
| 81218-42050 |
MNH10..MS |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-28110 |
MNH10..MZ |
1 | ||
| 81220-13040 |
MNH10..MS |
1 | ||
| 81220-58031 |
MNH10..MZ |
1 | ||
| 81220-42050 |
MNH10..MS |
1 | ||
| 81221C - LAMP UNIT, FOG LAMP, LH | ||||
| 81221-13040 |
MNH10..MS |
1 | ||
| 81221-42050 |
MNH10..MS |
1 | ||
| 81221-58031 |
MNH10..MZ |
1 | ||
| 81221-28110 |
MNH10..MZ |
1 | ||
| 81229A - BRACKET, FOG LAMP, LH | ||||
| 81228-42050 |
MNH10..MS |
1 | ||
| 81481G - BRACKET, FOG LAMP, RH | ||||
| 81481-58010 |
MNH10..MZ |
1 | ||
| 81481-58020 |
MNH10..MS |
1 | ||
| 81482E - BRACKET, FOG LAMP, LH | ||||
| 81482-58020 |
MNH10..MS |
1 | ||
| 81482-58010 |
MNH10..MZ |
1 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 91673-A0616 | ||||

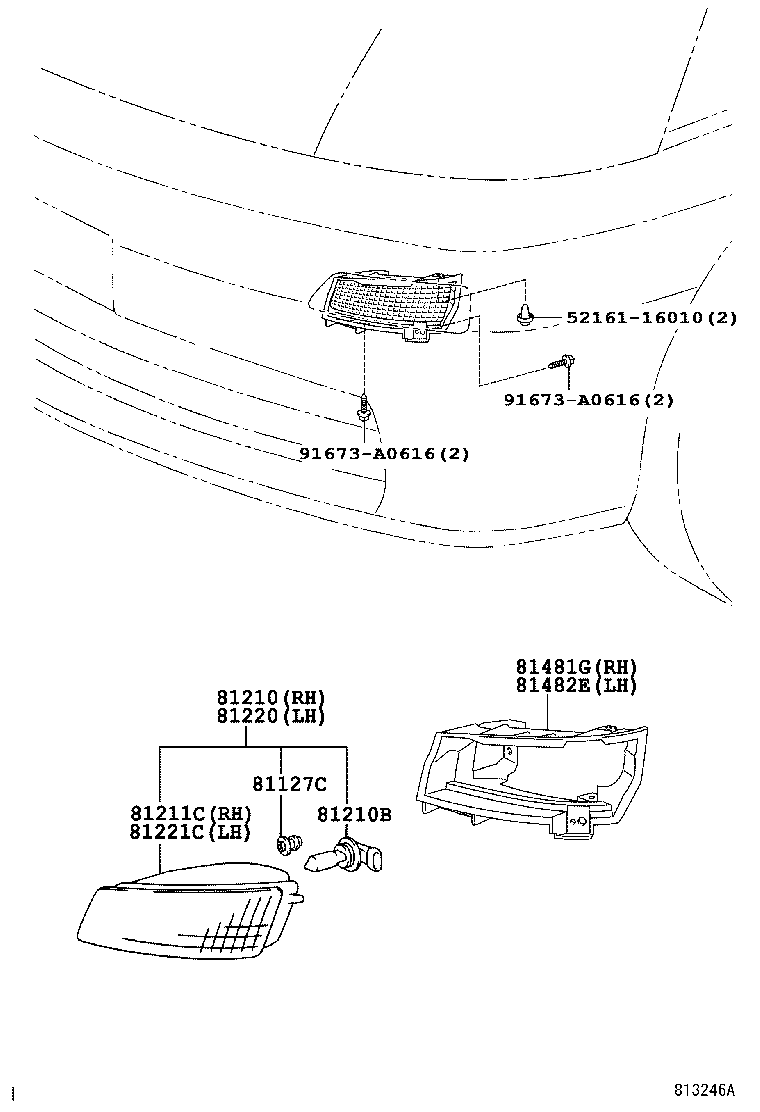

(0504- )MZ
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81127C - BEARING FOG LAMP | ||||
| 90075-10811 |
MNH10..MZ |
2 | ||
| 90075-10811 |
MNH10..MS |
2 | ||
| 81210 - LAMP ASSY, FOG | ||||
| 81210-13040 |
MNH10..MS |
1 | ||
| 81210-42050 |
MNH10..MS |
1 | ||
| 81210-58031 |
MNH10..MZ |
1 | ||
| 81210-28210 |
MNH10..MZ |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13057 |
MNH10..MS 12V 35W |
2 | ||
| 90981-13047 |
MNH10 12V 51W,HALOGEN |
2 | ||
| 90981-13071 |
MNH10..MZ 12V 55W,HALOGEN |
2 | ||
| 81211C - LAMP UNIT, FOG LAMP, RH | ||||
| 81211-58031 |
MNH10..MZ |
1 | ||
| 81211-13040 |
MNH10..MS |
1 | ||
| 81211-28210 |
MNH10..MZ |
1 | ||
| 81211-42050 |
MNH10..MS |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-28110 |
MNH10..MZ |
1 | ||
| 81220-13040 |
MNH10..MS |
1 | ||
| 81220-58031 |
MNH10..MZ |
1 | ||
| 81220-42050 |
MNH10..MS |
1 | ||
| 81221C - LAMP UNIT, FOG LAMP, LH | ||||
| 81221-13040 |
MNH10..MS |
1 | ||
| 81221-42050 |
MNH10..MS |
1 | ||
| 81221-58031 |
MNH10..MZ |
1 | ||
| 81221-28110 |
MNH10..MZ |
1 | ||
| 81481G - BRACKET, FOG LAMP, RH | ||||
| 81481-58010 |
MNH10..MZ |
1 | ||
| 81481-58020 |
MNH10..MS |
1 | ||
| 81482E - BRACKET, FOG LAMP, LH | ||||
| 81482-58020 |
MNH10..MS |
1 | ||
| 81482-58010 |
MNH10..MZ |
1 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 91673-A0616 | ||||
