MNH10R-PFASK (2005)

Toyota Alphard

Production Apr 2005 - Apr 2008
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

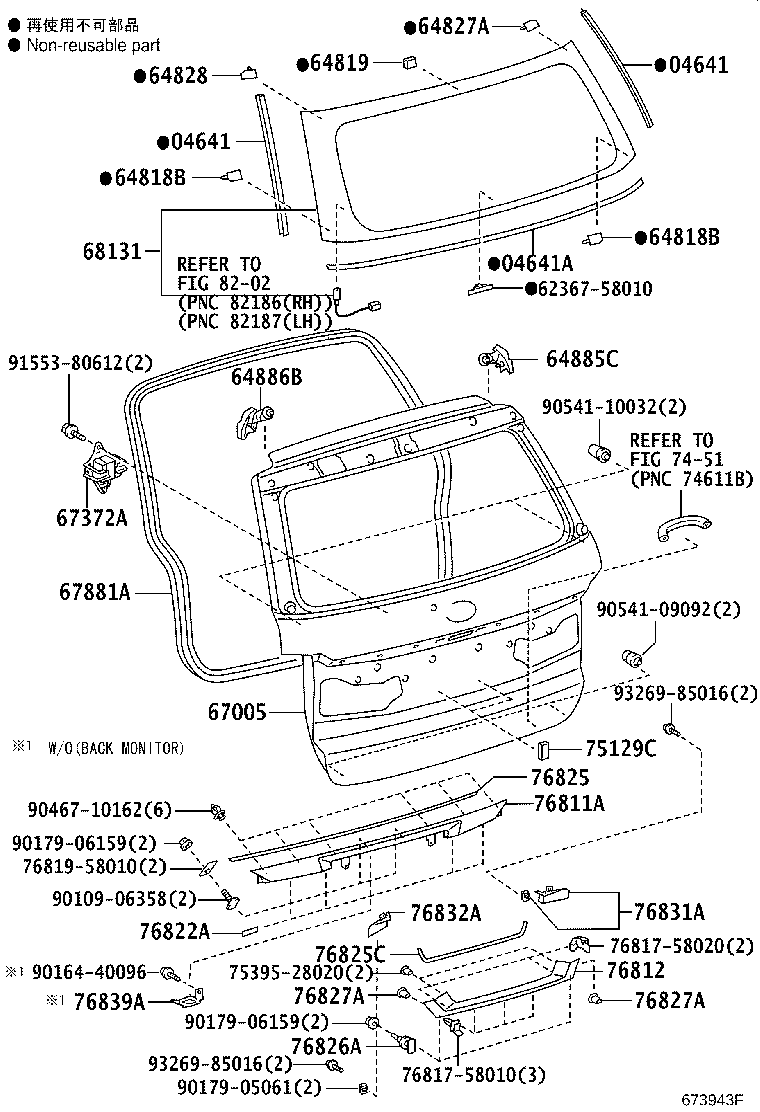

ILLUST NO. 2 OF 2(0504- )

Click highlighted areas on diagram

diagram 04641 04641 04641A 6236758010 64818B 64818B 64819 64827A 64828 64885C 64886B 67005 67372A 67881A 68131 7451 75129C 7539528020 76811A 76812 7681758010 7681758020 7681958010 76822A 76825 76825C 76826A 76827A 76827A 76831A 76832A 76839A 8202 9010906358 9016440096 9017905061 9017906159 9017906159 9046710162 9054109092 9054110032 9155380612 9326985016 9326985016
Part # Description Qty Price
04641 - DAM KIT, BACK WINDOW GLASS
68294-58021

MNH10

RH

 1
68294-58031

MNH10

LH

 1
68294-58031

MNH10

LH

 1
68294-58021

MNH10

RH

 1
04641 - DAM KIT, BACK WINDOW GLASS
68294-58021

MNH10

RH

 1
68294-58031

MNH10

LH

 1
68294-58031

MNH10

LH

 1
68294-58021

MNH10

RH

 1
04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE
68294-58010

MNH10

 1
68294-58010

MNH10

 1
64818B - SPACER, BACK DOOR GLASS, NO.1
64819-58010

MNH10

LH

 1
64818-58010

MNH10

RH

 1
64819-58010

MNH10

LH

 1
64818-58010

MNH10

RH

 1
64818B - SPACER, BACK DOOR GLASS, NO.1
64819-58010

MNH10

LH

 1
64818-58010

MNH10

RH

 1
64819-58010

MNH10

LH

 1
64818-58010

MNH10

RH

 1
64819 - SPACER, BACK WINDOW GLASS, NO.2
68294-44050

MNH10

 1
68294-44050

MNH10

 1
64827A - CLIP, BACK WINDOW GLASS, RH
64827-58010

MNH10

 1
64827-58010

MNH10

 1
64828 - CLIP, BACK WINDOW GLASS, LH
64828-58010

MNH10

 1
64828-58010

MNH10

 1
64885C - CHANNEL, BACK DOOR GLASS, RH
64885-58010

MNH10

 1
64885-58010

MNH10

 1
64886B - CHANNEL, BACK DOOR GLASS, LH
64886-58010

MNH10

 1
64886-58010

MNH10

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-58012

MNH10..MS

 1
67005-58070

MNH10..MZ

 1
67372A - WEIGHT, BACK DOOR
67372-58010

MNH10

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-58010

MNH10

 1
67881-58010

MNH10

 1
68131 - GLASS, BACK DOOR
68105-58030

MNH10

*EHT,T=3.1,GREEN

 1
68105-58030

MNH10

*EHT,T=3.1,GREEN

 1
75129C - CUSHION, REAR LICENCE PLATE
75129-58010

MNH10

 2
75129-58010

MNH10

 2
76811A - GARNISH, BACK DOOR, OUTSIDE
76811-58040B1

MNH10

SILVER ME.,1F7

 1
76811-58010

MNH10

PLATED

 1
76811-58040D1

MNH10..MZ

BLACKISH RED MC.,3R0

 1
76811-58040F0

MNH10..MZ

GOLD ME.,593

 1
76811-58040A1

MNH10

WHITE PEARL CS.,070

 1
76811-58040A0

MNH10

WHITE PM.,042

 1
76811-58040B0

MNH10

SILVER ME.,1E4

 1
76811-58040J0

MNH10

DK.BLUE MC.,8K8

 1
76811-58040C0

MNH10

BLACK MC.,209

 1
76812 - GARNISH, BACK DOOR, OUTSIDE LOWER
76812-58020

MNH10

 1
76812-58010

MNH10

 1
76822A - PROTECTOR, BACK DOOR GARNISH MOULDING, LWR
76825-58020

MNH10

 2
76825-58020

MNH10

 4
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-58030

MNH10

 1
76825-58060C0

MNH10..MZ

BLACK,1E4 ,209 ,3R0 ,593 ,8K8

 1
76825-58060B0

MNH10

LT. GRAY,042 ,1F7

 1
76825-58061C0

MNH10..MS

BLACK,1E4 ,209 ,8K8

 1
76825-58061B0

MNH10

LT. GRAY,042 ,070 ,1F7

 1
76825-58060C0

MNH10..MS

BLACK,1E4 ,209 ,8K8

 1
76825-58061C0

MNH10..MZ

BLACK,209 ,3R0 ,593 ,8K8

 1
76825-58061B1

MNH10

MEDIUM GRAY,070 ,1F7

 1
76825C - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-58070

MNH10

 1
76825-58010

MNH10

 1
76826A - RETAINER, BACK DOOR GARNISH, NO.1
76826-58010

MNH10

 2
76826-58010

MNH10

 2
76827A - RETAINER, BACK DOOR GARNISH, NO.2
76827-58010

MNH10

 2
76827A - RETAINER, BACK DOOR GARNISH, NO.2
76827-58010

MNH10

 2
76831A - COVER, BACK DOOR FINISH PANEL, RH
75403-58010

MNH10

 1
76832A - COVER, BACK DOOR FINISH PANEL, LH
76832-58010

MNH10

 1
76839A - COVER, BACK DOOR GARNISH
76839-58020

MNH10

 1
Common parts
62367-58010
75395-28020
76817-58010
76817-58020
76819-58010
90109-06358
90164-40096
90179-05061
90179-06159
90467-10162
90541-09092
90541-10032
91553-80612
93269-85016
Linked diagrams
7451
8202
