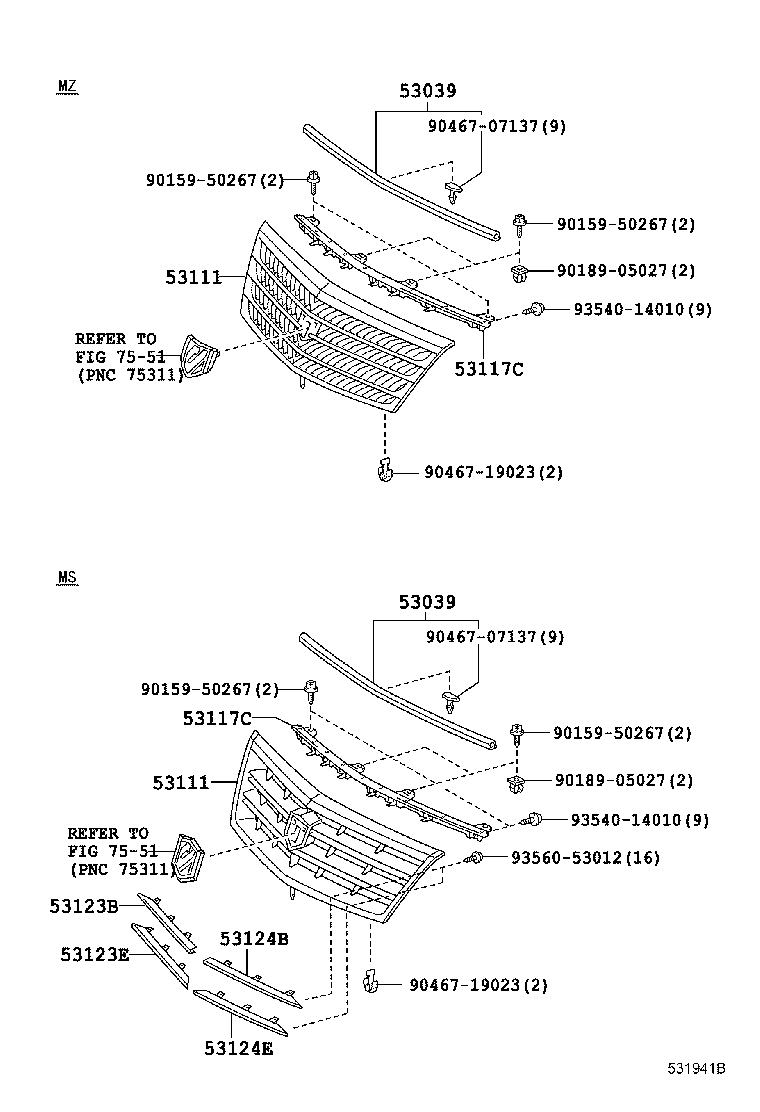

Toyota Alphard MNH10 RADIATOR GRILLE

Part #	Description	Period	Qty
53039 - SEAL, RADIATOR, UPPER
53039-58010	MNH10	12/2003 - 04/2005	1
53039-58030	MNH10	04/2005 - 12/2999	1
53039 - SEAL, RADIATOR, UPPER
53039-58010	MNH10	12/2003 - 04/2005	1
53039-58030	MNH10	04/2005 - 12/2999	1
53111 - GRILLE, RADIATOR
53111-58010	MNH10..MZ PLATED	12/2003 - 04/2005	1
53111-58030B0	MNH10..MS SILVER ME.,1C0	12/2003 - 04/2005	1
53111-58030A0	MNH10..MS WHITE PM.,042	12/2003 - 04/2005	1
53111-58090B0	MNH10..MS SILVER ME.,1E4	04/2005 - 04/2008	1
53111-58090J0	MNH10..MS DK.BLUE MC.,8K8	04/2005 - 04/2008	1
53111-58090A0	MNH10..MS WHITE PM.,042	04/2005 - 06/2007	1
53111-58090B1	MNH10..MS SILVER ME.,1F7	04/2005 - 04/2008	1
53111-58070	MNH10..MZ PLATED	04/2005 - 04/2008	1
53111-58030C0	MNH10..MS BLACK MC.,209	12/2003 - 04/2005	1
53111-58030J0	MNH10..MS DK.BLUE MC.,8K8	12/2003 - 04/2005	1
53111-58090A1	MNH10..MS WHITE PEARL CS.,070	06/2007 - 04/2008	1
53111-58090C0	MNH10..MS BLACK MC.,209	04/2005 - 04/2008	1
53111 - GRILLE, RADIATOR
53111-58010	MNH10..MZ PLATED	12/2003 - 04/2005	1
53111-58030B0	MNH10..MS SILVER ME.,1C0	12/2003 - 04/2005	1
53111-58030A0	MNH10..MS WHITE PM.,042	12/2003 - 04/2005	1
53111-58090B0	MNH10..MS SILVER ME.,1E4	04/2005 - 04/2008	1
53111-58090J0	MNH10..MS DK.BLUE MC.,8K8	04/2005 - 04/2008	1
53111-58090A0	MNH10..MS WHITE PM.,042	04/2005 - 06/2007	1
53111-58090B1	MNH10..MS SILVER ME.,1F7	04/2005 - 04/2008	1
53111-58070	MNH10..MZ PLATED	04/2005 - 04/2008	1
53111-58030C0	MNH10..MS BLACK MC.,209	12/2003 - 04/2005	1
53111-58030J0	MNH10..MS DK.BLUE MC.,8K8	12/2003 - 04/2005	1
53111-58090A1	MNH10..MS WHITE PEARL CS.,070	06/2007 - 04/2008	1
53111-58090C0	MNH10..MS BLACK MC.,209	04/2005 - 04/2008	1
53117C - RETAINER, RADIATOR GRILLE, NO.1
53117-58020	MNH10	04/2005 - 12/2999	1
53117-58010	MNH10	12/2003 - 04/2005	1
53117C - RETAINER, RADIATOR GRILLE, NO.1
53117-58020	MNH10	04/2005 - 12/2999	1
53117-58010	MNH10	12/2003 - 04/2005	1
53123B - MOULDING, RADIATOR GRILLE SIDE, RH
53123-58010	MNH10..MS	04/2005 - 12/2999	1
53123E - MOULDING, RADIATOR GRILLE, LOWER RH
53123-58020	MNH10..MS	04/2005 - 12/2999	1
53124B - MOULDING, RADIATOR GRILLE SIDE, LH
53124-58010	MNH10..MS	04/2005 - 12/2999	1
53124E - MOULDING, RADIATOR GRILLE, LOWER LH
53124-58020	MNH10..MS	04/2005 - 12/2999	1
Common parts
90159-50267
90189-05027
90467-07137
90467-19023
93540-14010
93560-53012
Linked diagrams
7551

MNH10R-PFASK (2005)

(0504- )
