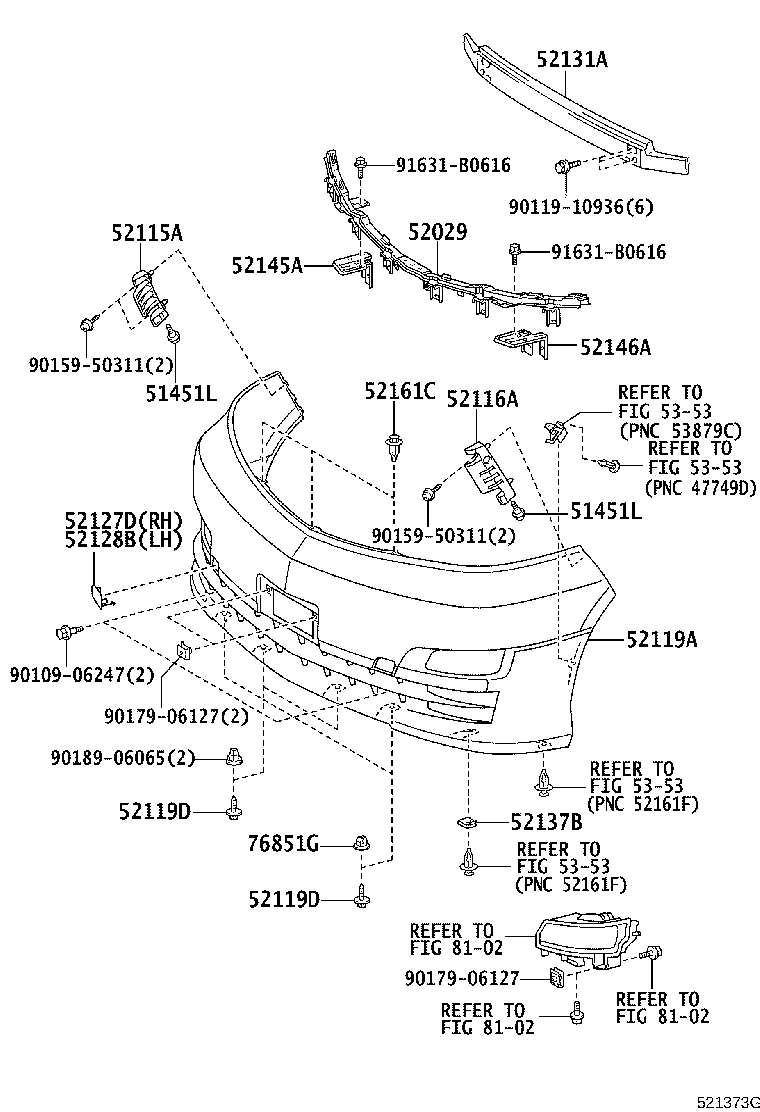

MNH10R-PFASK (2005)
Toyota Alphard

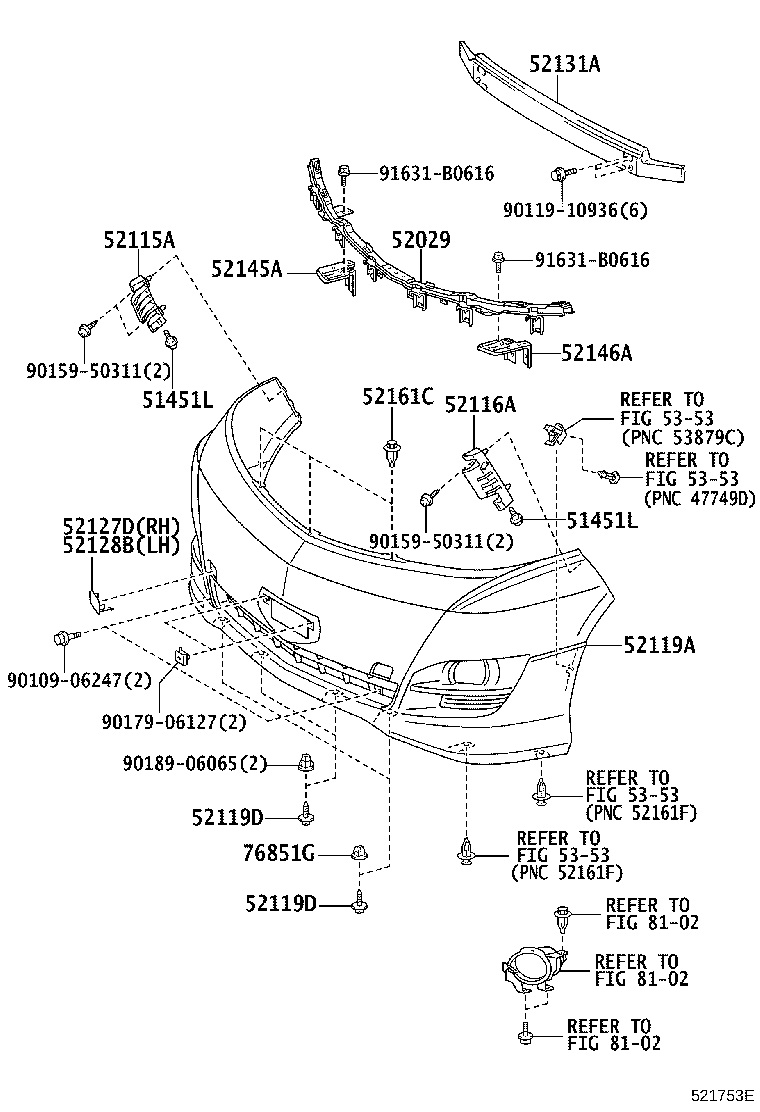

(0504- )MZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451L - BOLT, NO.1 | ||||
| 90109-06189 |
MNH10 |
2 | ||
| 90109-06189 |
MNH10 |
2 | ||
| 51451L - BOLT, NO.1 | ||||
| 90109-06189 |
MNH10 |
2 | ||
| 90109-06189 |
MNH10 |
2 | ||
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-58010 |
MNH10 |
1 | ||
| 52029-58030 |
MNH10 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-58010 |
MNH10 |
1 | ||
| 52115-58010 |
MNH10 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-58010 |
MNH10 |
1 | ||
| 52116-58010 |
MNH10 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-58020C1 |
MNH10..MZ BLACK MC.,209 |
1 | ||
| 52119-58020B0 |
MNH10..MZ SILVER ME.,1C0 |
1 | ||
| 52119-58020C0 |
MNH10..MZ GRACEFUL PEARL TONIN,2JD |
1 | ||
| 52119-58060J0 |
MNH10..MS DK.BLUE MC.,8K8 |
1 | ||
| 52119-58910 |
MNH10..MZ PAINT REQ. |
1 | ||
| 52119-58060B0 |
MNH10..MS SILVER ME.,1C0 |
1 | ||
| 52119-58020D0 |
MNH10..MZ BORDEAUX MC.,1C0 ,3P2 |
1 | ||
| 52119-58020F0 |
MNH10..MZ GOLD ME.,2JD ,593 |
1 | ||
| 52119-58020A0 |
MNH10..MZ WHITE PM.,042 |
1 | ||
| 52119-58906 |
MNH10..MS PAINT REQ. |
1 | ||
| 52119-58060C0 |
MNH10..MS BLACK MC.,209 |
1 | ||
| 52119-58020G0 |
MNH10..MZ LT. GREEN M.M.,209 ,6T2 |
1 | ||
| 52119-58911 |
MNH10..MS PAINT REQ. |
1 | ||
| 52119-58060A0 |
MNH10..MS WHITE PM.,042 |
1 | ||
| 52119-58903 |
MNH10..MZ PAINT REQ. |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60383 |
MNH10..MS |
2 | ||
| 90159-60383 |
MNH10..MZ |
4 | ||
| 90159-60383 |
MNH10 |
4 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60383 |
MNH10..MS |
2 | ||
| 90159-60383 |
MNH10..MZ |
4 | ||
| 90159-60383 |
MNH10 |
4 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-58010A0 |
MNH10..MZ WHITE PM.,042 ,3P2 |
1 | ||
| 52127-58010D0 |
MNH10..MZ BORDEAUX MC.,1C0 ,3P2 |
1 | ||
| 52127-58020J0 |
MNH10..MS DK.BLUE MC.,8K8 |
1 | ||
| 52127-58010F0 |
MNH10..MZ GOLD ME.,2JD ,593 |
1 | ||
| 52127-58020B0 |
MNH10..MS SILVER ME.,1C0 |
1 | ||
| 52127-58060D1 |
MNH10..MZ BLACKISH RED MC.,3R0 |
1 | ||
| 52127-58020C0 |
MNH10..MS BLACK MC.,209 |
1 | ||
| 52127-58060J0 |
MNH10..MZ DK.BLUE MC.,8K8 |
1 | ||
| 52127-58060C0 |
MNH10..MZ BLACK MC.,209 |
1 | ||
| 52127-58010B0 |
MNH10..MZ SILVER ME.,1C0 ,593 |
1 | ||
| 52127-58070B1 |
MNH10..MS SILVER ME.,1F7 |
1 | ||
| 52127-58010D1 |
MNH10..MZ SHELL ME.,2JD |
1 | ||
| 52127-58070A0 |
MNH10..MS WHITE PM.,042 |
1 | ||
| 52127-58060F0 |
MNH10..MZ GOLD ME.,593 |
1 | ||
| 52127-58070C0 |
MNH10..MS BLACK MC.,209 |
1 | ||
| 52127-58020A0 |
MNH10..MS WHITE PM.,042 |
1 | ||
| 52127-58070B0 |
MNH10..MS SILVER ME.,1E4 |
1 | ||
| 52127-58060B1 |
MNH10..MZ SILVER ME.,1F7 |
1 | ||
| 52127-58010C0 |
MNH10..MZ BLACK MC.,042 ,209 |
1 | ||
| 52127-58070A1 |
MNH10..MS WHITE PEARL CS.,070 |
1 | ||
| 52127-58060A0 |
MNH10..MZ WHITE PM.,042 |
1 | ||
| 52127-58010G0 |
MNH10..MZ LT. GREEN M.M.,209 ,6T2 |
1 | ||
| 52127-58070J0 |
MNH10..MS DK.BLUE MC.,8K8 |
1 | ||
| 52127-58060A1 |
MNH10..MZ WHITE PEARL CS.,070 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-58010A0 |
MNH10..MZ WHITE PM.,042 |
1 | ||
| 52128-58010B0 |
MNH10..MZ SILVER ME.,1C0 |
1 | ||
| 52128-58010D0 |
MNH10..MZ BORDEAUX MC.,3P2 |
1 | ||
| 52128-58010C0 |
MNH10..MZ BLACK MC.,209 |
1 | ||
| 52128-58020C0 |
MNH10..MS BLACK MC.,209 |
1 | ||
| 52128-58040A0 |
MNH10..MZ WHITE PM.,042 |
1 | ||
| 52128-58020B0 |
MNH10..MS SILVER ME.,1C0 |
1 | ||
| 52128-58010G0 |
MNH10..MZ LT. GREEN M.M.,6T2 |
1 | ||
| 52128-58040B1 |
MNH10..MZ SILVER ME.,1F7 |
1 | ||
| 52128-58010F0 |
MNH10..MZ GOLD ME.,593 |
1 | ||
| 52128-58020J0 |
MNH10..MS DK.BLUE MC.,8K8 |
1 | ||
| 52128-58040C0 |
MNH10..MZ BLACK MC.,209 |
1 | ||
| 52128-58050C0 |
MNH10..MS BLACK MC.,209 |
1 | ||
| 52128-58050B1 |
MNH10..MS SILVER ME.,1F7 |
1 | ||
| 52128-58040D1 |
MNH10..MZ BLACKISH RED MC.,3R0 |
1 | ||
| 52128-58050A0 |
MNH10..MS WHITE PM.,042 |
1 | ||
| 52128-58040A1 |
MNH10..MZ WHITE PEARL CS.,070 |
1 | ||
| 52128-58010D1 |
MNH10..MZ SHELL ME.,2JD |
1 | ||
| 52128-58040F0 |
MNH10..MZ GOLD ME.,593 |
1 | ||
| 52128-58040J0 |
MNH10..MZ DK.BLUE MC.,8K8 |
1 | ||
| 52128-58050A1 |
MNH10..MS WHITE PEARL CS.,070 |
1 | ||
| 52128-58020A0 |
MNH10..MS WHITE PM.,042 |
1 | ||
| 52128-58050J0 |
MNH10..MS DK.BLUE MC.,8K8 |
1 | ||
| 52128-58050B0 |
MNH10..MS SILVER ME.,1E4 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-58010 |
MNH10 |
1 | ||
| 52131-58010 |
MNH10 |
1 | ||
| 52137B - PLATE, FRONT BUMPER BRACKET, NO.1 | ||||
| 52137-26020 |
MNH10..MZ |
2 | ||
| 52145A - STAY, FRONT BUMPER, NO.2 RH | ||||
| 52145-58010 |
MNH10 |
1 | ||
| 52145-58020 |
MNH10 |
1 | ||
| 52146A - STAY, FRONT BUMPER, NO.2 LH | ||||
| 52146-58010 |
MNH10 |
1 | ||
| 52146-58020 |
MNH10 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
MNH10 |
3 | ||
| 52161-16010 |
MNH10 |
3 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06006 |
MNH10 |
2 | ||
| 90189-06006 |
MNH10 |
2 | ||
| Common parts | ||||
| 90109-06247 | ||||
| 90119-10936 | ||||
| 90159-50311 | ||||
| 90179-06127 | ||||
| 90189-06065 | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 5353 | ||||
| 8102 | ||||
(0504- )MS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451L - BOLT, NO.1 | ||||
| 90109-06189 |
MNH10 |
2 | ||
| 90109-06189 |
MNH10 |
2 | ||
| 51451L - BOLT, NO.1 | ||||
| 90109-06189 |
MNH10 |
2 | ||
| 90109-06189 |
MNH10 |
2 | ||
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-58010 |
MNH10 |
1 | ||
| 52029-58030 |
MNH10 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-58010 |
MNH10 |
1 | ||
| 52115-58010 |
MNH10 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-58010 |
MNH10 |
1 | ||
| 52116-58010 |
MNH10 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-58020C1 |
MNH10..MZ BLACK MC.,209 |
1 | ||
| 52119-58020B0 |
MNH10..MZ SILVER ME.,1C0 |
1 | ||
| 52119-58020C0 |
MNH10..MZ GRACEFUL PEARL TONIN,2JD |
1 | ||
| 52119-58060J0 |
MNH10..MS DK.BLUE MC.,8K8 |
1 | ||
| 52119-58910 |
MNH10..MZ PAINT REQ. |
1 | ||
| 52119-58060B0 |
MNH10..MS SILVER ME.,1C0 |
1 | ||
| 52119-58020D0 |
MNH10..MZ BORDEAUX MC.,1C0 ,3P2 |
1 | ||
| 52119-58020F0 |
MNH10..MZ GOLD ME.,2JD ,593 |
1 | ||
| 52119-58020A0 |
MNH10..MZ WHITE PM.,042 |
1 | ||
| 52119-58906 |
MNH10..MS PAINT REQ. |
1 | ||
| 52119-58060C0 |
MNH10..MS BLACK MC.,209 |
1 | ||
| 52119-58020G0 |
MNH10..MZ LT. GREEN M.M.,209 ,6T2 |
1 | ||
| 52119-58911 |
MNH10..MS PAINT REQ. |
1 | ||
| 52119-58060A0 |
MNH10..MS WHITE PM.,042 |
1 | ||
| 52119-58903 |
MNH10..MZ PAINT REQ. |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60383 |
MNH10..MS |
2 | ||
| 90159-60383 |
MNH10..MZ |
4 | ||
| 90159-60383 |
MNH10 |
4 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60383 |
MNH10..MS |
2 | ||
| 90159-60383 |
MNH10..MZ |
4 | ||
| 90159-60383 |
MNH10 |
4 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-58010A0 |
MNH10..MZ WHITE PM.,042 ,3P2 |
1 | ||
| 52127-58010D0 |
MNH10..MZ BORDEAUX MC.,1C0 ,3P2 |
1 | ||
| 52127-58020J0 |
MNH10..MS DK.BLUE MC.,8K8 |
1 | ||
| 52127-58010F0 |
MNH10..MZ GOLD ME.,2JD ,593 |
1 | ||
| 52127-58020B0 |
MNH10..MS SILVER ME.,1C0 |
1 | ||
| 52127-58060D1 |
MNH10..MZ BLACKISH RED MC.,3R0 |
1 | ||
| 52127-58020C0 |
MNH10..MS BLACK MC.,209 |
1 | ||
| 52127-58060J0 |
MNH10..MZ DK.BLUE MC.,8K8 |
1 | ||
| 52127-58060C0 |
MNH10..MZ BLACK MC.,209 |
1 | ||
| 52127-58010B0 |
MNH10..MZ SILVER ME.,1C0 ,593 |
1 | ||
| 52127-58070B1 |
MNH10..MS SILVER ME.,1F7 |
1 | ||
| 52127-58010D1 |
MNH10..MZ SHELL ME.,2JD |
1 | ||
| 52127-58070A0 |
MNH10..MS WHITE PM.,042 |
1 | ||
| 52127-58060F0 |
MNH10..MZ GOLD ME.,593 |
1 | ||
| 52127-58070C0 |
MNH10..MS BLACK MC.,209 |
1 | ||
| 52127-58020A0 |
MNH10..MS WHITE PM.,042 |
1 | ||
| 52127-58070B0 |
MNH10..MS SILVER ME.,1E4 |
1 | ||
| 52127-58060B1 |
MNH10..MZ SILVER ME.,1F7 |
1 | ||
| 52127-58010C0 |
MNH10..MZ BLACK MC.,042 ,209 |
1 | ||
| 52127-58070A1 |
MNH10..MS WHITE PEARL CS.,070 |
1 | ||
| 52127-58060A0 |
MNH10..MZ WHITE PM.,042 |
1 | ||
| 52127-58010G0 |
MNH10..MZ LT. GREEN M.M.,209 ,6T2 |
1 | ||
| 52127-58070J0 |
MNH10..MS DK.BLUE MC.,8K8 |
1 | ||
| 52127-58060A1 |
MNH10..MZ WHITE PEARL CS.,070 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-58010A0 |
MNH10..MZ WHITE PM.,042 |
1 | ||
| 52128-58010B0 |
MNH10..MZ SILVER ME.,1C0 |
1 | ||
| 52128-58010D0 |
MNH10..MZ BORDEAUX MC.,3P2 |
1 | ||
| 52128-58010C0 |
MNH10..MZ BLACK MC.,209 |
1 | ||
| 52128-58020C0 |
MNH10..MS BLACK MC.,209 |
1 | ||
| 52128-58040A0 |
MNH10..MZ WHITE PM.,042 |
1 | ||
| 52128-58020B0 |
MNH10..MS SILVER ME.,1C0 |
1 | ||
| 52128-58010G0 |
MNH10..MZ LT. GREEN M.M.,6T2 |
1 | ||
| 52128-58040B1 |
MNH10..MZ SILVER ME.,1F7 |
1 | ||
| 52128-58010F0 |
MNH10..MZ GOLD ME.,593 |
1 | ||
| 52128-58020J0 |
MNH10..MS DK.BLUE MC.,8K8 |
1 | ||
| 52128-58040C0 |
MNH10..MZ BLACK MC.,209 |
1 | ||
| 52128-58050C0 |
MNH10..MS BLACK MC.,209 |
1 | ||
| 52128-58050B1 |
MNH10..MS SILVER ME.,1F7 |
1 | ||
| 52128-58040D1 |
MNH10..MZ BLACKISH RED MC.,3R0 |
1 | ||
| 52128-58050A0 |
MNH10..MS WHITE PM.,042 |
1 | ||
| 52128-58040A1 |
MNH10..MZ WHITE PEARL CS.,070 |
1 | ||
| 52128-58010D1 |
MNH10..MZ SHELL ME.,2JD |
1 | ||
| 52128-58040F0 |
MNH10..MZ GOLD ME.,593 |
1 | ||
| 52128-58040J0 |
MNH10..MZ DK.BLUE MC.,8K8 |
1 | ||
| 52128-58050A1 |
MNH10..MS WHITE PEARL CS.,070 |
1 | ||
| 52128-58020A0 |
MNH10..MS WHITE PM.,042 |
1 | ||
| 52128-58050J0 |
MNH10..MS DK.BLUE MC.,8K8 |
1 | ||
| 52128-58050B0 |
MNH10..MS SILVER ME.,1E4 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-58010 |
MNH10 |
1 | ||
| 52131-58010 |
MNH10 |
1 | ||
| 52145A - STAY, FRONT BUMPER, NO.2 RH | ||||
| 52145-58010 |
MNH10 |
1 | ||
| 52145-58020 |
MNH10 |
1 | ||
| 52146A - STAY, FRONT BUMPER, NO.2 LH | ||||
| 52146-58010 |
MNH10 |
1 | ||
| 52146-58020 |
MNH10 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
MNH10 |
3 | ||
| 52161-16010 |
MNH10 |
3 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06006 |
MNH10 |
2 | ||
| 90189-06006 |
MNH10 |
2 | ||
| Common parts | ||||
| 90109-06247 | ||||
| 90119-10936 | ||||
| 90159-50311 | ||||
| 90179-06127 | ||||
| 90189-06065 | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 5353 | ||||
| 8102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
