MNH10R-PFASK (2005)
Toyota Alphard
Production
Apr 2005
-
Apr 2008
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

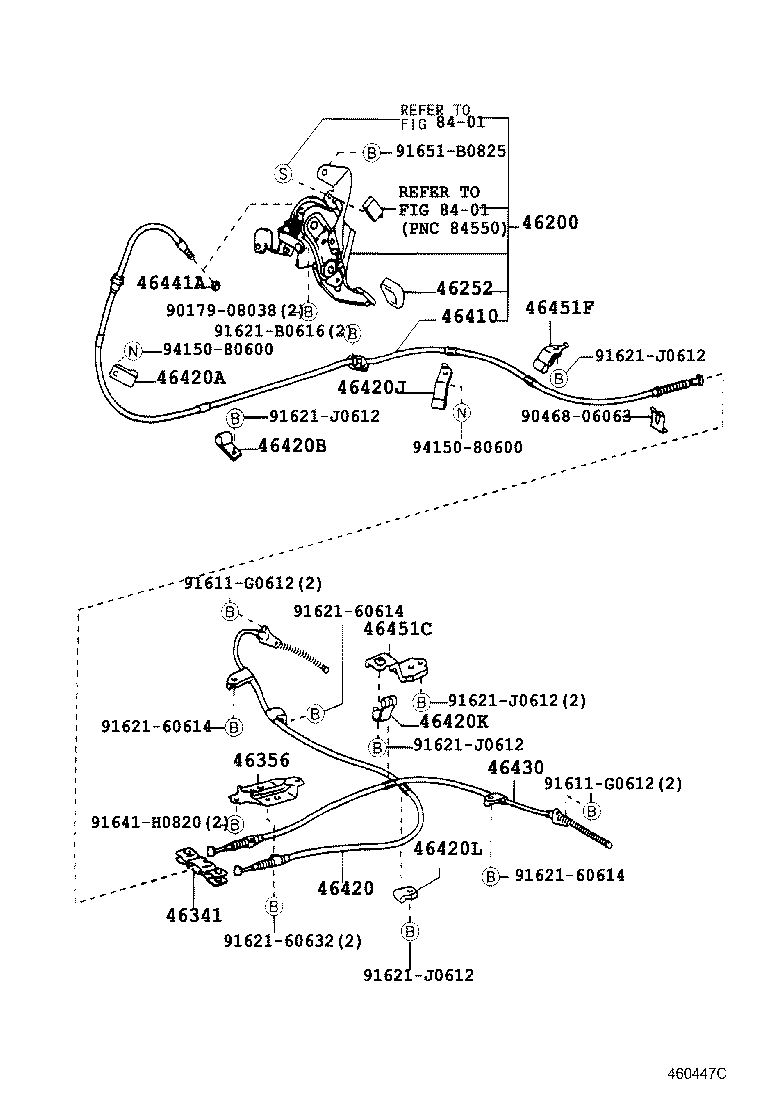

ILLUST NO. 1 OF 2(0312-0802)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46200 - PEDAL ASSY, PARKING BRAKE CONTROL | ||||
| 46200-58020 |
MNH10 |
1 | ||
| 46210-58010 |
MNH10 |
1 | ||
| 46200-58020 |
MNH10 |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-52010 |
MNH10 |
1 | ||
| 46252-52010 |
MNH10 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-12020 |
MNH10 |
1 | ||
| 46341-12020 |
MNH10 |
1 | ||
| 46356 - BRACKET, EQUALIZER SUPPORT | ||||
| 46356-28061 |
MNH10 |
1 | ||
| 46356-28061 |
MNH10 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-58010 |
MNH10 |
1 | ||
| 46410-58010 |
MNH10 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-58010 |
MNH10 |
1 | ||
| 46420-58010 |
MNH10 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-58010 |
MNH10 |
1 | ||
| 46411-58010 |
MNH10 |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46411-58020 |
MNH10 |
1 | ||
| 46411-58020 |
MNH10 |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46411-58030 |
MNH10 |
1 | ||
| 46411-58030 |
MNH10 |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 90949-01B71 |
MNH10 |
1 | ||
| 90949-01B71 |
MNH10 |
1 | ||
| 46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE) | ||||
| 90949-01A77 |
MNH10 |
1 | ||
| 90949-01A77 |
MNH10 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-58010 |
MNH10 |
1 | ||
| 46430-58010 |
MNH10 |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90179-06299 |
MNH10 |
1 | ||
| 90179-06299 |
MNH10 |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-28100 |
MNH10 |
1 | ||
| 46451-28100 |
MNH10 |
1 | ||
| 46451F - BRACKET, CABLE SUPPORT | ||||
| 46451-28130 |
MNH10 |
1 | ||
| 46451-28130 |
MNH10 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90468-06063 | ||||
| 91611-G0612 | ||||
| 91621-60614 | ||||
| 91621-60632 | ||||
| 91621-B0616 | ||||
| 91621-J0612 | ||||
| 91641-H0820 | ||||
| 91651-B0825 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

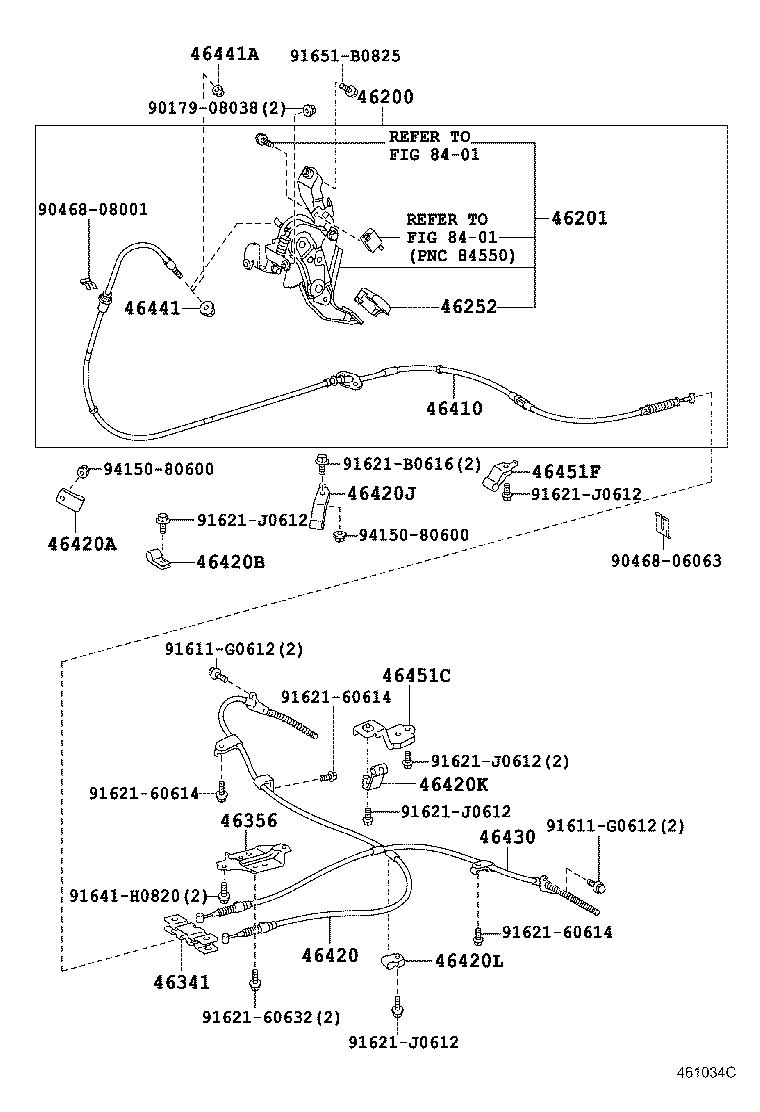

ILLUST NO. 1 OF 2(0802- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46200 - PEDAL ASSY, PARKING BRAKE CONTROL | ||||
| 46200-58020 |
MNH10 |
1 | ||
| 46210-58010 |
MNH10 |
1 | ||
| 46200-58020 |
MNH10 |
1 | ||
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46210-58010 |
MNH10 |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-52010 |
MNH10 |
1 | ||
| 46252-52010 |
MNH10 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-12020 |
MNH10 |
1 | ||
| 46341-12020 |
MNH10 |
1 | ||
| 46356 - BRACKET, EQUALIZER SUPPORT | ||||
| 46356-28061 |
MNH10 |
1 | ||
| 46356-28061 |
MNH10 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-58010 |
MNH10 |
1 | ||
| 46410-58010 |
MNH10 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-58010 |
MNH10 |
1 | ||
| 46420-58010 |
MNH10 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-58010 |
MNH10 |
1 | ||
| 46411-58010 |
MNH10 |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46411-58020 |
MNH10 |
1 | ||
| 46411-58020 |
MNH10 |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46411-58030 |
MNH10 |
1 | ||
| 46411-58030 |
MNH10 |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 90949-01B71 |
MNH10 |
1 | ||
| 90949-01B71 |
MNH10 |
1 | ||
| 46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE) | ||||
| 90949-01A77 |
MNH10 |
1 | ||
| 90949-01A77 |
MNH10 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-58010 |
MNH10 |
1 | ||
| 46430-58010 |
MNH10 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-12010 |
MNH10 |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90179-06299 |
MNH10 |
1 | ||
| 90179-06299 |
MNH10 |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-28100 |
MNH10 |
1 | ||
| 46451-28100 |
MNH10 |
1 | ||
| 46451F - BRACKET, CABLE SUPPORT | ||||
| 46451-28130 |
MNH10 |
1 | ||
| 46451-28130 |
MNH10 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90468-06063 | ||||
| 90468-08001 | ||||
| 91611-G0612 | ||||
| 91621-60614 | ||||
| 91621-60632 | ||||
| 91621-B0616 | ||||
| 91621-J0612 | ||||
| 91641-H0820 | ||||
| 91651-B0825 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
