MNH10R-PFASK (2005)
Toyota Alphard
Production
Apr 2005
-
Apr 2008
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0504- )

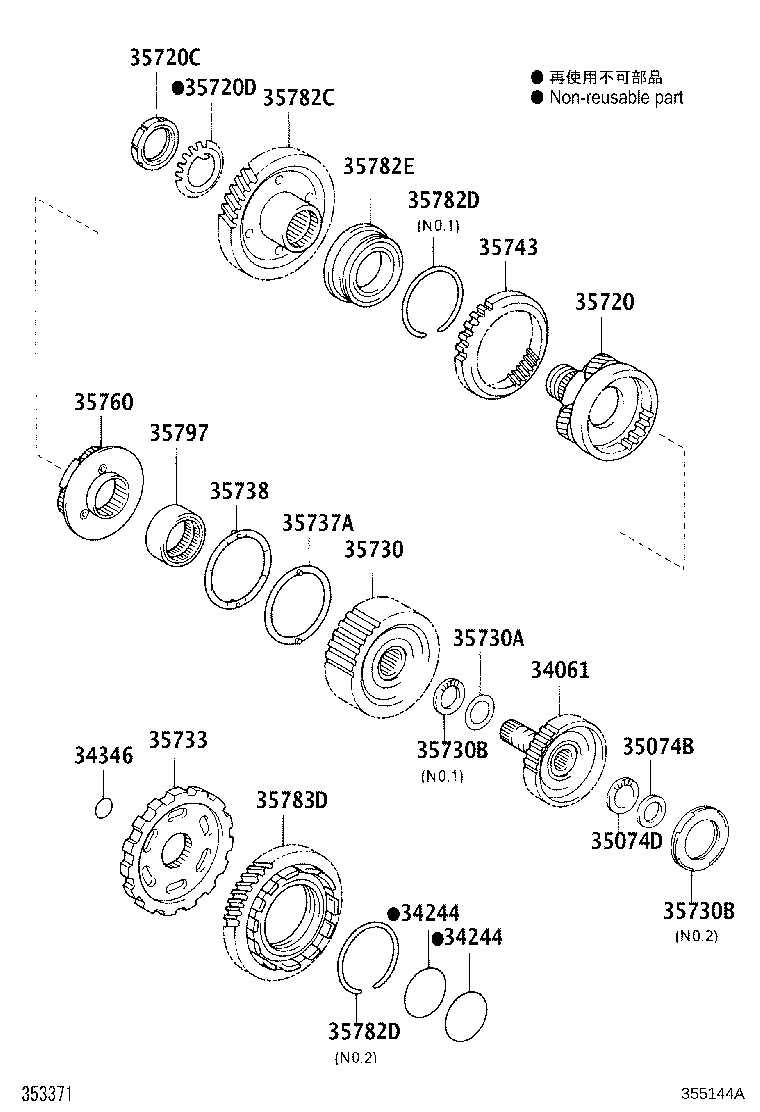

Click highlighted areas on diagram
U151E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34061 - HUB SUB-ASSY, OVERDREVE DIRECT CLUTCH | ||||
| 34061-33010 |
MNH10 |
1 | ||
| 34244 - RING, UNDERDRIVE CLUTCH DRUM OIL SEAL | ||||
| 34244-21010 |
MNH10 |
2 | ||
| 34244-21010 |
MNH10 |
2 | ||
| 34244 - RING, UNDERDRIVE CLUTCH DRUM OIL SEAL | ||||
| 34244-21010 |
MNH10 |
2 | ||
| 34244-21010 |
MNH10 |
2 | ||
| 34346 - RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL | ||||
| 34346-21011 |
MNH10 |
1 | ||
| 34346-28010 |
MNH10 |
1 | ||
| 35074B - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRON | ||||
| 35789-33030 |
MNH10 |
1 | ||
| 35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR) | ||||
| 90374-25010 |
MNH10 |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-21030 |
MNH10 |
1 | ||
| 35720-28070 |
MNH10 |
1 | ||
| 35720C - NUT (FOR FRONT PLANETARY GEAR) | ||||
| 90179-46001 |
MNH10 |
1 | ||
| 90179-46001 |
MNH10 |
1 | ||
| 35720D - WASHER (FOR FRONT PLANETARY GEAR) | ||||
| 90209-46001 |
MNH10 |
1 | ||
| 90209-46001 |
MNH10 |
1 | ||
| 35730 - GEAR ASSY, REAR PLANETARY SUN | ||||
| 35730-33011 |
MNH10 |
1 | ||
| 35730-33010 |
MNH10 |
1 | ||
| 35730A - RACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR) | ||||
| 35789-21010 |
MNH10 |
1 | ||
| 35788-33010 |
MNH10 |
1 | ||
| 35730B - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN G | ||||
| 90374-33003 |
MNH10 |
1 | ||
| 90374-55002 |
MNH10 NO.2,T=3.4 |
1 | ||
| 90374-31007 |
MNH10 NO.1 |
1 | ||
| 90374-55003 |
MNH10 NO.2,T=3.7 |
1 | ||
| 35730B - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN G | ||||
| 90374-33003 |
MNH10 |
1 | ||
| 90374-55002 |
MNH10 NO.2,T=3.4 |
1 | ||
| 90374-31007 |
MNH10 NO.1 |
1 | ||
| 90374-55003 |
MNH10 NO.2,T=3.7 |
1 | ||
| 35733 - GEAR, PARKING LOCK | ||||
| 35733-48010 |
MNH10 |
1 | ||
| 35733-21010 |
MNH10 |
1 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-28020 |
MNH10 |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-33030 |
MNH10 |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-28010 |
MNH10 |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-33040 |
MNH10 |
1 | ||
| 35782C - GEAR, COUNTER DRIVE | ||||
| 35782-33020 |
MNH10 |
1 | ||
| 35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR) | ||||
| 90520-89004 |
MNH10 NO.2 |
1 | ||
| 90520-87004 |
MNH10 NO.1 |
1 | ||
| 90520-84001 |
MNH10 NO.1 |
1 | ||
| 90520-89004 |
MNH10 NO.2 |
1 | ||
| 35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR) | ||||
| 90520-89004 |
MNH10 NO.2 |
1 | ||
| 90520-87004 |
MNH10 NO.1 |
1 | ||
| 90520-84001 |
MNH10 NO.1 |
1 | ||
| 90520-89004 |
MNH10 NO.2 |
1 | ||
| 35782E - BEARING(FOR COUNTER DRIVE GEAR) | ||||
| 90366-60009 |
MNH10 |
2 | ||
| 90366-59001 |
MNH10 |
1 | ||
| 35783D - GEAR, COUNTER DRIVEN | ||||
| 35783-21010 |
MNH10 |
1 | ||
| 35783-33030 |
MNH10 |
1 | ||
| 35797 - RACE, 1 WAY CLUTCH INNER | ||||
| 35797-21010 |
MNH10 |
1 | ||
| 35797-21010 |
MNH10 |
1 | ||
