MNH10R-PFASK (2005)
Toyota Alphard
Production
Apr 2005
-
Apr 2008
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0504- )

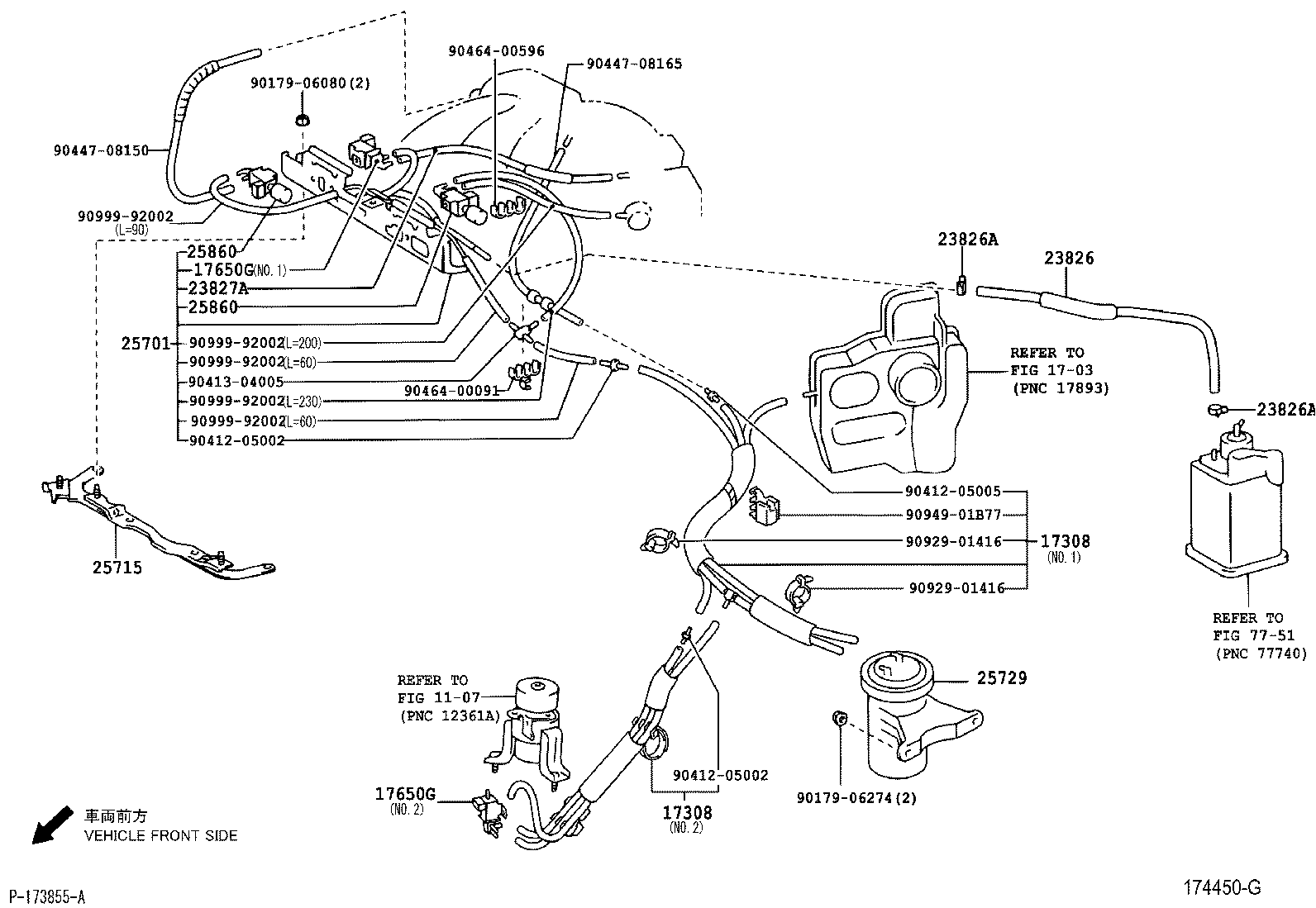

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) | ||||
| 17308-20190 |
1MZFE..MNH10 NO.1 |
1 | ||
| 17308-20200 |
1MZFE..MNH10 NO.2 |
1 | ||
| 17308-20260 |
1MZFE..MNH10 NO.1 |
1 | ||
| 17308-20200 |
1MZFE..MNH10 NO.2 |
1 | ||
| 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) | ||||
| 17308-20190 |
1MZFE..MNH10 NO.1 |
1 | ||
| 17308-20200 |
1MZFE..MNH10 NO.2 |
1 | ||
| 17308-20260 |
1MZFE..MNH10 NO.1 |
1 | ||
| 17308-20200 |
1MZFE..MNH10 NO.2 |
1 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12204 |
1MZFE..MNH10 NO.2 |
1 | ||
| 90910-12204 |
1MZFE..MNH10 NO.2 |
1 | ||
| 90910-12241 |
1MZFE..MNH10 NO.1 |
1 | ||
| 90910-12196 |
1MZFE..MNH10 NO.1 |
1 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12204 |
1MZFE..MNH10 NO.2 |
1 | ||
| 90910-12204 |
1MZFE..MNH10 NO.2 |
1 | ||
| 90910-12241 |
1MZFE..MNH10 NO.1 |
1 | ||
| 90910-12196 |
1MZFE..MNH10 NO.1 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-20060 |
1MZFE..MNH10 |
1 | ||
| 23826-20060 |
1MZFE..MNH10 |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-41300 |
1MZFE..MNH10 |
2 | ||
| 96132-51300 |
1MZFE..MNH10 |
2 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-41300 |
1MZFE..MNH10 |
2 | ||
| 96132-51300 |
1MZFE..MNH10 |
2 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-20030 |
1MZFE..MNH10 |
1 | ||
| 23827-20090 |
1MZFE..MNH10 |
1 | ||
| 25701 - VALVE SET, EMISSION CONTROL | ||||
| 25701-20190 |
1MZFE..MNH10 |
1 | ||
| 25701-20140 |
1MZFE..MNH10 |
1 | ||
| 25715 - BRACKET, EMISSION CONTROL VALVE | ||||
| 25715-20011 |
1MZFE..MNH10 |
1 | ||
| 25729 - TANK, VACUUM SURGE W/BRACKET | ||||
| 25729-20010 |
1MZFE..MNH10 |
1 | ||
| 25729-20010 |
1MZFE..MNH10 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-62010 |
1MZFE..MNH10 |
2 | ||
| 25860-62010 |
1MZFE..MNH10 |
2 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-62010 |
1MZFE..MNH10 |
2 | ||
| 25860-62010 |
1MZFE..MNH10 |
2 | ||
| Common parts | ||||
| 90179-06080 | ||||
| 90179-06274 | ||||
| 90412-05002 | ||||
| 90412-05005 | ||||
| 90413-04005 | ||||
| 90447-08150 | ||||
| 90447-08165 | ||||
| 90464-00091 | ||||
| 90464-00596 | ||||
| 90929-01416 | ||||
| 90949-01B77 | ||||
| 90999-92002 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 1703 | ||||
| 7751 | ||||
