MNH10R-PFASK (2005)
Toyota Alphard
Production
Apr 2005
-
Apr 2008
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0504- )

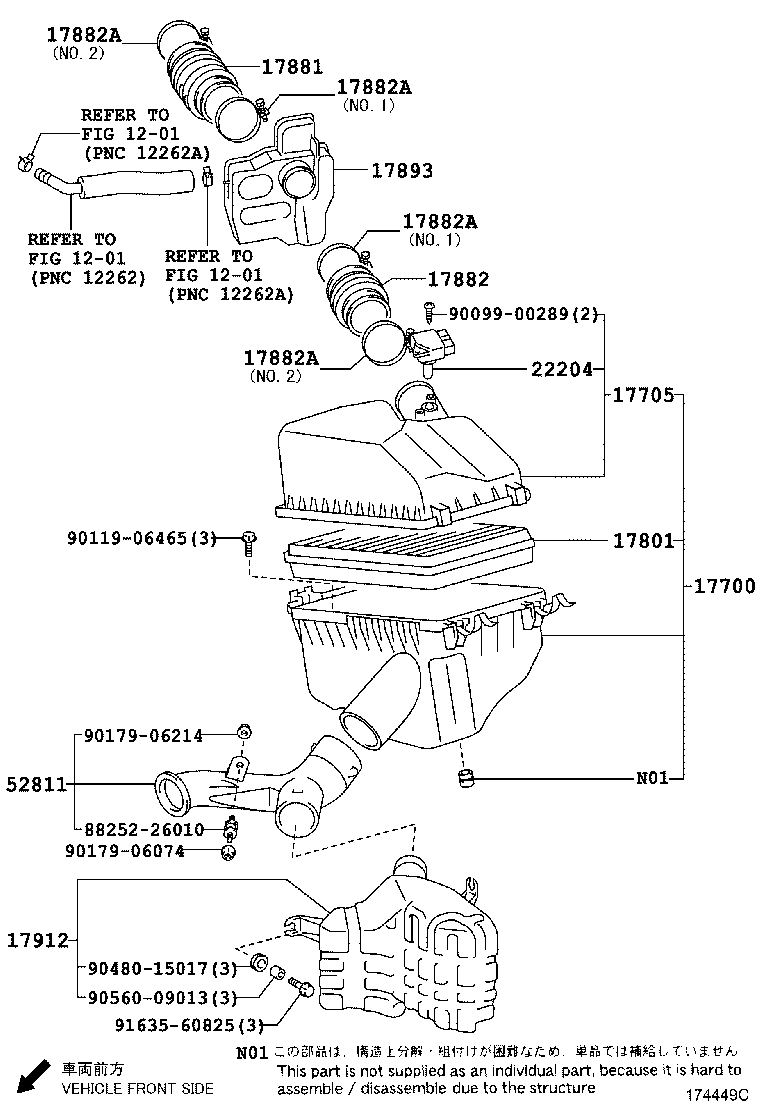

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-20140 |
1MZFE..MNH10 |
1 | ||
| 17700-20140 |
1MZFE..MNH10 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-20110 |
1MZFE..MNH10 |
1 | ||
| 17705-20110 |
1MZFE..MNH10 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-20040 |
1MZFE..MNH10 |
1 | ||
| 17801-20040 |
1MZFE..MNH10 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-20150 |
1MZFE..MNH10 |
1 | ||
| 17881-20110 |
1MZFE..MNH10 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-20130 |
1MZFE..MNH10 |
1 | ||
| 17882-20130 |
1MZFE..MNH10 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10850 |
1MZFE..MNH10 NO.2 |
2 | ||
| 96111-10850 |
1MZFE..MNH10 NO.2 |
1 | ||
| 96111-10930 |
1MZFE..MNH10 NO.1 |
2 | ||
| 96111-10930 |
1MZFE..MNH10 NO.1 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10850 |
1MZFE..MNH10 NO.2 |
2 | ||
| 96111-10850 |
1MZFE..MNH10 NO.2 |
1 | ||
| 96111-10930 |
1MZFE..MNH10 NO.1 |
2 | ||
| 96111-10930 |
1MZFE..MNH10 NO.1 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10850 |
1MZFE..MNH10 NO.2 |
2 | ||
| 96111-10850 |
1MZFE..MNH10 NO.2 |
1 | ||
| 96111-10930 |
1MZFE..MNH10 NO.1 |
2 | ||
| 96111-10930 |
1MZFE..MNH10 NO.1 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10850 |
1MZFE..MNH10 NO.2 |
2 | ||
| 96111-10850 |
1MZFE..MNH10 NO.2 |
1 | ||
| 96111-10930 |
1MZFE..MNH10 NO.1 |
2 | ||
| 96111-10930 |
1MZFE..MNH10 NO.1 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-20110 |
1MZFE..MNH10 |
1 | ||
| 17893-20060 |
1MZFE..MNH10 |
1 | ||
| 17912 - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 52820-58010 |
1MZFE..MNH10 |
1 | ||
| 52820-58010 |
1MZFE..MNH10 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-21010 |
1MZFE..MNH10 |
1 | ||
| 22204-21010 |
1MZFE..MNH10 |
1 | ||
| 52811 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52810-58010 |
MNH10 |
1 | ||
| 52810-58010 |
MNH10 |
1 | ||
| Common parts | ||||
| 88252-26010 | ||||
| 90099-00289 | ||||
| 90119-06465 | ||||
| 90179-06074 | ||||
| 90179-06214 | ||||
| 90480-15017 | ||||
| 90560-09013 | ||||
| 91635-60825 | ||||
| Linked diagrams | ||||
| 1201 | ||||
