MNH10R-PFASK (2005)
Toyota Alphard

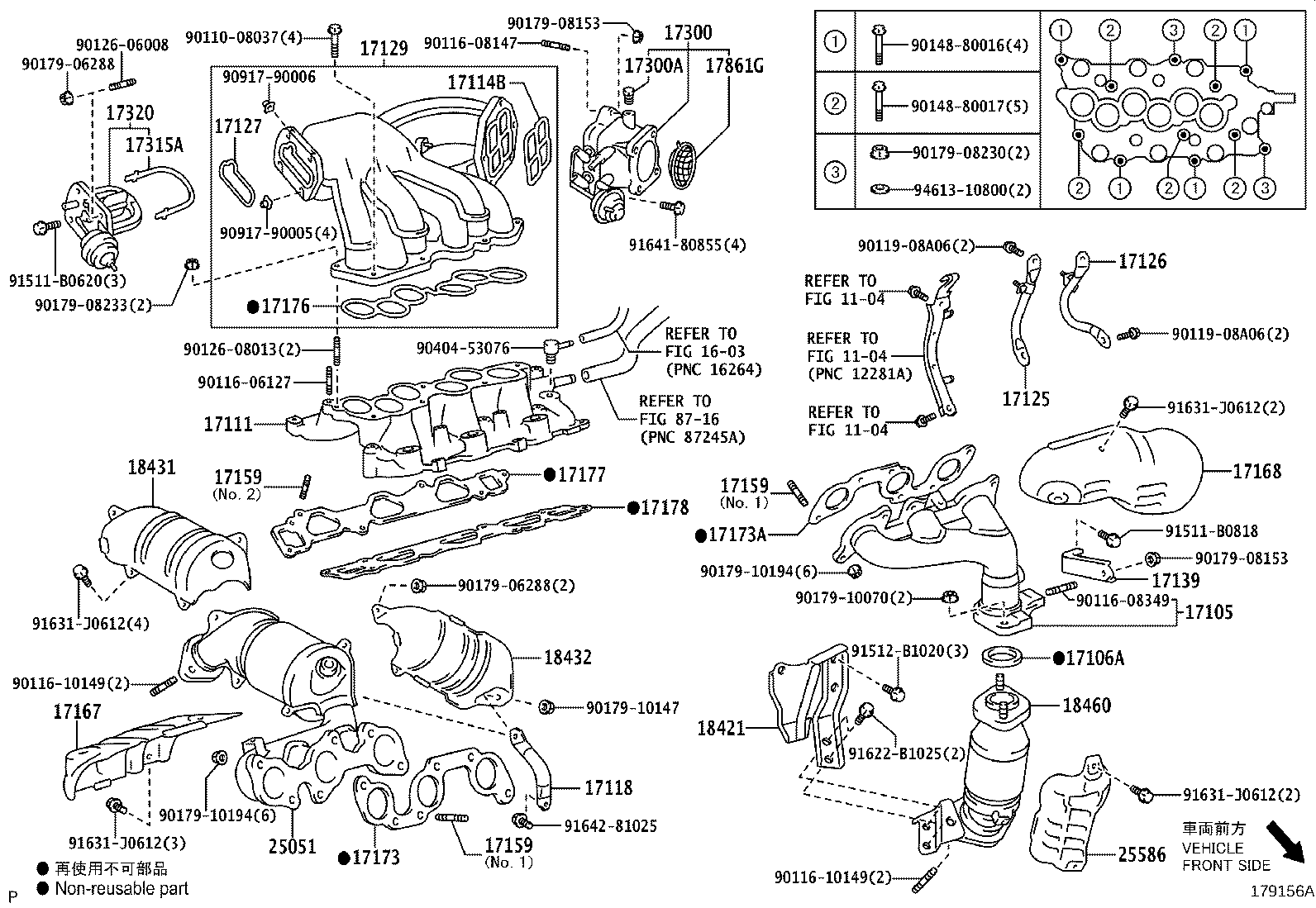

(0504-0706)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17105 - MANIFOLD SUB-ASSY, EXHAUST, LH | ||||
| 17142-20041 |
1MZFE..MNH10 |
1 | ||
| 17142-20041 |
1MZFE..MNH10 |
1 | ||
| 17106A - GASKET, EXHAUST PIPE | ||||
| 90917-06075 |
1MZFE..MNH10 |
1 | ||
| 90917-06075 |
1MZFE..MNH10 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-20050 |
1MZFE..MNH10 |
1 | ||
| 17101-20031 |
1MZFE..MNH10 |
1 | ||
| 17114B - GASKET, INTAKE FLANGE | ||||
| 17116-20010 |
1MZFE..MNH10 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-20060 |
1MZFE..MNH10 |
1 | ||
| 17118-20050 |
1MZFE..MNH10 |
1 | ||
| 17118-20050 |
1MZFE..MNH10 |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-20030 |
1MZFE..MNH10 |
1 | ||
| 17126 - STAY, SURGE TANK, NO.2 | ||||
| 17126-20050 |
1MZFE..MNH10 |
1 | ||
| 17127 - GASKET, SURGE TANK COVER | ||||
| 17127-62030 |
1MZFE..MNH10 |
1 | ||
| 17127-20010 |
1MZFE..MNH10 |
1 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-20081 |
1MZFE..MNH10 |
1 | ||
| 17109-20100 |
1MZFE..MNH10 |
1 | ||
| 17139 - STAY, MANIFOLD, NO.2 | ||||
| 17139-20010 |
1MZFE..MNH10 |
1 | ||
| 17139-20060 |
1MZFE..MNH10 |
1 | ||
| 17139-20010 |
1MZFE..MNH10 |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08013 |
1MZFE..MNH10 NO.2 |
4 | ||
| 90126-10030 |
1MZFE..MNH10 NO.1 |
12 | ||
| 90126-08013 |
1MZFE..MNH10 NO.2 |
4 | ||
| 90126-10030 |
1MZFE..MNH10 NO.1 |
12 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08013 |
1MZFE..MNH10 NO.2 |
4 | ||
| 90126-10030 |
1MZFE..MNH10 NO.1 |
12 | ||
| 90126-08013 |
1MZFE..MNH10 NO.2 |
4 | ||
| 90126-10030 |
1MZFE..MNH10 NO.1 |
12 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08013 |
1MZFE..MNH10 NO.2 |
4 | ||
| 90126-10030 |
1MZFE..MNH10 NO.1 |
12 | ||
| 90126-08013 |
1MZFE..MNH10 NO.2 |
4 | ||
| 90126-10030 |
1MZFE..MNH10 NO.1 |
12 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-20030 |
1MZFE..MNH10 |
1 | ||
| 17167-20030 |
1MZFE..MNH10 |
1 | ||
| 17167-20100 |
1MZFE..MNH10 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-20070 |
1MZFE..MNH10 |
1 | ||
| 17168-20030 |
1MZFE..MNH10 |
1 | ||
| 17168-20030 |
1MZFE..MNH10 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-20030 |
1MZFE..MNH10 |
1 | ||
| 17173-20020 |
1MZFE..MNH10 |
1 | ||
| 17173-20020 |
1MZFE..MNH10 |
1 | ||
| 17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH | ||||
| 17173-20020 |
1MZFE..MNH10 |
1 | ||
| 17173-20020 |
1MZFE..MNH10 |
1 | ||
| 17173-20030 |
1MZFE..MNH10 |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-20010 |
1MZFE..MNH10 |
1 | ||
| 17176-62030 |
1MZFE..MNH10 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-20020 |
1MZFE..MNH10 |
1 | ||
| 17177-20020 |
1MZFE..MNH10 |
1 | ||
| 17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2 | ||||
| 17178-20020 |
1MZFE..MNH10 |
1 | ||
| 17178-20020 |
1MZFE..MNH10 |
1 | ||
| 17300 - VALVE ASSY, INTAKE AIR CONTROL | ||||
| 17300-20020 |
1MZFE..MNH10 |
1 | ||
| 17300-20040 |
1MZFE..MNH10 |
1 | ||
| 17300A - PLUG, W/HEAD TAPER SCREW(FOR AIR CONTROL VALVE) | ||||
| 90345-51006 |
1MZFE..MNH10 |
1 | ||
| 17315A - GASKET, INTAKE AIR CONTROL VALVE | ||||
| 17315-62020 |
1MZFE..MNH10 |
1 | ||
| 17315-20010 |
1MZFE..MNH10 |
1 | ||
| 17320 - VALVE ASSY, INTAKE AIR CONTROL, NO.2 | ||||
| 17320-20011 |
1MZFE..MNH10 |
1 | ||
| 17861G - GASKET, INTAKE AIR CONNECTOR | ||||
| 22271-20040 |
1MZFE..MNH10 |
1 | ||
| 18421 - STAY, CONVERTER PROTECTOR, LH | ||||
| 18421-20010 |
1MZFE..MNH10 |
1 | ||
| 18421-20010 |
1MZFE..MNH10 |
1 | ||
| 18431 - INSULATOR, CATALYTIC CONVERTER, UPPER | ||||
| 18431-20010 |
1MZFE..MNH10 |
1 | ||
| 18431-20010 |
1MZFE..MNH10 |
1 | ||
| 18432 - INSULATOR, CATALYTIC CONVERTER, LOWER | ||||
| 18432-20011 |
1MZFE..MNH10 |
1 | ||
| 18432-20011 |
1MZFE..MNH10 |
1 | ||
| 18460 - CONVERTER ASSY, MONOLITHIC, LH | ||||
| 18460-20020 |
1MZFE..MNH10 |
1 | ||
| 18460-20020 |
1MZFE..MNH10 |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-20040 |
1MZFE..MNH10 *115=TOYOTA/03-/Y |
1 | ||
| 25051-20030 |
1MZFE..MNH10 |
1 | ||
| 25051-20030 |
1MZFE..MNH10 |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-20020 |
1MZFE..MNH10 |
1 | ||
| 25586-20020 |
1MZFE..MNH10 |
1 | ||
| 25586-20060 |
1MZFE..MNH10 |
1 | ||
| Common parts | ||||
| 90110-08037 | ||||
| 90116-06127 | ||||
| 90116-08147 | ||||
| 90116-08349 | ||||
| 90116-10149 | ||||
| 90119-08A06 | ||||
| 90126-06008 | ||||
| 90126-08013 | ||||
| 90148-80016 | ||||
| 90148-80017 | ||||
| 90179-06288 | ||||
| 90179-08153 | ||||
| 90179-08230 | ||||
| 90179-08233 | ||||
| 90179-10070 | ||||
| 90179-10147 | ||||
| 90179-10194 | ||||
| 90404-53076 | ||||
| 90917-90005 | ||||
| 90917-90006 | ||||
| 91511-B0620 | ||||
| 91511-B0818 | ||||
| 91512-B1020 | ||||
| 91622-B1025 | ||||
| 91631-J0612 | ||||
| 91641-80855 | ||||
| 91642-81025 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8716 | ||||

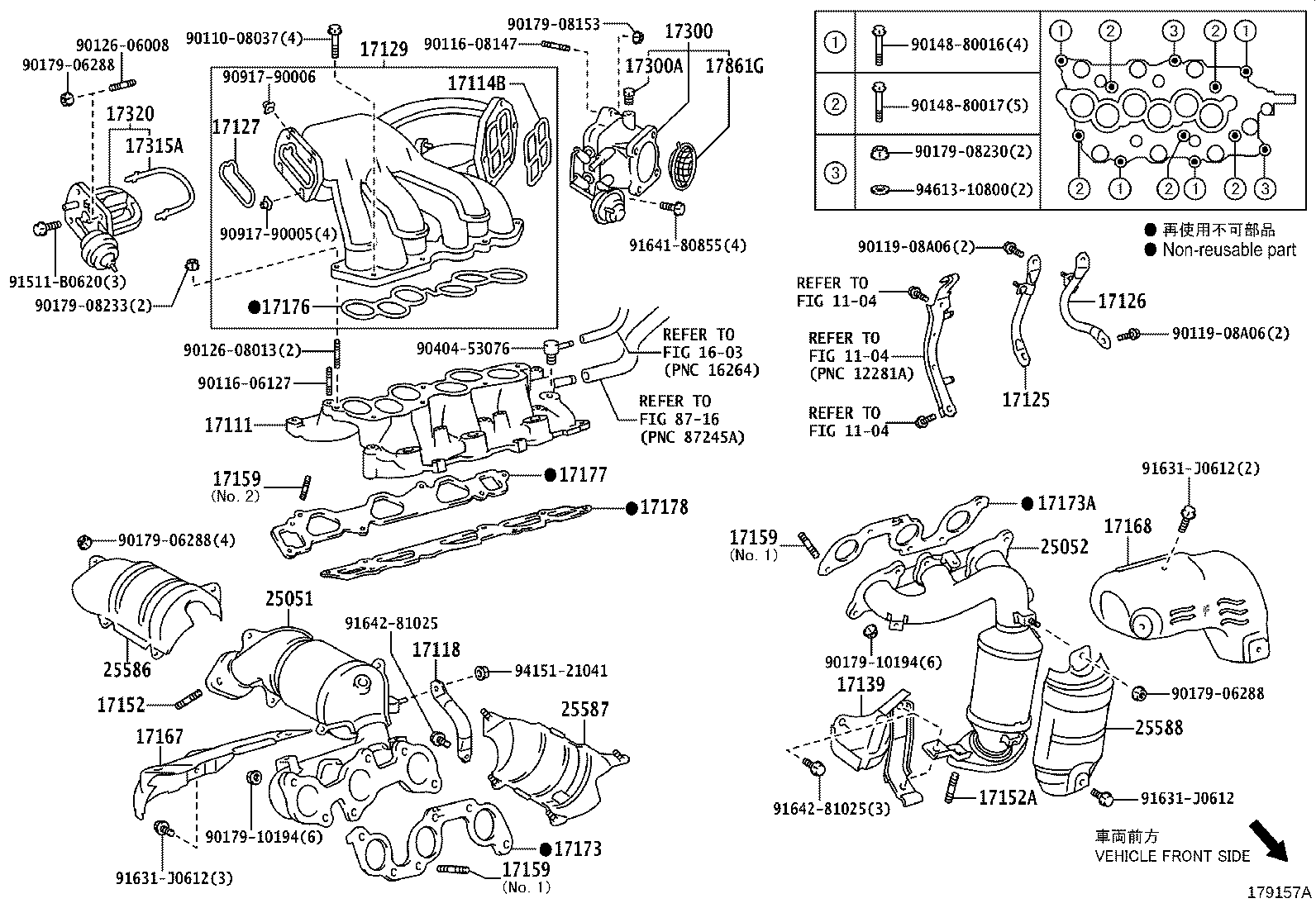

(0706- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-20050 |
1MZFE..MNH10 |
1 | ||
| 17101-20031 |
1MZFE..MNH10 |
1 | ||
| 17114B - GASKET, INTAKE FLANGE | ||||
| 17116-20010 |
1MZFE..MNH10 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-20060 |
1MZFE..MNH10 |
1 | ||
| 17118-20050 |
1MZFE..MNH10 |
1 | ||
| 17118-20050 |
1MZFE..MNH10 |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-20030 |
1MZFE..MNH10 |
1 | ||
| 17126 - STAY, SURGE TANK, NO.2 | ||||
| 17126-20050 |
1MZFE..MNH10 |
1 | ||
| 17127 - GASKET, SURGE TANK COVER | ||||
| 17127-62030 |
1MZFE..MNH10 |
1 | ||
| 17127-20010 |
1MZFE..MNH10 |
1 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-20081 |
1MZFE..MNH10 |
1 | ||
| 17109-20100 |
1MZFE..MNH10 |
1 | ||
| 17139 - STAY, MANIFOLD, NO.2 | ||||
| 17139-20010 |
1MZFE..MNH10 |
1 | ||
| 17139-20060 |
1MZFE..MNH10 |
1 | ||
| 17139-20010 |
1MZFE..MNH10 |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10149 |
1MZFE..MNH10 |
2 | ||
| 17152A - BOLT,STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10149 |
1MZFE..MNH10 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08013 |
1MZFE..MNH10 NO.2 |
4 | ||
| 90126-10030 |
1MZFE..MNH10 NO.1 |
12 | ||
| 90126-08013 |
1MZFE..MNH10 NO.2 |
4 | ||
| 90126-10030 |
1MZFE..MNH10 NO.1 |
12 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08013 |
1MZFE..MNH10 NO.2 |
4 | ||
| 90126-10030 |
1MZFE..MNH10 NO.1 |
12 | ||
| 90126-08013 |
1MZFE..MNH10 NO.2 |
4 | ||
| 90126-10030 |
1MZFE..MNH10 NO.1 |
12 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08013 |
1MZFE..MNH10 NO.2 |
4 | ||
| 90126-10030 |
1MZFE..MNH10 NO.1 |
12 | ||
| 90126-08013 |
1MZFE..MNH10 NO.2 |
4 | ||
| 90126-10030 |
1MZFE..MNH10 NO.1 |
12 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-20030 |
1MZFE..MNH10 |
1 | ||
| 17167-20030 |
1MZFE..MNH10 |
1 | ||
| 17167-20100 |
1MZFE..MNH10 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-20070 |
1MZFE..MNH10 |
1 | ||
| 17168-20030 |
1MZFE..MNH10 |
1 | ||
| 17168-20030 |
1MZFE..MNH10 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-20030 |
1MZFE..MNH10 |
1 | ||
| 17173-20020 |
1MZFE..MNH10 |
1 | ||
| 17173-20020 |
1MZFE..MNH10 |
1 | ||
| 17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH | ||||
| 17173-20020 |
1MZFE..MNH10 |
1 | ||
| 17173-20020 |
1MZFE..MNH10 |
1 | ||
| 17173-20030 |
1MZFE..MNH10 |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-20010 |
1MZFE..MNH10 |
1 | ||
| 17176-62030 |
1MZFE..MNH10 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-20020 |
1MZFE..MNH10 |
1 | ||
| 17177-20020 |
1MZFE..MNH10 |
1 | ||
| 17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2 | ||||
| 17178-20020 |
1MZFE..MNH10 |
1 | ||
| 17178-20020 |
1MZFE..MNH10 |
1 | ||
| 17300 - VALVE ASSY, INTAKE AIR CONTROL | ||||
| 17300-20020 |
1MZFE..MNH10 |
1 | ||
| 17300-20040 |
1MZFE..MNH10 |
1 | ||
| 17300A - PLUG, W/HEAD TAPER SCREW(FOR AIR CONTROL VALVE) | ||||
| 90345-51006 |
1MZFE..MNH10 |
1 | ||
| 17315A - GASKET, INTAKE AIR CONTROL VALVE | ||||
| 17315-62020 |
1MZFE..MNH10 |
1 | ||
| 17315-20010 |
1MZFE..MNH10 |
1 | ||
| 17320 - VALVE ASSY, INTAKE AIR CONTROL, NO.2 | ||||
| 17320-20011 |
1MZFE..MNH10 |
1 | ||
| 17861G - GASKET, INTAKE AIR CONNECTOR | ||||
| 22271-20040 |
1MZFE..MNH10 |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-20040 |
1MZFE..MNH10 *115=TOYOTA/03-/Y |
1 | ||
| 25051-20030 |
1MZFE..MNH10 |
1 | ||
| 25051-20030 |
1MZFE..MNH10 |
1 | ||
| 25052 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD, NO.2 | ||||
| 25052-20190 |
1MZFE..MNH10 *115=TOYOTA/03-/Y |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-20020 |
1MZFE..MNH10 |
1 | ||
| 25586-20020 |
1MZFE..MNH10 |
1 | ||
| 25586-20060 |
1MZFE..MNH10 |
1 | ||
| 25587 - INSULATOR, MANIFOLD CONVERTER, NO.2 | ||||
| 25587-20041 |
1MZFE..MNH10 |
1 | ||
| 25588 - INSULATOR, MANIFOLD CONVERTER, NO.3 | ||||
| 25588-20020 |
1MZFE..MNH10 |
1 | ||
| Common parts | ||||
| 90110-08037 | ||||
| 90116-06127 | ||||
| 90116-08147 | ||||
| 90119-08A06 | ||||
| 90126-06008 | ||||
| 90126-08013 | ||||
| 90148-80016 | ||||
| 90148-80017 | ||||
| 90179-06288 | ||||
| 90179-08153 | ||||
| 90179-08230 | ||||
| 90179-08233 | ||||
| 90179-10194 | ||||
| 90404-53076 | ||||
| 90917-90005 | ||||
| 90917-90006 | ||||
| 91511-B0620 | ||||
| 91631-J0612 | ||||
| 91641-80855 | ||||
| 91642-81025 | ||||
| 94151-21041 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8716 | ||||
