MNH10R-PFASK (2005)
Toyota Alphard

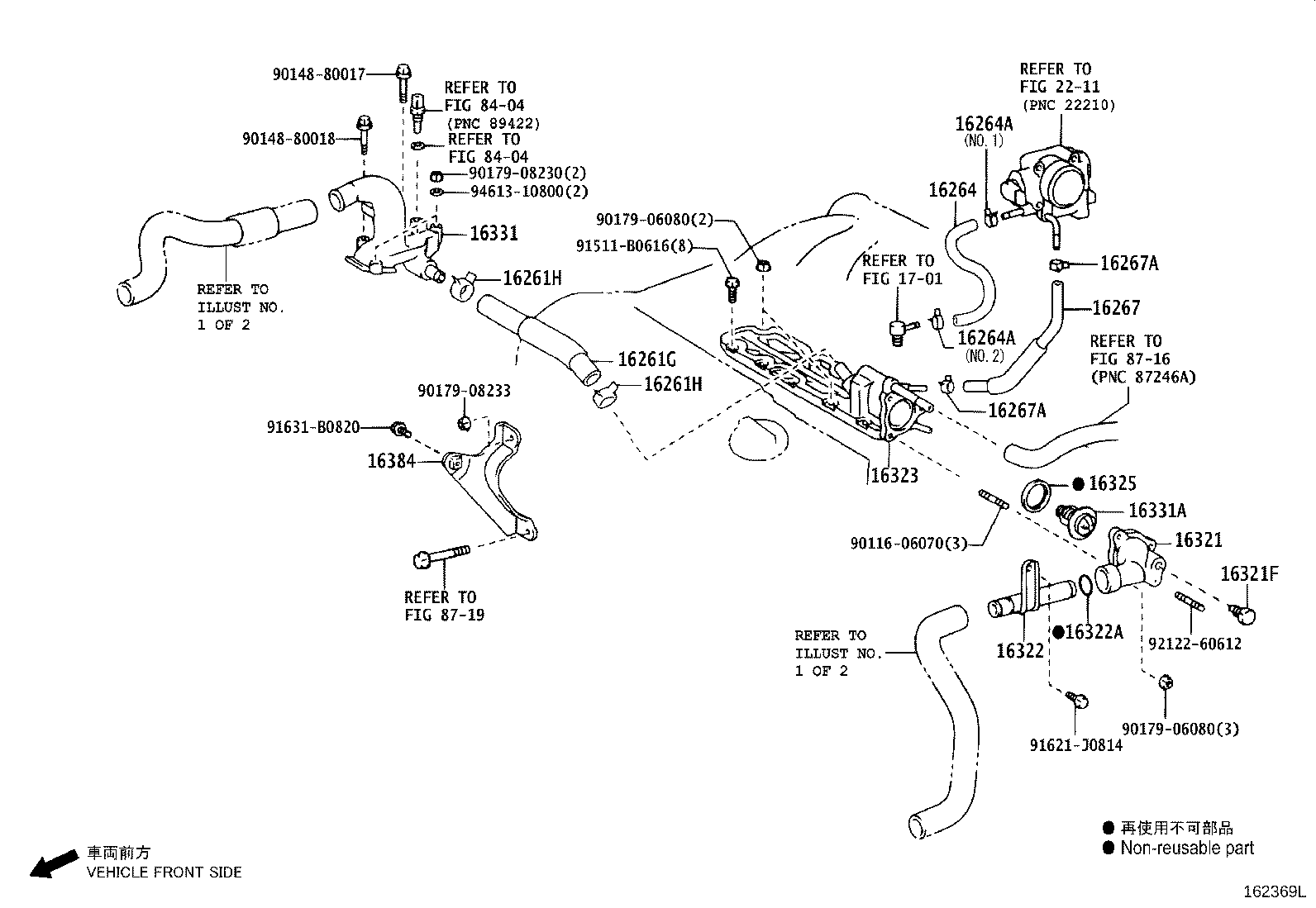

ILLUST NO. 2 OF 2(0504- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-20010 |
1MZFE..MNH10 |
1 | ||
| 16261-20010 |
1MZFE..MNH10 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-28007 |
1MZFE..MNH10 |
2 | ||
| 90467-28007 |
1MZFE..MNH10 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-28007 |
1MZFE..MNH10 |
2 | ||
| 90467-28007 |
1MZFE..MNH10 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-20041 |
1MZFE..MNH10 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1MZFE..MNH10 NO.2 |
1 | ||
| 96135-51300 |
1MZFE..MNH10 NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1MZFE..MNH10 NO.2 |
1 | ||
| 96135-51300 |
1MZFE..MNH10 NO.1 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-20040 |
1MZFE..MNH10 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96137-41501 |
1MZFE..MNH10 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96137-41501 |
1MZFE..MNH10 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-20030 |
1MZFE..MNH10 |
1 | ||
| 16321-20030 |
1MZFE..MNH10 |
1 | ||
| 16321F - PLUG, W/HEAD STRAIGHT SCREW(FOR WATER INLET) | ||||
| 90341-16094 |
1MZFE..MNH10 |
1 | ||
| 90341-16094 |
1MZFE..MNH10 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-20031 |
1MZFE..MNH10 |
1 | ||
| 16322-20031 |
1MZFE..MNH10 |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96761-35031 |
1MZFE..MNH10 |
1 | ||
| 96761-35031 |
1MZFE..MNH10 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-20020 |
1MZFE..MNH10 |
1 | ||
| 16323-20020 |
1MZFE..MNH10 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1MZFE..MNH10 |
1 | ||
| 16325-62010 |
1MZFE..MNH10 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-20050 |
1MZFE..MNH10 |
1 | ||
| 16331-20050 |
1MZFE..MNH10 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03084 |
1MZFE..MNH10 *WAX 82-95 |
1 | ||
| 90916-03129 |
1MZFE..MNH10 *WAX 82-95 |
1 | ||
| 16384 - BRACKET, FAN BELT ADJUSTING BAR | ||||
| 16384-20020 |
1MZFE..MNH10 |
1 | ||
| 16384-20020 |
1MZFE..MNH10 |
1 | ||
| Common parts | ||||
| 90116-06070 | ||||
| 90148-80017 | ||||
| 90148-80018 | ||||
| 90179-06080 | ||||
| 90179-08230 | ||||
| 90179-08233 | ||||
| 91511-B0616 | ||||
| 91621-J0814 | ||||
| 91631-B0820 | ||||
| 92122-60612 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2211 | ||||
| 8404 | ||||
| 8716 | ||||
| 8719 | ||||

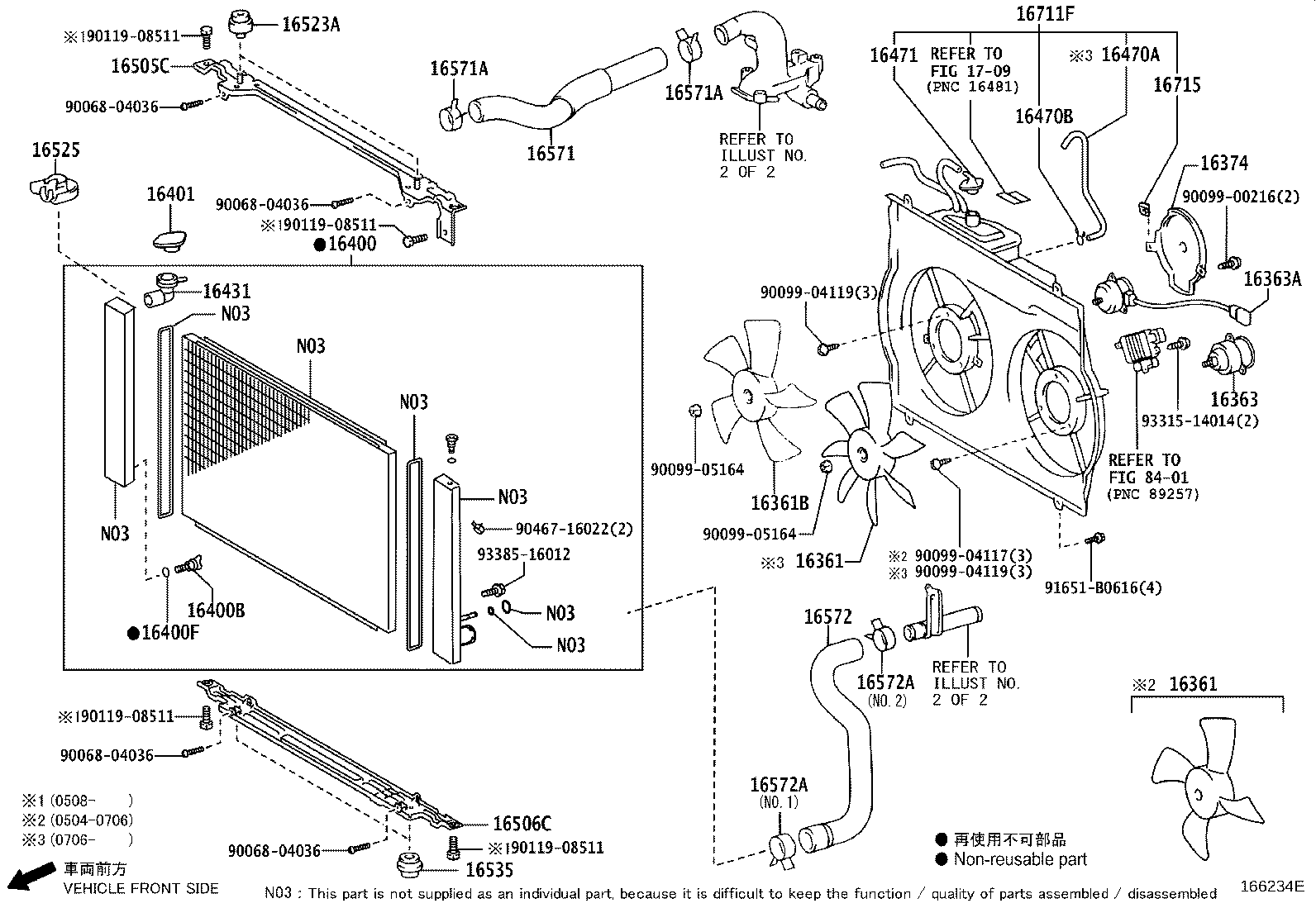

ILLUST NO. 1 OF 2(0504- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-20160 |
1MZFE..MNH10 |
1 | ||
| 16361-20270 |
1MZFE..MNH10 PNC16361B REFER |
1 | ||
| 16361-20160 |
1MZFE..MNH10 |
1 | ||
| 16361 - FAN | ||||
| 16361-20160 |
1MZFE..MNH10 |
1 | ||
| 16361-20270 |
1MZFE..MNH10 PNC16361B REFER |
1 | ||
| 16361-20160 |
1MZFE..MNH10 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-20150 |
1MZFE..MNH10 |
1 | ||
| 16361-20150 |
1MZFE..MNH10 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-20250 |
1MZFE..MNH10 |
1 | ||
| 16363-20250 |
1MZFE..MNH10 |
1 | ||
| 16363-20410 |
1MZFE..MNH10 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-20380 |
1MZFE..MNH10 |
1 | ||
| 16363-20380 |
1MZFE..MNH10 |
1 | ||
| 16374 - INSULATOR, COOLING FAN MOTOR | ||||
| 16366-28120 |
1MZFE..MNH10 |
1 | ||
| 16366-28120 |
1MZFE..MNH10 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16041-20380 |
1MZFE..MNH10 |
1 | ||
| 16041-20280 |
1MZFE..MNH10 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
1MZFE..MNH10 |
1 | ||
| 16417-21280 |
1MZFE..MNH10 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1MZFE..MNH10 |
1 | ||
| 96711-19007 |
1MZFE..MNH10 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-62100 |
1MZFE..MNH10 |
1 | ||
| 16401-62100 |
1MZFE..MNH10 |
1 | ||
| 16431 - INLET, RADIATOR WATER | ||||
| 16431-28620 |
1MZFE..MNH10 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-28380 |
1MZFE..MNH10 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1MZFE..MNH10 |
1 | ||
| 90467-11085 |
1MZFE..MNH10 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-20071 |
1MZFE..MNH10 |
1 | ||
| 16405-20071 |
1MZFE..MNH10 |
1 | ||
| 16505C - SUPPORT SUB-ASSY, RADIATOR, UPPER LH | ||||
| 16506-20070 |
1MZFE..MNH10 |
1 | ||
| 16505-20030 |
1MZFE..MNH10 |
1 | ||
| 16506C - SUPPORT SUB-ASSY, RADIATOR, LOWER LH | ||||
| 16506-20020 |
1MZFE..MNH10 |
1 | ||
| 16505-20110 |
1MZFE..MNH10 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-28010 |
1MZFE..MNH10 |
2 | ||
| 16523-28010 |
1MZFE..MNH10 |
2 | ||
| 16525 - TRAY, WATER FILLER | ||||
| 16525-20010 |
1MZFE..MNH10 |
1 | ||
| 16525-20010 |
1MZFE..MNH10 |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-64120 |
1MZFE..MNH10 |
2 | ||
| 16535-64120 |
1MZFE..MNH10 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-20070 |
1MZFE..MNH10 |
1 | ||
| 16571-20070 |
1MZFE..MNH10 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
1MZFE..MNH10 |
2 | ||
| 90467-37005 |
1MZFE..MNH10 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
1MZFE..MNH10 |
2 | ||
| 90467-37005 |
1MZFE..MNH10 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-20091 |
1MZFE..MNH10 |
1 | ||
| 16572-20090 |
1MZFE..MNH10 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
1MZFE..MNH10 NO.1 |
1 | ||
| 90467-37005 |
1MZFE..MNH10 NO.2 |
1 | ||
| 90466-41007 |
1MZFE..MNH10 NO.1 |
1 | ||
| 90467-37005 |
1MZFE..MNH10 NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
1MZFE..MNH10 NO.1 |
1 | ||
| 90467-37005 |
1MZFE..MNH10 NO.2 |
1 | ||
| 90466-41007 |
1MZFE..MNH10 NO.1 |
1 | ||
| 90467-37005 |
1MZFE..MNH10 NO.2 |
1 | ||
| 16711F - SHROUD, FAN(W/RADIATOR RESERVE TANK) | ||||
| 16711-20150 |
1MZFE..MNH10 |
1 | ||
| 16711-20200 |
1MZFE..MNH10 |
1 | ||
| 16711-20180 |
1MZFE..MNH10 |
1 | ||
| 16715 - BRACKET, FAN SHROUD | ||||
| 88688-18030 |
1MZFE..MNH10 |
2 | ||
| 88688-18030 |
1MZFE..MNH10 |
2 | ||
| Common parts | ||||
| 90068-04036 | ||||
| 90099-00216 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-08511 | ||||
| 90467-16022 | ||||
| 91651-B0616 | ||||
| 93315-14014 | ||||
| 93385-16012 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
