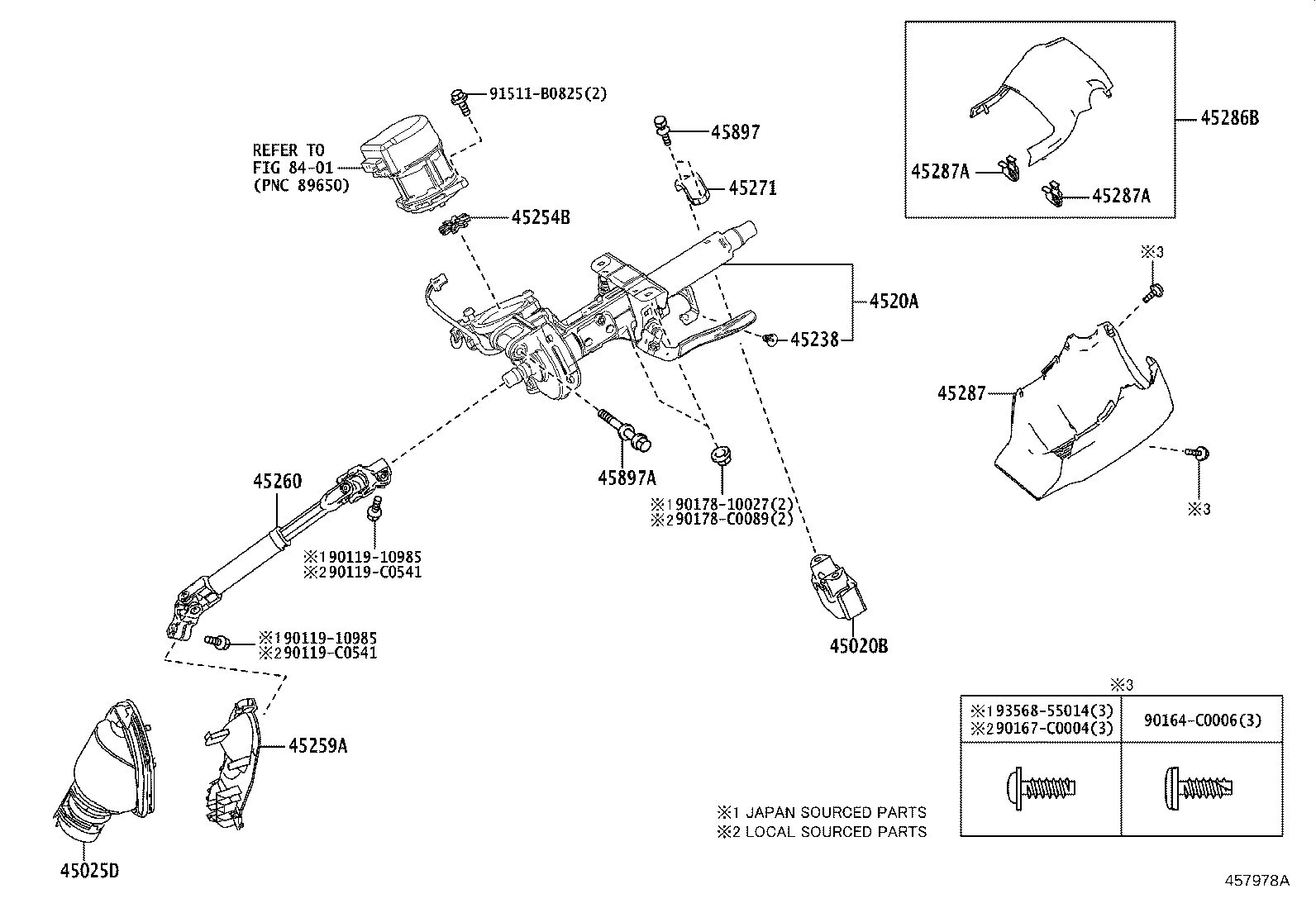

Toyota Allion MZEA12 STEERING COLUMN & SHAFT

Part #	Description	Period	Qty
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-02A10	MZEA12	04/2021 - 12/2999	1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-02350	MZEA12	04/2021 - 12/2999	1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-02500	MZEA12	04/2021 - 12/2999	1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-52010	MZEA12	04/2021 - 12/2999	1
45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45254-28040	MZEA12	04/2021 - 12/2999	1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-02360	MZEA12	04/2021 - 12/2999	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-02330	MZEA12	04/2021 - 12/2999	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52030	MZEA12	04/2021 - 12/2999	1
45286B - COVER, STEERING COLUMN, UPR
45286-02760C0	MZEA12..N BLACK,TRIM2#	04/2021 - 12/2999	1
45286-02760C0	MZEA12..E,G BLACK,TRIM2#,4#	04/2021 - 12/2999	1
45287 - COVER, STEERING COLUMN, LWR
45287-02760C0	MZEA12..E,G BLACK,TRIM2#,4#	04/2021 - 12/2999	1
45287-02760C0	MZEA12..N BLACK,TRIM2#	04/2021 - 12/2999	1
45287A - CLIP(FOR STEERING COLUMN COVER)
90467-05171	MZEA12	04/2021 - 12/2999	2
45287A - CLIP(FOR STEERING COLUMN COVER)
90467-05171	MZEA12	04/2021 - 12/2999	2
45897 - BOLT, STEERING LOCK SET
45897-12020	MZEA12	04/2021 - 12/2999	2
45897A - BOLT, TILT STEERING PAWL SET
90119-C0427	MZEA12 (L)	04/2021 - 12/2999	1
90119-10981	MZEA12 (J)	04/2021 - 12/2999	1
Common parts
90119-10985
90119-C0541
90164-C0006
90167-C0004
90178-10027
90178-C0089
91511-B0825
93568-55014
Linked diagrams
8401

MZEA12L-GEXNBC (2021)
