MZEA12L-GEXGBC (2021)

Toyota Allion

Production Apr 2021 - Sep 9999
Engine M20
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )

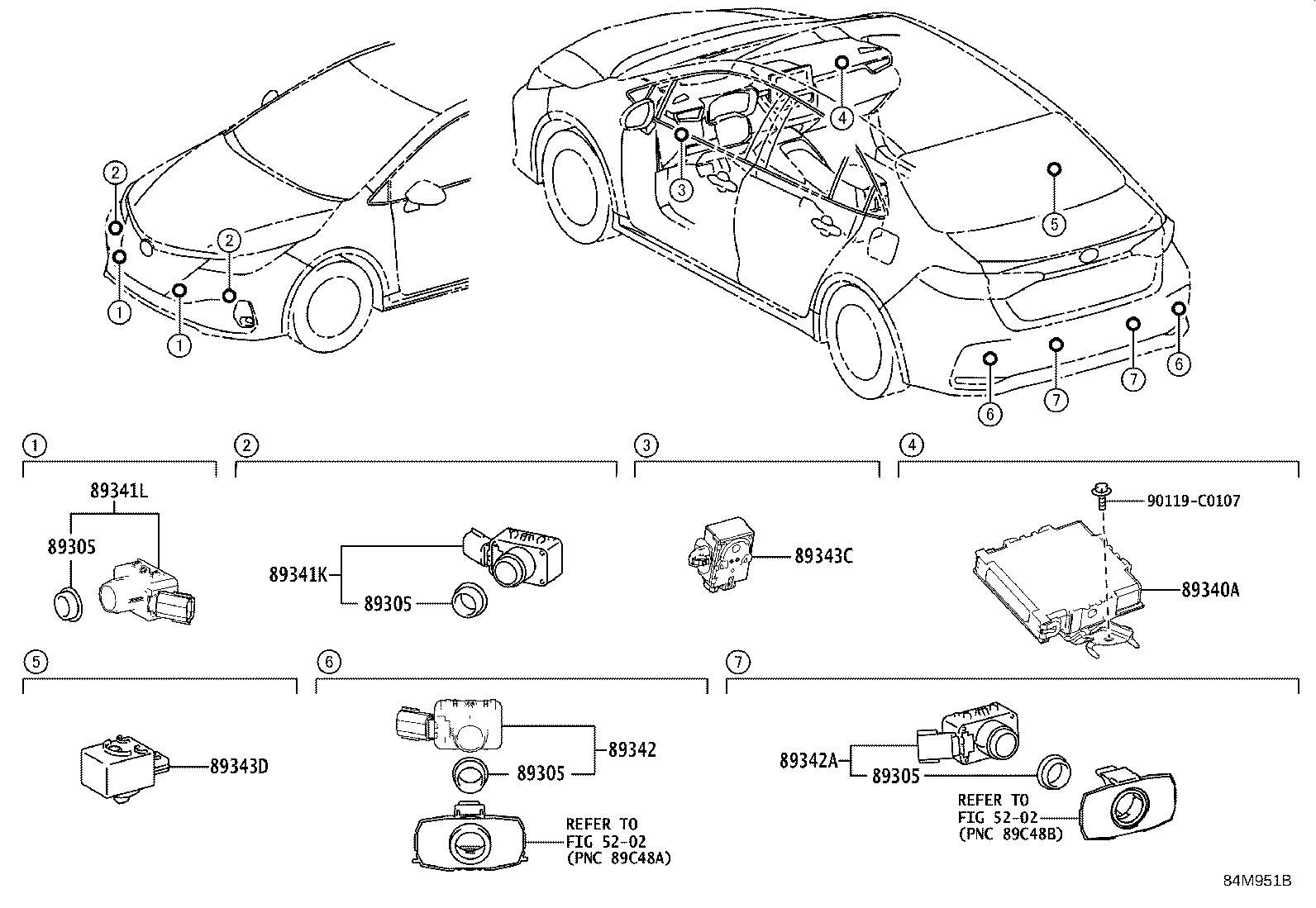

Click highlighted areas on diagram

diagram 5202 5202 89305 89305 89305 89305 89340A 89341K 89341L 89342 89342A 89343C 89343D 90119C0107
Part # Description Qty Price
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-52010

MZEA12

 1
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-52010

MZEA12

 1
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-52010

MZEA12

 1
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-52010

MZEA12

 1
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-02140

MZEA12

 1
89341K - SENSOR, ULTRASONIC, FRONT CORNER
89341-0R080C1

MZEA12

DUMMY-MAT BLACK

 2
89341L - SENSOR, ULTRASONIC, FRONT CENTER
89341-0R080C3

MZEA12

BLACK

 2
89342 - SENSOR, ULTRASONIC, REAR CORNER
89341-0R080D1

MZEA12

RED MC.,3T3

 2
89341-0R080A2

MZEA12

WHITE PEARL CS.,070

 2
89341-0R080A1

MZEA12

SUPER WHITE 2,040

 2
89341-0R080B3

MZEA12

SILVER ME.,1F7

 2
89341-0R080E0

MZEA12

AVANT-GARDE BRONZE ME.,4V8

 2
89341-0R080C4

MZEA12

SPARKLING BLACK PEARL CS.,220

 2
89342A - SENSOR, ULTRASONIC, REAR CENTER
89341-0R080C4

MZEA12

SPARKLING BLACK PEARL CS.,220

 2
89341-0R080E0

MZEA12

AVANT-GARDE BRONZE ME.,4V8

 2
89341-0R080A1

MZEA12

SUPER WHITE 2,040

 2
89341-0R080B3

MZEA12

SILVER ME.,1F7

 2
89341-0R080A2

MZEA12

WHITE PEARL CS.,070

 2
89341-0R080D1

MZEA12

RED MC.,3T3

 2
89343C - BUZZER, CLEARANCE WARNING, NO.1
89343-02010

MZEA12

 1
89343D - BUZZER, CLEARANCE WARNING, NO.2
89747-30040

MZEA12

 1
Common parts
90119-C0107
Linked diagrams
5202
