MZEA12L-GEXGBC (2021)

Toyota Allion

Production Apr 2021 - Sep 9999
Engine M20
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )

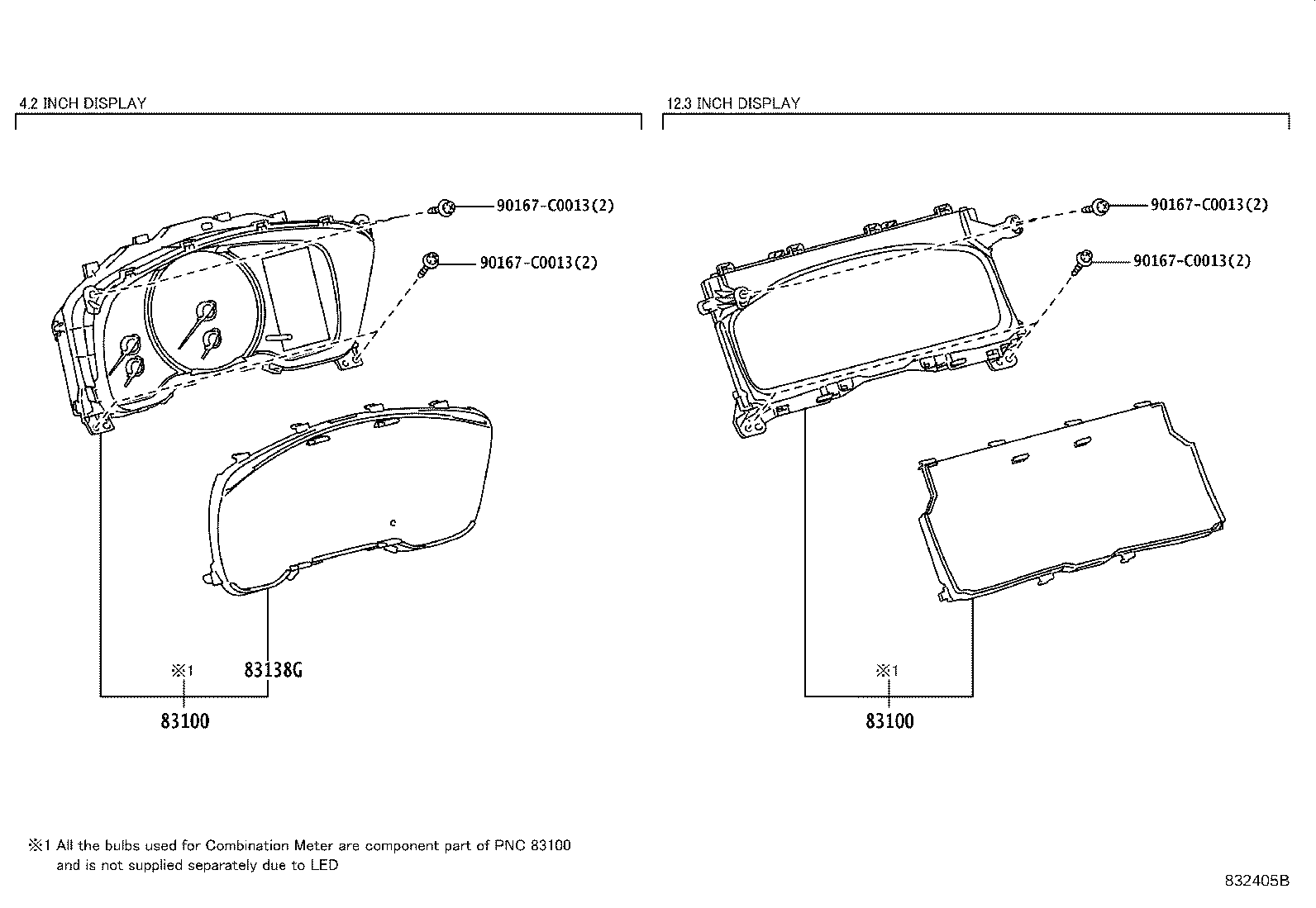

Click highlighted areas on diagram

diagram 83100 83100 83138G 90167C0013 90167C0013 90167C0013 90167C0013
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-FEX20

MZEA12..E

DENSO

 1
83800-FEZ30

MZEA12..E

DENSO,LEATHER PACKAGE

 1
83800-FEZ30

MZEA12..G

DENSO

 1
83100 - METER ASSY, COMBINATION
83800-FEX20

MZEA12..E

DENSO

 1
83800-FEZ30

MZEA12..E

DENSO,LEATHER PACKAGE

 1
83800-FEZ30

MZEA12..G

DENSO

 1
83138G - GLASS, COMBINATION METER
83852-FE380

MZEA12..E,N

 1
Common parts
90167-C0013
