MZEA12L-GEXGBC (2021)
Toyota Allion

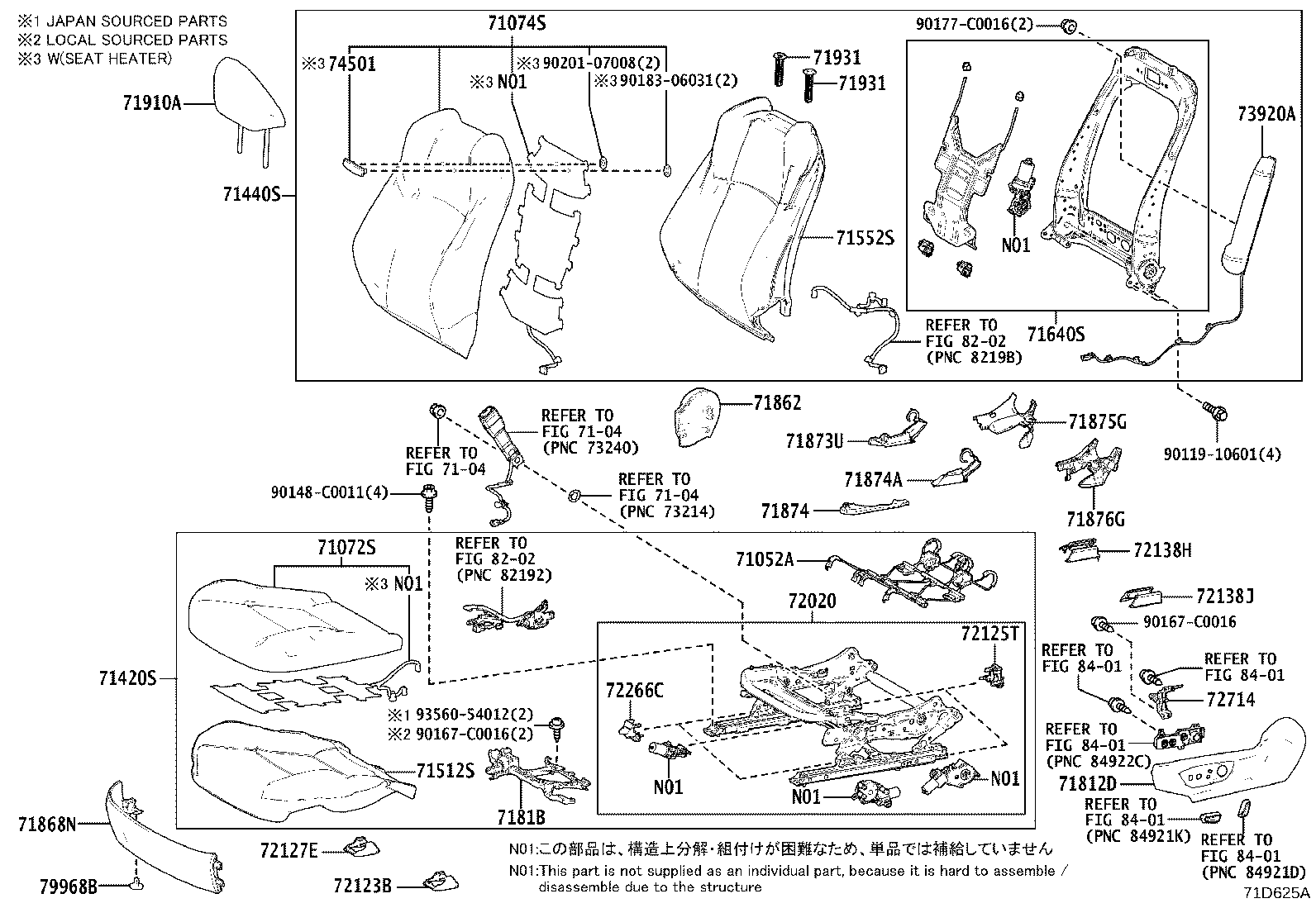

ILLUST NO. 1 OF 2(2104- )
LH SEAT(POWER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-06040 |
MZEA12 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0ZP00C1 |
MZEA12..E BLACK,TRIM2# |
1 | ||
| 71072-0ZP00E1 |
MZEA12..E DK.CHESTNUT,TRIM4# |
1 | ||
| 71072-0ZP20C1 |
MZEA12..G BLACK,TRIM2# |
1 | ||
| 71072-0ZP10C1 |
MZEA12..E LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-0ZP10E1 |
MZEA12..E LEATHER PACKAGE,TAUPE,TRIM4# |
1 | ||
| 71072-0ZP20E1 |
MZEA12..G DK.CHESTNUT,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-F2320C2 |
MZEA12..E BLACK/TAUPE,TRIM2# |
1 | ||
| 71074-F2320E1 |
MZEA12..E DK.CHESTNUT/TAUPE,TRIM4# |
1 | ||
| 71074-F2330C1 |
MZEA12..E LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-F2330E1 |
MZEA12..E LEATHER PACKAGE,TAUPE,TRIM4# |
1 | ||
| 71074-F2340E1 |
MZEA12..G DK.CHESTNUT/TAUPE,TRIM4# |
1 | ||
| 71074-F2340C2 |
MZEA12..G BLACK/TAUPE,TRIM2# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-0ZJ90C2 |
MZEA12..E BLACK,TRIM2# |
1 | ||
| 71420-0ZK00C3 |
MZEA12..E LEATHER PACKAGE,TAUPE,TRIM4# |
1 | ||
| 71420-0ZK00C2 |
MZEA12..E LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71420-0ZK10C2 |
MZEA12..G BLACK,TRIM2# |
1 | ||
| 71420-0ZJ90C3 |
MZEA12..E DK.CHESTNUT,TRIM4# |
1 | ||
| 71420-0ZK10C3 |
MZEA12..G DK.CHESTNUT,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71070-02P20E2 |
MZEA12..G BLACK/TAUPE,TRIM2# |
1 | ||
| 71070-02P10E1 |
MZEA12..E LEATHER PACKAGE,TAUPE,TRIM4# |
1 | ||
| 71070-02P10C1 |
MZEA12..E LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71070-02P20E3 |
MZEA12..G DK.CHESTNUT/TAUPE,TRIM4# |
1 | ||
| 71070-02P00E3 |
MZEA12..E DK.CHESTNUT/TAUPE,TRIM4# |
1 | ||
| 71070-02P00E2 |
MZEA12..E BLACK/TAUPE,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-02D10 |
MZEA12..E,G |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-02D60 |
MZEA12..G |
1 | ||
| 71552-02D00 |
MZEA12..E,N |
1 | ||
| 71552-02D60 |
MZEA12..E LEATHER PACKAGE |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-02D90 |
MZEA12..E |
1 | ||
| 71640-02C50 |
MZEA12..G |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-02A60C0 |
MZEA12..E BLACK,TRIM2#,4# |
1 | ||
| 71812-07100C0 |
MZEA12..G BLACK,TRIM2#,4# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-07020 |
MZEA12..E,G |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-F4050C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 71868N - SHIELD, FRONT SEAT CUSHION, FRONT LH | ||||
| 71868-07030C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 71873U - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71874-F4040C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-07080C0 |
MZEA12..E,G BLACK |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-F4030C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-F4080C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-F4070C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02Z30E0 |
MZEA12..E TAUPE,TRIM20,4# |
2 | ||
| 71910-02Z30C0 |
MZEA12..E BLACK,TRIM20 |
2 | ||
| 71910-02Z30E0 |
MZEA12..G TAUPE,TRIM2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070E6 |
MZEA12..E W(LOCK),TAUPE,TRIM20,4# |
2 | ||
| 71931-06060C0 |
MZEA12..E W/O(LOCK),BLACK,TRIM20 |
2 | ||
| 71930-06070E6 |
MZEA12..G W(LOCK),TAUPE,TRIM2#,4# |
2 | ||
| 71931-06060E6 |
MZEA12..G W/O(LOCK),TAUPE,TRIM2#,4# |
2 | ||
| 71931-06060E6 |
MZEA12..E W/O(LOCK),TAUPE,TRIM20,4# |
2 | ||
| 71930-06070C0 |
MZEA12..E W(LOCK),BLACK,TRIM20 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070E6 |
MZEA12..E W(LOCK),TAUPE,TRIM20,4# |
2 | ||
| 71931-06060C0 |
MZEA12..E W/O(LOCK),BLACK,TRIM20 |
2 | ||
| 71930-06070E6 |
MZEA12..G W(LOCK),TAUPE,TRIM2#,4# |
2 | ||
| 71931-06060E6 |
MZEA12..G W/O(LOCK),TAUPE,TRIM2#,4# |
2 | ||
| 71931-06060E6 |
MZEA12..E W/O(LOCK),TAUPE,TRIM20,4# |
2 | ||
| 71930-06070C0 |
MZEA12..E W(LOCK),BLACK,TRIM20 |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-07060 |
MZEA12..E,G |
1 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72123-F4030 |
MZEA12 |
2 | ||
| 72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH | ||||
| 72125-F4020 |
MZEA12..E,G |
2 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72123-F4030 |
MZEA12 |
2 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-07040 |
MZEA12 |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-F4020 |
MZEA12 |
1 | ||
| 72266C - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-07020 |
MZEA12..E,G |
2 | ||
| 72714 - BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH | ||||
| 72714-07010 |
MZEA12..E,G |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-02370 |
MZEA12 |
1 | ||
| 74501 - EMBLEM SUB-ASSY, SEAT | ||||
| 75311-02290 |
MZEA12..E LEATHER PACKAGE |
2 | ||
| 75311-02290 |
MZEA12..G |
2 | ||
| 79968B - CLIP | ||||
| 90467-07215 |
MZEA12..G |
2 | ||
| 90467-07215 |
MZEA12..E |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-C0011 | ||||
| 90167-C0016 | ||||
| 90177-C0016 | ||||
| 90183-06031 | ||||
| 90201-07008 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||

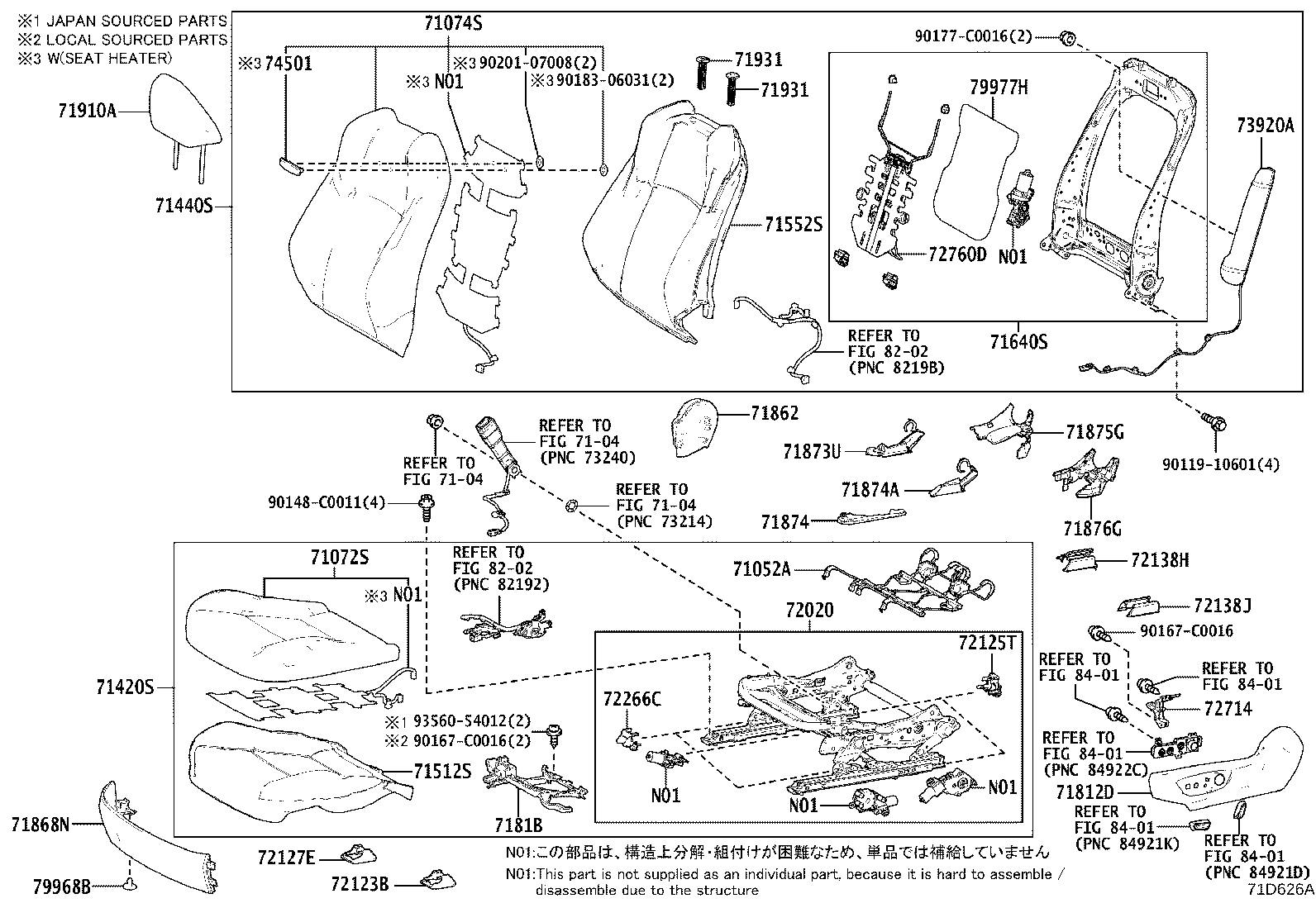

ILLUST NO. 1 OF 2(2104- )
LH SEAT(POWER),W(LUMBAR SUPPORT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-06040 |
MZEA12 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0ZP00C1 |
MZEA12..E BLACK,TRIM2# |
1 | ||
| 71072-0ZP00E1 |
MZEA12..E DK.CHESTNUT,TRIM4# |
1 | ||
| 71072-0ZP20C1 |
MZEA12..G BLACK,TRIM2# |
1 | ||
| 71072-0ZP10C1 |
MZEA12..E LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-0ZP10E1 |
MZEA12..E LEATHER PACKAGE,TAUPE,TRIM4# |
1 | ||
| 71072-0ZP20E1 |
MZEA12..G DK.CHESTNUT,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-F2320C2 |
MZEA12..E BLACK/TAUPE,TRIM2# |
1 | ||
| 71074-F2320E1 |
MZEA12..E DK.CHESTNUT/TAUPE,TRIM4# |
1 | ||
| 71074-F2330C1 |
MZEA12..E LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-F2330E1 |
MZEA12..E LEATHER PACKAGE,TAUPE,TRIM4# |
1 | ||
| 71074-F2340E1 |
MZEA12..G DK.CHESTNUT/TAUPE,TRIM4# |
1 | ||
| 71074-F2340C2 |
MZEA12..G BLACK/TAUPE,TRIM2# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-0ZJ90C2 |
MZEA12..E BLACK,TRIM2# |
1 | ||
| 71420-0ZK00C3 |
MZEA12..E LEATHER PACKAGE,TAUPE,TRIM4# |
1 | ||
| 71420-0ZK00C2 |
MZEA12..E LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71420-0ZK10C2 |
MZEA12..G BLACK,TRIM2# |
1 | ||
| 71420-0ZJ90C3 |
MZEA12..E DK.CHESTNUT,TRIM4# |
1 | ||
| 71420-0ZK10C3 |
MZEA12..G DK.CHESTNUT,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71070-02P20E2 |
MZEA12..G BLACK/TAUPE,TRIM2# |
1 | ||
| 71070-02P10E1 |
MZEA12..E LEATHER PACKAGE,TAUPE,TRIM4# |
1 | ||
| 71070-02P10C1 |
MZEA12..E LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71070-02P20E3 |
MZEA12..G DK.CHESTNUT/TAUPE,TRIM4# |
1 | ||
| 71070-02P00E3 |
MZEA12..E DK.CHESTNUT/TAUPE,TRIM4# |
1 | ||
| 71070-02P00E2 |
MZEA12..E BLACK/TAUPE,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-02D10 |
MZEA12..E,G |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-02D60 |
MZEA12..G |
1 | ||
| 71552-02D00 |
MZEA12..E,N |
1 | ||
| 71552-02D60 |
MZEA12..E LEATHER PACKAGE |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-02D90 |
MZEA12..E |
1 | ||
| 71640-02C50 |
MZEA12..G |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-02A60C0 |
MZEA12..E BLACK,TRIM2#,4# |
1 | ||
| 71812-07100C0 |
MZEA12..G BLACK,TRIM2#,4# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-07020 |
MZEA12..E,G |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-F4050C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 71868N - SHIELD, FRONT SEAT CUSHION, FRONT LH | ||||
| 71868-07030C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 71873U - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71874-F4040C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-07080C0 |
MZEA12..E,G BLACK |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-F4030C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-F4080C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-F4070C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02Z30E0 |
MZEA12..E TAUPE,TRIM20,4# |
2 | ||
| 71910-02Z30C0 |
MZEA12..E BLACK,TRIM20 |
2 | ||
| 71910-02Z30E0 |
MZEA12..G TAUPE,TRIM2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070E6 |
MZEA12..E W(LOCK),TAUPE,TRIM20,4# |
2 | ||
| 71931-06060C0 |
MZEA12..E W/O(LOCK),BLACK,TRIM20 |
2 | ||
| 71930-06070E6 |
MZEA12..G W(LOCK),TAUPE,TRIM2#,4# |
2 | ||
| 71931-06060E6 |
MZEA12..G W/O(LOCK),TAUPE,TRIM2#,4# |
2 | ||
| 71931-06060E6 |
MZEA12..E W/O(LOCK),TAUPE,TRIM20,4# |
2 | ||
| 71930-06070C0 |
MZEA12..E W(LOCK),BLACK,TRIM20 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070E6 |
MZEA12..E W(LOCK),TAUPE,TRIM20,4# |
2 | ||
| 71931-06060C0 |
MZEA12..E W/O(LOCK),BLACK,TRIM20 |
2 | ||
| 71930-06070E6 |
MZEA12..G W(LOCK),TAUPE,TRIM2#,4# |
2 | ||
| 71931-06060E6 |
MZEA12..G W/O(LOCK),TAUPE,TRIM2#,4# |
2 | ||
| 71931-06060E6 |
MZEA12..E W/O(LOCK),TAUPE,TRIM20,4# |
2 | ||
| 71930-06070C0 |
MZEA12..E W(LOCK),BLACK,TRIM20 |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-07060 |
MZEA12..E,G |
1 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72123-F4030 |
MZEA12 |
2 | ||
| 72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH | ||||
| 72125-F4020 |
MZEA12..E,G |
2 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72123-F4030 |
MZEA12 |
2 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-07040 |
MZEA12 |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-F4020 |
MZEA12 |
1 | ||
| 72266C - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-07020 |
MZEA12..E,G |
2 | ||
| 72714 - BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH | ||||
| 72714-07010 |
MZEA12..E,G |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72750-33140 |
MZEA12..G |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-02370 |
MZEA12 |
1 | ||
| 74501 - EMBLEM SUB-ASSY, SEAT | ||||
| 75311-02290 |
MZEA12..E LEATHER PACKAGE |
2 | ||
| 75311-02290 |
MZEA12..G |
2 | ||
| 79968B - CLIP | ||||
| 90467-07215 |
MZEA12..G |
2 | ||
| 90467-07215 |
MZEA12..E |
1 | ||
| 79977H - FELT, FRONT SEAT BACK, LH | ||||
| 79977-33030 |
MZEA12..G |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-C0011 | ||||
| 90167-C0016 | ||||
| 90177-C0016 | ||||
| 90183-06031 | ||||
| 90201-07008 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||

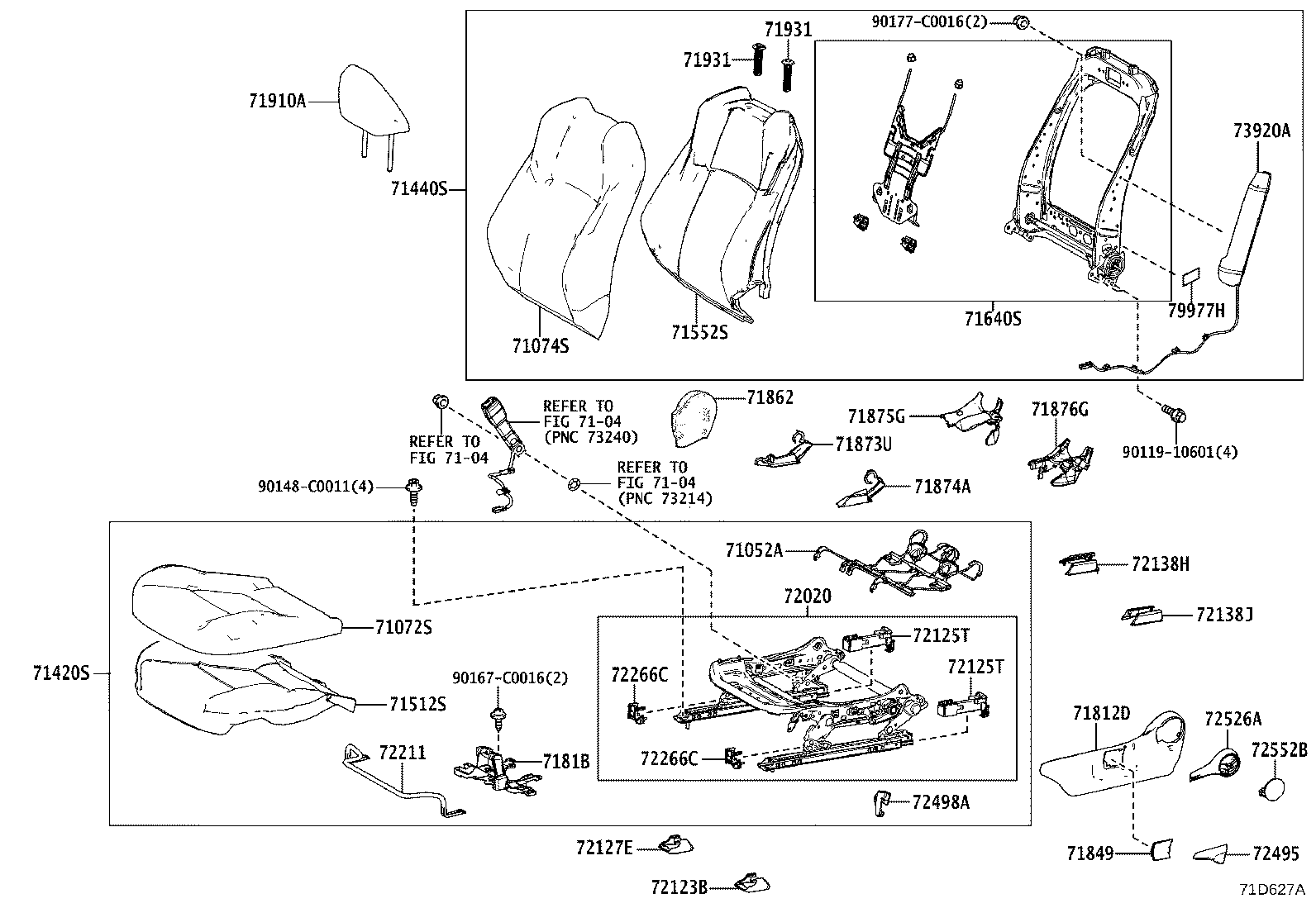

ILLUST NO. 1 OF 2(2104- )
LH SEAT(MANUAL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-06040 |
MZEA12 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0ZP00C1 |
MZEA12..E BLACK,TRIM2# |
1 | ||
| 71072-0ZP00E1 |
MZEA12..E DK.CHESTNUT,TRIM4# |
1 | ||
| 71072-0ZP20C1 |
MZEA12..G BLACK,TRIM2# |
1 | ||
| 71072-0ZP10C1 |
MZEA12..E LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-0ZP10E1 |
MZEA12..E LEATHER PACKAGE,TAUPE,TRIM4# |
1 | ||
| 71072-0ZP20E1 |
MZEA12..G DK.CHESTNUT,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-F2320C2 |
MZEA12..E BLACK/TAUPE,TRIM2# |
1 | ||
| 71074-F2320E1 |
MZEA12..E DK.CHESTNUT/TAUPE,TRIM4# |
1 | ||
| 71074-F2330C1 |
MZEA12..E LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-F2330E1 |
MZEA12..E LEATHER PACKAGE,TAUPE,TRIM4# |
1 | ||
| 71074-F2340E1 |
MZEA12..G DK.CHESTNUT/TAUPE,TRIM4# |
1 | ||
| 71074-F2340C2 |
MZEA12..G BLACK/TAUPE,TRIM2# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-0ZJ90C2 |
MZEA12..E BLACK,TRIM2# |
1 | ||
| 71420-0ZK00C3 |
MZEA12..E LEATHER PACKAGE,TAUPE,TRIM4# |
1 | ||
| 71420-0ZK00C2 |
MZEA12..E LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71420-0ZK10C2 |
MZEA12..G BLACK,TRIM2# |
1 | ||
| 71420-0ZJ90C3 |
MZEA12..E DK.CHESTNUT,TRIM4# |
1 | ||
| 71420-0ZK10C3 |
MZEA12..G DK.CHESTNUT,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71070-02P20E2 |
MZEA12..G BLACK/TAUPE,TRIM2# |
1 | ||
| 71070-02P10E1 |
MZEA12..E LEATHER PACKAGE,TAUPE,TRIM4# |
1 | ||
| 71070-02P10C1 |
MZEA12..E LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71070-02P20E3 |
MZEA12..G DK.CHESTNUT/TAUPE,TRIM4# |
1 | ||
| 71070-02P00E3 |
MZEA12..E DK.CHESTNUT/TAUPE,TRIM4# |
1 | ||
| 71070-02P00E2 |
MZEA12..E BLACK/TAUPE,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-02D10 |
MZEA12..E,G |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-02D60 |
MZEA12..G |
1 | ||
| 71552-02D00 |
MZEA12..E,N |
1 | ||
| 71552-02D60 |
MZEA12..E LEATHER PACKAGE |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-02D90 |
MZEA12..E |
1 | ||
| 71640-02C50 |
MZEA12..G |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-02A60C0 |
MZEA12..E BLACK,TRIM2#,4# |
1 | ||
| 71812-07100C0 |
MZEA12..G BLACK,TRIM2#,4# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-07020 |
MZEA12..E,G |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-F4050C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 71873U - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71874-F4040C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-F4030C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-F4080C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-F4070C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02Z30E0 |
MZEA12..E TAUPE,TRIM20,4# |
2 | ||
| 71910-02Z30C0 |
MZEA12..E BLACK,TRIM20 |
2 | ||
| 71910-02Z30E0 |
MZEA12..G TAUPE,TRIM2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070E6 |
MZEA12..E W(LOCK),TAUPE,TRIM20,4# |
2 | ||
| 71931-06060C0 |
MZEA12..E W/O(LOCK),BLACK,TRIM20 |
2 | ||
| 71930-06070E6 |
MZEA12..G W(LOCK),TAUPE,TRIM2#,4# |
2 | ||
| 71931-06060E6 |
MZEA12..G W/O(LOCK),TAUPE,TRIM2#,4# |
2 | ||
| 71931-06060E6 |
MZEA12..E W/O(LOCK),TAUPE,TRIM20,4# |
2 | ||
| 71930-06070C0 |
MZEA12..E W(LOCK),BLACK,TRIM20 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070E6 |
MZEA12..E W(LOCK),TAUPE,TRIM20,4# |
2 | ||
| 71931-06060C0 |
MZEA12..E W/O(LOCK),BLACK,TRIM20 |
2 | ||
| 71930-06070E6 |
MZEA12..G W(LOCK),TAUPE,TRIM2#,4# |
2 | ||
| 71931-06060E6 |
MZEA12..G W/O(LOCK),TAUPE,TRIM2#,4# |
2 | ||
| 71931-06060E6 |
MZEA12..E W/O(LOCK),TAUPE,TRIM20,4# |
2 | ||
| 71930-06070C0 |
MZEA12..E W(LOCK),BLACK,TRIM20 |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-07060 |
MZEA12..E,G |
1 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72123-F4030 |
MZEA12 |
2 | ||
| 72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH | ||||
| 72125-F4020 |
MZEA12..E,G |
2 | ||
| 72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH | ||||
| 72125-F4020 |
MZEA12..E,G |
2 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72123-F4030 |
MZEA12 |
2 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-07040 |
MZEA12 |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-F4020 |
MZEA12 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-06140 |
MZEA12..E |
1 | ||
| 72266C - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-07020 |
MZEA12..E,G |
2 | ||
| 72266C - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-07020 |
MZEA12..E,G |
2 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-02370 |
MZEA12 |
1 | ||
| 79977H - FELT, FRONT SEAT BACK, LH | ||||
| 79977-33030 |
MZEA12..G |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-C0011 | ||||
| 90167-C0016 | ||||
| 90177-C0016 | ||||
| Linked diagrams | ||||
| 7104 | ||||

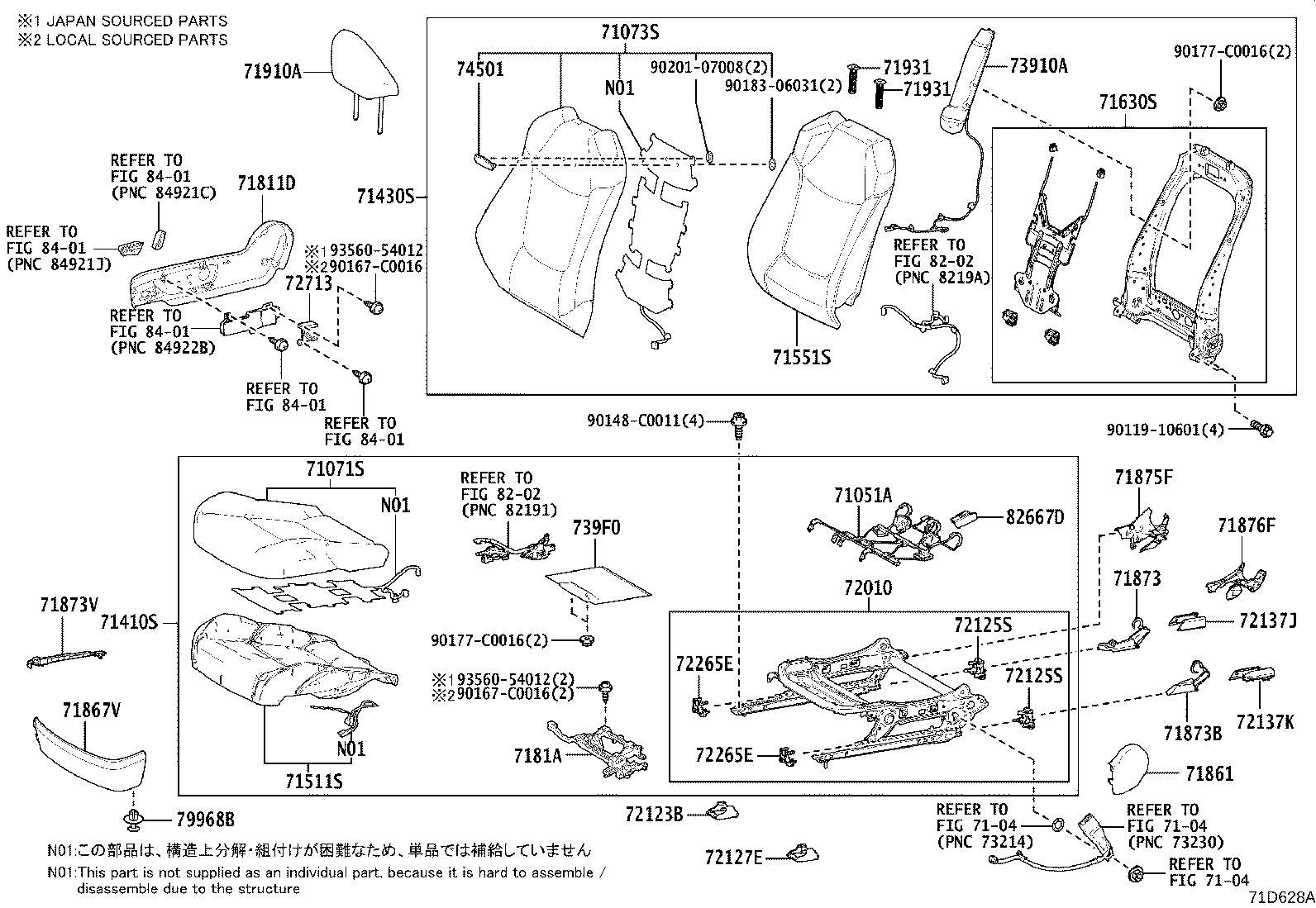

ILLUST NO. 2 OF 2(2104- )
RH SEAT(POWER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-06040 |
MZEA12 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0ZV20E1 |
MZEA12..E DK.CHESTNUT,TRIM4# |
1 | ||
| 71071-0ZW80C1 |
MZEA12..G BLACK,TRIM2# |
1 | ||
| 71071-0ZV60C1 |
MZEA12..E LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71071-0ZV20C1 |
MZEA12..E BLACK,TRIM2# |
1 | ||
| 71071-0ZV60E1 |
MZEA12..E LEATHER PACKAGE,TAUPE,TRIM4# |
1 | ||
| 71071-0ZW80E1 |
MZEA12..G DK.CHESTNUT,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-02A70E1 |
MZEA12..E DK.CHESTNUT/TAUPE,TRIM4# |
1 | ||
| 71027-02A70C2 |
MZEA12..E BLACK/TAUPE,TRIM2# |
1 | ||
| 71027-02A80E1 |
MZEA12..E LEATHER PACKAGE,TAUPE,TRIM4# |
1 | ||
| 71027-02A90E1 |
MZEA12..G DK.CHESTNUT/TAUPE,TRIM4# |
1 | ||
| 71027-02A80C1 |
MZEA12..E LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71027-02A90C2 |
MZEA12..G BLACK/TAUPE,TRIM2# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-0ZC60C3 |
MZEA12..E DK.CHESTNUT,TRIM4# |
1 | ||
| 71410-0ZM00C2 |
MZEA12..E LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71410-0ZM00C3 |
MZEA12..E LEATHER PACKAGE,TAUPE,TRIM4# |
1 | ||
| 71410-0ZM10C3 |
MZEA12..G BLACK,TRIM2# |
1 | ||
| 71410-0ZC60C2 |
MZEA12..E BLACK,TRIM2# |
1 | ||
| 71410-0ZM10C2 |
MZEA12..G DK.CHESTNUT,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71040-02M30E2 |
MZEA12..E BLACK/TAUPE,TRIM2# |
1 | ||
| 71040-02M40C1 |
MZEA12..E LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71040-02M40E1 |
MZEA12..E LEATHER PACKAGE,TAUPE,TRIM4# |
1 | ||
| 71040-02M50E3 |
MZEA12..G DK.CHESTNUT/TAUPE,TRIM4# |
1 | ||
| 71040-02M50E2 |
MZEA12..G BLACK/TAUPE,TRIM2# |
1 | ||
| 71040-02M30E3 |
MZEA12..E DK.CHESTNUT/TAUPE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-02450 |
MZEA12..G |
1 | ||
| 71501-02410 |
MZEA12..E,N |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-02D00 |
MZEA12..E LEATHER PACKAGE |
1 | ||
| 71551-02F40 |
MZEA12..E,N |
1 | ||
| 71551-02D00 |
MZEA12..G |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-02A80 |
MZEA12..G |
1 | ||
| 71630-02B50 |
MZEA12..E,N |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-02780C0 |
MZEA12..G BLACK,TRIM2#,4# |
1 | ||
| 71811-07090C0 |
MZEA12..E BLACK,TRIM2#,4# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-07030 |
MZEA12..G |
1 | ||
| 7181A-F4030 |
MZEA12..E,N |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-07050C0 |
MZEA12..E BLACK,TRIM2#,4# |
1 | ||
| 71861-F4070C0 |
MZEA12..G BLACK,TRIM2#,4# |
1 | ||
| 71867V - SHIELD, FRONT SEAT CUSHION, FRONT RH | ||||
| 71867-07030C0 |
MZEA12..G BLACK,TRIM2#,4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-F4060C0 |
MZEA12..G BLACK,TRIM2#,4# |
1 | ||
| 71873B - SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1 | ||||
| 71873-06410 |
MZEA12..G |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-07060C0 |
MZEA12..G BLACK,TRIM2#,4# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-F4090C0 |
MZEA12..G BLACK,TRIM2#,4# |
1 | ||
| 71875-07030C0 |
MZEA12..E BLACK,TRIM2#,4# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-F4100C0 |
MZEA12..G BLACK,TRIM2#,4# |
1 | ||
| 71875-07040C0 |
MZEA12..E BLACK,TRIM2#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02Z30E0 |
MZEA12..E TAUPE,TRIM20,4# |
2 | ||
| 71910-02Z30C0 |
MZEA12..E BLACK,TRIM20 |
2 | ||
| 71910-02Z30E0 |
MZEA12..G TAUPE,TRIM2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070E6 |
MZEA12..E W(LOCK),TAUPE,TRIM20,4# |
2 | ||
| 71931-06060C0 |
MZEA12..E W/O(LOCK),BLACK,TRIM20 |
2 | ||
| 71930-06070E6 |
MZEA12..G W(LOCK),TAUPE,TRIM2#,4# |
2 | ||
| 71931-06060E6 |
MZEA12..G W/O(LOCK),TAUPE,TRIM2#,4# |
2 | ||
| 71931-06060E6 |
MZEA12..E W/O(LOCK),TAUPE,TRIM20,4# |
2 | ||
| 71930-06070C0 |
MZEA12..E W(LOCK),BLACK,TRIM20 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070E6 |
MZEA12..E W(LOCK),TAUPE,TRIM20,4# |
2 | ||
| 71931-06060C0 |
MZEA12..E W/O(LOCK),BLACK,TRIM20 |
2 | ||
| 71930-06070E6 |
MZEA12..G W(LOCK),TAUPE,TRIM2#,4# |
2 | ||
| 71931-06060E6 |
MZEA12..G W/O(LOCK),TAUPE,TRIM2#,4# |
2 | ||
| 71931-06060E6 |
MZEA12..E W/O(LOCK),TAUPE,TRIM20,4# |
2 | ||
| 71930-06070C0 |
MZEA12..E W(LOCK),BLACK,TRIM20 |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-07060 |
MZEA12..G |
1 | ||
| 72010-07040 |
MZEA12..E,N |
1 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72123-F4030 |
MZEA12 |
2 | ||
| 72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH | ||||
| 72125-F4020 |
MZEA12..G |
2 | ||
| 72125-F4010 |
MZEA12..E,N |
2 | ||
| 72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH | ||||
| 72125-F4020 |
MZEA12..G |
2 | ||
| 72125-F4010 |
MZEA12..E,N |
2 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72123-F4030 |
MZEA12 |
2 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-F4020 |
MZEA12 |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72157-07040 |
MZEA12 |
1 | ||
| 72265E - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-F4010 |
MZEA12..E,N |
2 | ||
| 72265-07020 |
MZEA12..G |
2 | ||
| 72265E - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-F4010 |
MZEA12..E,N |
2 | ||
| 72265-07020 |
MZEA12..G |
2 | ||
| 72713 - BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH | ||||
| 72713-07010 |
MZEA12..G |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-02400 |
MZEA12 |
1 | ||
| 739F0 - AIR BAG ASSY, FRONT SEAT CUSHION, RH | ||||
| 739F0-02050 |
MZEA12 |
1 | ||
| 74501 - EMBLEM SUB-ASSY, SEAT | ||||
| 75311-02290 |
MZEA12..E LEATHER PACKAGE |
2 | ||
| 75311-02290 |
MZEA12..G |
2 | ||
| 79968B - CLIP | ||||
| 90467-07215 |
MZEA12..G |
2 | ||
| 90467-07215 |
MZEA12..E |
1 | ||
| 82667D - HOLDER, CONNECTOR | ||||
| 82666-07300 |
MZEA12 |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-C0011 | ||||
| 90167-C0016 | ||||
| 90177-C0016 | ||||
| 90183-06031 | ||||
| 90201-07008 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||

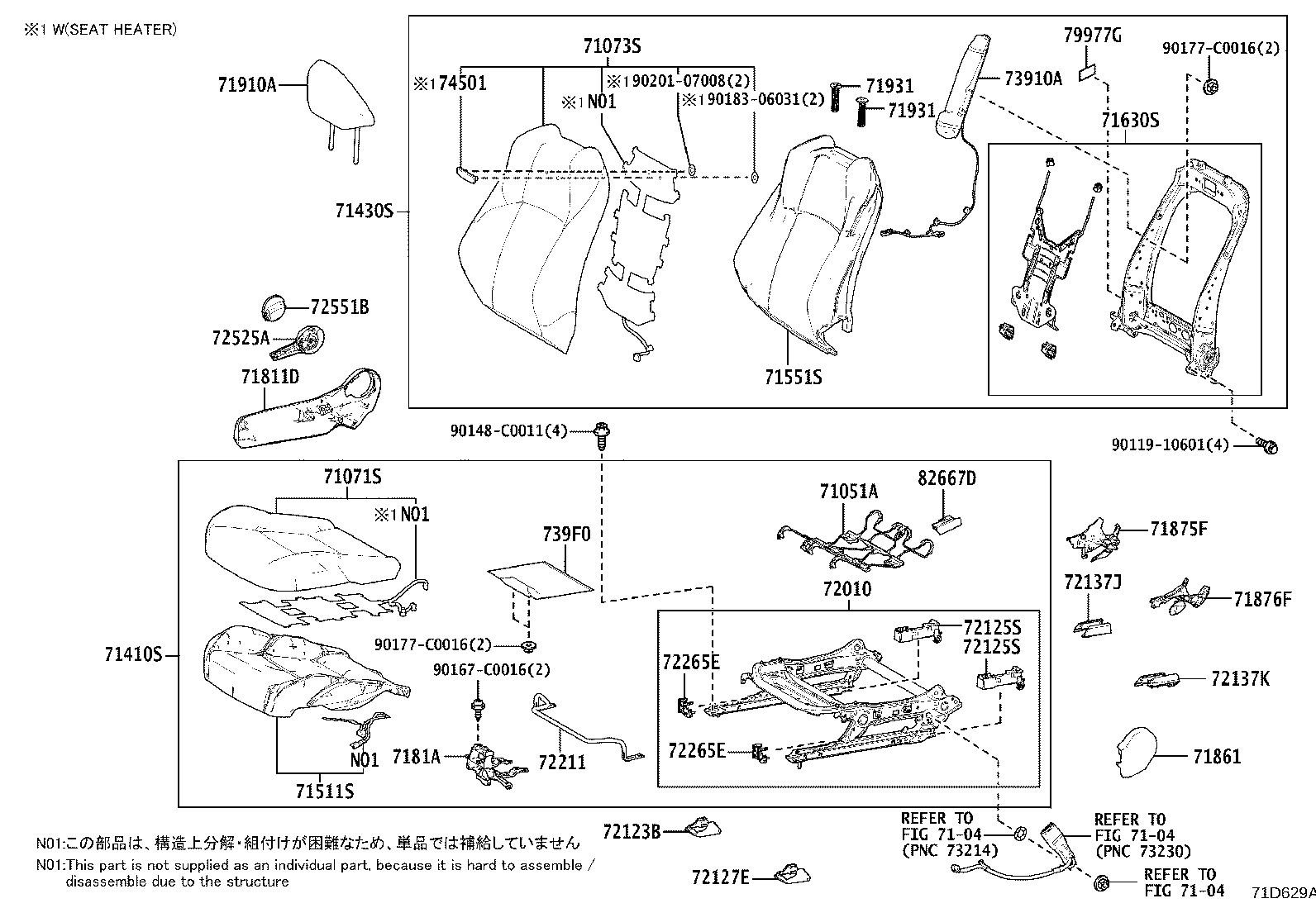

ILLUST NO. 2 OF 2(2104- )
RH SEAT(MANUAL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-06040 |
MZEA12 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0ZV20E1 |
MZEA12..E DK.CHESTNUT,TRIM4# |
1 | ||
| 71071-0ZW80C1 |
MZEA12..G BLACK,TRIM2# |
1 | ||
| 71071-0ZV60C1 |
MZEA12..E LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71071-0ZV20C1 |
MZEA12..E BLACK,TRIM2# |
1 | ||
| 71071-0ZV60E1 |
MZEA12..E LEATHER PACKAGE,TAUPE,TRIM4# |
1 | ||
| 71071-0ZW80E1 |
MZEA12..G DK.CHESTNUT,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-02A70E1 |
MZEA12..E DK.CHESTNUT/TAUPE,TRIM4# |
1 | ||
| 71027-02A70C2 |
MZEA12..E BLACK/TAUPE,TRIM2# |
1 | ||
| 71027-02A80E1 |
MZEA12..E LEATHER PACKAGE,TAUPE,TRIM4# |
1 | ||
| 71027-02A90E1 |
MZEA12..G DK.CHESTNUT/TAUPE,TRIM4# |
1 | ||
| 71027-02A80C1 |
MZEA12..E LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71027-02A90C2 |
MZEA12..G BLACK/TAUPE,TRIM2# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-0ZC60C3 |
MZEA12..E DK.CHESTNUT,TRIM4# |
1 | ||
| 71410-0ZM00C2 |
MZEA12..E LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71410-0ZM00C3 |
MZEA12..E LEATHER PACKAGE,TAUPE,TRIM4# |
1 | ||
| 71410-0ZM10C3 |
MZEA12..G BLACK,TRIM2# |
1 | ||
| 71410-0ZC60C2 |
MZEA12..E BLACK,TRIM2# |
1 | ||
| 71410-0ZM10C2 |
MZEA12..G DK.CHESTNUT,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71040-02M30E2 |
MZEA12..E BLACK/TAUPE,TRIM2# |
1 | ||
| 71040-02M40C1 |
MZEA12..E LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 71040-02M40E1 |
MZEA12..E LEATHER PACKAGE,TAUPE,TRIM4# |
1 | ||
| 71040-02M50E3 |
MZEA12..G DK.CHESTNUT/TAUPE,TRIM4# |
1 | ||
| 71040-02M50E2 |
MZEA12..G BLACK/TAUPE,TRIM2# |
1 | ||
| 71040-02M30E3 |
MZEA12..E DK.CHESTNUT/TAUPE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-02450 |
MZEA12..G |
1 | ||
| 71501-02410 |
MZEA12..E,N |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-02D00 |
MZEA12..E LEATHER PACKAGE |
1 | ||
| 71551-02F40 |
MZEA12..E,N |
1 | ||
| 71551-02D00 |
MZEA12..G |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-02A80 |
MZEA12..G |
1 | ||
| 71630-02B50 |
MZEA12..E,N |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-02780C0 |
MZEA12..G BLACK,TRIM2#,4# |
1 | ||
| 71811-07090C0 |
MZEA12..E BLACK,TRIM2#,4# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-07030 |
MZEA12..G |
1 | ||
| 7181A-F4030 |
MZEA12..E,N |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-07050C0 |
MZEA12..E BLACK,TRIM2#,4# |
1 | ||
| 71861-F4070C0 |
MZEA12..G BLACK,TRIM2#,4# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-F4090C0 |
MZEA12..G BLACK,TRIM2#,4# |
1 | ||
| 71875-07030C0 |
MZEA12..E BLACK,TRIM2#,4# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-F4100C0 |
MZEA12..G BLACK,TRIM2#,4# |
1 | ||
| 71875-07040C0 |
MZEA12..E BLACK,TRIM2#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02Z30E0 |
MZEA12..E TAUPE,TRIM20,4# |
2 | ||
| 71910-02Z30C0 |
MZEA12..E BLACK,TRIM20 |
2 | ||
| 71910-02Z30E0 |
MZEA12..G TAUPE,TRIM2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070E6 |
MZEA12..E W(LOCK),TAUPE,TRIM20,4# |
2 | ||
| 71931-06060C0 |
MZEA12..E W/O(LOCK),BLACK,TRIM20 |
2 | ||
| 71930-06070E6 |
MZEA12..G W(LOCK),TAUPE,TRIM2#,4# |
2 | ||
| 71931-06060E6 |
MZEA12..G W/O(LOCK),TAUPE,TRIM2#,4# |
2 | ||
| 71931-06060E6 |
MZEA12..E W/O(LOCK),TAUPE,TRIM20,4# |
2 | ||
| 71930-06070C0 |
MZEA12..E W(LOCK),BLACK,TRIM20 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070E6 |
MZEA12..E W(LOCK),TAUPE,TRIM20,4# |
2 | ||
| 71931-06060C0 |
MZEA12..E W/O(LOCK),BLACK,TRIM20 |
2 | ||
| 71930-06070E6 |
MZEA12..G W(LOCK),TAUPE,TRIM2#,4# |
2 | ||
| 71931-06060E6 |
MZEA12..G W/O(LOCK),TAUPE,TRIM2#,4# |
2 | ||
| 71931-06060E6 |
MZEA12..E W/O(LOCK),TAUPE,TRIM20,4# |
2 | ||
| 71930-06070C0 |
MZEA12..E W(LOCK),BLACK,TRIM20 |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-07060 |
MZEA12..G |
1 | ||
| 72010-07040 |
MZEA12..E,N |
1 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72123-F4030 |
MZEA12 |
2 | ||
| 72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH | ||||
| 72125-F4020 |
MZEA12..G |
2 | ||
| 72125-F4010 |
MZEA12..E,N |
2 | ||
| 72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH | ||||
| 72125-F4020 |
MZEA12..G |
2 | ||
| 72125-F4010 |
MZEA12..E,N |
2 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72123-F4030 |
MZEA12 |
2 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-F4020 |
MZEA12 |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72157-07040 |
MZEA12 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-06140 |
MZEA12..E |
1 | ||
| 72265E - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-F4010 |
MZEA12..E,N |
2 | ||
| 72265-07020 |
MZEA12..G |
2 | ||
| 72265E - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-F4010 |
MZEA12..E,N |
2 | ||
| 72265-07020 |
MZEA12..G |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-F4060C0 |
MZEA12..E BLACK,TRIM2#,4# |
1 | ||
| 72551B - COVER, RECLINING HINGE, RH | ||||
| 72551-F4080C0 |
MZEA12..E BLACK,TRIM2#,4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-02400 |
MZEA12 |
1 | ||
| 739F0 - AIR BAG ASSY, FRONT SEAT CUSHION, RH | ||||
| 739F0-02050 |
MZEA12 |
1 | ||
| 74501 - EMBLEM SUB-ASSY, SEAT | ||||
| 75311-02290 |
MZEA12..E LEATHER PACKAGE |
2 | ||
| 75311-02290 |
MZEA12..G |
2 | ||
| 79977G - FELT, FRONT SEAT BACK, RH | ||||
| 79977-02130 |
MZEA12..E |
1 | ||
| 82667D - HOLDER, CONNECTOR | ||||
| 82666-07300 |
MZEA12 |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-C0011 | ||||
| 90167-C0016 | ||||
| 90177-C0016 | ||||
| 90183-06031 | ||||
| 90201-07008 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
