MZEA12L-GEXGBC (2021)
Toyota Allion
(2104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-0Z890 |
MZEA12 |
1 | ||
| 48131-0ZA00 |
MZEA12 ROUGH ROAD AREA SPEC-WITH(HEIGHT UP) |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-0ZA00 |
MZEA12 ROUGH ROAD AREA SPEC-WITH(HEIGHT UP) |
1 | ||
| 48131-0Z890 |
MZEA12 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-F4030 |
MZEA12 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-F4030 |
MZEA12 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-F4030 |
MZEA12 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-F4030 |
MZEA12 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-02210 |
MZEA12 ROUGH ROAD AREA SPEC-WITH(HEIGHT UP) |
1 | ||
| 48331-F4030 |
MZEA12 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-02210 |
MZEA12 ROUGH ROAD AREA SPEC-WITH(HEIGHT UP) |
1 | ||
| 48331-F4030 |
MZEA12 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-02210 |
MZEA12 ROUGH ROAD AREA SPEC-WITH(HEIGHT UP) |
1 | ||
| 48331-F4030 |
MZEA12 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-02210 |
MZEA12 ROUGH ROAD AREA SPEC-WITH(HEIGHT UP) |
1 | ||
| 48331-F4030 |
MZEA12 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-8Z488 |
MZEA12 MARK 48510-02J90 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-8Z332 |
MZEA12 MARK 48520-02J90 |
1 | ||
| 48559A - COVER, FRONT SHOCK ABSORBER DUST, RH NO.1 | ||||
| 48559-F4030 |
MZEA12 |
1 | ||
| 48559B - COVER, FRONT SHOCK ABSORBER DUST, LH NO.1 | ||||
| 48559-F4030 |
MZEA12 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-F4030 |
MZEA12 |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10029 |
MZEA12 (J) |
6 | ||
| 90178-C0033 |
MZEA12 (L) |
6 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90177-C0025 |
MZEA12 (L) |
1 | ||
| 90177-14007 |
MZEA12 (J) |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-F4030 |
MZEA12 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90177-14007 |
MZEA12 (J) |
1 | ||
| 90177-C0025 |
MZEA12 (L) |
1 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-F4030 |
MZEA12 |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-F4030 |
MZEA12 |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-52010 |
MZEA12 |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-52010 |
MZEA12 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-F4020 |
MZEA12 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-02510 |
MZEA12 |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-02500 |
MZEA12 |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-02500 |
MZEA12 |
1 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21241 |
MZEA12 (J) |
4 | ||
| 90178-C0018 |
MZEA12 (L) |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21241 |
MZEA12 (J) |
4 | ||
| 90178-C0018 |
MZEA12 (L) |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-F4020 |
MZEA12 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-F4030 |
MZEA12 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-F4030 |
MZEA12 |
1 | ||
| Common parts | ||||
| 90119-10993 | ||||
| 90119-C0540 | ||||
| 90387-15033 | ||||

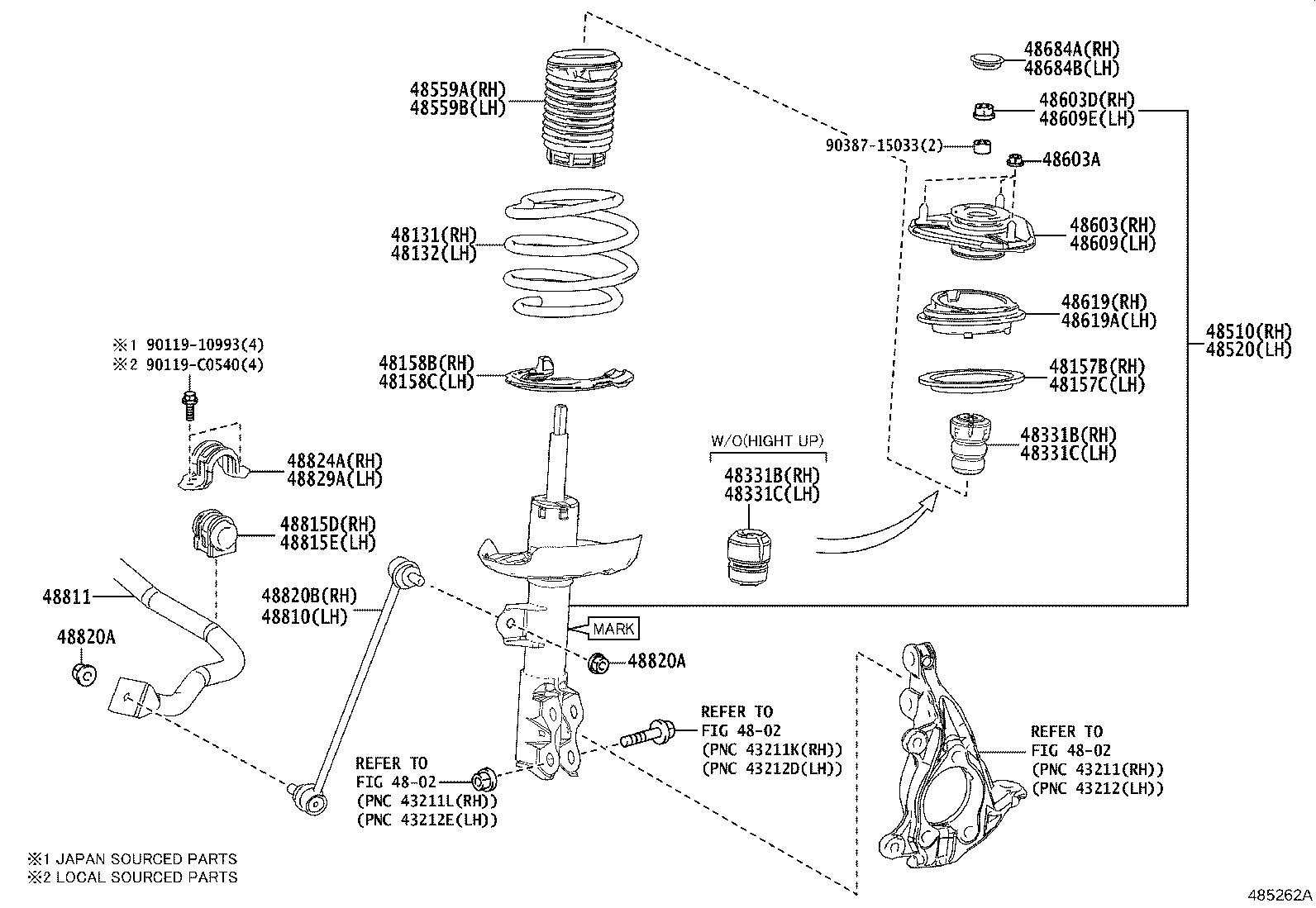

| Linked diagrams | ||||
| 4802 | ||||
