MZEA12L-GEXGBC (2021)

Toyota Allion

Production Apr 2021 - Sep 9999
Engine M20
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(2104- )

Click highlighted areas on diagram

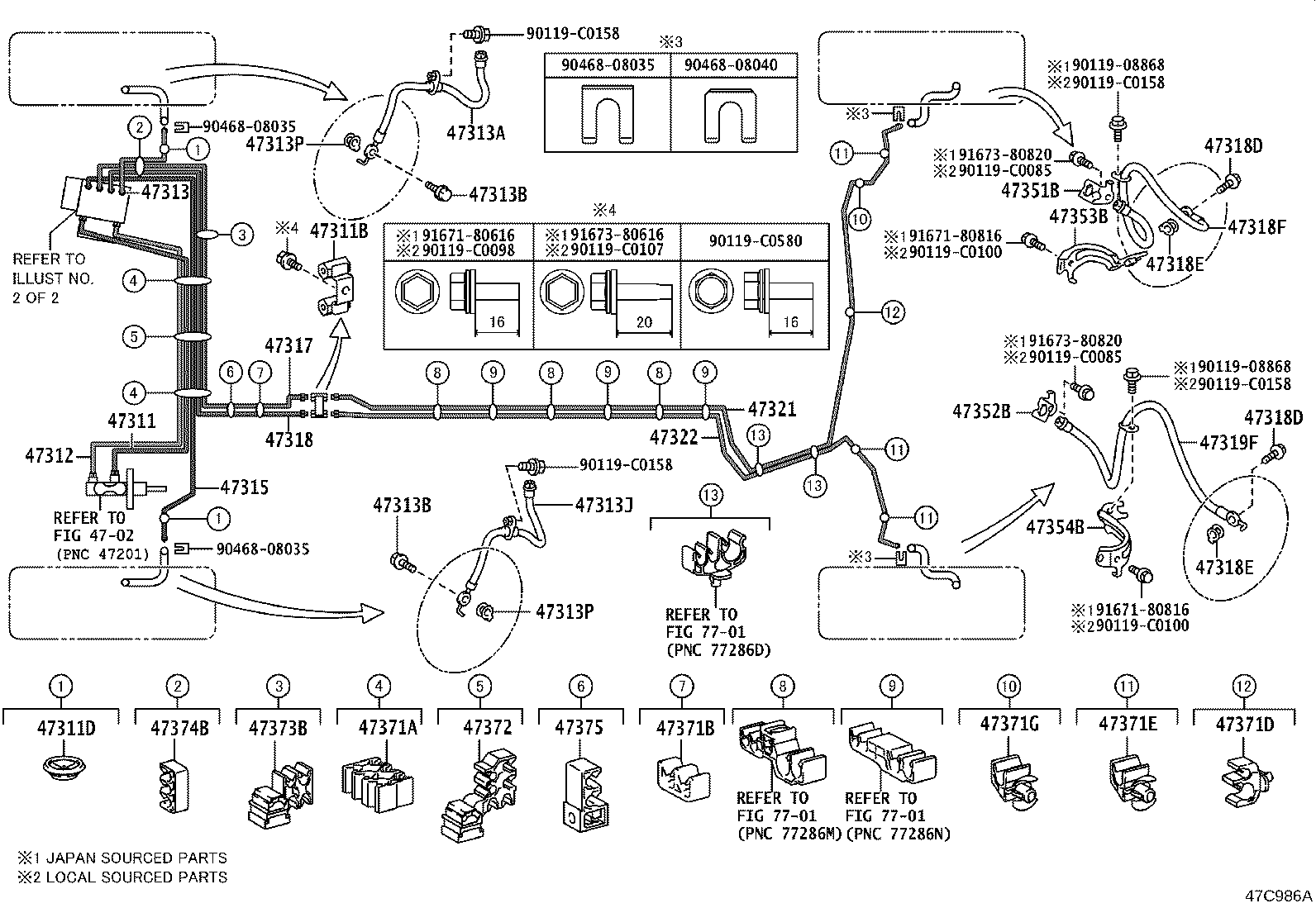

BRAKE TUBE

diagram 4702 47311 47311B 47311D 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47315 47317 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47351B 47352B 47353B 47354B 47371A 47371B 47371D 47371E 47371G 47372 47373B 47374B 47375 7701 7701 7701 9011908868 9011908868 90119C0085 90119C0085 90119C0098 90119C0100 90119C0100 90119C0107 90119C0158 90119C0158 90119C0158 90119C0158 90119C0580 9046808035 9046808035 9046808035 9046808040 9167180616 9167180816 9167180816 9167380616 9167380820 9167380820
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-F4070

MZEA12

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-C0004

MZEA12

(L)

 1
90412-10285

MZEA12

(J)

 1
47311D - GROMMET(FOR FRONT BRAKE TUBE)
90480-25037

MZEA12

 2
47312 - TUBE, FRONT BRAKE, NO.2
47312-F4070

MZEA12

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-F4070

MZEA12

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-C2082

MZEA12

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-C0001

MZEA12

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-C0001

MZEA12

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-C2083

MZEA12

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

MZEA12

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

MZEA12

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-02660

MZEA12

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-F4070

MZEA12

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-F4070

MZEA12

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-C0001

MZEA12

(L)

 2
90401-10058

MZEA12

(J)

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-C0001

MZEA12

(L)

 2
90401-10058

MZEA12

(J)

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

MZEA12

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

MZEA12

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-C2086

MZEA12

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-C2087

MZEA12

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-02740

MZEA12

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-02740

MZEA12

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-F4040

MZEA12

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-F4040

MZEA12

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47351-02260

MZEA12

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47352-02260

MZEA12

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01E44

MZEA12

 2
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D91

MZEA12

 1
47371D - CLAMP, BRAKE TUBE, NO.8
77285-02270

MZEA12

 1
47371E - CLAMP, BRAKE TUBE, NO.9
90949-01E10

MZEA12

 3
47371G - CLAMP, BRAKE TUBE, NO.11
90949-01E10

MZEA12

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01E42

MZEA12

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01E51

MZEA12

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D92

MZEA12

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01E33

MZEA12

 1
Common parts
90119-08868
90119-C0085
90119-C0098
90119-C0100
90119-C0107
90119-C0158
90119-C0580
90468-08035
90468-08040
91671-80616
91671-80816
91673-80616
91673-80820
Linked diagrams
4702
7701

ILLUST NO. 2 OF 2(2104- )

Click highlighted areas on diagram

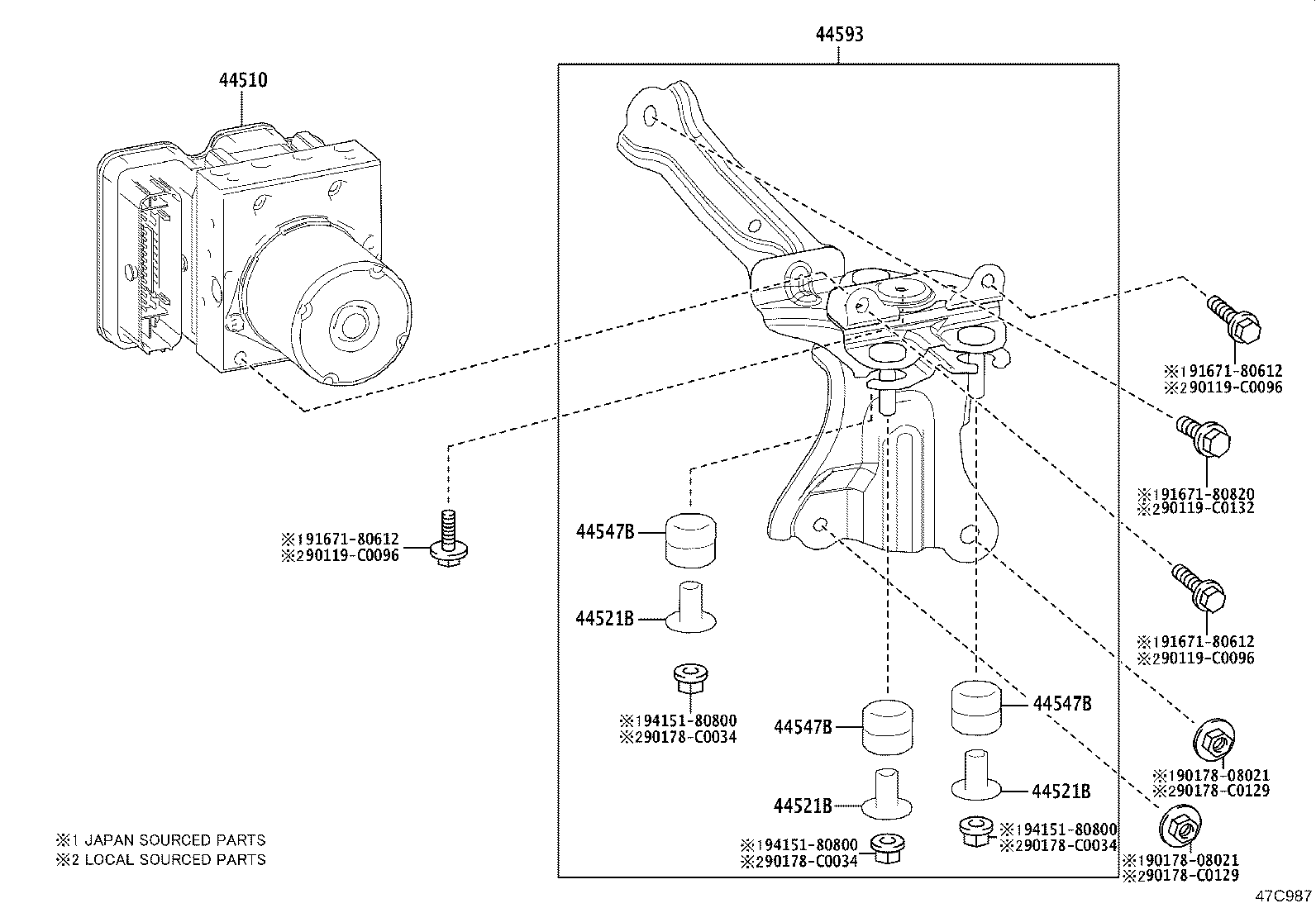

BRAKE ACTUATOR

diagram 44510 44521B 44521B 44521B 44547B 44547B 44547B 44593 90119C0096 90119C0096 90119C0096 90119C0132 9017808021 9017808021 90178C0034 90178C0034 90178C0034 90178C0129 90178C0129 9167180612 9167180612 9167180612 9167180820 9415180800 9415180800 9415180800
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-02D30

MZEA12

 1
44521B - COLLAR, BRAKE ACTUATOR CASE, NO.2
44521-33020

MZEA12

 3
44521B - COLLAR, BRAKE ACTUATOR CASE, NO.2
44521-33020

MZEA12

 3
44521B - COLLAR, BRAKE ACTUATOR CASE, NO.2
44521-33020

MZEA12

 3
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-33100

MZEA12

 3
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-33100

MZEA12

 3
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-33100

MZEA12

 3
44593 - BRACKET, BRAKE ACTUATOR, NO.3
44590-02630

MZEA12

 1
Common parts
90119-C0096
90119-C0132
90178-08021
90178-C0034
90178-C0129
91671-80612
91671-80820
94151-80800
