MZEA12L-GEXGBC (2021)
Toyota Allion
Production
Apr 2021
-
Sep 9999
Engine
M20
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2104- )

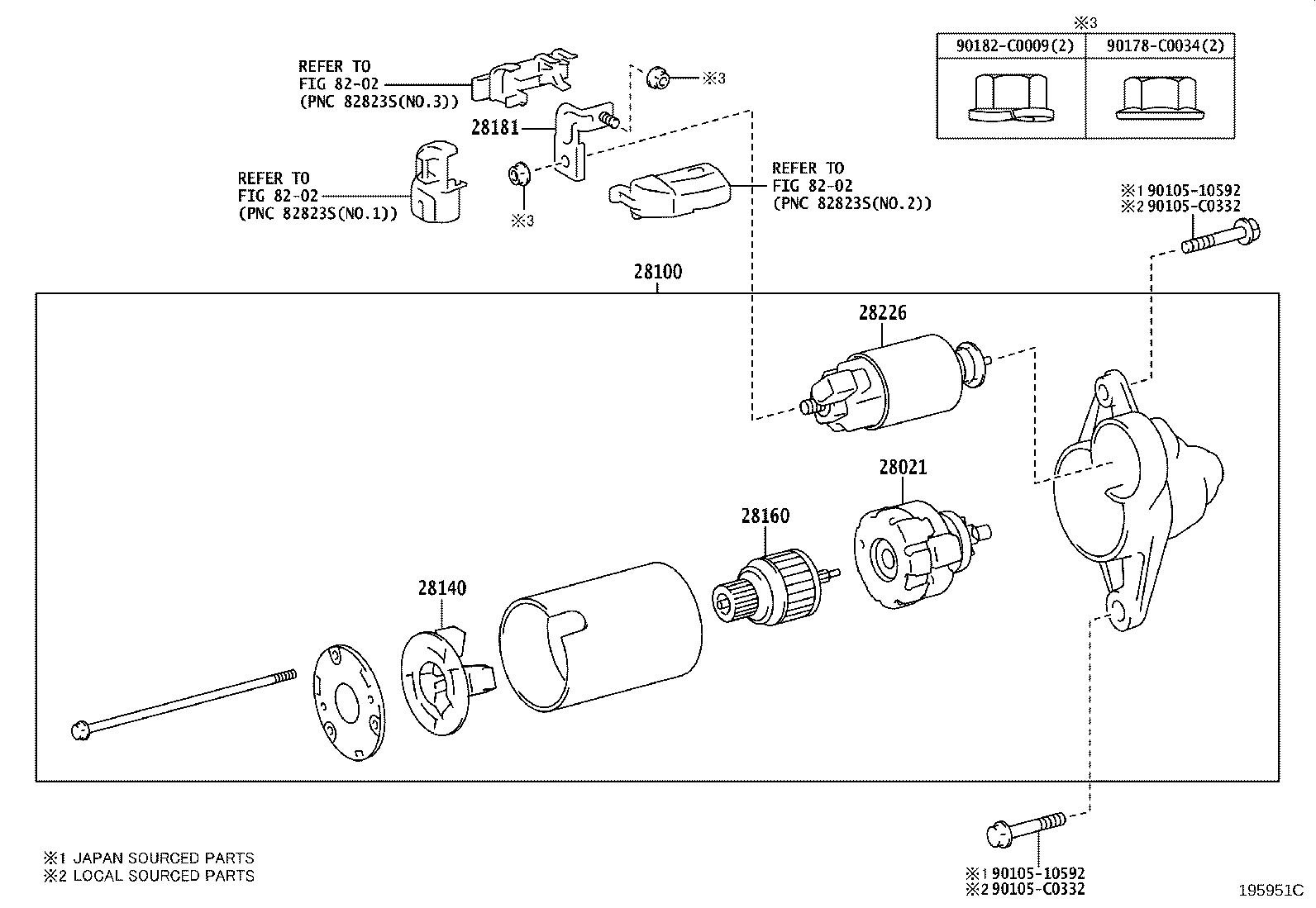

Click highlighted areas on diagram
12V 1.2KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-F2100 |
M20..MZEA12 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-F2100 |
M20..MZEA12 12V 1.2KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-0T330 |
M20..MZEA12 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-0T330 |
M20..MZEA12 |
1 | ||
| 28181 - TERMINAL, STARTER | ||||
| 28181-24010 |
M20..MZEA12 |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-F2100 |
M20..MZEA12 |
1 | ||
| Common parts | ||||
| 90105-10592 | ||||
| 90105-C0332 | ||||
| 90178-C0034 | ||||
| 90182-C0009 | ||||
| Linked diagrams | ||||
| 8202 | ||||
