MZEA12L-GEXEBC (2021)
Toyota Allion

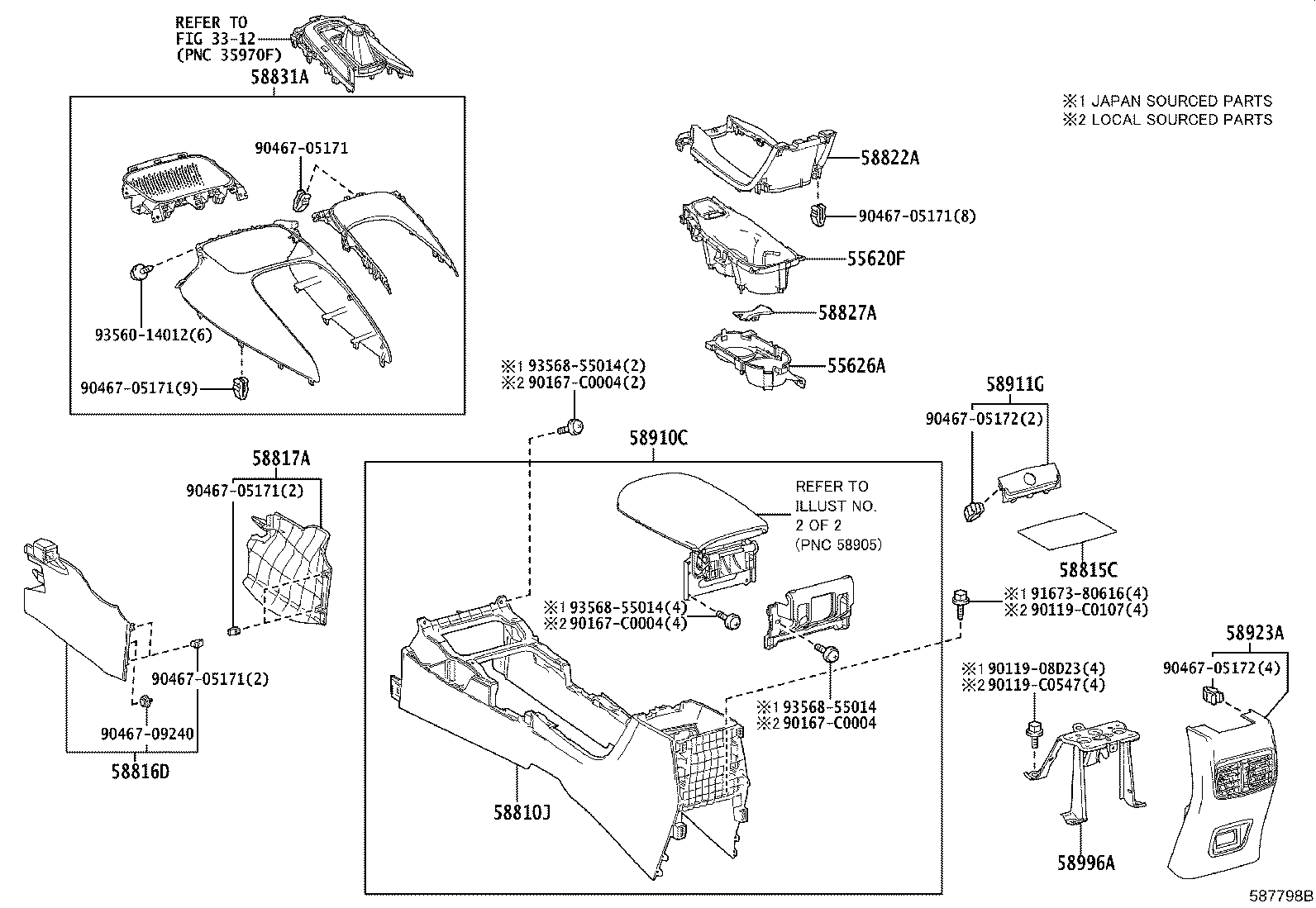

ILLUST NO. 1 OF 2(2104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55620F - HOLDER ASSY, CONSOLE BOX CUP | ||||
| 55620-02610 |
MZEA12 |
1 | ||
| 55626A - RETAINER, INSTRUMENT PANEL UNDER TRAY WALL | ||||
| 55626-02270 |
MZEA12 |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-02110C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 58815C - CARPET, CONSOLE BOX | ||||
| 58815-02510 |
MZEA12 |
1 | ||
| 58816D - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-02470C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-02480C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-02520 |
MZEA12 |
1 | ||
| 58827A - GARNISH, CONSOLE BOX POCKET | ||||
| 58827-02110 |
MZEA12 |
1 | ||
| 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT | ||||
| 58831-02510C2 |
MZEA12..E LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 58831-02500C3 |
MZEA12..E BLACK/TAUPE/LT.GRAY,TRIM4# |
1 | ||
| 58831-02510C2 |
MZEA12..G BLACK,TRIM2# |
1 | ||
| 58831-02510C3 |
MZEA12..E LEATHER PACKAGE,BLACK/TAUPE/LT.GRAY,TRIM4# |
1 | ||
| 58831-02500C2 |
MZEA12..E BLACK,TRIM2# |
1 | ||
| 58831-02510C3 |
MZEA12..G BLACK/TAUPE/LT.GRAY,TRIM4# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-02B80C3 |
MZEA12..E,G BLACK,TRIM4# |
1 | ||
| 58910-02B80C0 |
MZEA12..E,G BLACK,TRIM2# |
1 | ||
| 58911G - PANEL, BOX, NO.1 | ||||
| 58911-02670C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-02570C0 |
MZEA12..E,G BLACK,TRIM2#,4# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-02280 |
MZEA12 |
1 | ||
| Common parts | ||||
| 90119-08D23 | ||||
| 90119-C0107 | ||||
| 90119-C0547 | ||||
| 90167-C0004 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-09240 | ||||
| 91673-80616 | ||||
| 93560-14012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 3312 | ||||

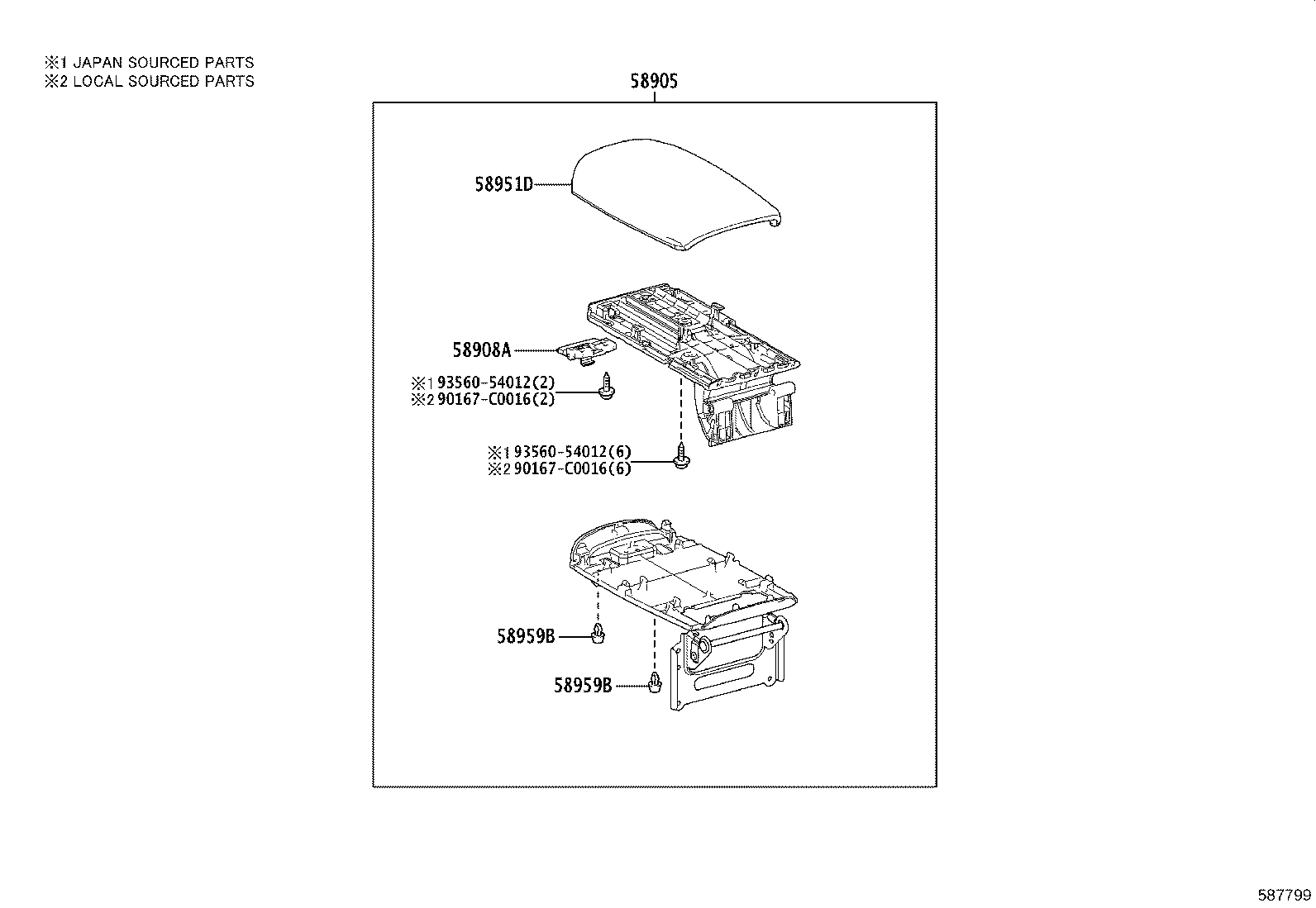

ILLUST NO. 2 OF 2(2104- )
CONSOLE COMPARTMENT DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-02G00E1 |
MZEA12..E,G DARK CHESTNUT,TRIM4# |
1 | ||
| 58905-02G00C0 |
MZEA12..E,G BLACK,TRIM2# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-YK010 |
MZEA12 |
1 | ||
| 58951D - DOOR, CONSOLE COMPARTMENT, OUTER | ||||
| 58951-02E00C0 |
MZEA12..E,G BLACK,TRIM2# |
1 | ||
| 58951-02E00E1 |
MZEA12..E,G DARK CHESTNUT,TRIM4# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
MZEA12 |
4 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
MZEA12 |
4 | ||
| Common parts | ||||
| 90167-C0016 | ||||
| 93560-54012 | ||||

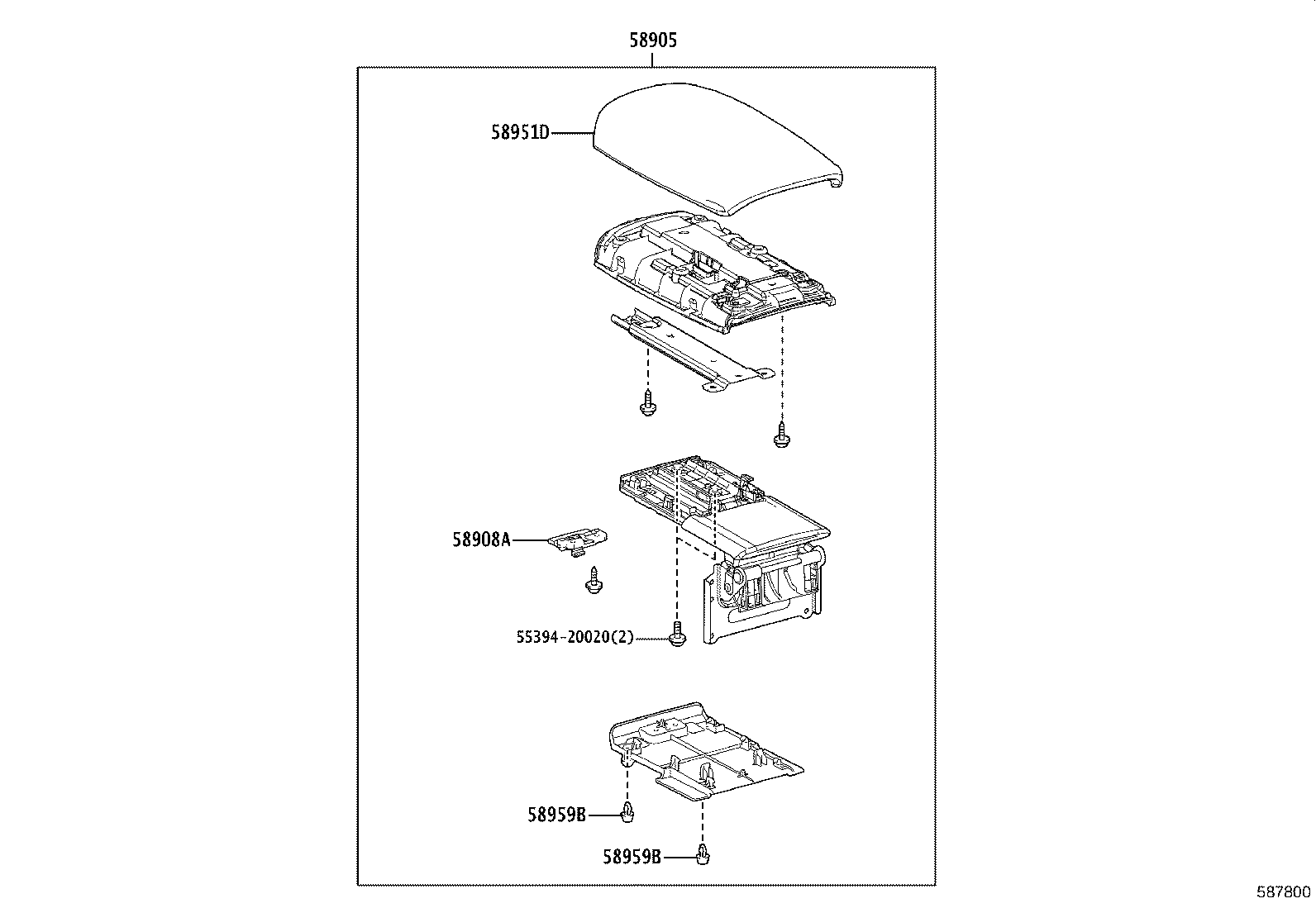

ILLUST NO. 2 OF 2(2104- )
CONSOLE COMPARTMENT DOOR,SLIDE TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-02G00E1 |
MZEA12..E,G DARK CHESTNUT,TRIM4# |
1 | ||
| 58905-02G00C0 |
MZEA12..E,G BLACK,TRIM2# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-YK010 |
MZEA12 |
1 | ||
| 58951D - DOOR, CONSOLE COMPARTMENT, OUTER | ||||
| 58951-02E00C0 |
MZEA12..E,G BLACK,TRIM2# |
1 | ||
| 58951-02E00E1 |
MZEA12..E,G DARK CHESTNUT,TRIM4# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
MZEA12 |
4 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
MZEA12 |
4 | ||
| Common parts | ||||
| 55394-20020 | ||||
