MZEA12L-GEXEBC (2021)
Toyota Allion
Production
Apr 2021
-
Sep 9999
Engine
M20
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2104- )

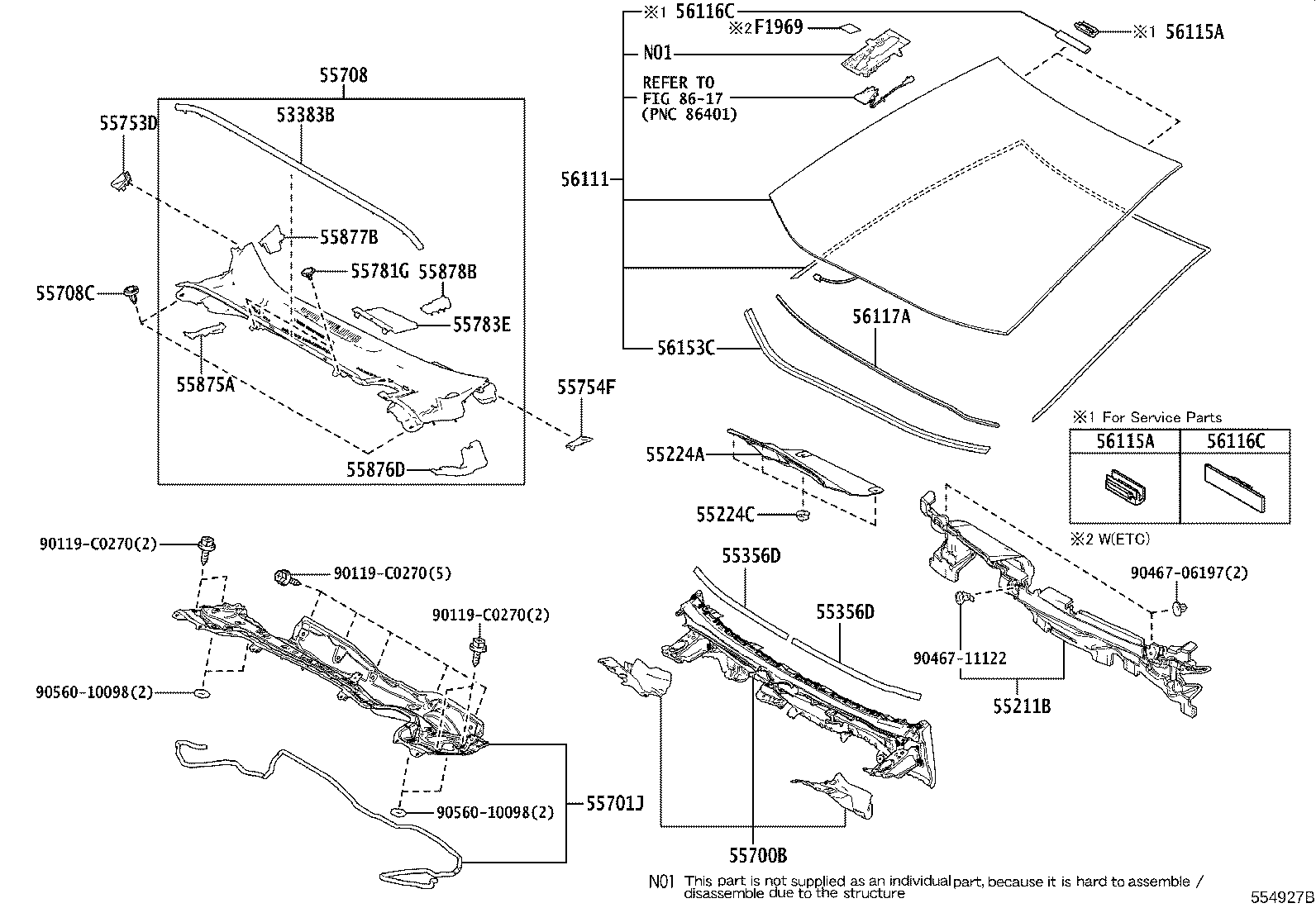

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-02330 |
MZEA12 |
1 | ||
| 55211B - SILENCER, FRONT PANEL | ||||
| 55211-02370 |
MZEA12 |
1 | ||
| 55224A - INSULATOR, DASH PANEL, OUTER NO.2 | ||||
| 55224-02310 |
MZEA12 |
1 | ||
| 55224C - CLIP, DASH PANEL INSULATOR | ||||
| 90467-C0052C0 |
MZEA12 BLACK,(L) |
4 | ||
| 90467-06206C0 |
MZEA12 BLACK,(J) |
4 | ||
| 55356D - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-02560 |
MZEA12 |
2 | ||
| 55356D - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-02560 |
MZEA12 |
2 | ||
| 55700B - COWL ASSY | ||||
| 55700-02750 |
MZEA12 |
1 | ||
| 55701J - PANEL SUB-ASSY, COWL TOP, OUTER | ||||
| 55701-02690 |
MZEA12 |
1 | ||
| 55708 - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-02B40 |
MZEA12 |
1 | ||
| 55708C - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-C0071 |
MZEA12 (L) |
2 | ||
| 90467-09242 |
MZEA12 (J) |
2 | ||
| 55753D - SHIELD, COWL WATER EXTRACT, RH | ||||
| 55753-02250 |
MZEA12 |
1 | ||
| 55754F - SHIELD, COWL WATER EXTRACT, LH | ||||
| 55754-02260 |
MZEA12 |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-07224 |
MZEA12 |
2 | ||
| 55783E - LOUVER, COWL TOP VENTILATOR, CENTER | ||||
| 55783-02390 |
MZEA12 |
1 | ||
| 55875A - SEAL, AIR DUCT, NO.5 | ||||
| 55875-02280 |
MZEA12 |
1 | ||
| 55876D - SEAL, AIR DUCT, NO.6 | ||||
| 55876-02190 |
MZEA12 |
1 | ||
| 55877B - COVER, COWL VENT, RH | ||||
| 55877-02340 |
MZEA12 |
1 | ||
| 55878B - COVER, COWL VENT, LH | ||||
| 55878-02280 |
MZEA12 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-0Z210 |
MZEA12..E,N MARK=CCC E000546 |
1 | ||
| 56101-0Z200 |
MZEA12..E,N MARK=CCC E006888 |
1 | ||
| 56101-0Z570 |
MZEA12..G |
1 | ||
| 56101-0Z570 |
MZEA12..E LEATHER PACKAGE |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30100 |
MZEA12 |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30100 |
MZEA12 |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
MZEA12 |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
MZEA12 |
1 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-02360 |
MZEA12..E L=1298,LEATHER PACKAGE |
1 | ||
| 56117-02360 |
MZEA12 L=1298 |
1 | ||
| 56153C - MOULDING, FRONT WINDOW, INNER CENTER | ||||
| 56153-02120 |
MZEA12 |
1 | ||
| F1969 - TAPE, SEAL(FOR TOLL COLLECTION COMPUTER) | ||||
| F1969-YY010 |
MZEA12 ETC-WITH |
1 | ||
| Common parts | ||||
| 90119-C0270 | ||||
| 90467-06197 | ||||
| 90467-11122 | ||||
| 90560-10098 | ||||
| Linked diagrams | ||||
| 8617 | ||||
