ZN6FK-B8 (2017)

Toyota 86

Production Oct 2017 - Apr 2018
Engine FA20
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )ZN6EK,6FK,6GK,6HK

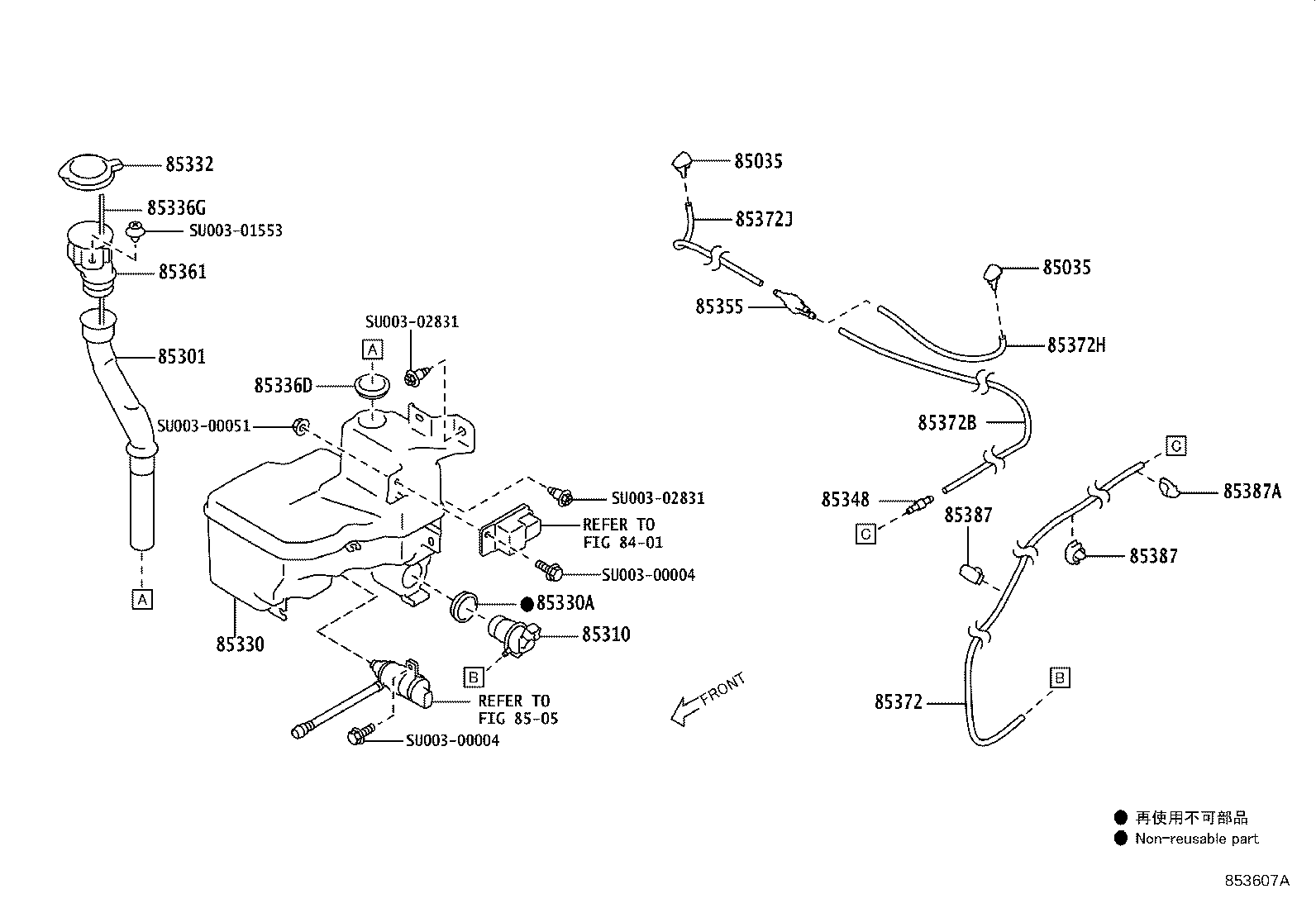

Click highlighted areas on diagram

diagram 8401 85035 85035 8505 85301 85310 85330 85330A 85332 85336D 85336G 85348 85355 85361 85372 85372B 85372H 85372J 85387 85387 85387A SU00300004 SU00300004 SU00300051 SU00301553 SU00302831 SU00302831
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
SU003-02700

ZN6

 2
85035 - NOZZLE SUB-ASSY, WASHER
SU003-02700

ZN6

 2
85301 - INLET SUB-ASSY, WASHER
SU003-02693

ZN6

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
SU003-02688

ZN6

 1
85330 - JAR ASSY, WINDSHIELD WASHER
SU003-02698

ZN6

 1
85330A - BUSH, WINDSHIELD WASHER JAR
SU003-02695

ZN6

 1
85332 - CAP, WINDSHIELD WASHER JAR
SU003-02690

ZN6

 1
85336D - PACKING, WINDSHIELD WASHER JAR
SU003-02696

ZN6

 1
85336G - GAGE, WATER LEVEL
SU003-02692

ZN6

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
SU003-02717

ZN6

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
SU003-02699

ZN6

 1
85361 - HOLDER, WINDSHIELD WASHER
SU003-02727

ZN6

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
SU003-02725

ZN6

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
SU003-02721

ZN6..RHD

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
SU003-02720

ZN6..RHD

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
SU003-02719

ZN6..RHD

 1
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
SU003-03006

ZN6

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
SU003-03006

ZN6

 2
85387A - CLAMP, WASHER, NO.2
SU003-02691

ZN6

 1
Common parts
SU003-00004
SU003-00051
SU003-01553
SU003-02831
Linked diagrams
8401
8505
