8202 - WIRING & CLAMP

ZN6FK-B8 (2017)

Toyota 86

Production Oct 2017 - Apr 2018

Engine FA20

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF16(1608- )ZN6EK,6FK,6GK,6HK

Click highlighted areas on diagram

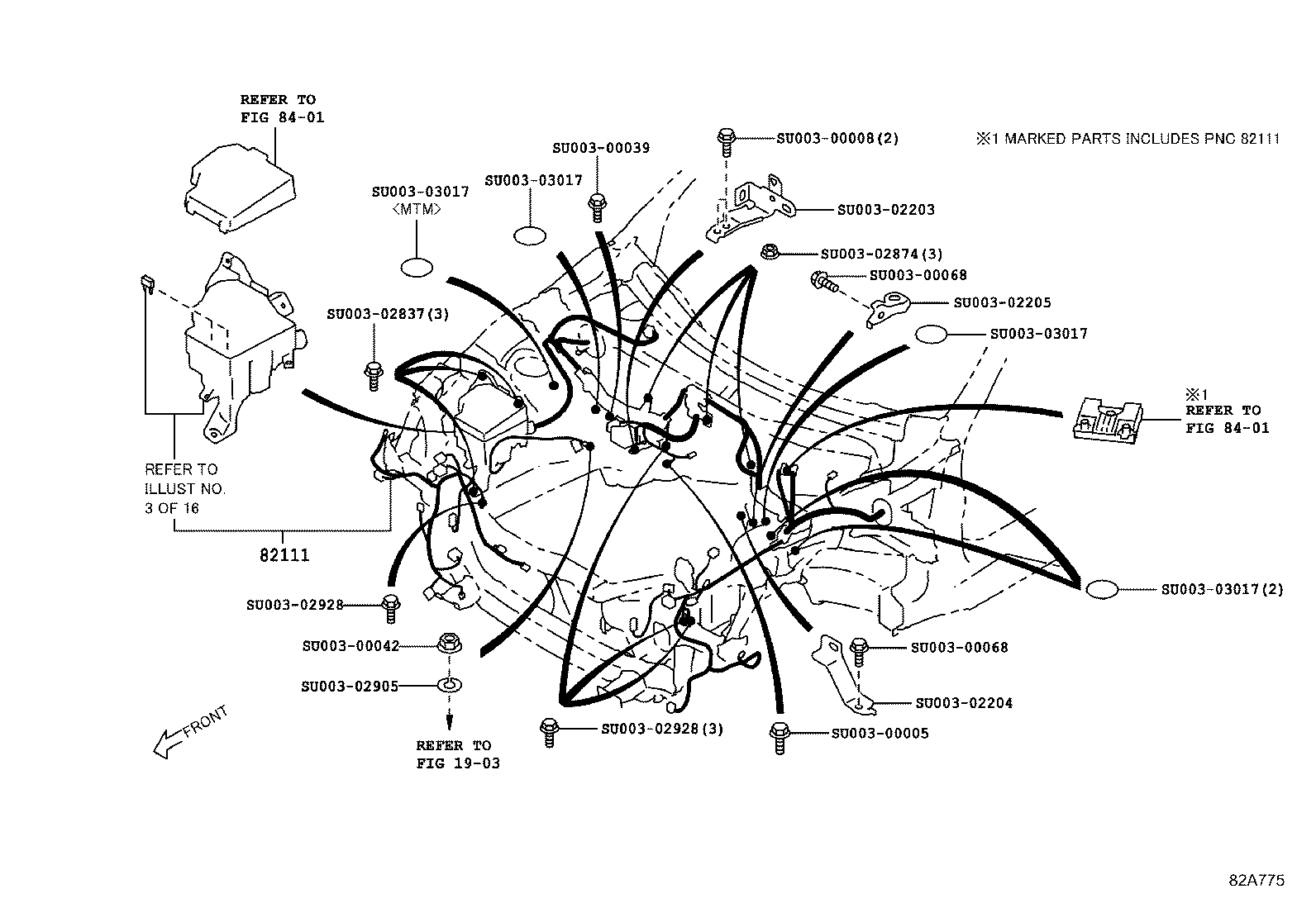

ENGINE ROOM 1/3

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
SU003-07797	ZN6..RHD..6F..BASE DESTINATION CODE=KC	11/2017 - 03/2018	1
SU003-07803	ZN6..RHD..6F..BASE	10/2017 - 11/2017	1
SU003-07795	ZN6..RHD..6F..BASE DESTINATION CODE=EK	11/2017 - 03/2018	1
SU003-07797	ZN6..RHD..6F..BASE DESTINATION CODE=K8	11/2017 - 03/2018	1
SU003-07795	ZN6..RHD..6F..BASE DESTINATION CODE=ER	11/2017 - 03/2018	1
SU003-07797	ZN6..RHD..6F..BASE DESTINATION CODE=KY	11/2017 - 03/2018	1
SU003-07797	ZN6..RHD..6F..BASE DESTINATION CODE=EN	11/2017 - 03/2018	1
SU003-07803	ZN6..RHD..6F..BASE DESTINATION CODE=KA	11/2017 - 03/2018	1
Common parts
SU003-00005
SU003-00008
SU003-00039
SU003-00042
SU003-00068
SU003-02203
SU003-02204
SU003-02205
SU003-02837
SU003-02874
SU003-02905
SU003-02928
SU003-03017
Linked diagrams
1903
8401

ILLUST NO. 2 OF16(1608- )ZN6EK,6FK,6GK,6HK

Click highlighted areas on diagram

ENGINE ROOM 2/3

Part #	Description	Period	Qty	Price
Common parts
SU003-02928

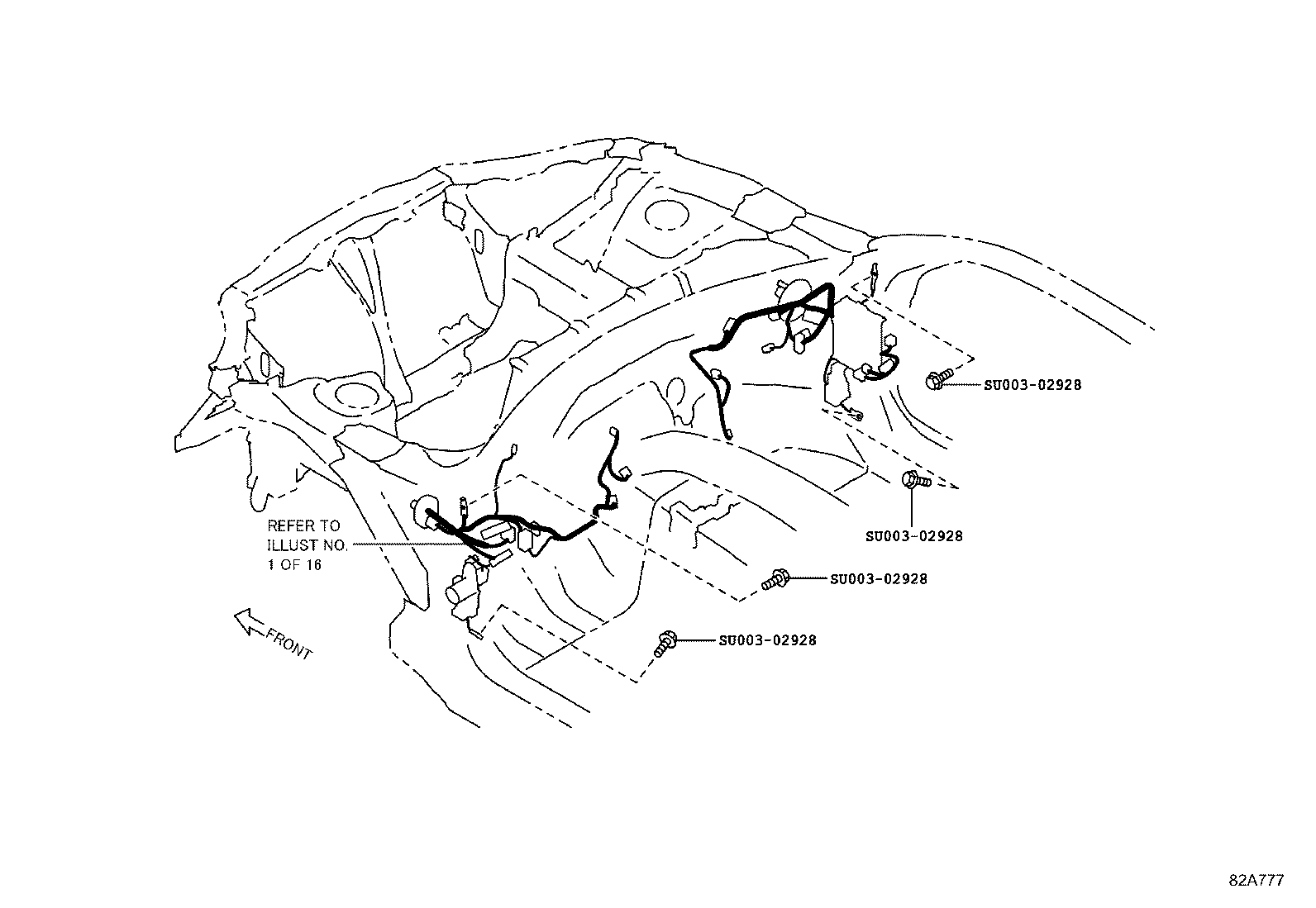

ILLUST NO. 3 OF16(1608- )

Click highlighted areas on diagram

ENGINE ROOM 3/3

Part #	Description	Period	Qty	Price
Linked diagrams
8401

ILLUST NO. 4 OF16(1608- )

Click highlighted areas on diagram

ENGINE 1/3

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
SU003-06473	ZN6..RHD..6F DESTINATION CODE=KC	10/2017 - 03/2018	1
SU003-06473	ZN6..RHD..6F DESTINATION CODE=EK	10/2017 - 03/2018	1
SU003-06472	ZN6..RHD..6F DESTINATION CODE=KA	10/2017 - 03/2018	1
SU003-06473	ZN6..RHD..6F DESTINATION CODE=ER	10/2017 - 03/2018	1
SU003-06473	ZN6..RHD..6F DESTINATION CODE=EN	10/2017 - 03/2018	1
SU003-06473	ZN6..RHD..6F DESTINATION CODE=KY	10/2017 - 03/2018	1
SU003-06473	ZN6..RHD..6F DESTINATION CODE=K8	10/2017 - 03/2018	1
Common parts
SU003-04262

ILLUST NO. 5 OF16(1608- )

Click highlighted areas on diagram

ENGINE 2/3

Part #	Description	Period	Qty	Price
Common parts
SU003-00519
SU003-06474
SU003-06475
SU003-06476
SU003-08018

ILLUST NO. 7 OF16(1608- )

Click highlighted areas on diagram

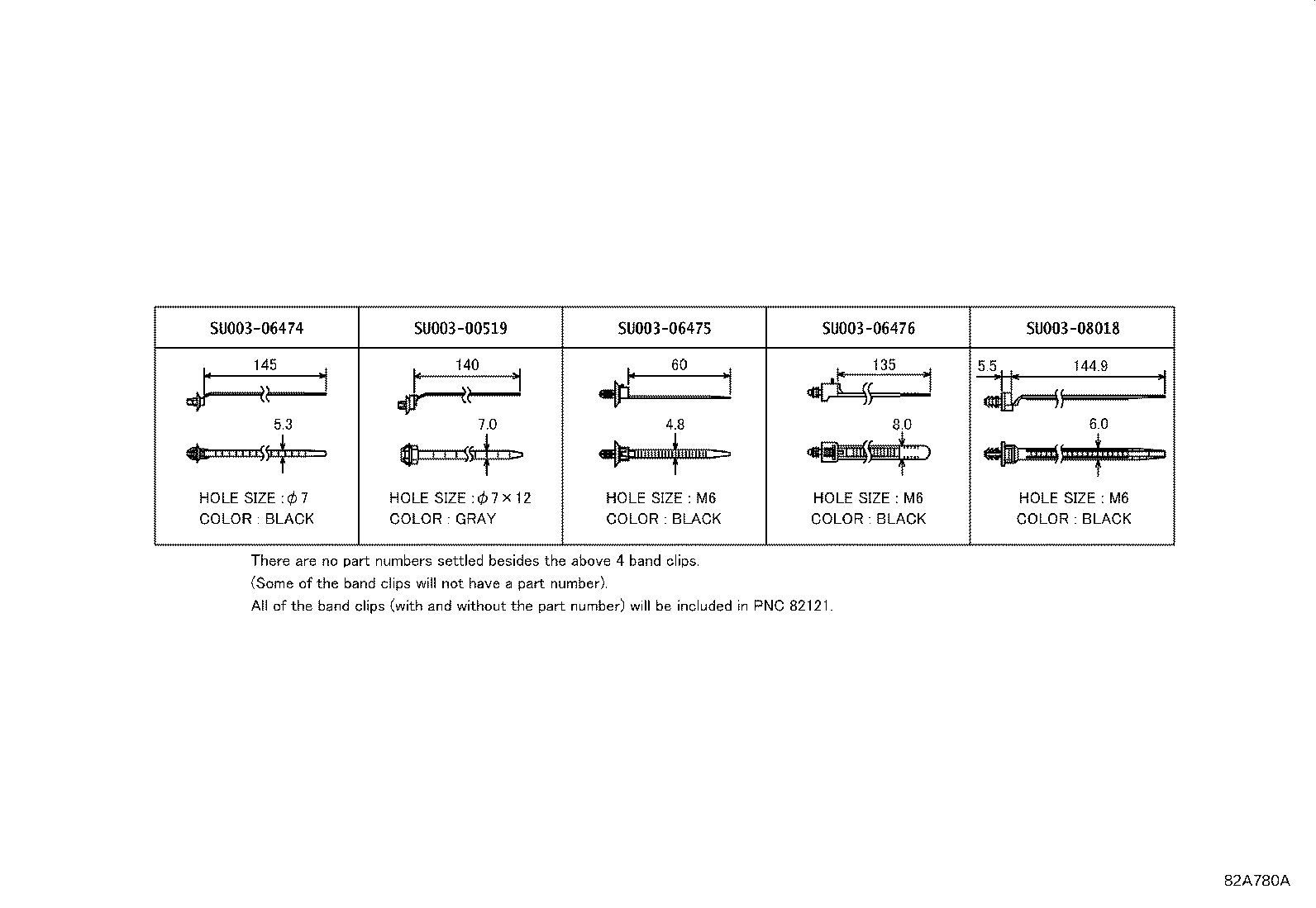

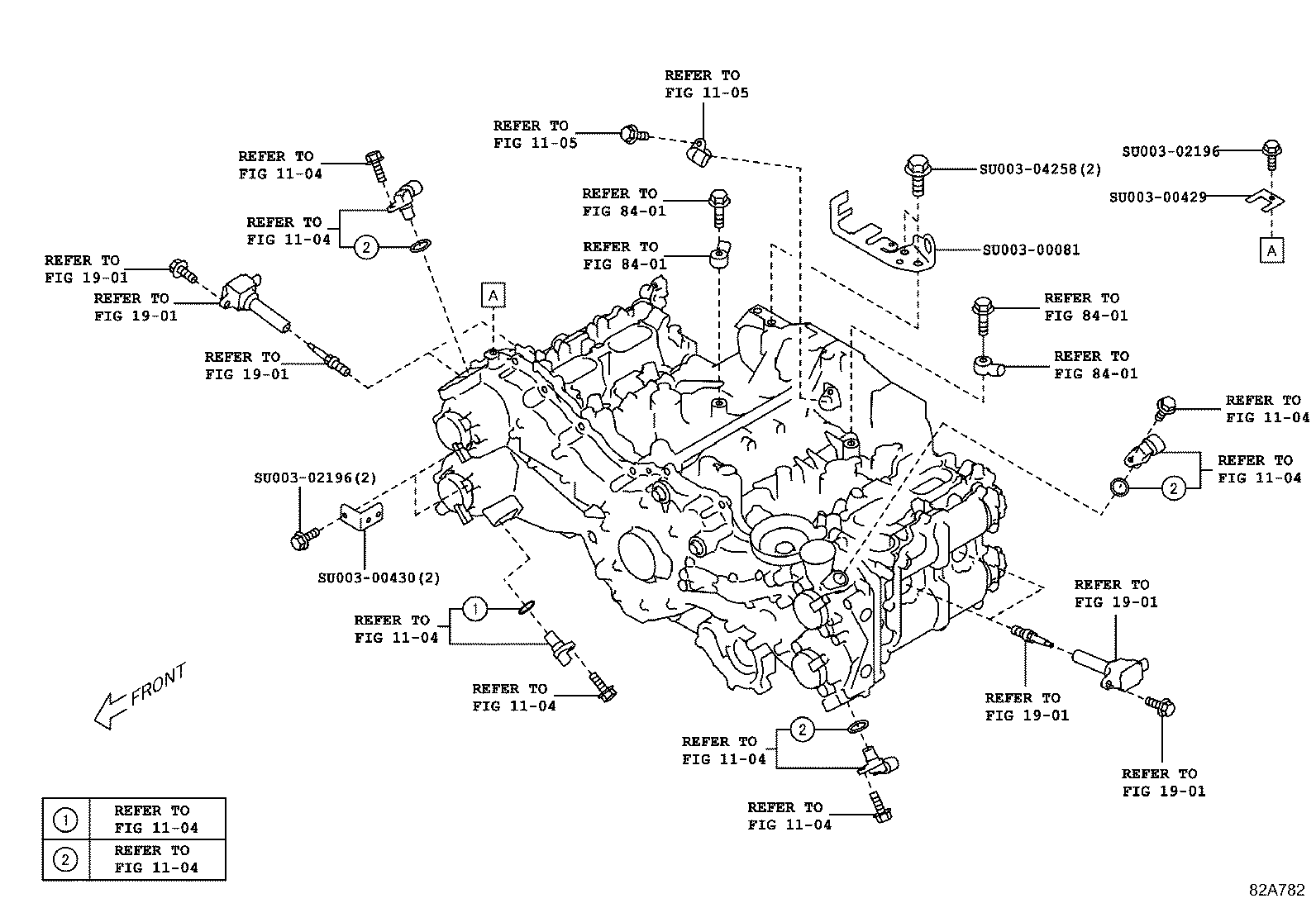

ENGINE(CLAMP)

Part #	Description	Period	Qty	Price
Common parts
SU003-00081
SU003-00429
SU003-00430
SU003-02196
SU003-04258
Linked diagrams
1104
1105
1901
8401

ILLUST NO. 8 OF16(1608- )ZN6EK,6FK,6GK,6HK

Click highlighted areas on diagram

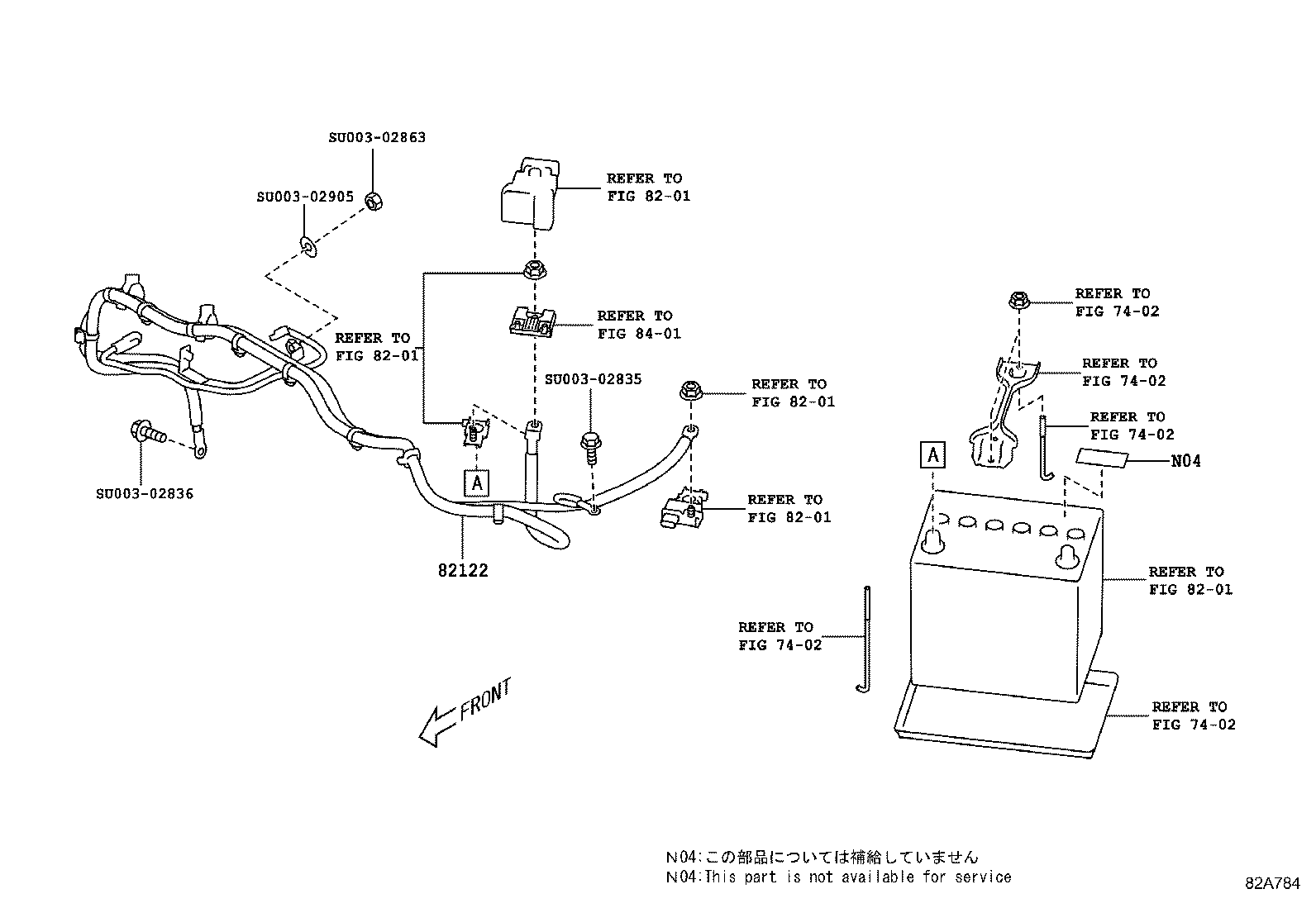

STARTER

Part #	Description	Period	Qty
82122 - WIRE, ENGINE, NO.2
SU003-02350	ZN6..RHD..6F	10/2017 - 03/2018	1
Common parts
SU003-02835
SU003-02836
SU003-02863
SU003-02905
Linked diagrams
7402
8201
8401

ILLUST NO. 9 OF16(1608- )

Click highlighted areas on diagram

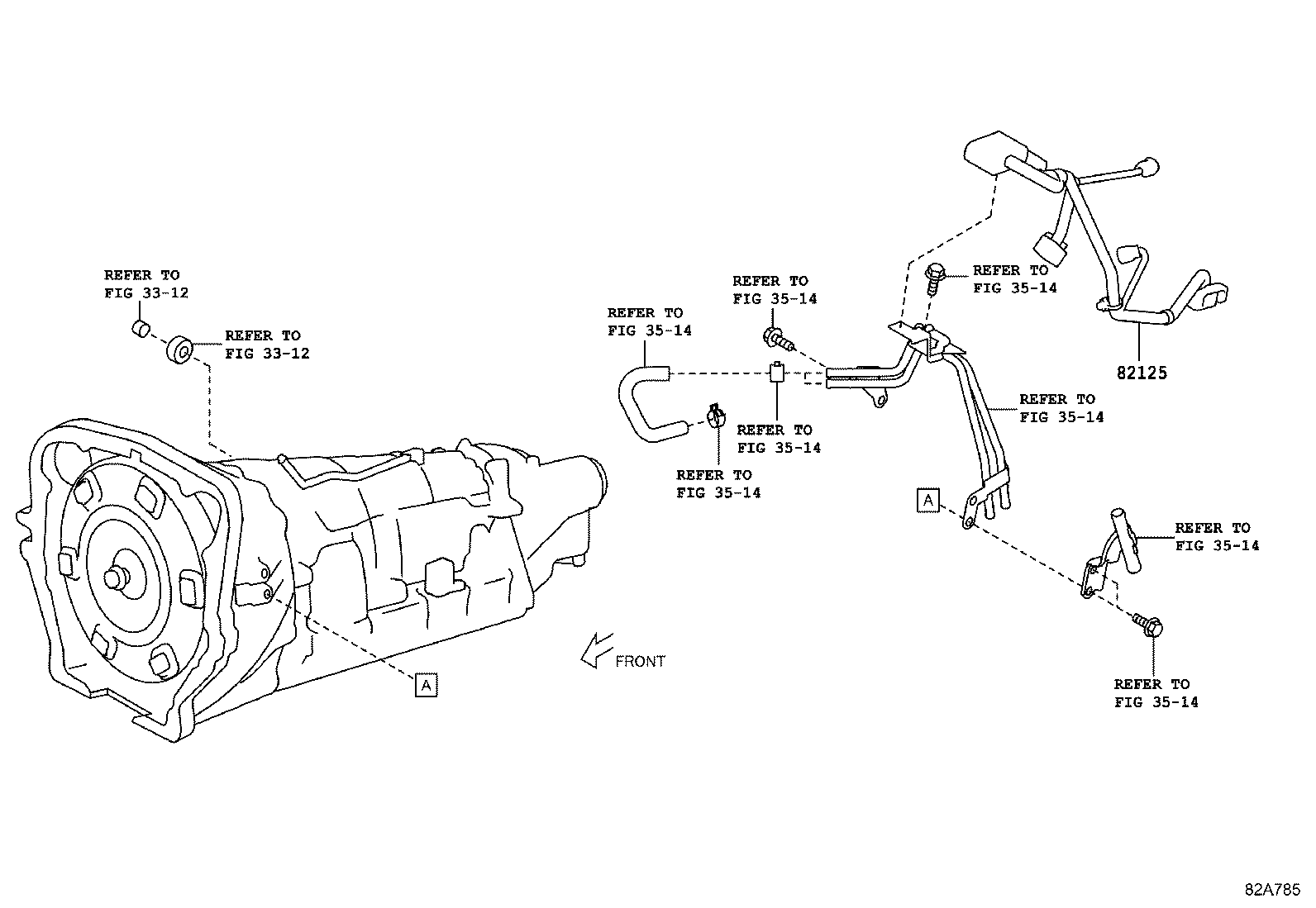

TRANSMISSION

Part #	Description	Period	Qty	Price
Linked diagrams
3312
3514

ILLUST NO.10 OF16(1608- )ZN6EK,6FK,6GK,6HK

Click highlighted areas on diagram

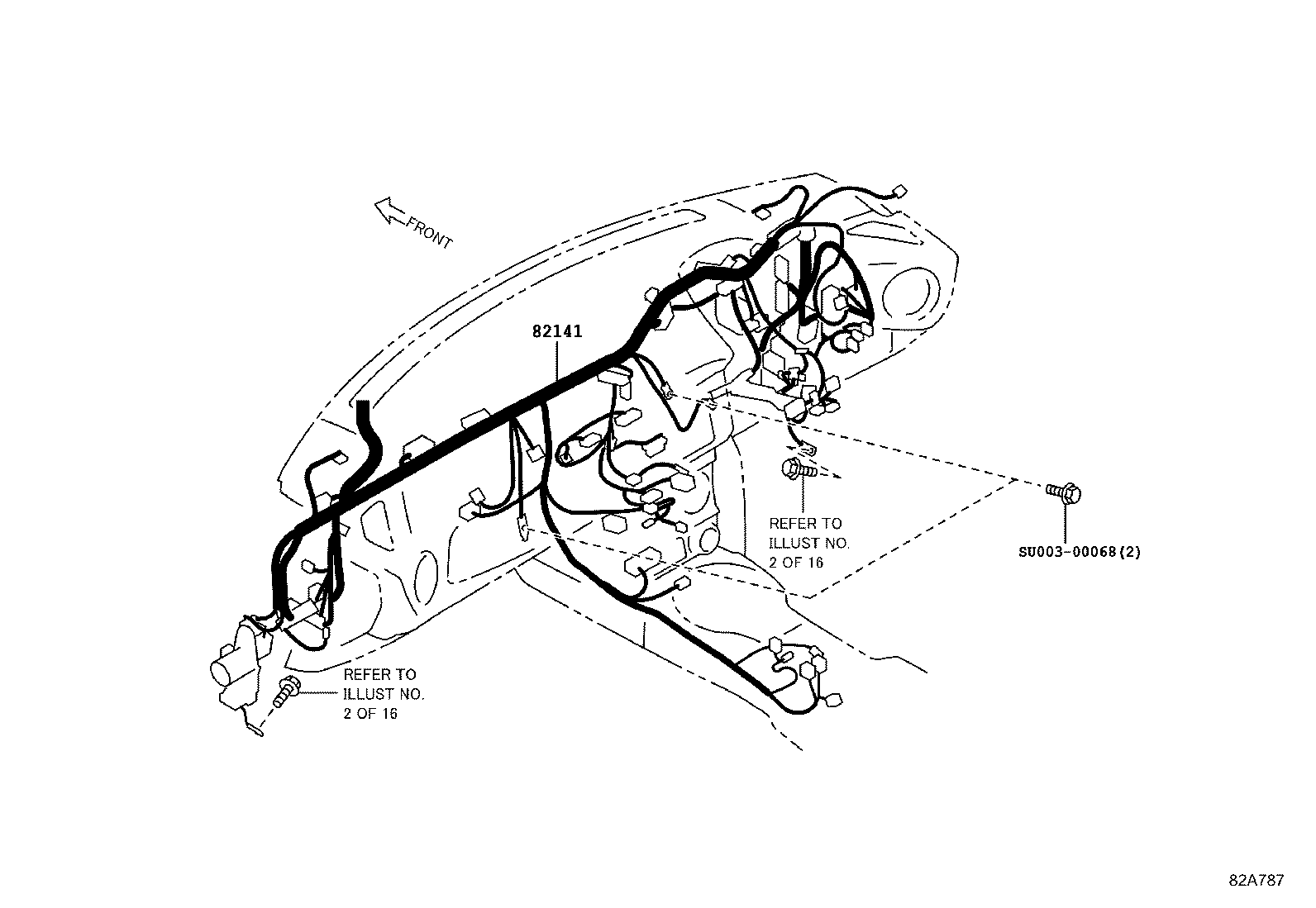

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
SU003-06888	ZN6..RHD..6F..BASE DESTINATION CODE=KC	10/2017 - 03/2018	1
SU003-06888	ZN6..RHD..6F..BASE DESTINATION CODE=EN	10/2017 - 03/2018	1
SU003-06888	ZN6..RHD..6F..BASE DESTINATION CODE=KY	10/2017 - 03/2018	1
SU003-06888	ZN6..RHD..6F..BASE DESTINATION CODE=K8	10/2017 - 03/2018	1
SU003-06896	ZN6..RHD..6F..BASE DESTINATION CODE=ER	10/2017 - 03/2018	1
SU003-06894	ZN6..RHD..6F..BASE DESTINATION CODE=KA	10/2017 - 03/2018	1
SU003-06896	ZN6..RHD..6F..BASE DESTINATION CODE=EK	10/2017 - 03/2018	1
Common parts
SU003-00068

ILLUST NO.11 OF16(1608- )

Click highlighted areas on diagram

DOOR

Part #	Description	Period	Qty

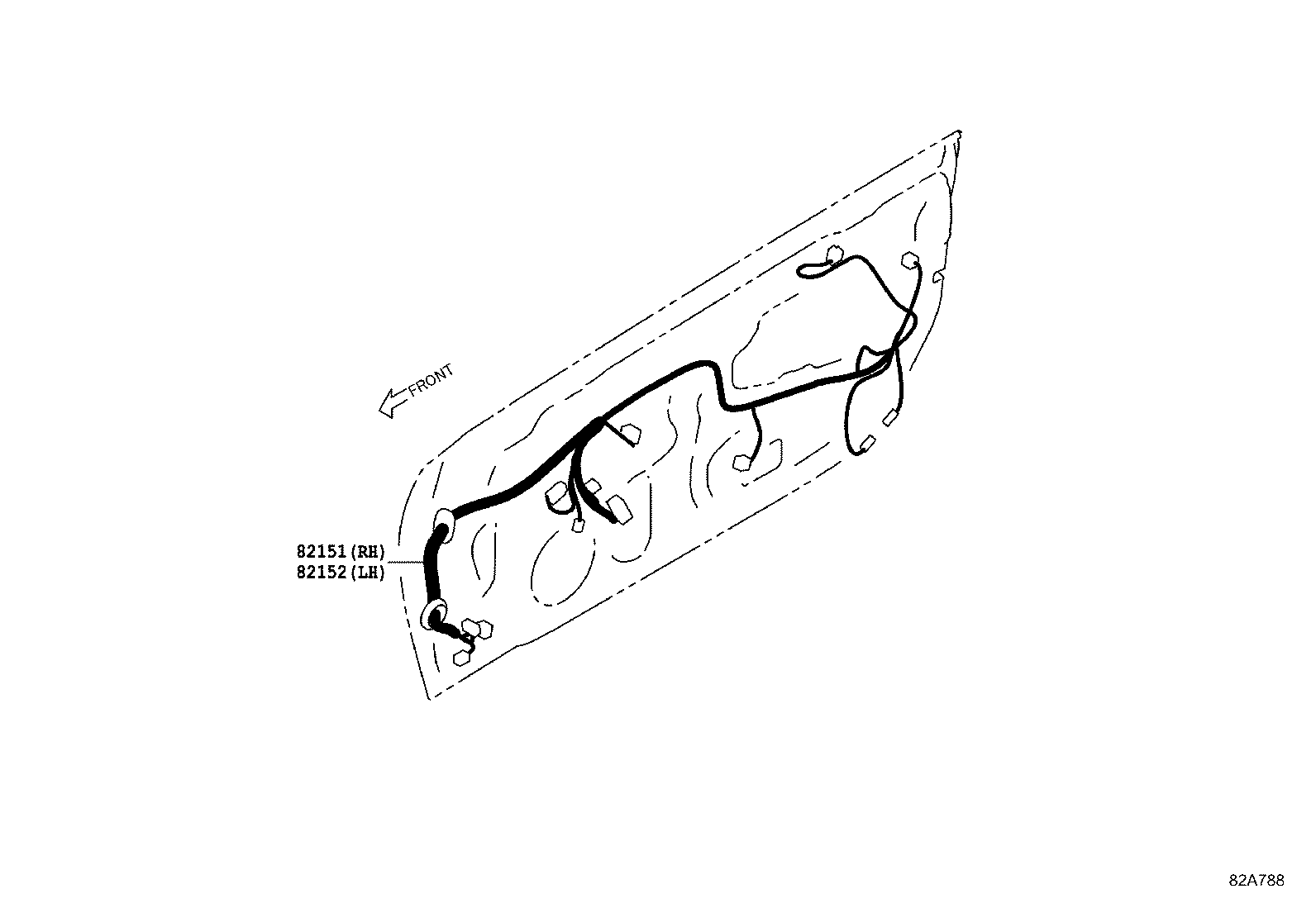

82151 - WIRE, FRONT DOOR, RH
SU003-05674	ZN6..RHD..BASE DESTINATION CODE=EK	10/2017 - 03/2018	1
SU003-05674	ZN6..RHD..BASE DESTINATION CODE=ER	10/2017 - 03/2018	1
SU003-05679	ZN6..RHD..BASE DESTINATION CODE=KY	10/2017 - 03/2018	1
SU003-05679	ZN6..RHD..BASE DESTINATION CODE=K8	10/2017 - 03/2018	1
SU003-05679	ZN6..RHD..BASE DESTINATION CODE=KC	10/2017 - 03/2018	1
SU003-05679	ZN6..RHD..BASE DESTINATION CODE=KA	10/2017 - 03/2018	1
SU003-05679	ZN6..RHD..BASE DESTINATION CODE=EN	10/2017 - 03/2018	1
82152 - WIRE, FRONT DOOR, LH
SU003-05691	ZN6..RHD..BASE DESTINATION CODE=ER	10/2017 - 03/2018	1
SU003-05698	ZN6..RHD..BASE DESTINATION CODE=EN	10/2017 - 03/2018	1
SU003-05698	ZN6..RHD..BASE DESTINATION CODE=KC	10/2017 - 03/2018	1
SU003-05691	ZN6..RHD..BASE DESTINATION CODE=EK	10/2017 - 03/2018	1
SU003-05698	ZN6..RHD..BASE DESTINATION CODE=KA	10/2017 - 03/2018	1
SU003-05698	ZN6..RHD..BASE DESTINATION CODE=K8	10/2017 - 03/2018	1
SU003-05698	ZN6..RHD..BASE DESTINATION CODE=KY	10/2017 - 03/2018	1

ILLUST NO.12 OF16(1608- )

Click highlighted areas on diagram

ROOF

Part #	Description	Period	Qty	Price

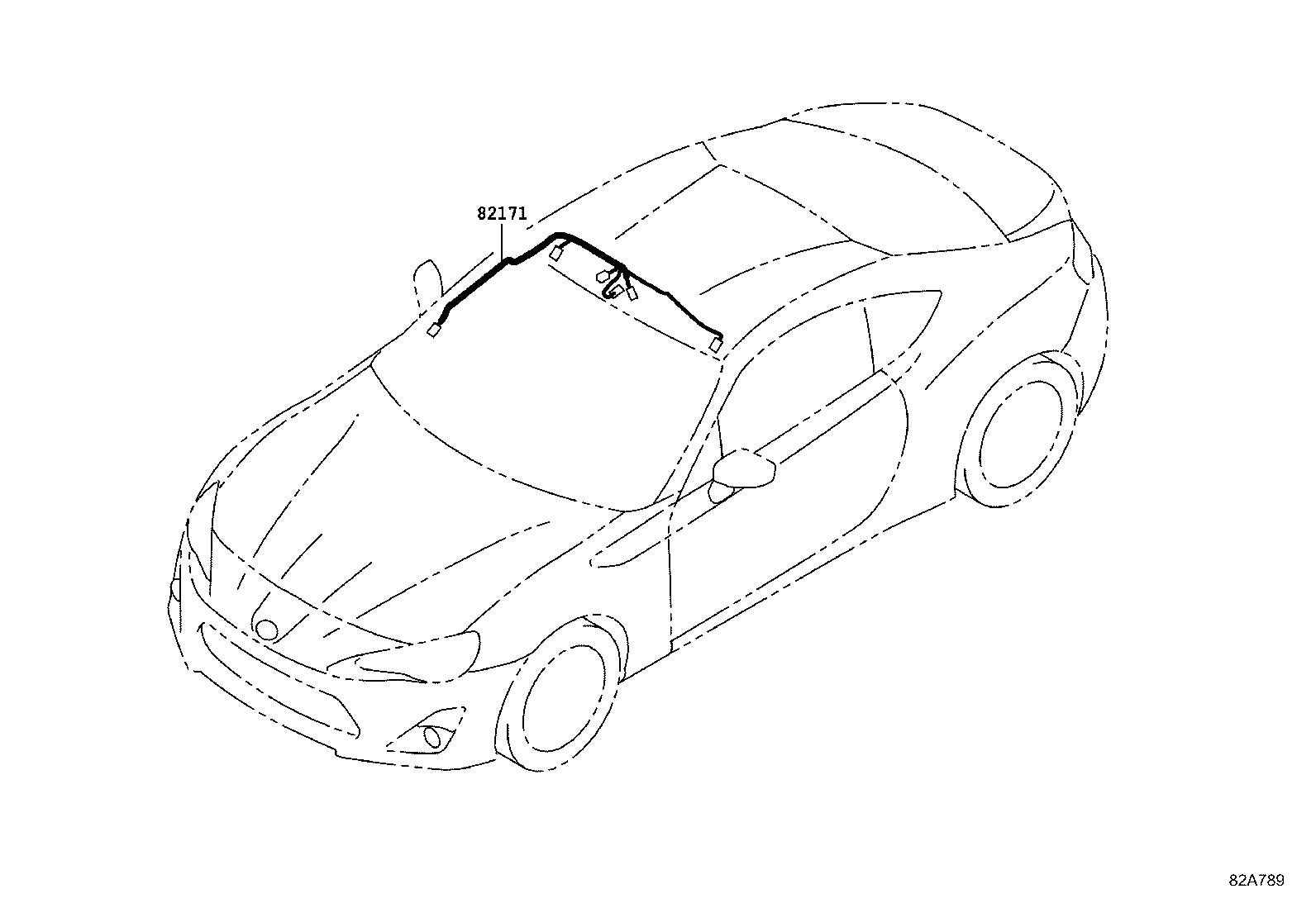

82171 - WIRE, ROOF, NO.1
SU003-02364	ZN6..BASE	10/2017 - 03/2018	1

Part #

Description

Qty

Price

82171 - WIRE, ROOF, NO.1

SU003-02364

ZN6..BASE

ILLUST NO.13 OF16(1608- )

Click highlighted areas on diagram

FLOOR

Part #	Description	Period	Qty

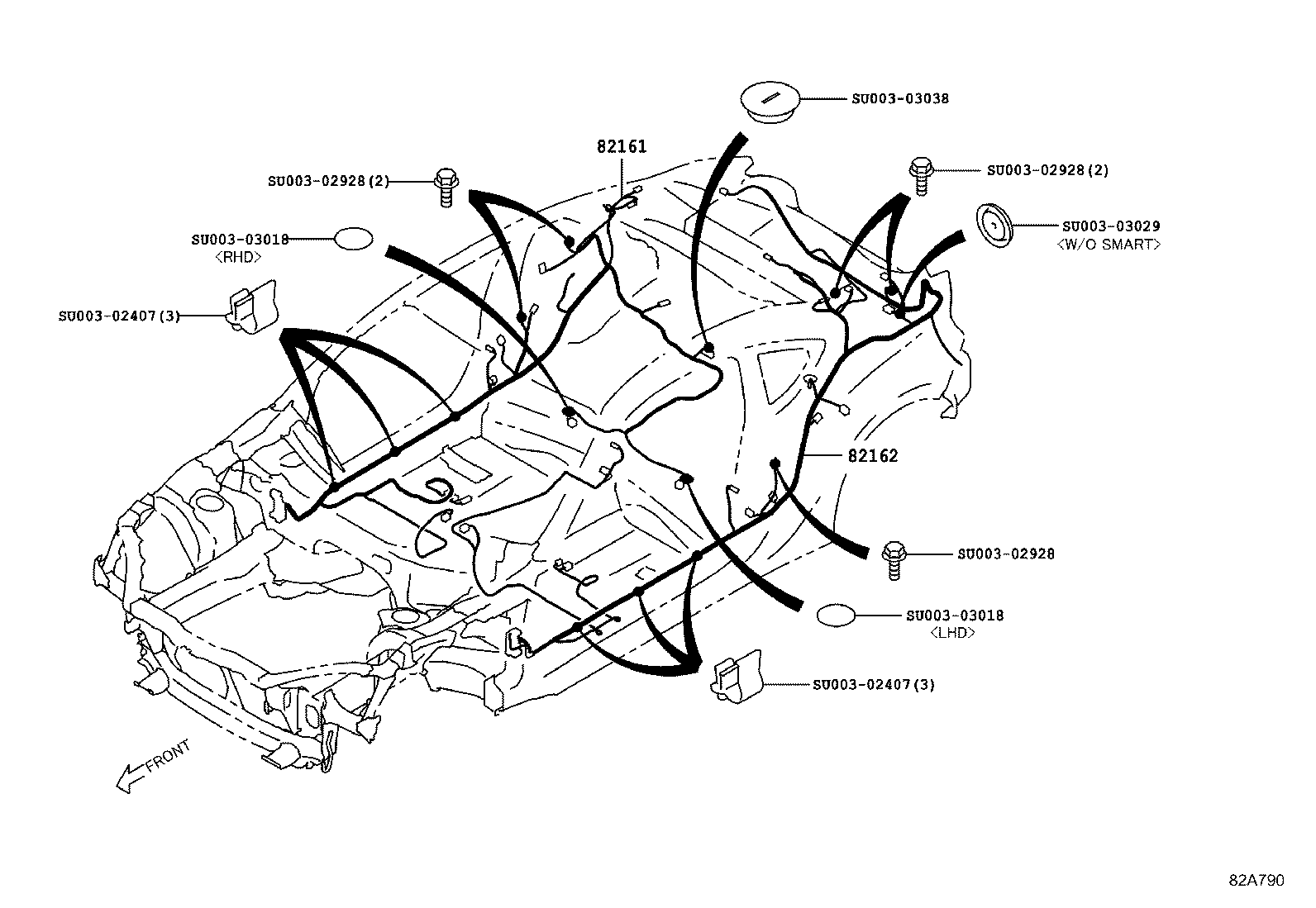

82161 - WIRE, FLOOR
SU003-06929	ZN6..RHD..BASE DESTINATION CODE=EK	10/2017 - 03/2018	1
SU003-06929	ZN6..RHD..BASE DESTINATION CODE=ER	10/2017 - 03/2018	1
SU003-06930	ZN6..RHD..BASE DESTINATION CODE=KA	10/2017 - 03/2018	1
SU003-06930	ZN6..RHD..BASE DESTINATION CODE=EN	10/2017 - 03/2018	1
SU003-06930	ZN6..RHD..BASE DESTINATION CODE=K8	10/2017 - 03/2018	1
SU003-06930	ZN6..RHD..BASE DESTINATION CODE=KC	10/2017 - 03/2018	1
SU003-06930	ZN6..RHD..BASE DESTINATION CODE=KY	10/2017 - 03/2018	1
82162 - WIRE, FLOOR, NO.2
SU003-06937	ZN6..RHD..BASE DESTINATION CODE=EN	10/2017 - 03/2018	1
SU003-06937	ZN6..RHD..BASE DESTINATION CODE=K8	10/2017 - 03/2018	1
SU003-06937	ZN6..RHD..BASE DESTINATION CODE=KA	10/2017 - 03/2018	1
SU003-06937	ZN6..RHD..BASE DESTINATION CODE=KC	10/2017 - 03/2018	1
SU003-06937	ZN6..RHD..BASE DESTINATION CODE=KY	10/2017 - 03/2018	1
SU003-06940	ZN6..RHD..BASE DESTINATION CODE=EK	10/2017 - 03/2018	1
SU003-06940	ZN6..RHD..BASE DESTINATION CODE=ER	10/2017 - 03/2018	1
Common parts
SU003-02407
SU003-02928
SU003-03018
SU003-03029
SU003-03038

ILLUST NO.14 OF16(1608- )

Click highlighted areas on diagram

LAGGAGE

Part #	Description	Period	Qty

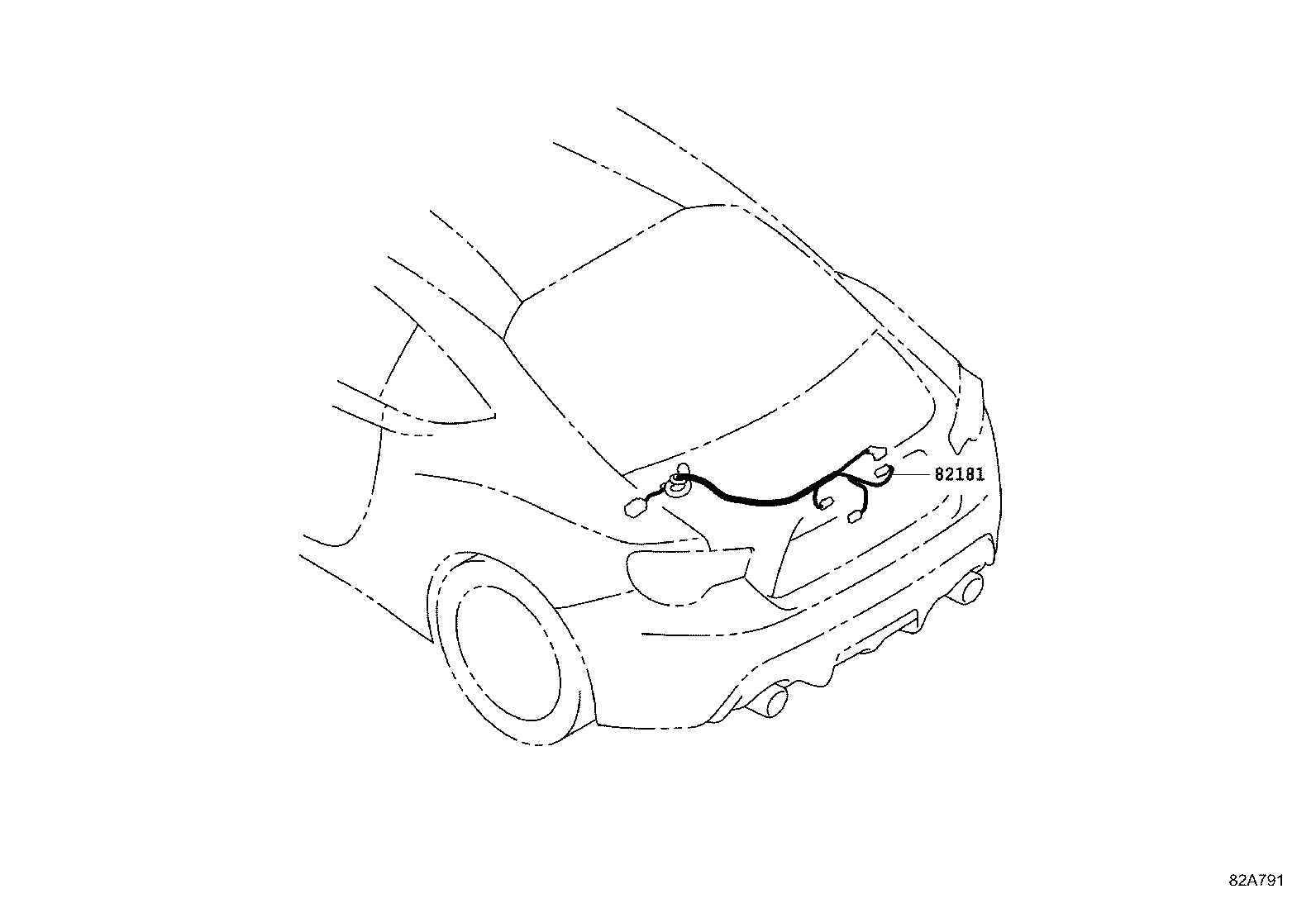

82181 - WIRE, LUGGAGE ROOM, NO.1
SU003-02367	ZN6..RHD..BASE DESTINATION CODE=K8	10/2017 - 03/2018	1
SU003-02367	ZN6..RHD..BASE DESTINATION CODE=KY	10/2017 - 03/2018	1
SU003-02369	ZN6..RHD..BASE DESTINATION CODE=EK	10/2017 - 03/2018	1
SU003-02367	ZN6..RHD..BASE DESTINATION CODE=EN	10/2017 - 03/2018	1
SU003-02369	ZN6..RHD..BASE DESTINATION CODE=ER	10/2017 - 03/2018	1
SU003-02367	ZN6..RHD..BASE DESTINATION CODE=KA	10/2017 - 03/2018	1
SU003-02367	ZN6..RHD..BASE DESTINATION CODE=KC	10/2017 - 03/2018	1

ILLUST NO.15 OF16(1608- )

Click highlighted areas on diagram

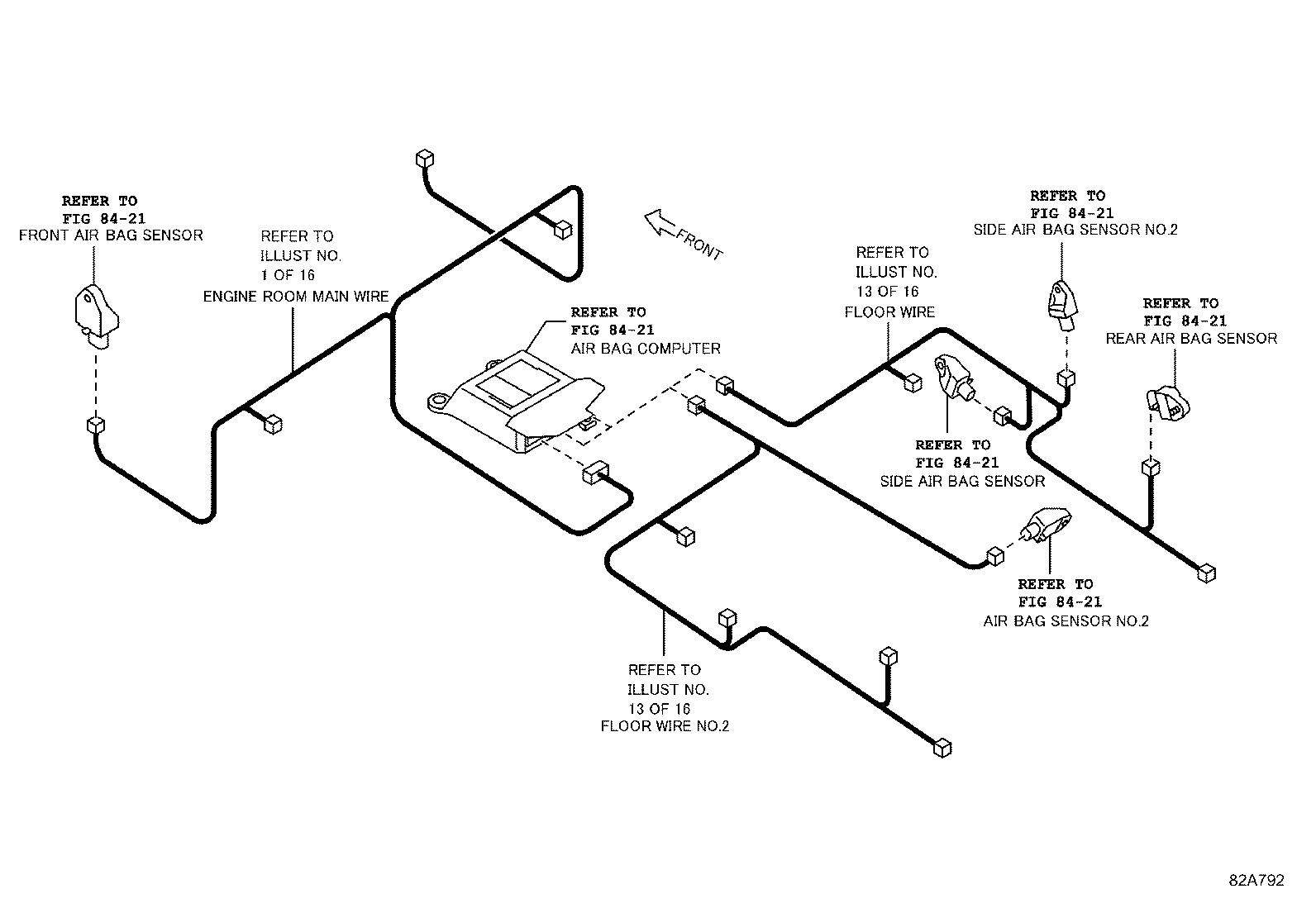

AIR BAG

Part #	Description	Period	Qty	Price
Linked diagrams
8421

ILLUST NO.16 OF16(1608- )

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
SU003-02405	ZN6	10/2017 - 03/2018	1
82001C - CABLE, BOND, NO.2
SU003-02404	ZN6	10/2017 - 03/2018	1
Common parts
SU003-02794
SU003-02928
Linked diagrams
5305

ILLUST NO. 6 OF16(1608- )6F

Click highlighted areas on diagram

ENGINE 3/3

Part #	Description	Period	Qty
82219A - WIRE, SENSOR
SU003-00518	ZN6	10/2017 - 03/2018	1
Linked diagrams
1104
1701
1708
8401
8404
