ZN6FK-B8 (2017)

Toyota 86

Production Oct 2017 - Apr 2018
Engine FA20
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )ZN6EK,6FK,6GK,6HK

Click highlighted areas on diagram

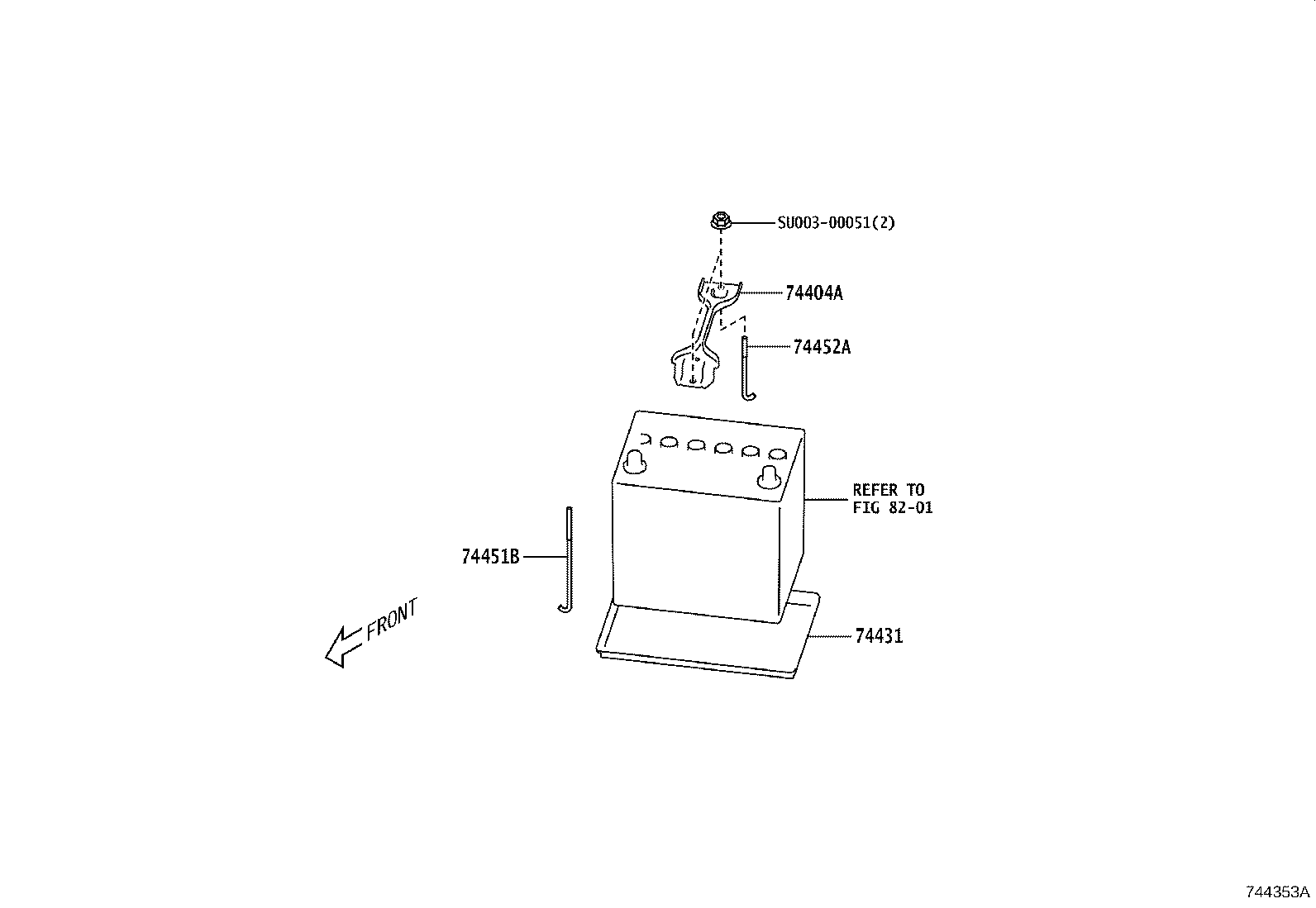

diagram 74404A 74431 74451B 74452A 8201 SU00300051
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
SU003-02417

ZN6

 1
74431 - TRAY, BATTERY
SU003-02411

ZN6

 1
74451B - BOLT, BATTERY CLAMP
SU003-04626

ZN6

 1
74452A - BOLT, BATTERY CLAMP, NO.2
SU003-02416

ZN6

 1
Common parts
SU003-00051
Linked diagrams
8201
